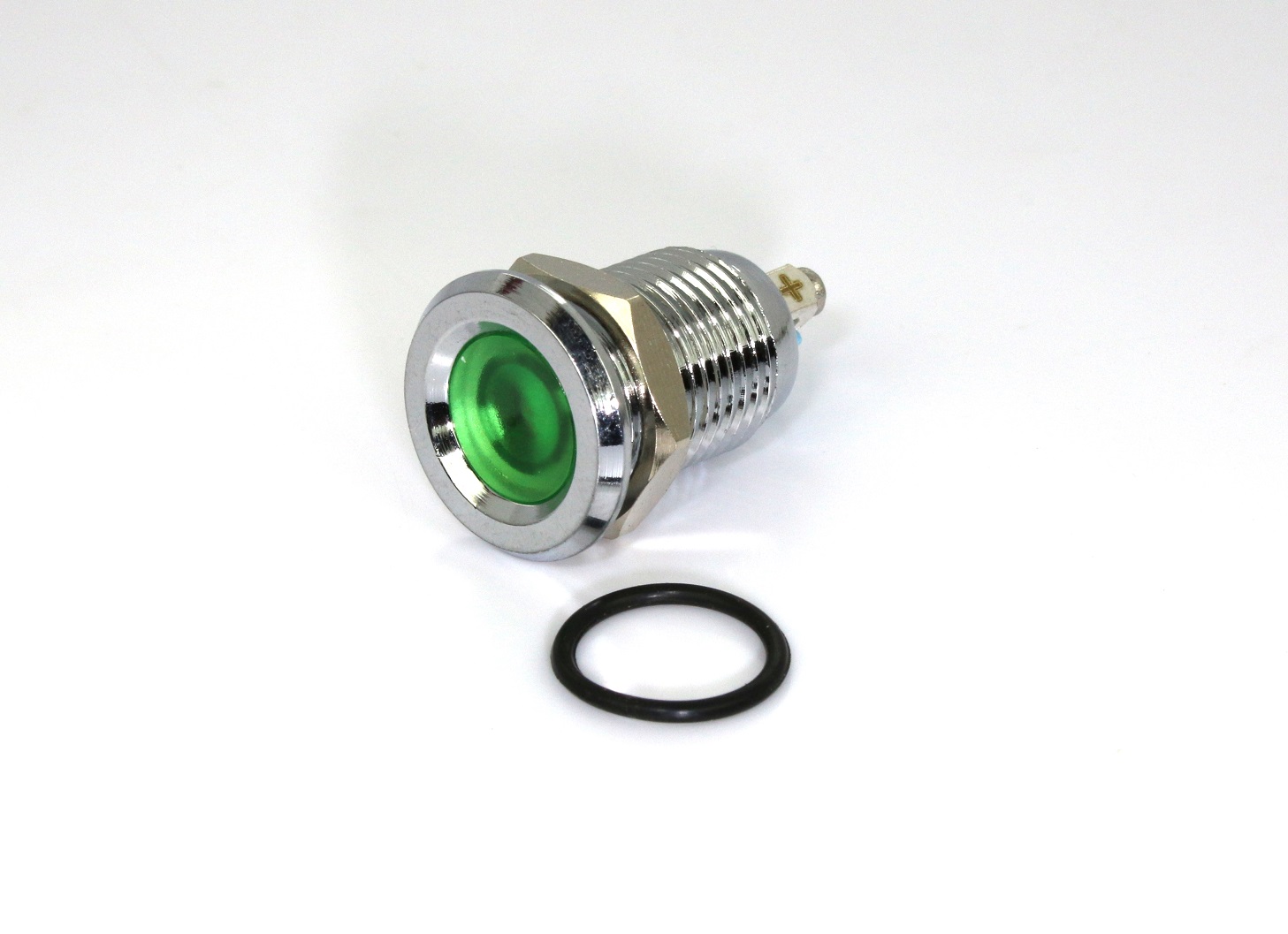

12mm LED Panel Lights - Retrofit Screw Terminals or Pigtail

• Compact LED indicator / warning / panel light
• All-metal, stainless steel design
• 12mm (7/16") diameter width (at threads)
• 9/16 width at bezel
• Power: DC 12V
• Mulitiple color options (White, Red, Green, Blue, Yellow)
• Daylight readable brightness
• Supplied with rubber o-ring
• IP67 rated

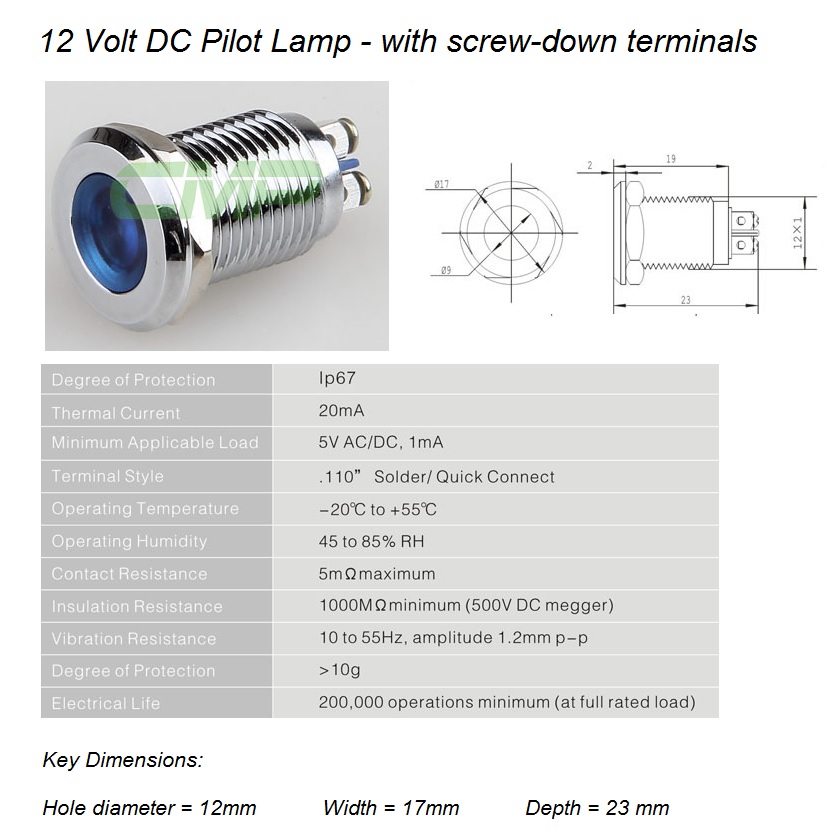

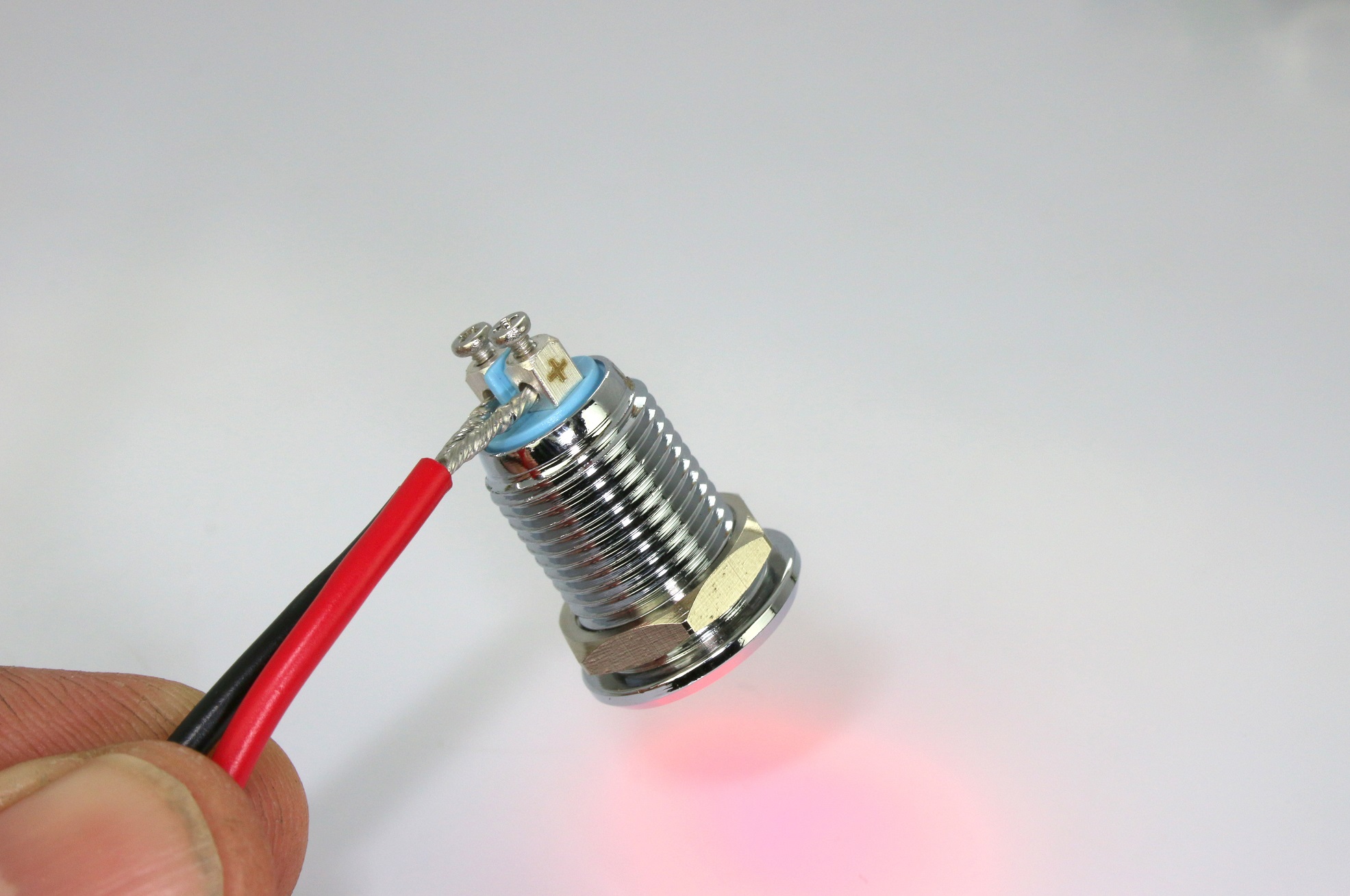

• Unique screw-down terminals for easy installation (terminals are laser etched with "+" and "-" marks (M1.6 x 3mm screws)

This stainless steel, 12VDC panel light is designed for easy installation.  Using screw-down terminals, the panel light makes it easy to replace older, incandescent fixtures.

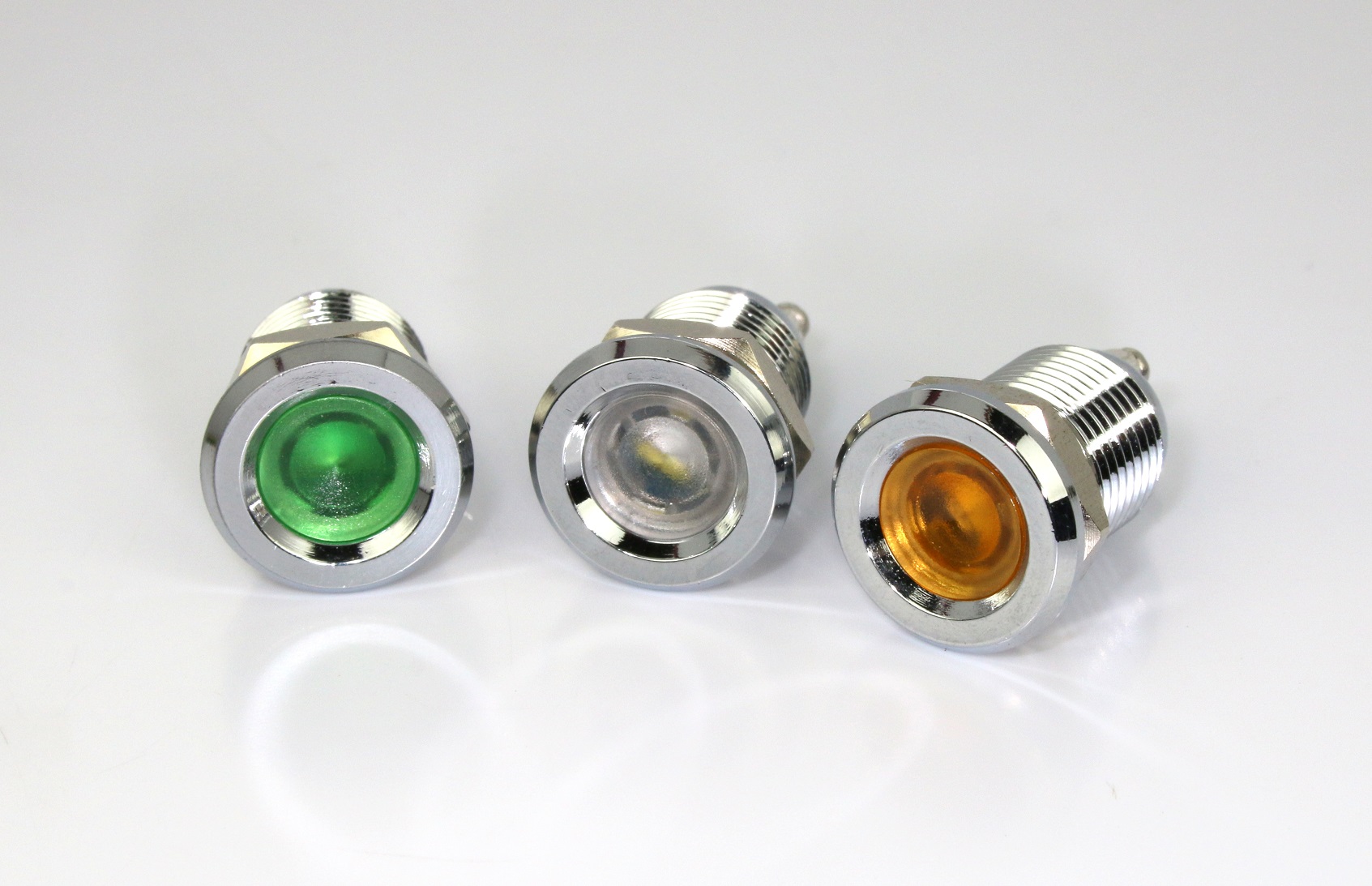

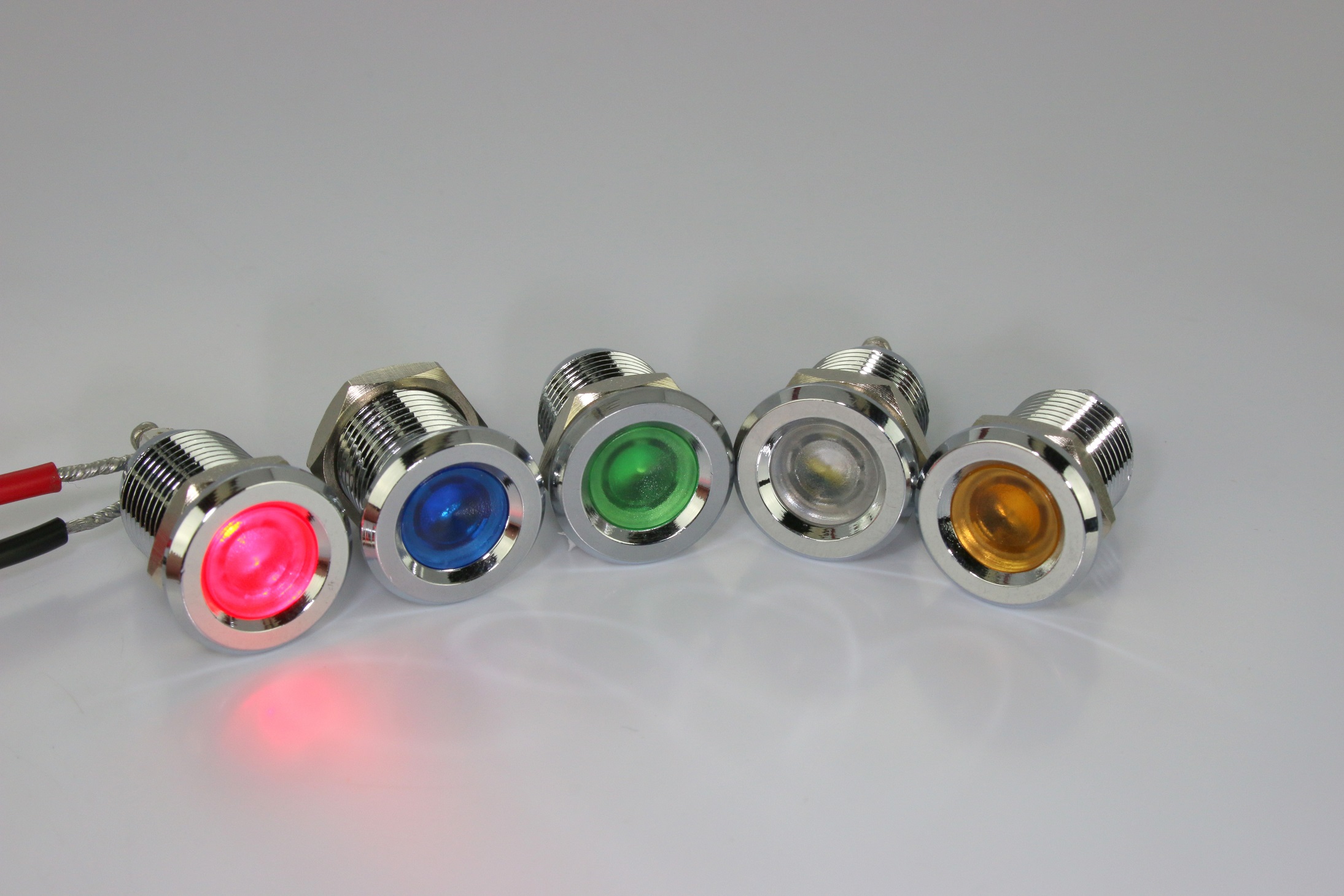

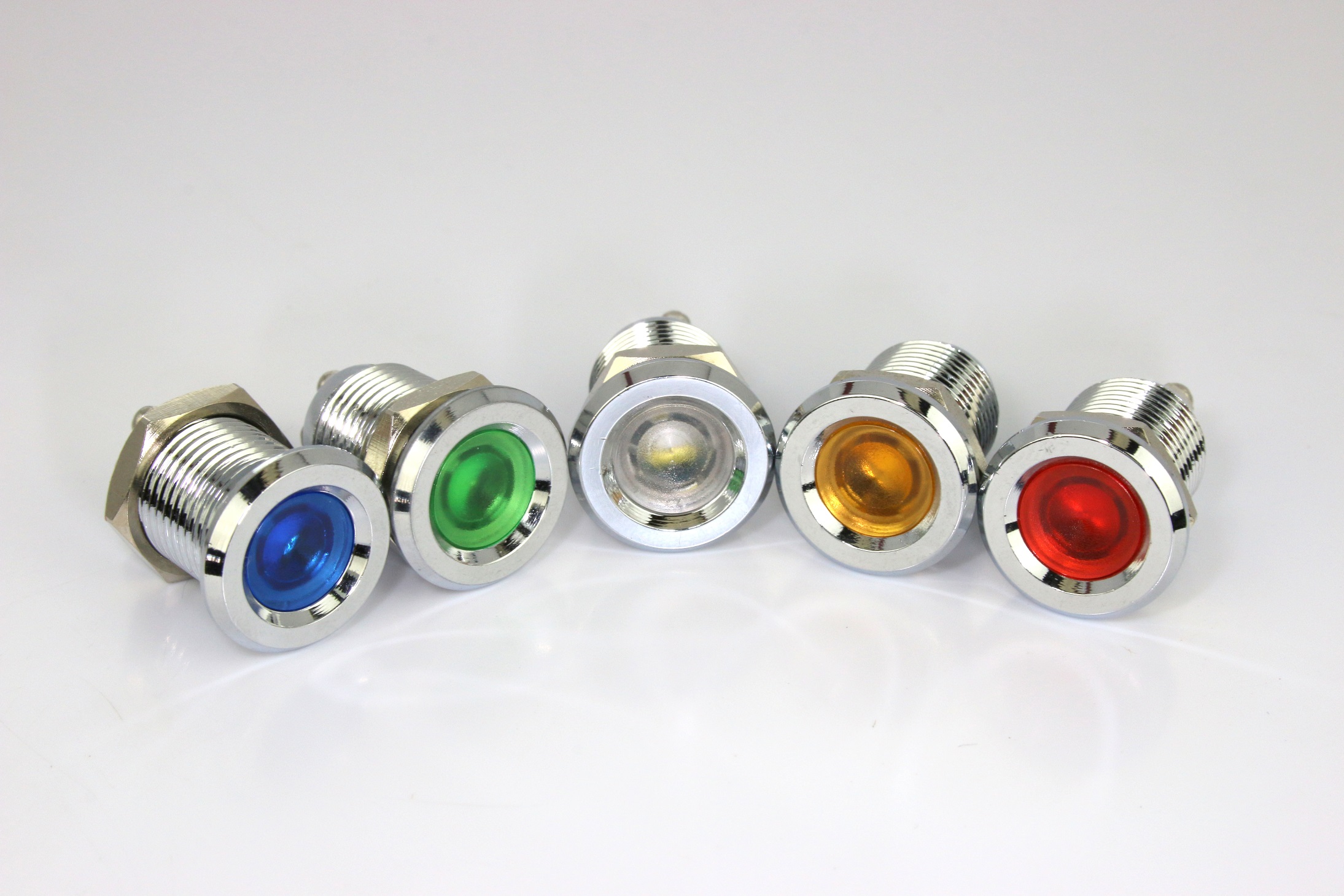

Color options:  White, Red, Green, Blue and Yellow LED

Daylight readable LEDs

Supplied with a rubber o-ring for installation.

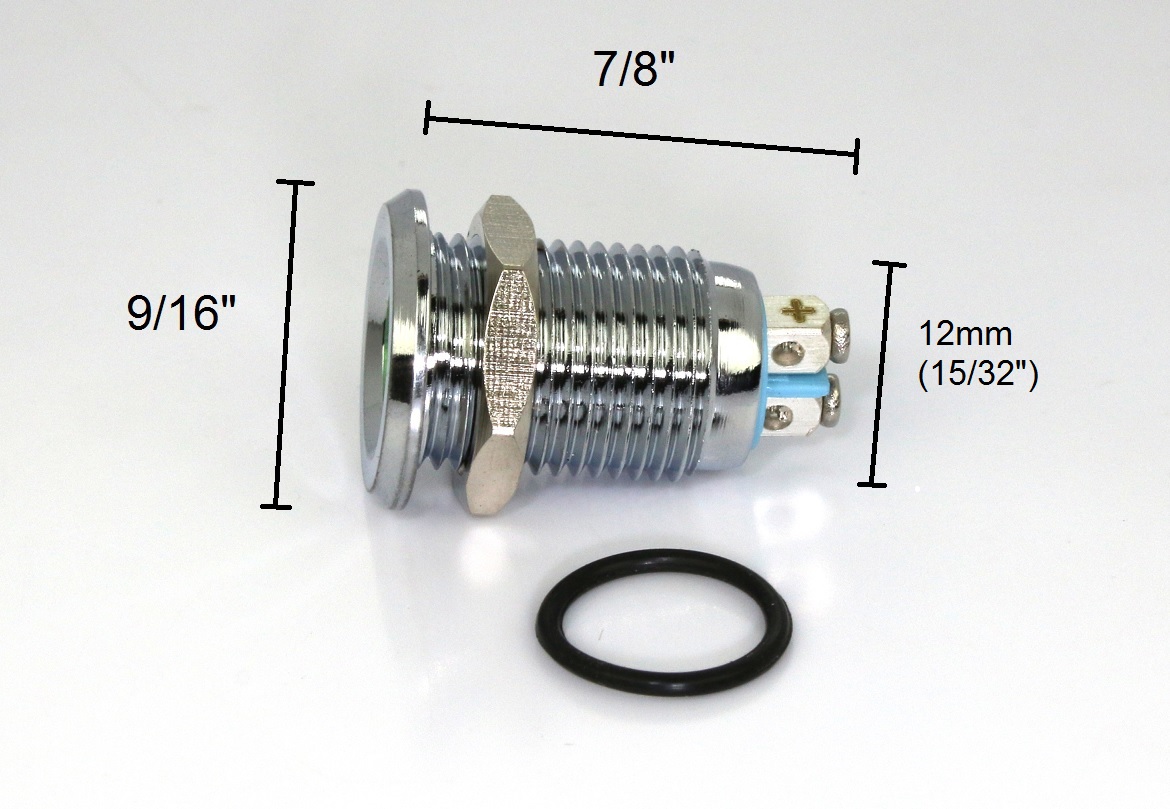

Dimensions:  12mm thread diameter.  Depth of lamp is 7/8".  Width at top bezel is 9/16".  Thread length permits installation in panels up to 3/8"

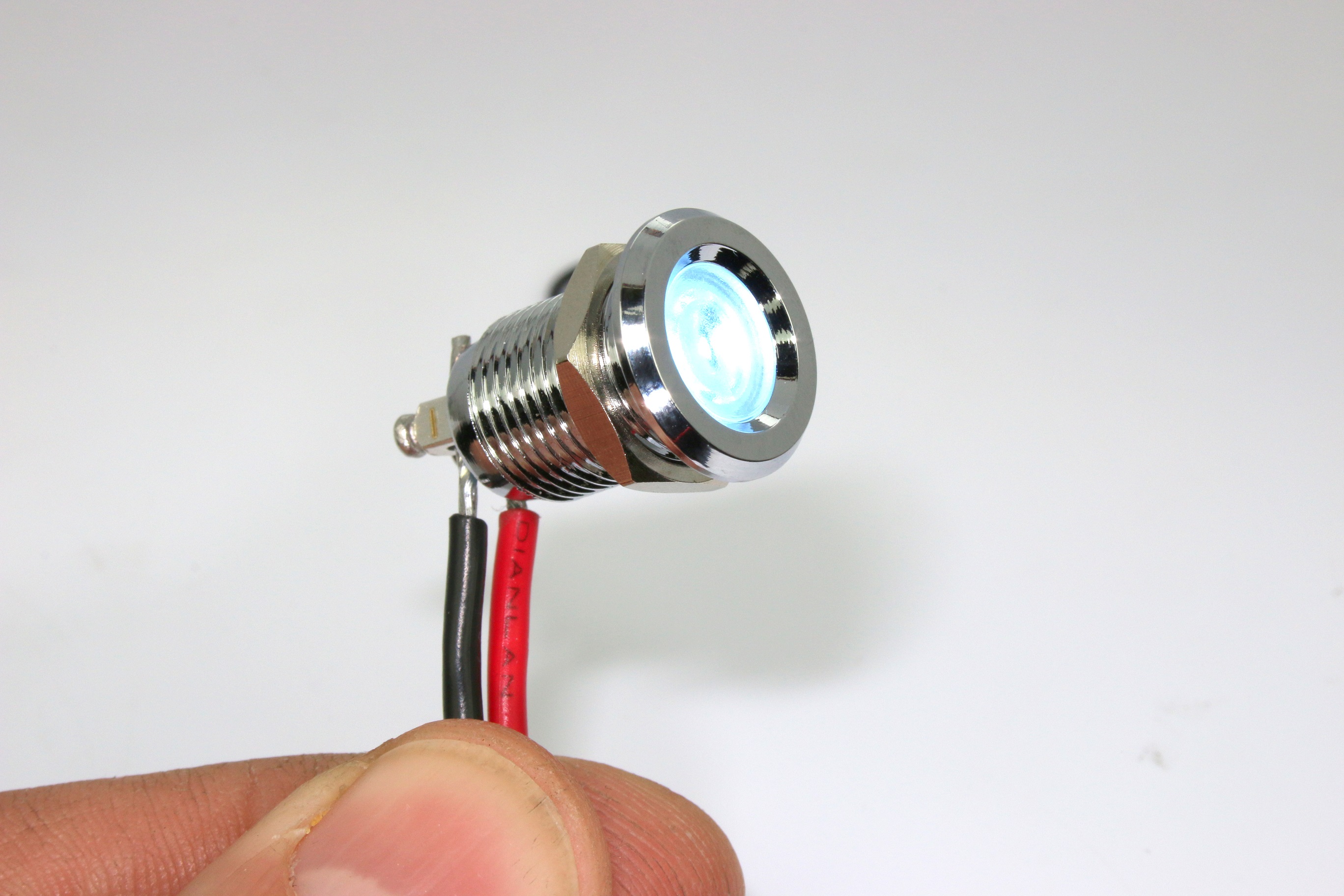

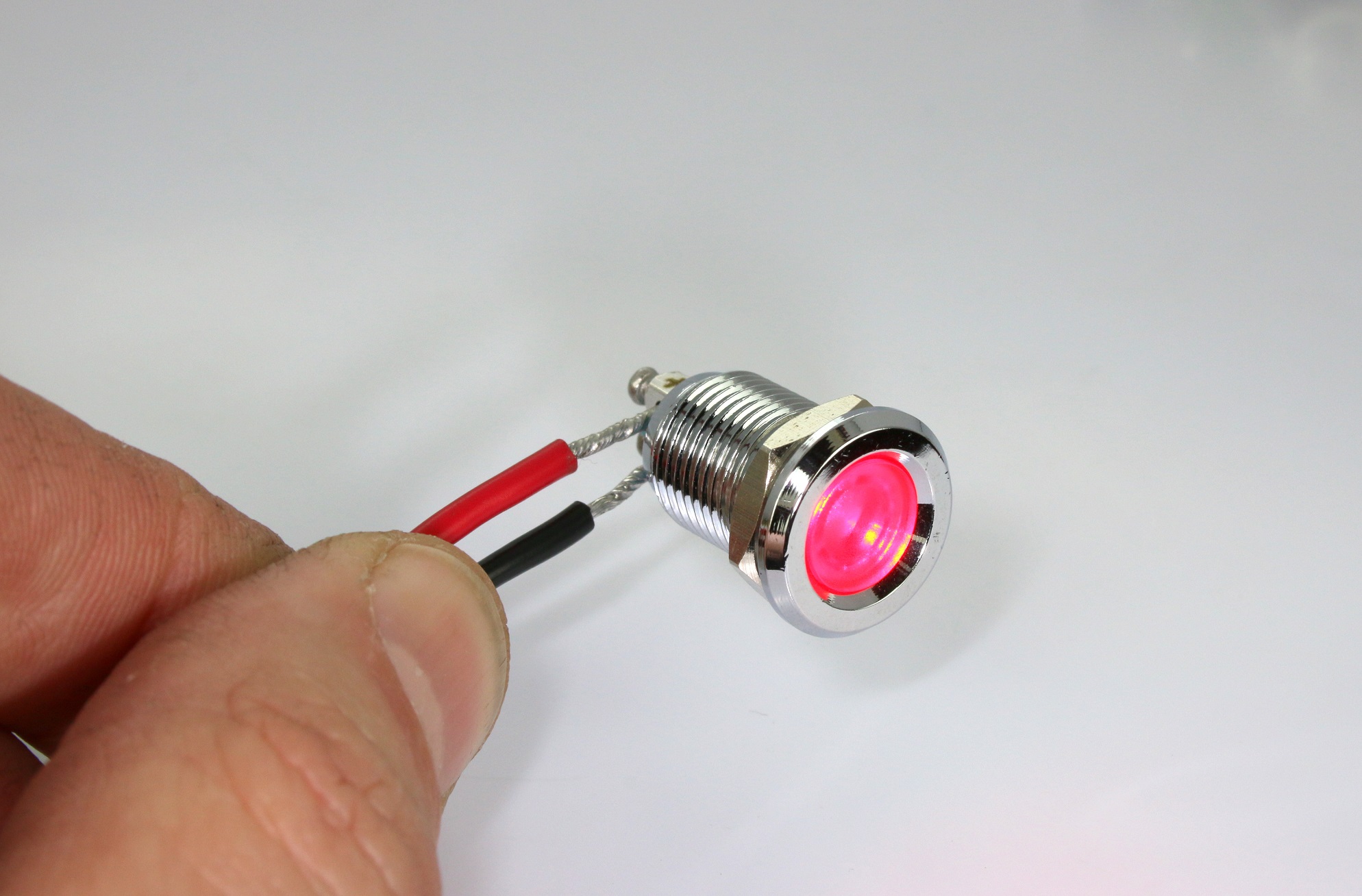

OPTION:  Add a pre-wired, color-coded pigtail for $2 (this option replaces screw-down terminals with a 6" pigtail).  Select this option when ordering
