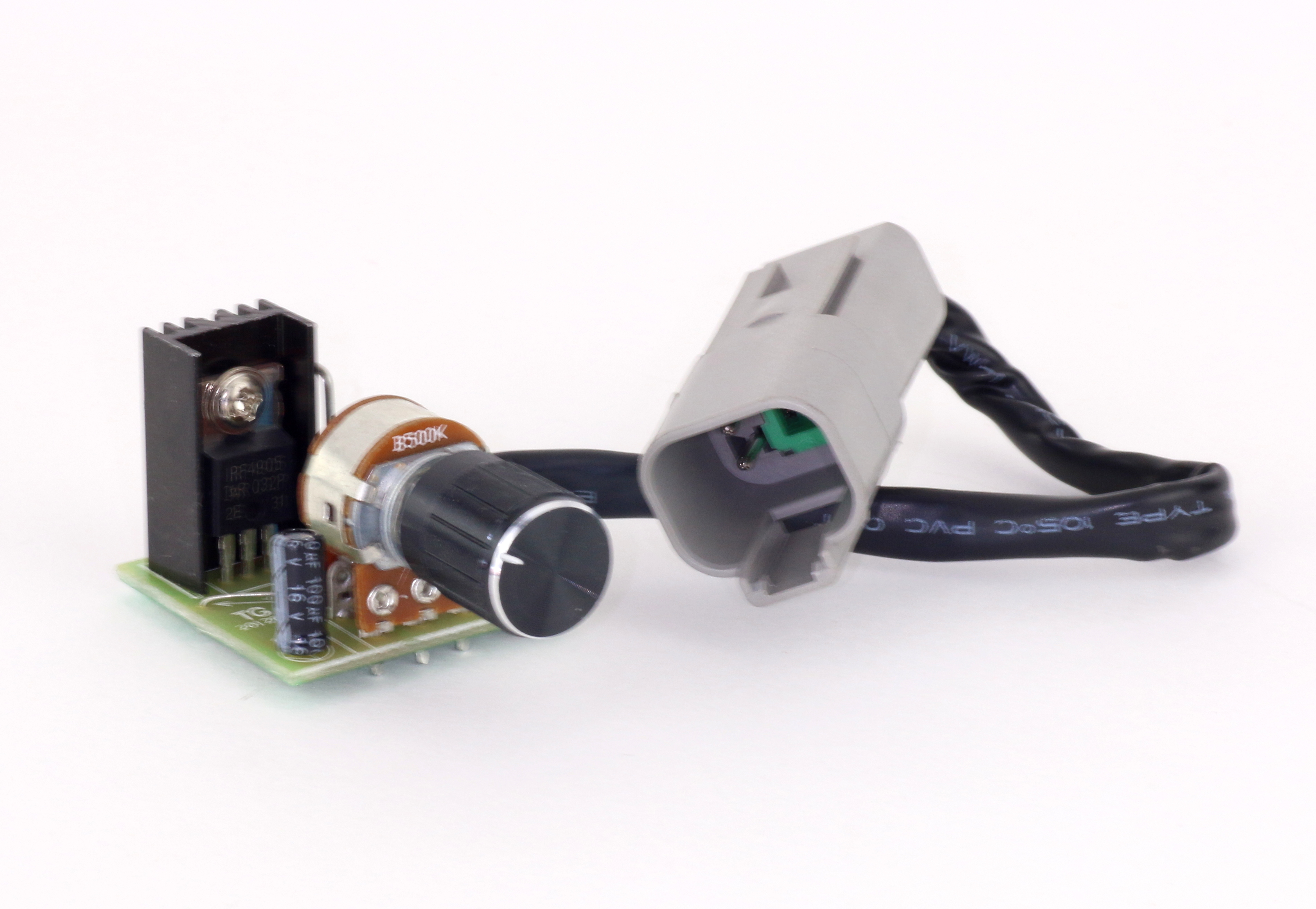

24 Volt PWM Dimmer - 7A Capacity - Deutsch Connector

This new version of our popular 24 VDC PWM dimmer replaces the screw-down terminals with a Deutsch connector.

More commonly used in industrial applications where the dimmer integrates into wiring harnesses, the high-quality connector is fully waterproof and ensures a positive locking connection to the harness.

The DT-04-4P connector (supplied) is a common, 4-conductor polarized plug.

Same electrical specifications as the 24VDimmer01-7A, the product incorporates reverse polarity and over-current protection into the compact design.

The PCB is conformal coated to ensure electrical insulation and the high-quality, all-metal knob permits installation in panel depths up to 5 or 6mm.

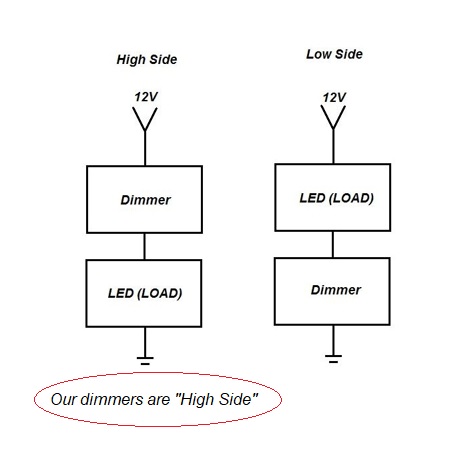

"High side" dimmer - connects between your power source and the LED / Incandescent load.

See all specifications on the downloadable PDF file

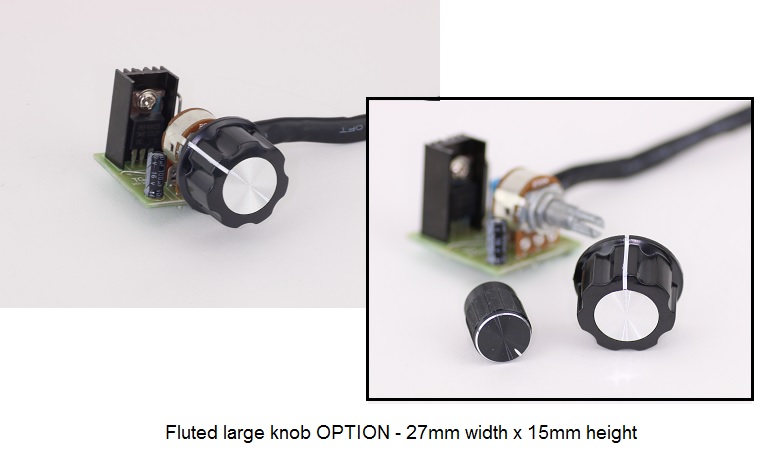

Add the optional larger knob for an additional $5.50. Knob attaches with a set-screw and mates well to the dimmer shaft diameter.

Part number: 24VDimmer01-7A-PT
(note: this part bears multiple manufacturing series numbers, including 24VDimmer01-7A-PT3 and 24VDimmer01-7A-PT4)
