4 Channel Remote Dimmer - 12-14VDC

Technical Overview:

4-channel PWM dimmer
7A per channel
Reverse polarity and over-current protection

Product Features:

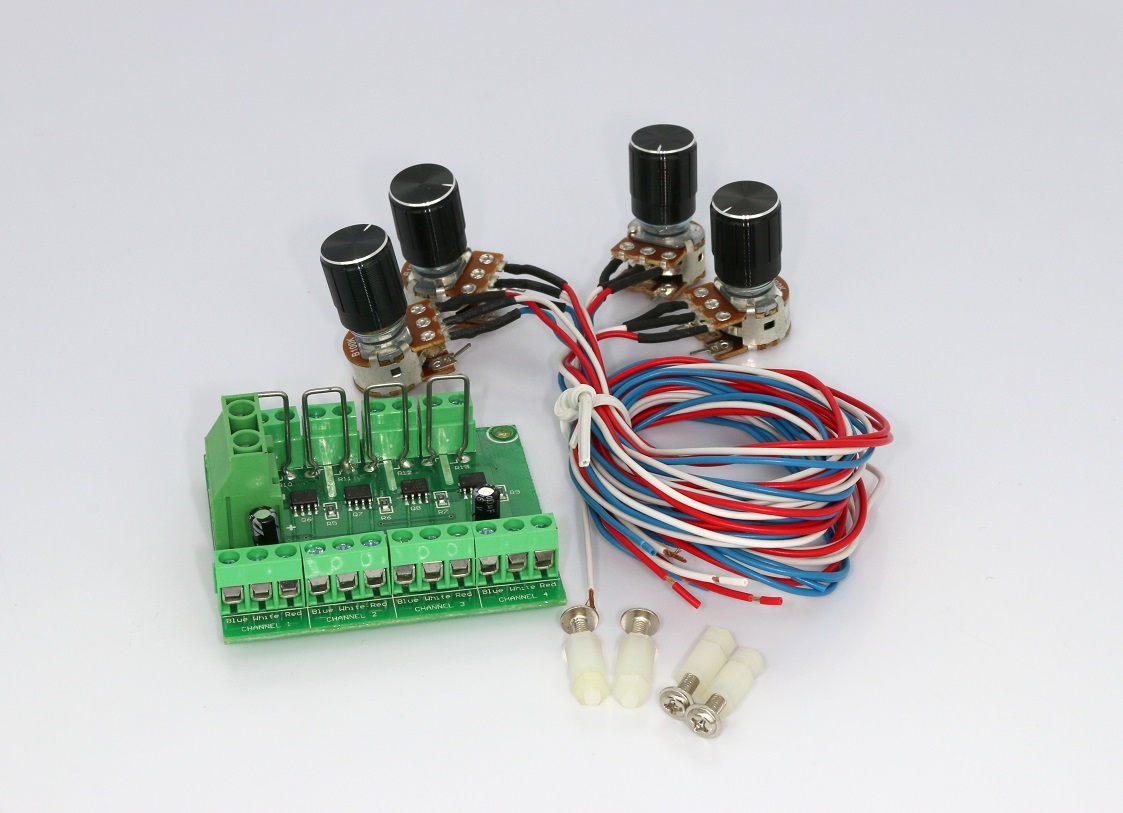

Designed for remote installation, this 4-Channel PWM (pulse wave modulation) dimmer allows you to control 4 different channels of lighting by using 4 different remotely located rheostats. Each channel is independently controlled and can operate up to 7A of LED or incandescent lighting. Rheostats control each channel from 0 to 100% of rated output. Unlike our single and 2-channel units, each rheostat does not contain an on/off switch as it's not needed to fully deactivate any channel.

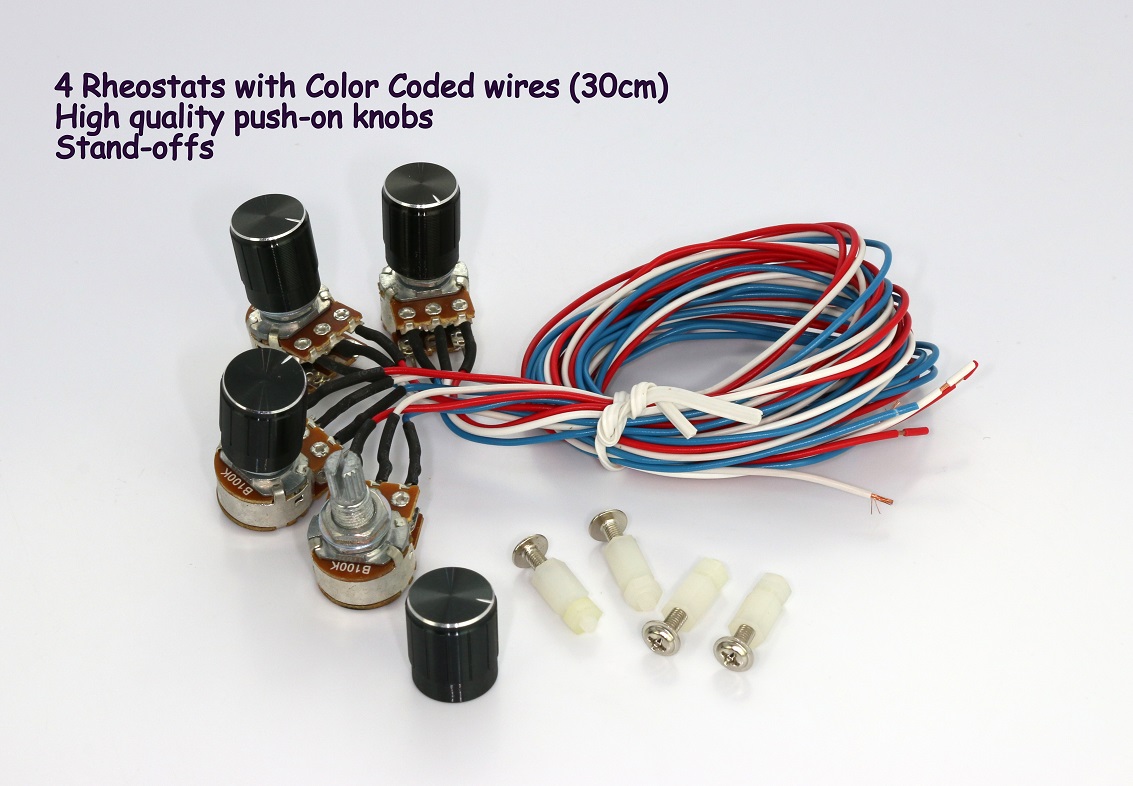

Rheostats are of an all-metal design with 12mm of thread depth of mounting through a variety of thick panel material. Supplied with 30cm of wire per rheostat, rheostats can be located at any reasonable distance from the remote dimmer main circuit board.

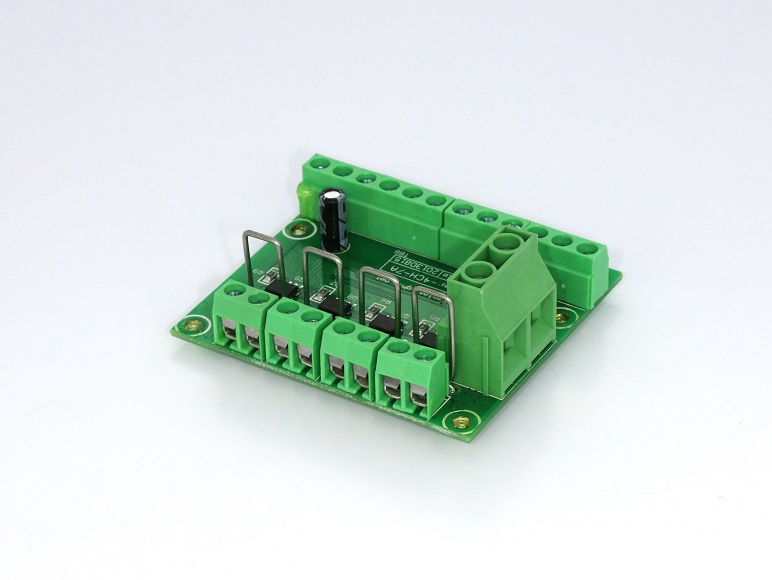

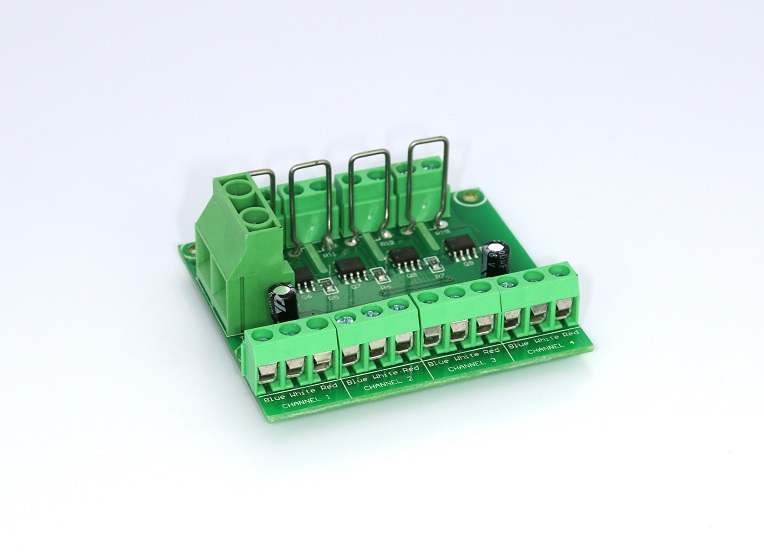

The main circuit board contains connections for each of the 4-channels of output, 3-wire-per rheostat (color coded) connections for each rheostat and a 12-14V Positive (+) and Negative (-) ground connections. Fully assembled and tested. Extremely easy to wire and operate.

Edge mounted holes permit the use of stand-offs (included) and hardware for permanent mounting of the main circuit board.

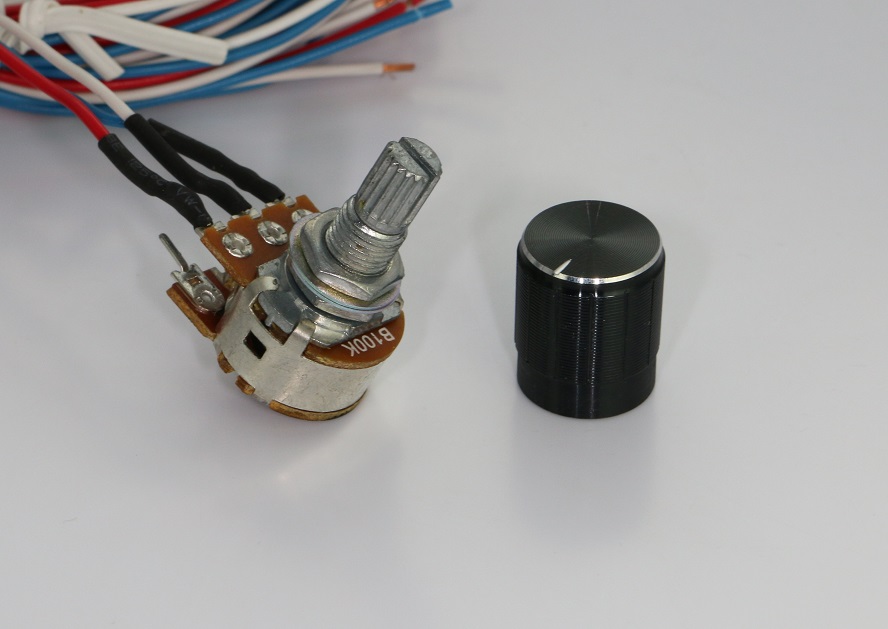

Rheostats use high-quality push-on knobs (included). Rheostat shaft diameter is 17/64". Rheostat value is 100K.

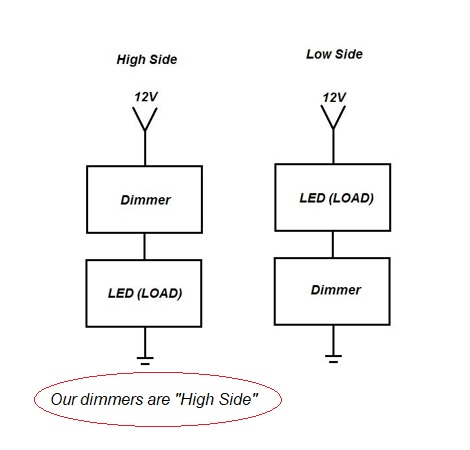

"High side" dimmer - connects between your power source and the LED / Incandescent load.

Wiring and instruction manual available below

Part number: 12VDIMMER-4CH-7A
