BA9S BAYONET-TYPE BULB - High Output SUPER BRIGHT

Our brightest, lowest cost BA9S base (miniature bayonet base) LED bulb

• Available in:  12V or 24V versions;  Cool White, Red and Green LED colors

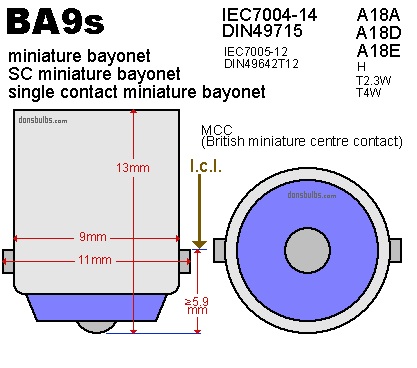

• Base diameter is the standard 9mm.
• Dome width is 11.5mm (see images).  Full bulb length is 28mm
• Glass covered dome
• TH3 LED element
• Dimmable
• Average life:  30,000 hours
• Output:  70 lumens (white);  1 Watt;  120 degree angle

An excellent choice when replacing incandescent LED lamps, this BA9S-TH3-Series bulb provides a very bright 70 lumen output with super low power consumption.  Dimmable when using PWM electronic dimmers (see our dimmers) or when using a standard rheostat dimmer (note that high brightness LEDs have a minimum operating voltage so dimming is effective down to about 40% of output only).  Available in Cool White, Red and Green LED (12 or 24V).  Excellent for instrument panel illumination.

Common Compatibility (GE and other model numbers):  51, 1896, 586,1889, 64115, 1895, 6253, 182, 1445, 1495, 756, 17053, 64113, 3893, 1893, 363, 216, 1816, 64111, 3886X, 1892, 1815, 53X, 57, 1891, 53, 293, 1895A, 57LL, 53LL, 1445LL, 1895LL, 1893LL, 3893LL, 1891LL, 1816LL.  Perfect replacement for the common GE1495

Note:  this bulb has a larger dome than conventional BA9s bulbs.  Ensure your application will accept the slightly larger size.

SKU:  BA9S-TH3-Series
