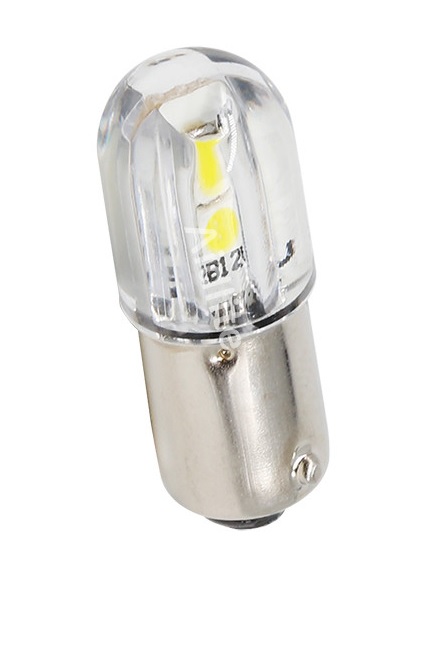

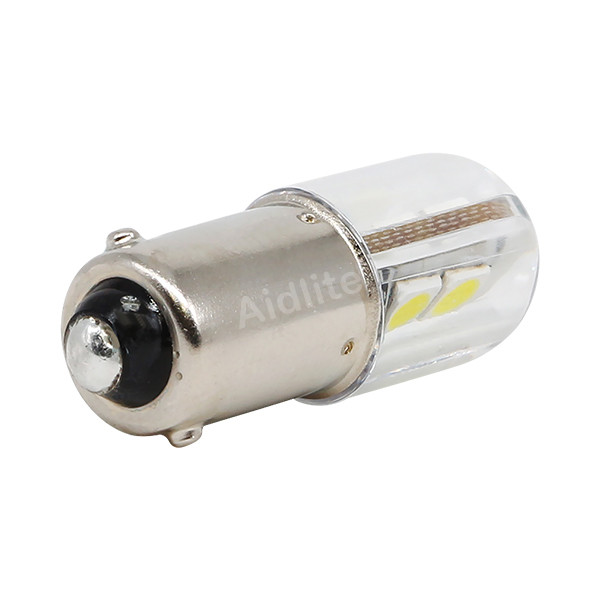

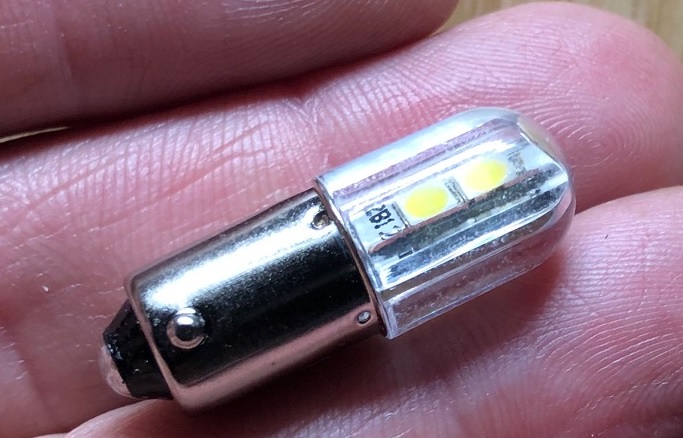

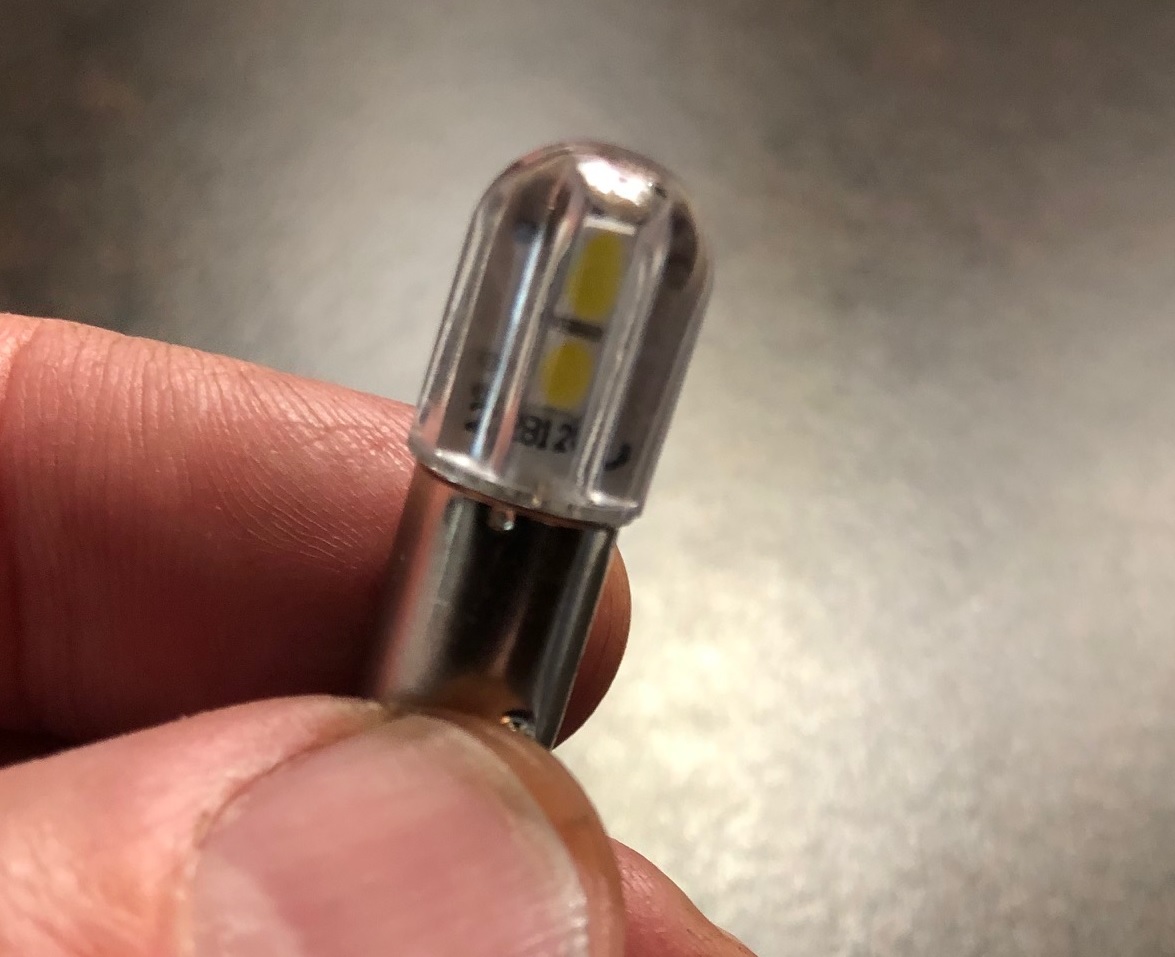

BA9S BAYONET-TYPE BULB - SIDE EMITTER- 12V, 24V SUPER BRIGHT

This bright BA9s bulb is an ideal replacement for most incandescent bulb applications.

Specifically designed to focus its light perpendicular to the base, this side-emitter bulb works great in a variety of marine, auto, RV and aircraft applications.

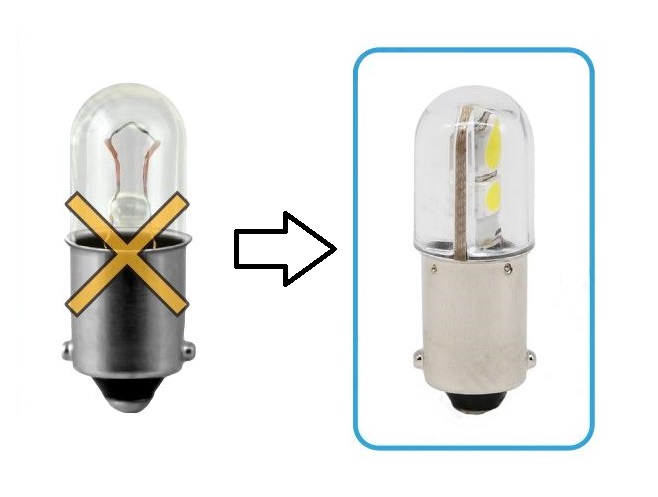

We use these in instrument panel illumination projects where the side-emitting LED is a perfect replacement for the dimming incandescent bulb.

Side emitting bulbs are sometimes called "tower lighting" effect bulbs.

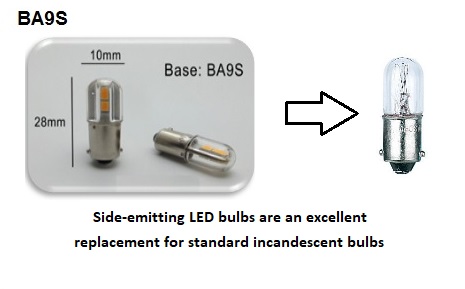

Fits in a standard BA9s base.  Size is 10x28mm.

4 pcs of SMD3030 LED.  0.6W power consumption

Slim profile makes this ideal for most BA9s applications

Available in Cool White (5500K), both 14V and 28V.  Additional colors available soon.

Output:  60 lumens (white);  360 degree angle

Current draw:  Just 30mA (0.03A) at 24VDC   (60mA at 12VDC)

Acrylic dome fully protects the LEDs inside.

Available in:  cool white, warm white, Red LED.  12V and 24V (not all colors available in all voltages)

Common Compatibility (GE and other model numbers):  51, 1896, 586,1889, 64115, 1895, 6253, 182, 1445, 756, 17053, 64113, 3893, 1893, 363, 216, 1816, 64111, 3886X, 1892, 1815, 53X, 57, 1891, 53, 293, 1895A, 57LL, 53LL, 1445LL, 1895LL, 1893LL, 3893LL, 1891LL, 1816LL, 1495, GE313, GE 313, 998502-13, GE1816, 1820

SKU:  BA9S-Side-Emitter-series
