EYEBALL LED DOME LIGHT - 2.75" DIAMETER. HIGH-POWERED BA15S

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Tue, 10/25/2016 - 13:53
$37.95

This eyeball fixture features a fully articulating eyeball with a large 1 1/4" lens that pivots about 15 degrees off-center.

2 3/4" diameter at the flange.  Mounts in thinner panels (3mm) using spring lock tabs or may be installed in thicker panels (up to 7/8") if using a semi-permanent adhesive (like "goop").



Powered by a BA15S bulb, this fixture can be equipped with a variety of different intensity and colored LED bulbs.  Packaged with a 8" color coded harness.  Options include:

A.  Standard output, 1 Watt CREE, cool white LED - 10-30VDC

B.  2.8W High Output.  Cool white LED.  10-30V

C.  2.8W High Output.  Red LED.  10-30V

Other colors and voltages available by special order.



Details:

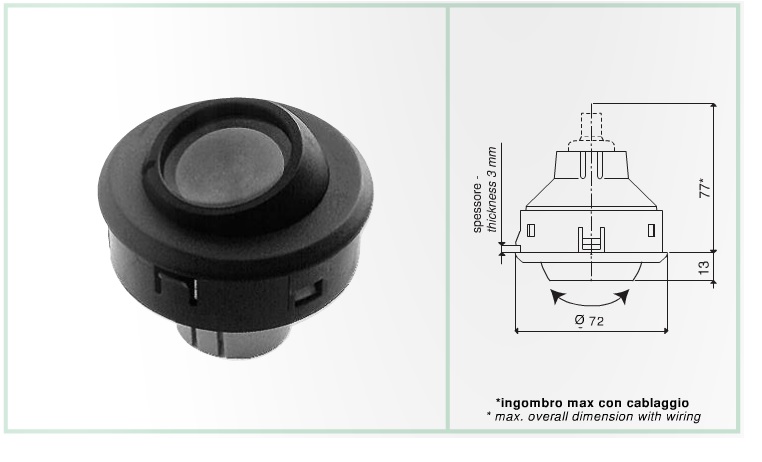

  • Flange diameter:  2 3/4"
  • Hole size (70mm) - 2 5/8"
  • Panel thickness:  3mm (clip-in mount) or up to 7/8" if using adhesive mounting
  • Lamp depth:  About 2.6"
  • 1.25" glass lens focuses light beam
  • Internal LED bulbs are dimmable when using PWM Dimmers
  • Made in Italy

Note:  this fixture is the same size as our Standard output (BA9S-powered) eyeball fixture (Prima-161) but uses higher-powered bulbs and has a larger glass lens.  Overall output is 2 to 3 times brighter (with the 2.8W bulb).  Due to the larger bulb used, this lamp requires additional depth behind the panel for installation.



List price: $39.95
Catalog:
Dome Lights
Eye Ball and Down Lights
Related Products:
Compact Overhead EyeBall Lamp with On/Off Switch
Eyeball LED Dome Light - 2.75" Diameter. BA9S-powered
Price: $37.95
Weight: 8 oz
Dimensions: 3 in × 3 in × 3 in
