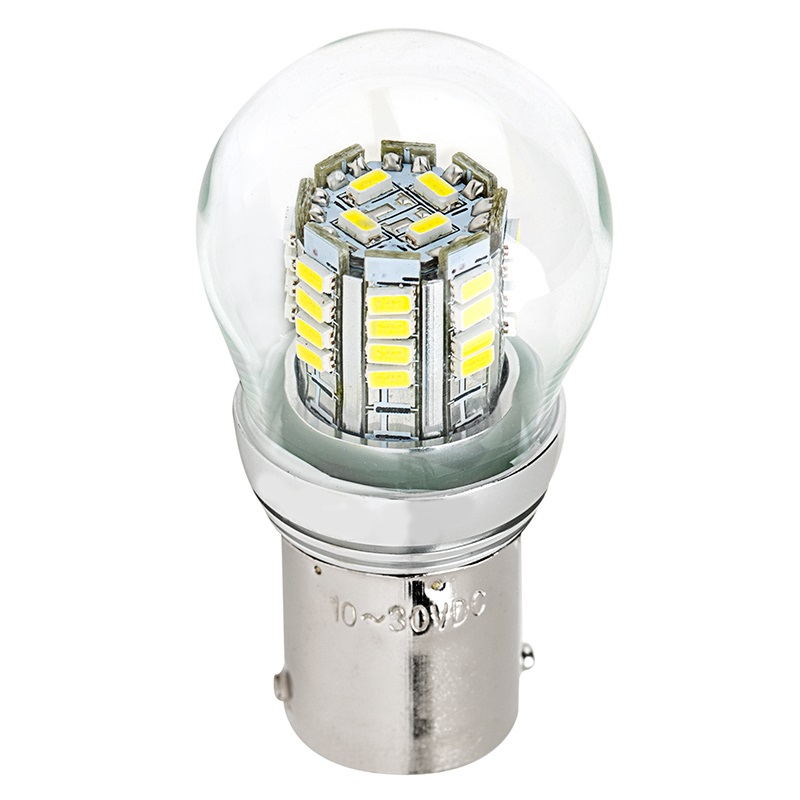

Flashing & Constant On - BEACON & POSITION LIGHT - RA7512 (RA-7512) W1290 NAV BULB REPLACEMENT - 3W 12V 24V BAY15S

Same as our standard 3W non-reflector Cool White RA7512 (12 or 24V) Navigation / Position lights but with a flashing option.  Designed to improve daytime visibility to other traffic.

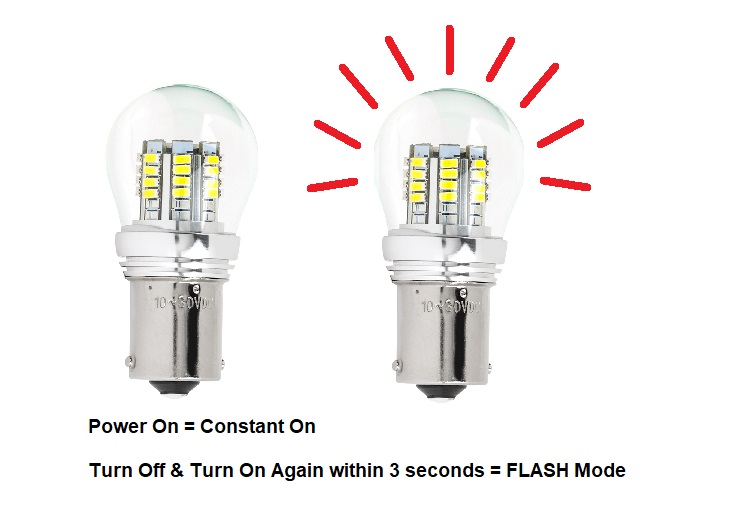

OPERATION:

• Power On and the bulb(s) are in standard constant-on mode
• Turn off and then turn back on within 3 seconds and the bulb(s) switch to a triple-flash pattern

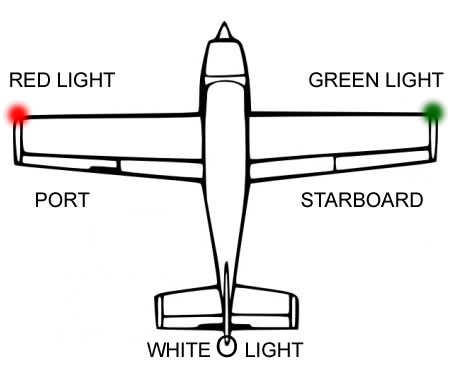

Applications include:  Rotating Beacons, Position Lights, Navigation Lights

3.0 Watts of power; Low power consumption (less than 220mA @13.8V vs. 1.75A for incandescent bulbs)

14VDC and 28VDC compatible

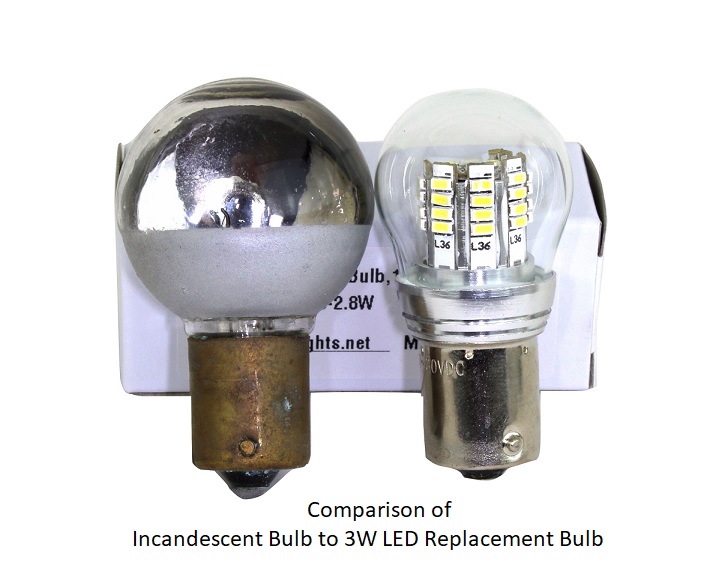

Over 30% brighter than incandescent

Cool White color temperature

Fully sealed glass dome protects the bulb from moisture and dust

No RFI design

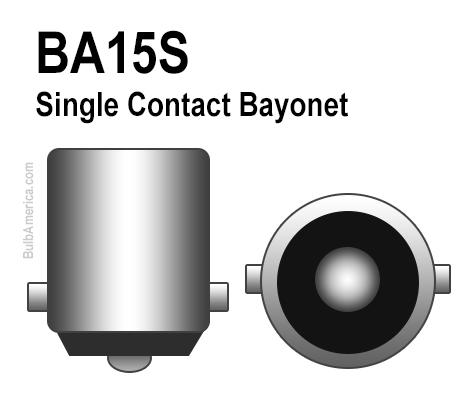

Sold individually, in 2-Packs or a 3-bulb pack (2 wing bulbs - BAY15s and one tail bulb BA15s).

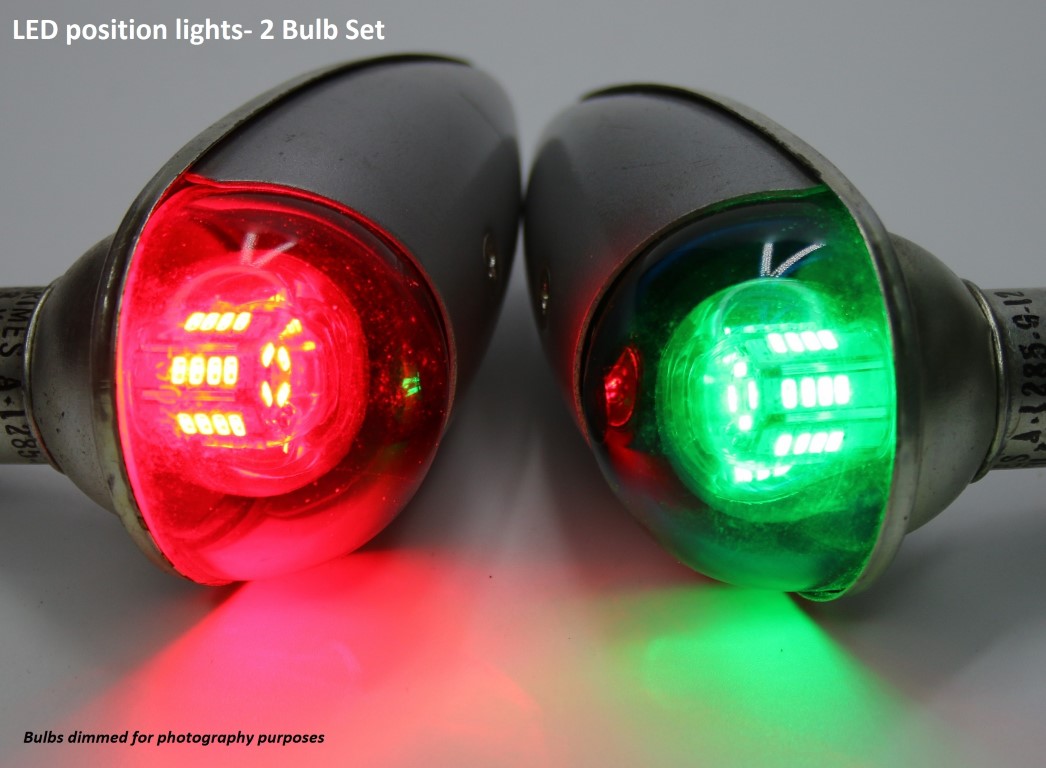

Fits Grimes and Whelen navigation / position light fixtures and beacons.  Greatly exceeds light output of standard bulbs.

Ideal for Uavionix tail beacon and sky beacon users.

Note:  Flashing mode is recommended only for daytime operations.  Night operations requires constant-on position lights per regulation.

Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration" (suggested log entry might read "replaced incandescent position light bulbs with equivalent LED replacements, dated ##/##/##"...)

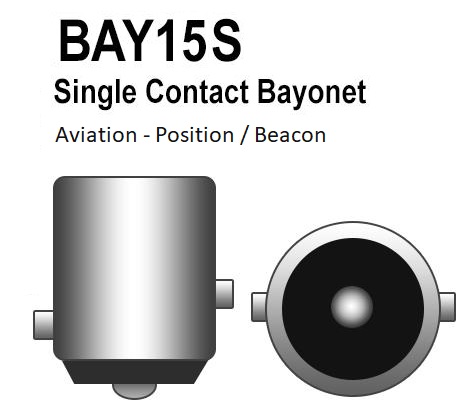

BAY15s version replaces  7079-12 , 7079-24 , NLI-7079-12 , NLI-7079-24 , MS25338-7079 , RA7079-12 , RA7079-24 , A-7079B-12 , A-7079B-24 ,  S1926-1 , 11105B , 752-307 , 752-465, 7079B-12 and others.

SKU (wing):  RA-7512-WING-FLASH-V1

SKU (tail):  RA-7512-TAIL-FLASH-V1
