LED Bulb - Beacon & Position Light - Single Bulbs -- Nav Bulb Replacement - 3W 12V 24V BAY15S

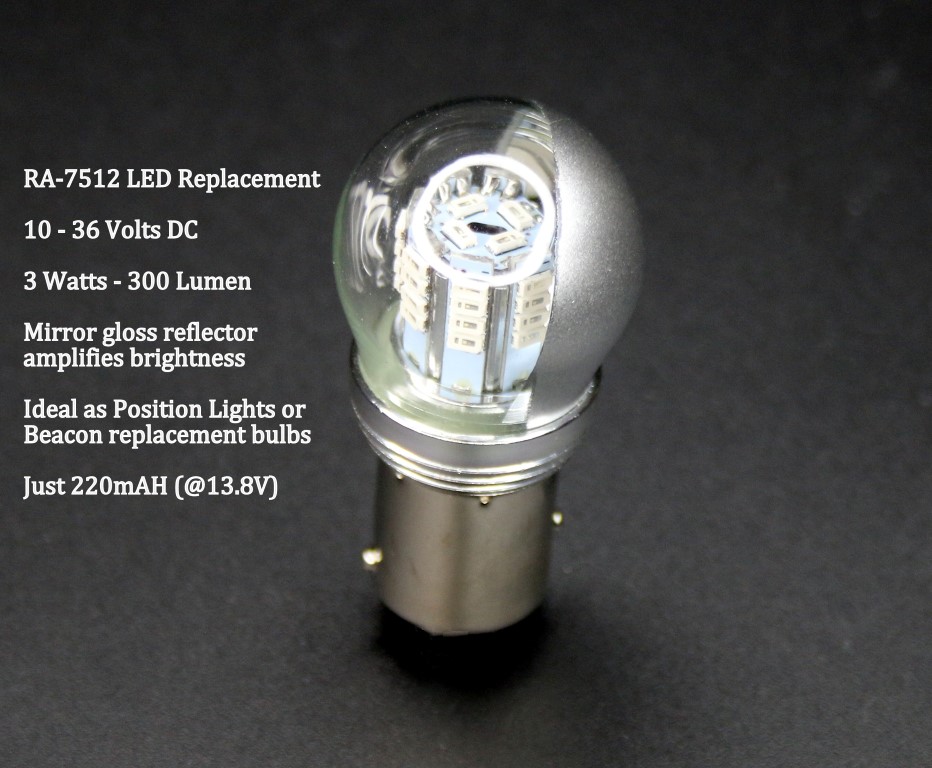

Finally a powerful LED replacement for the expensive RA-7512 and W1290 type navigation bulbs found on many General Aviation aircraft

Applications include:  Rotating Beacons, Position Lights, Navigation Lights

3.0 Watts of power; Low power consumption (less than 220mA @13.8V)

14VDC and 28VDC compatible

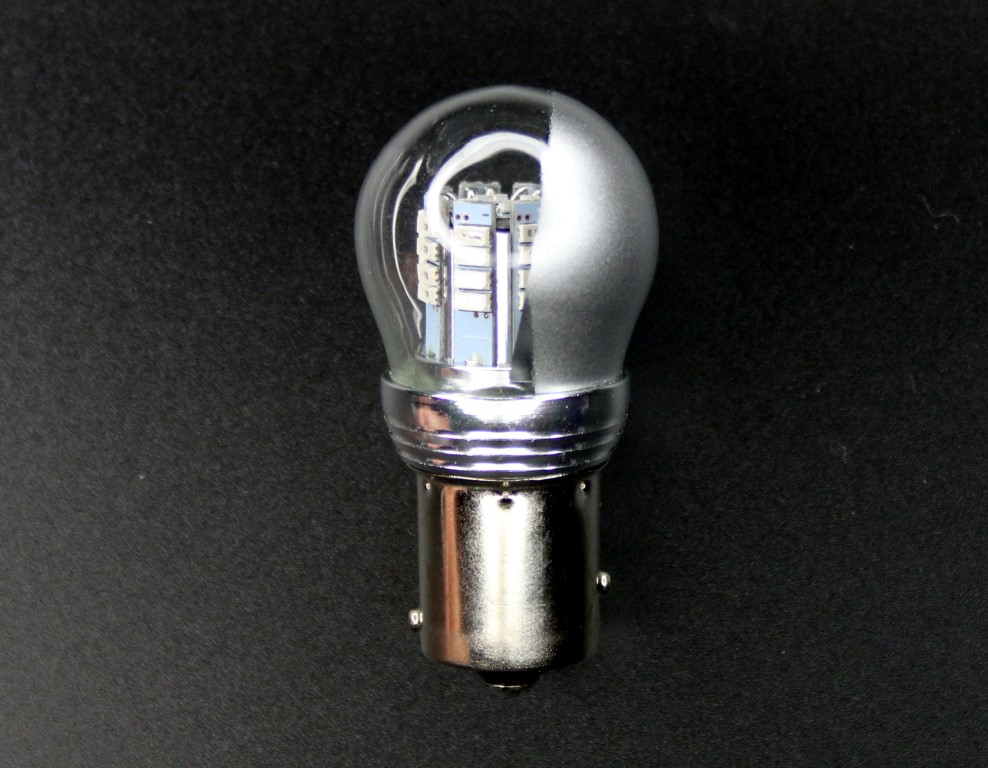

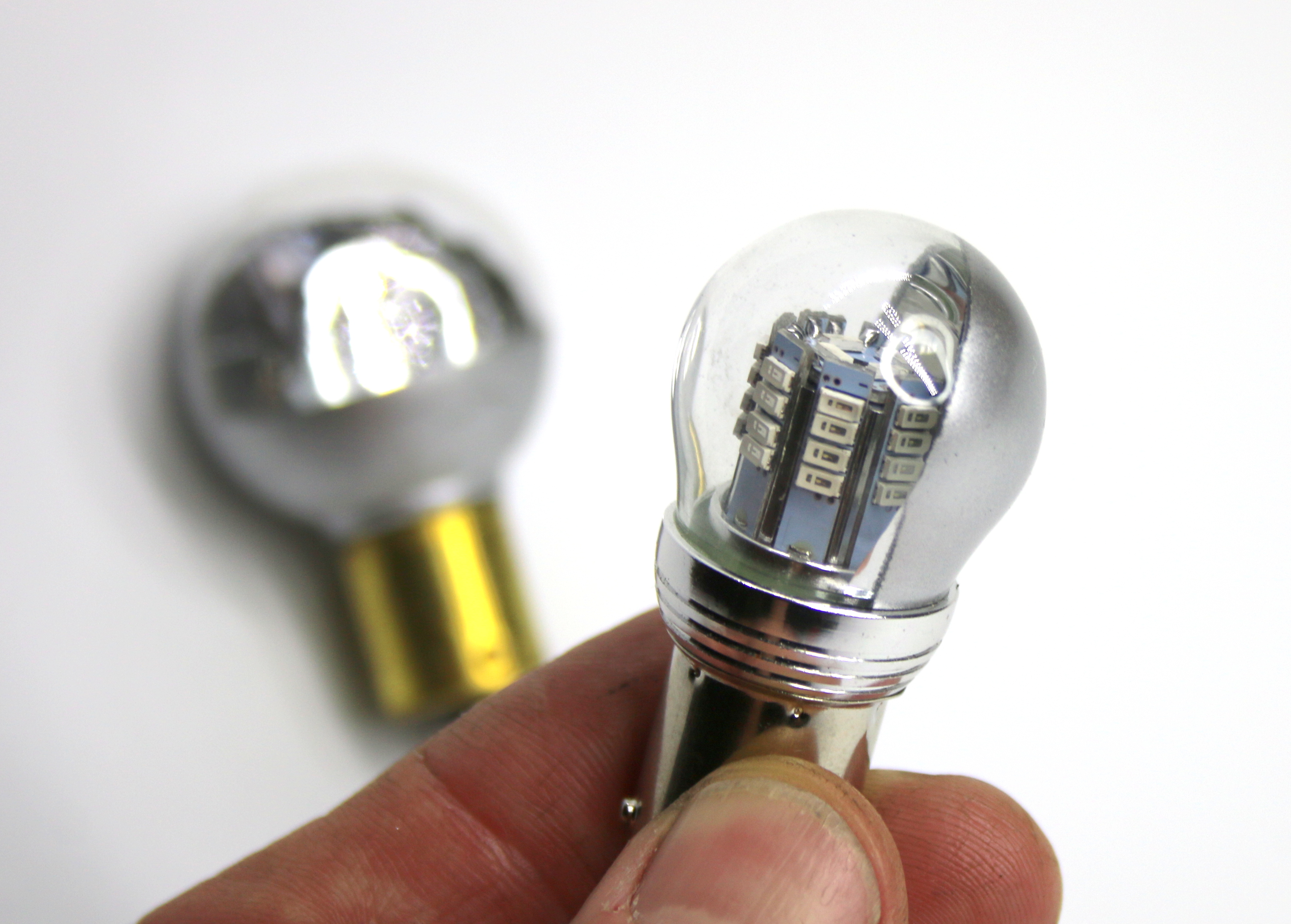

Unique mirror gloss finish directs and amplifies brightness

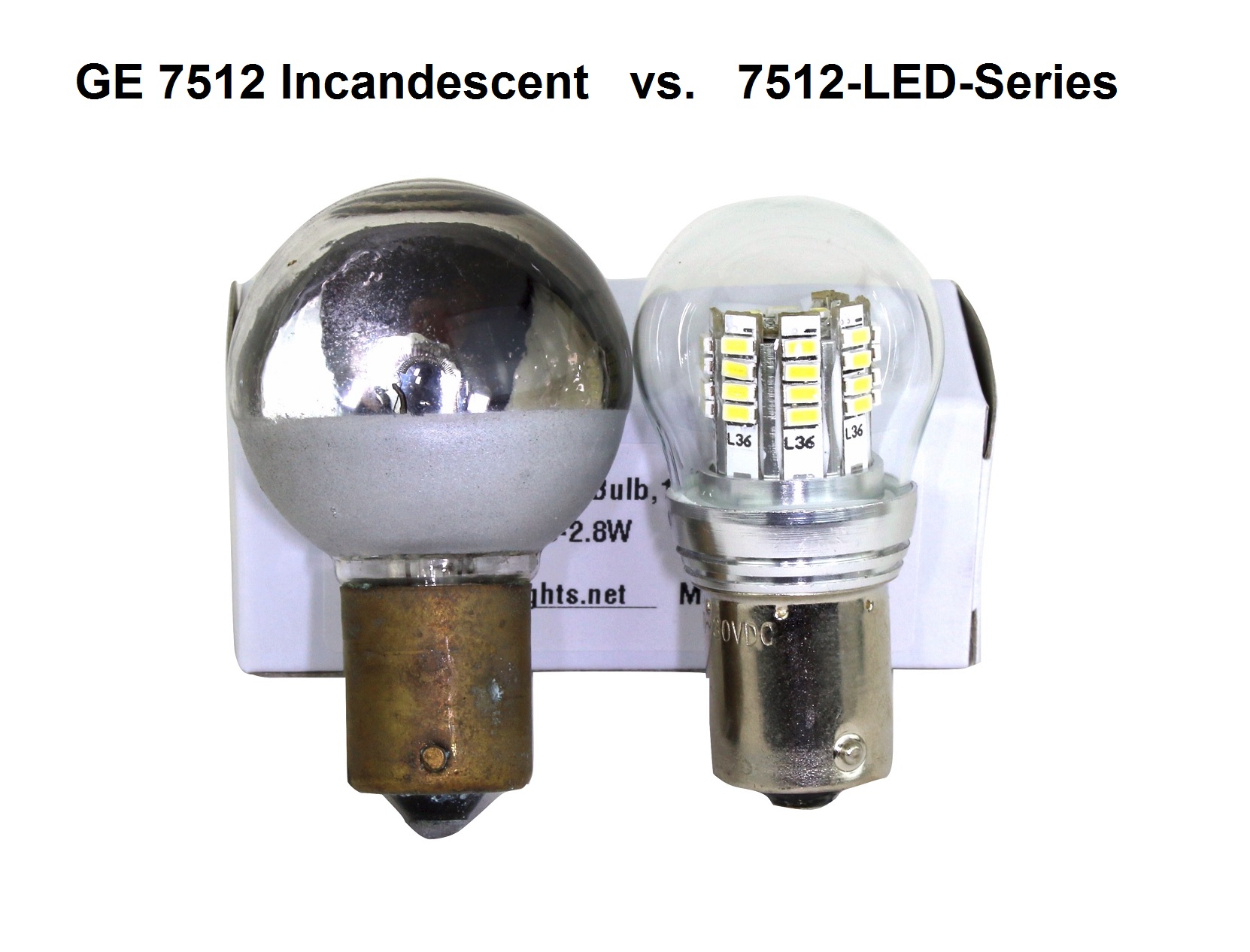

Over 30% brighter than incandescent

Available in these options:

- Cool White LED.  Best suited for beacon and position lights.

- Colored LEDs (Red / Green).  Colored LEDs behind colored Nav Lenses produces a very bright and vibrant position light

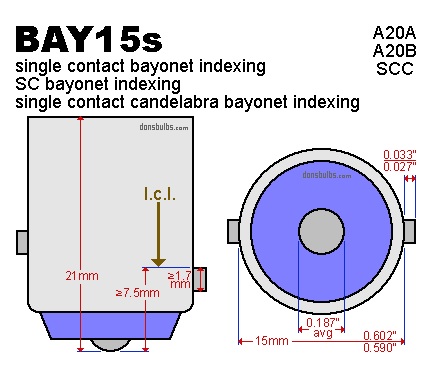

BAY15S base (center contact; 2 off-set side retainers - see diagram).   This base fits most Grimes and Whelen Navigation light fixtures.  Replaces:  7079-12 , 7079-24 , NLI-7079-12 , NLI-7079-24 , MS25338-7079 , RA7079-12 , RA7079-24 , A-7079B-12 , A-7079B-24 ,  S1926-1 , 11105B , 752-307 , 752-465, 7079B-12

Rated at 50,000 hours

Fully sealed glass dome

Available in:  Cool White LED, Red LED, Green LED (select color below)

Tested in Grimes rotating beacons (W1290) - when used in rotating beacons (14 or 28V), the Cool White LED bulbs (2 required) considerably drops the current demands of the device.

When tested in Grimes Navigation Lights - Light output greatly exceeds incandescent bulbs.

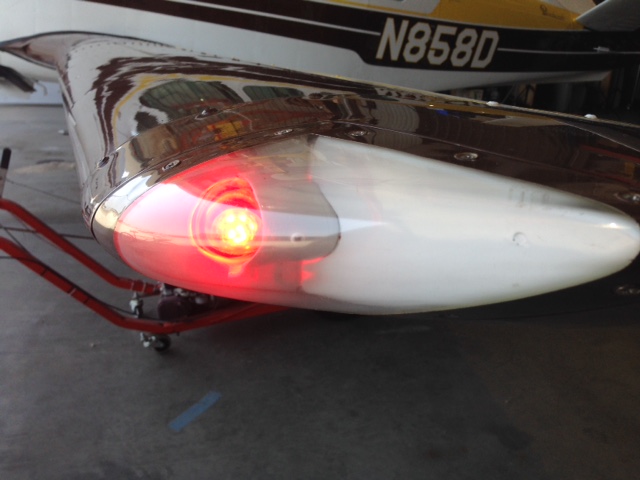

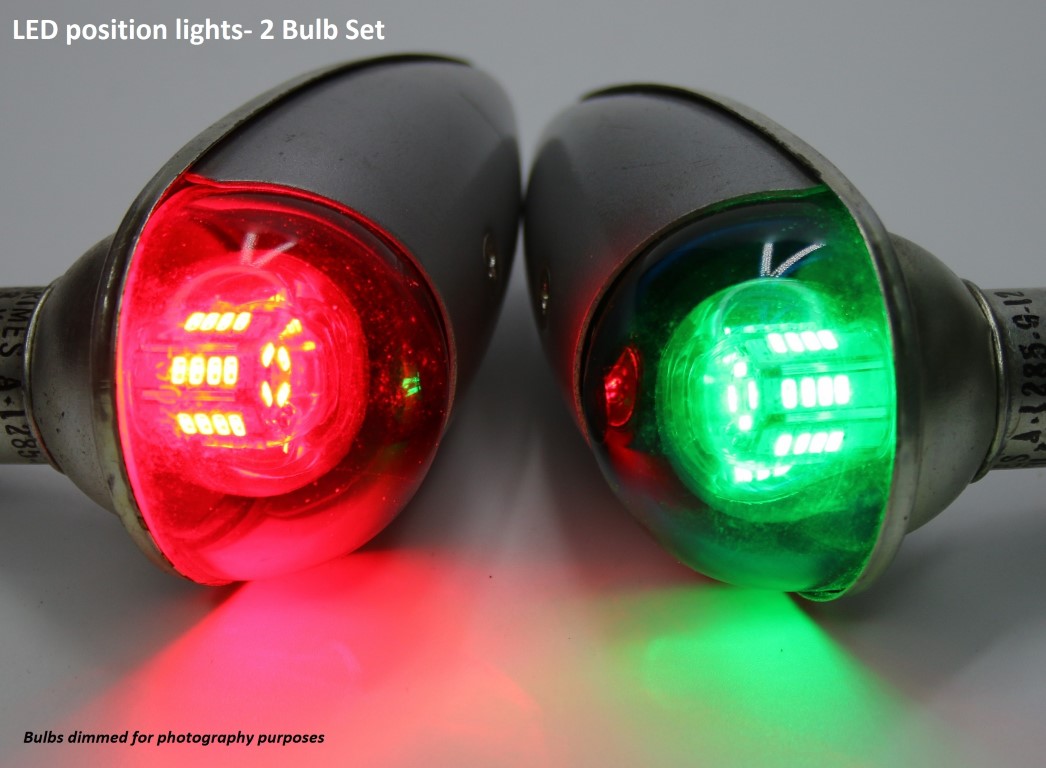

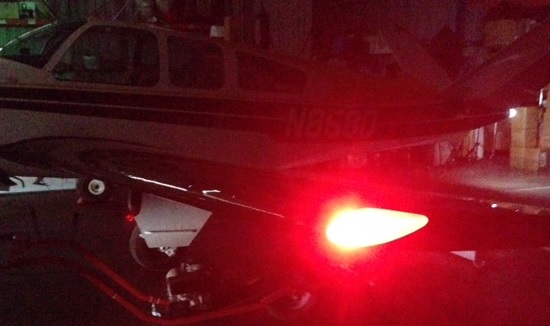

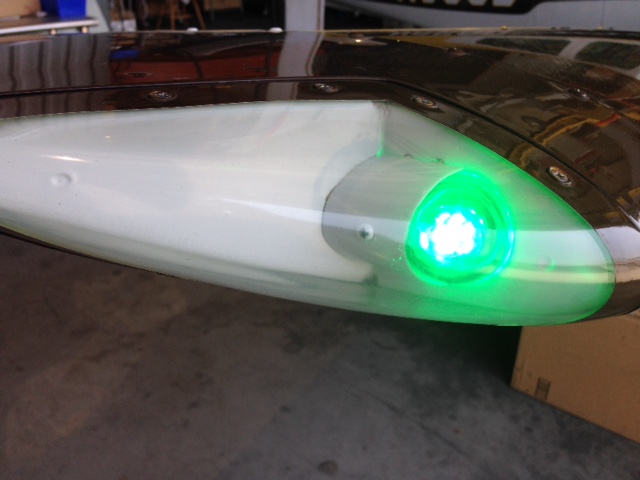

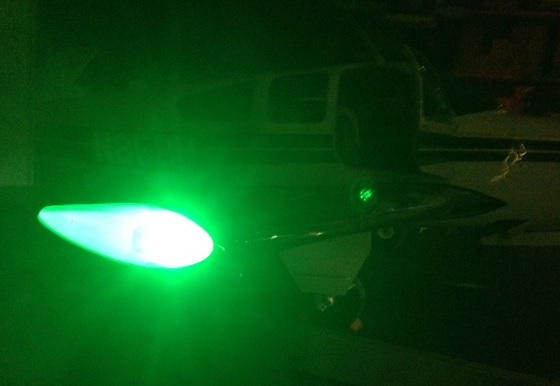

We've tested both cool white LED and Colored LED versions.  The colored LEDs behind a colored Nav Lens produces a very bright and intense Nav Light (see images) that we prefer.  However, not STC/PMA'd - Experimental use only.

Voltage:  10-30VDC compatible

SKU:  RA7512-LED-REFLECTOR-SERIES
