LED INSTRUMENT POST LIGHT - REPLACES LEGACY WHELEN LAMPS

Compatibility Chart
Compatible List Bulb Base Incandescent Bulb
Grimes post lights (any type) Whelen post lights (any type) 12V or 24V
RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Thu, 10/19/2023 - 09:57
$37.95

NEW FOR FALL 2023

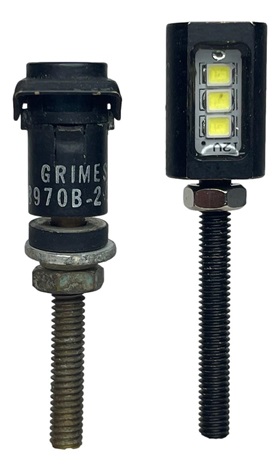

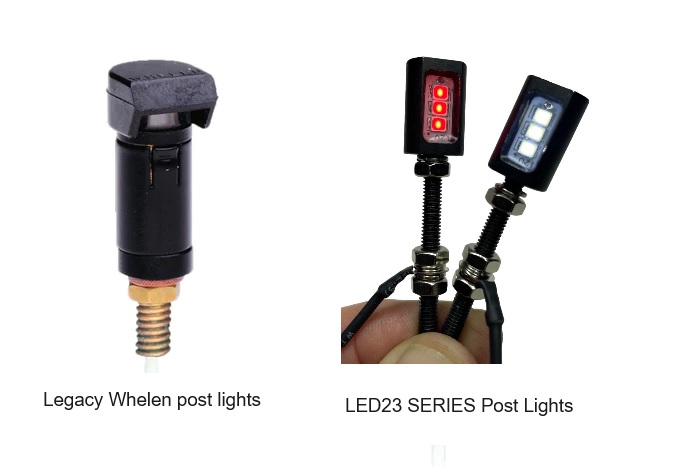

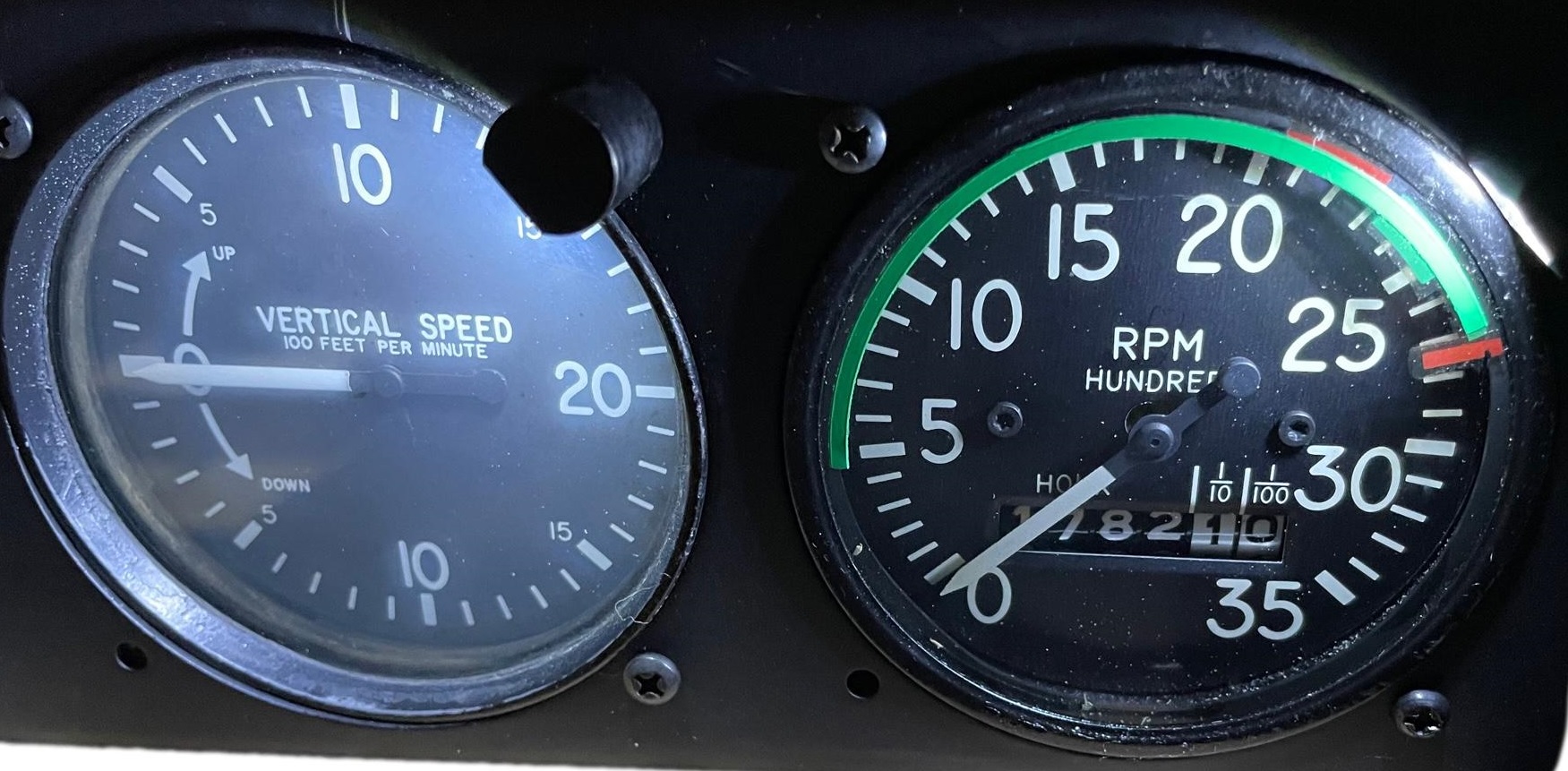

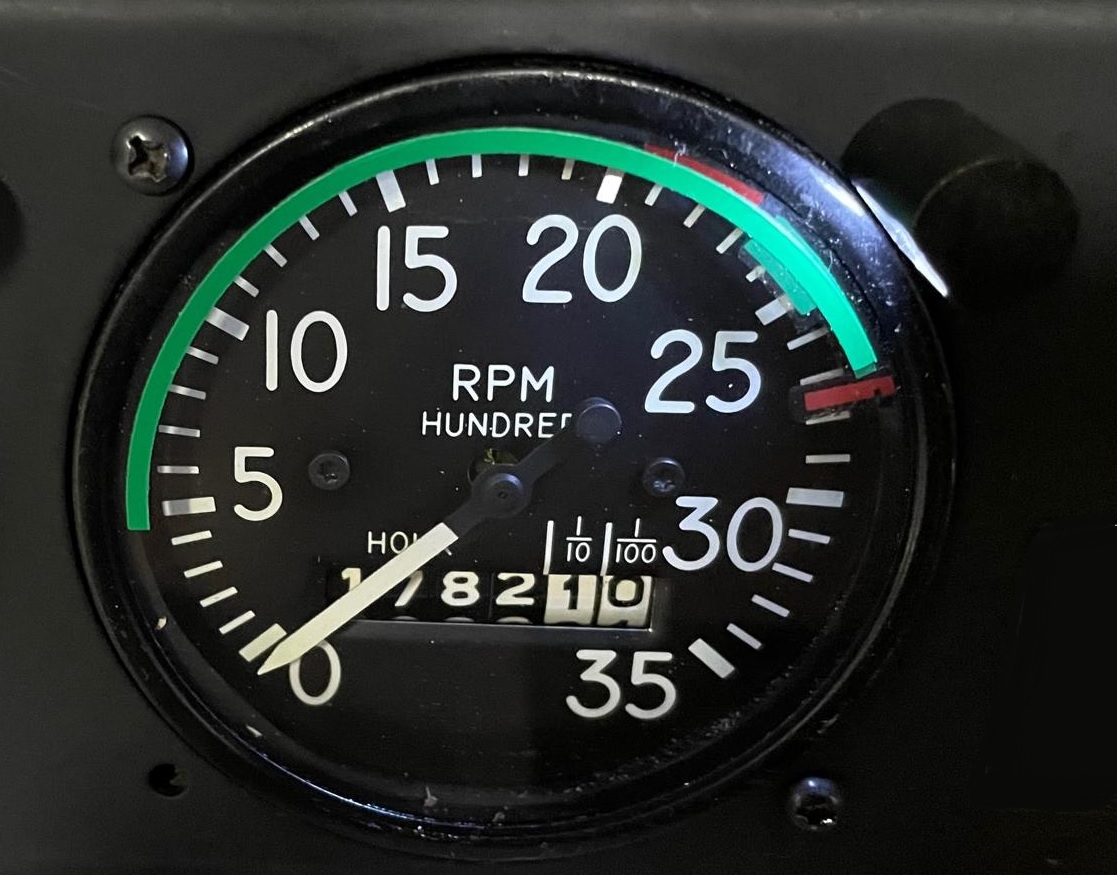

This LED Instrument Post Light replaces legacy Whelen post lights that use small incandescent bulbs. These are exact-replacements that mount through the instrument hold-down screw hole similar to legacy lamps but are much brighter, less expensive and fully dimmable.

OVERVIEW

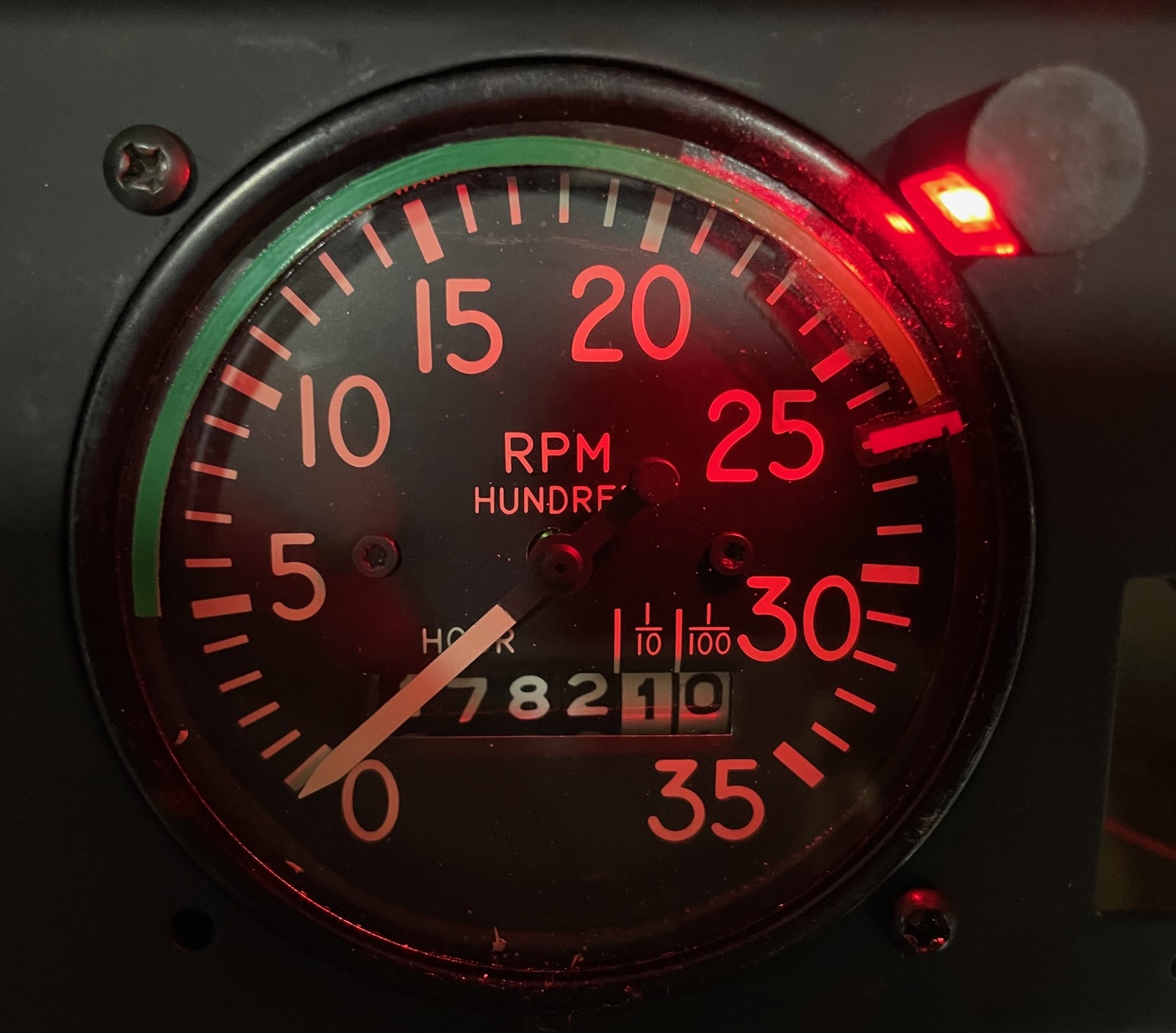

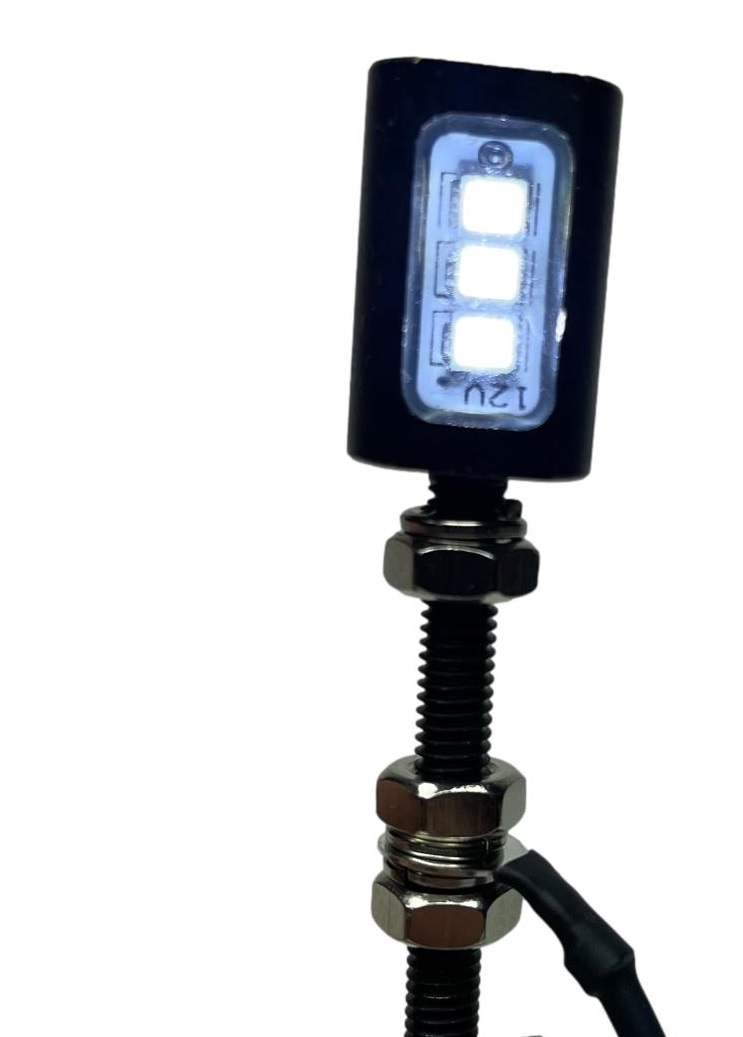

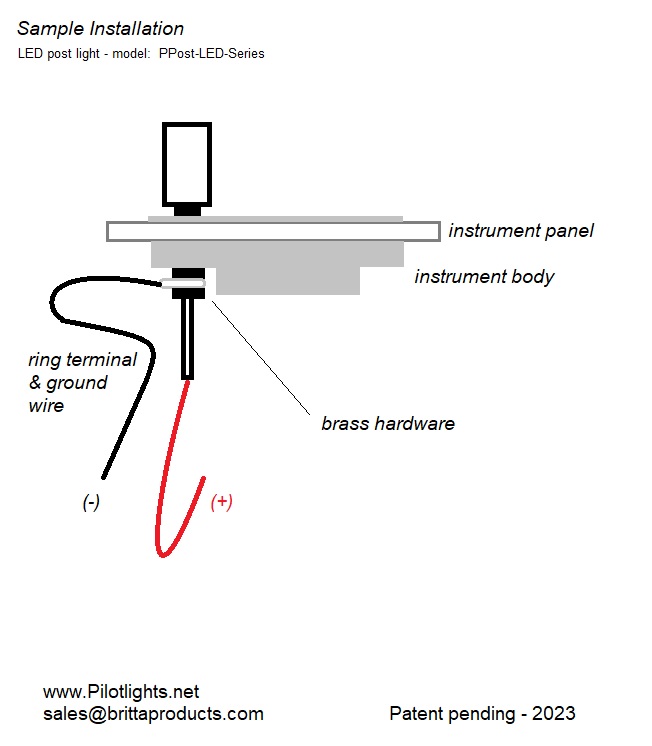

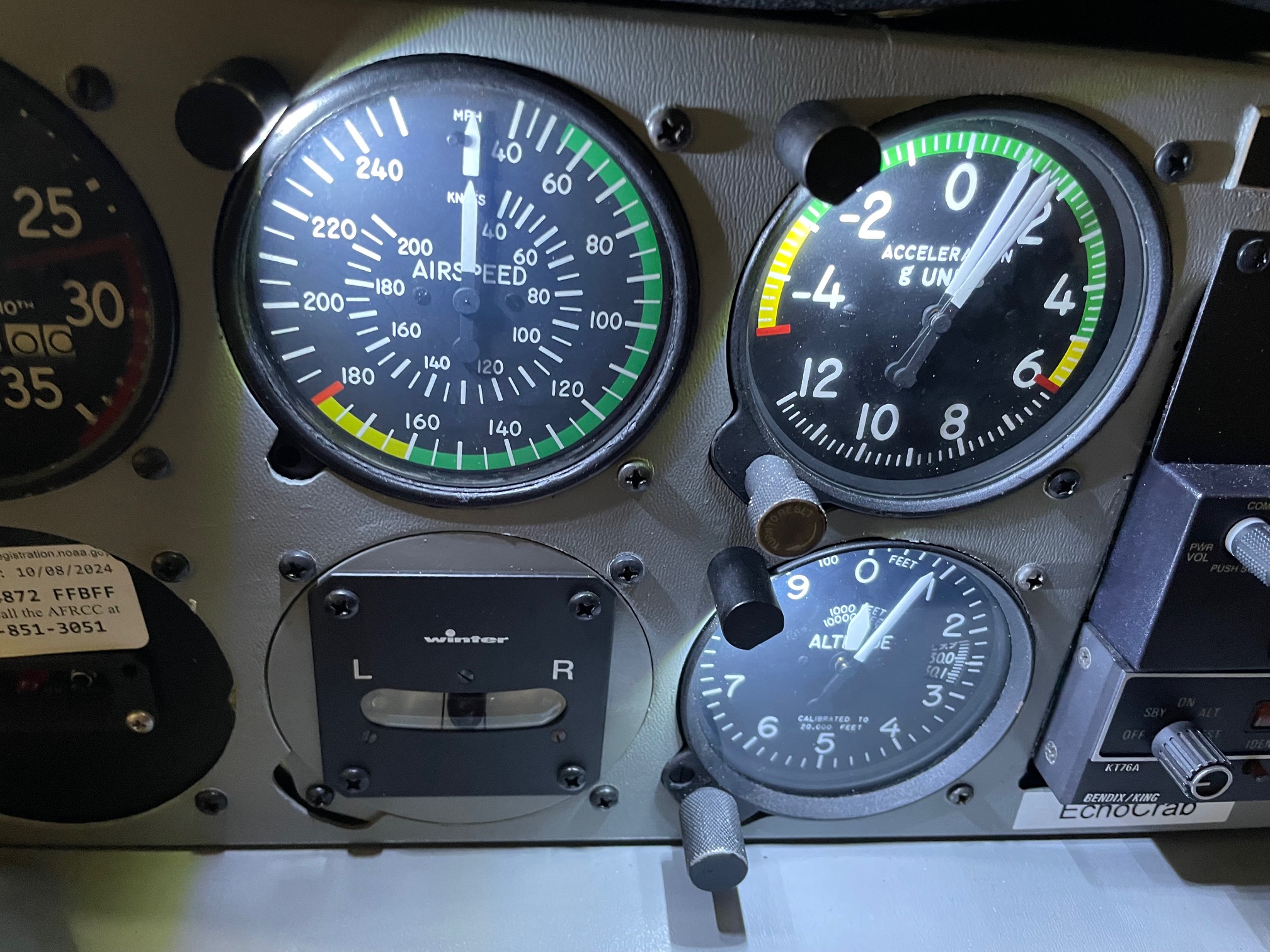

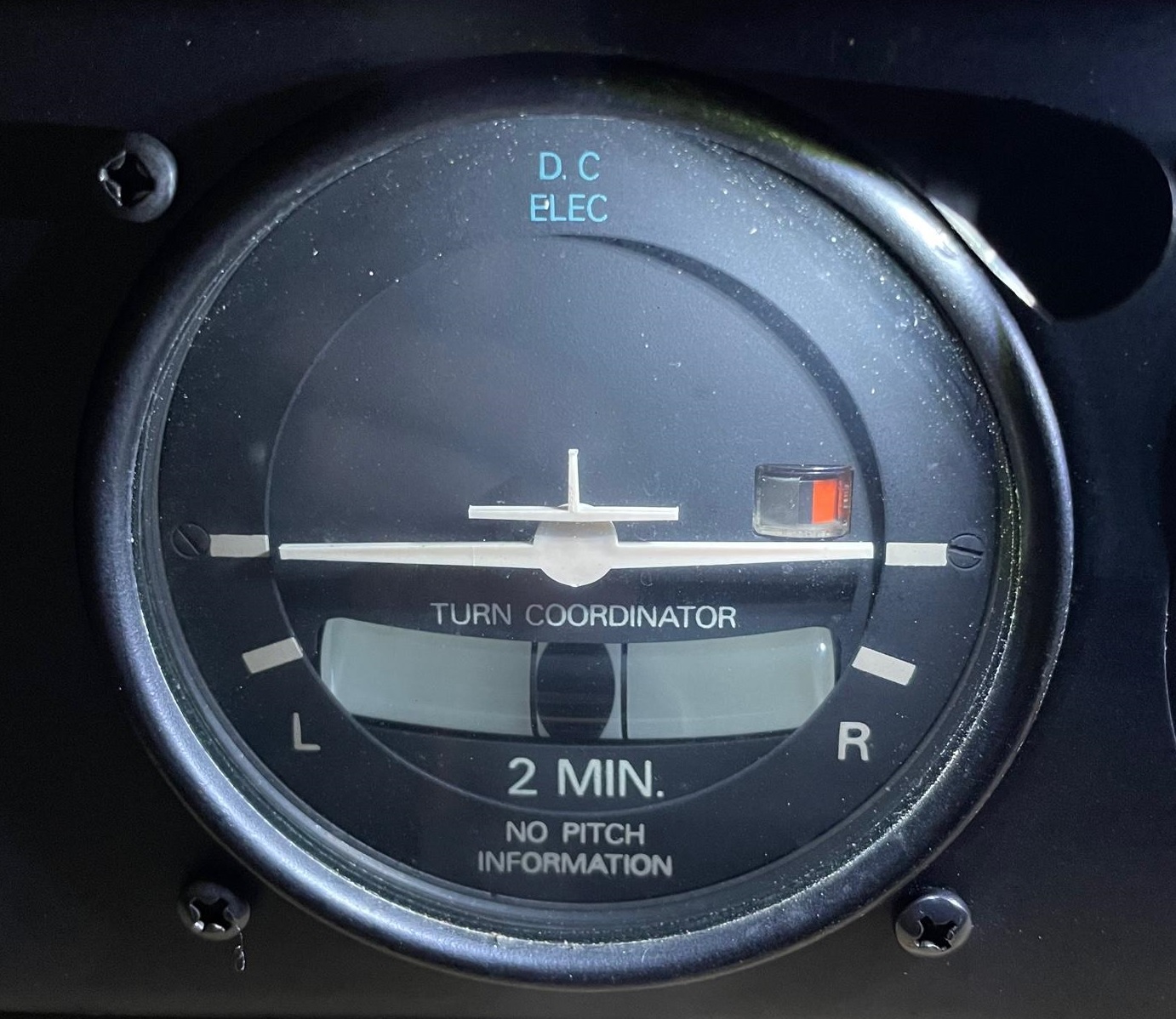

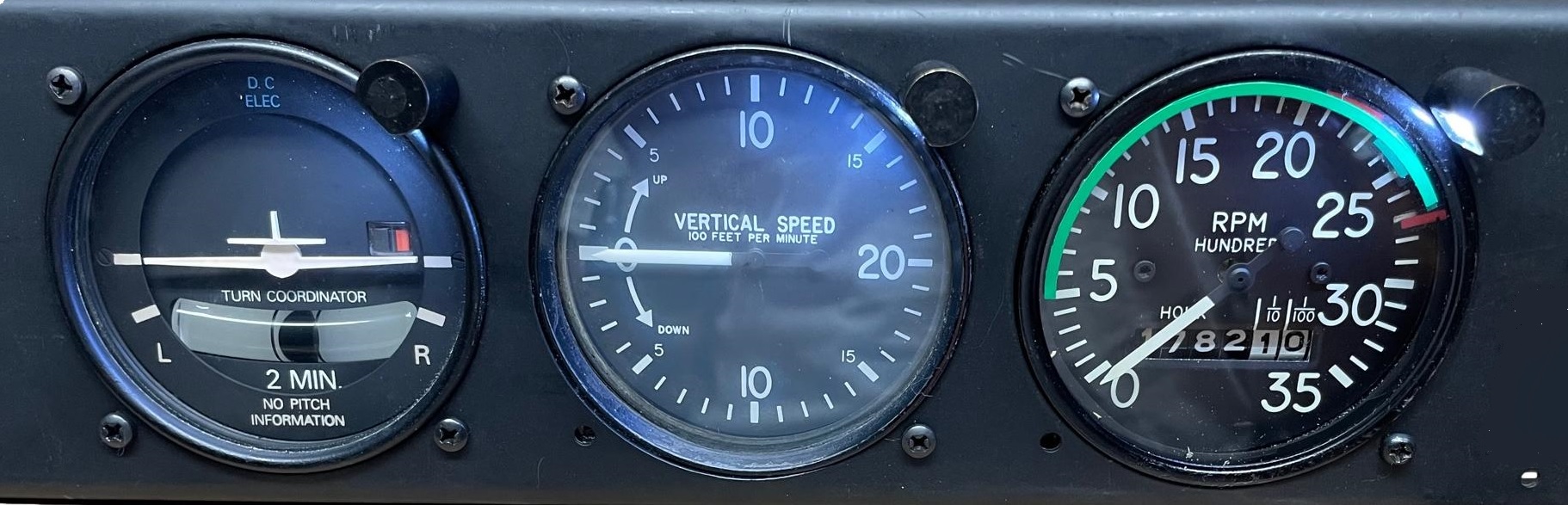

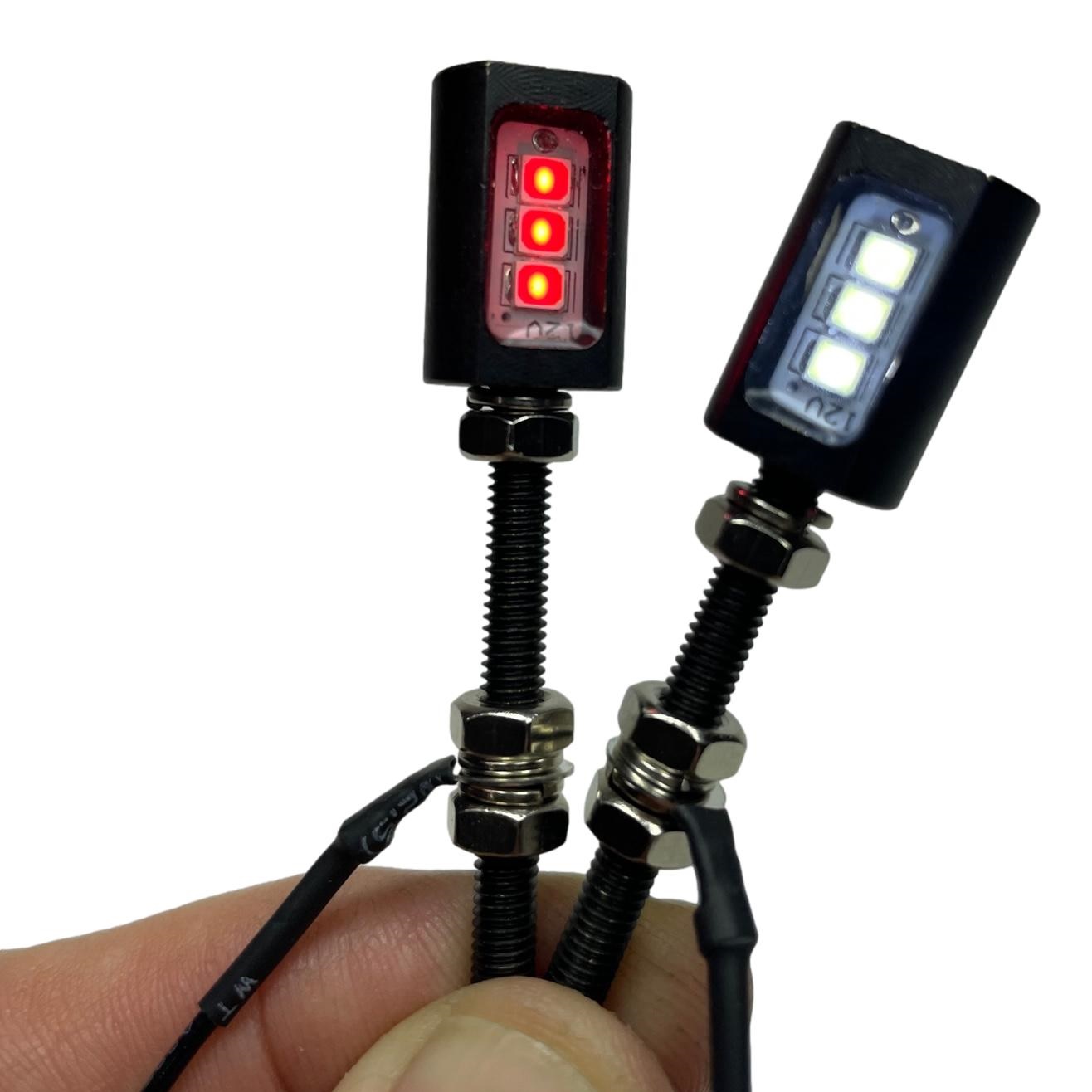

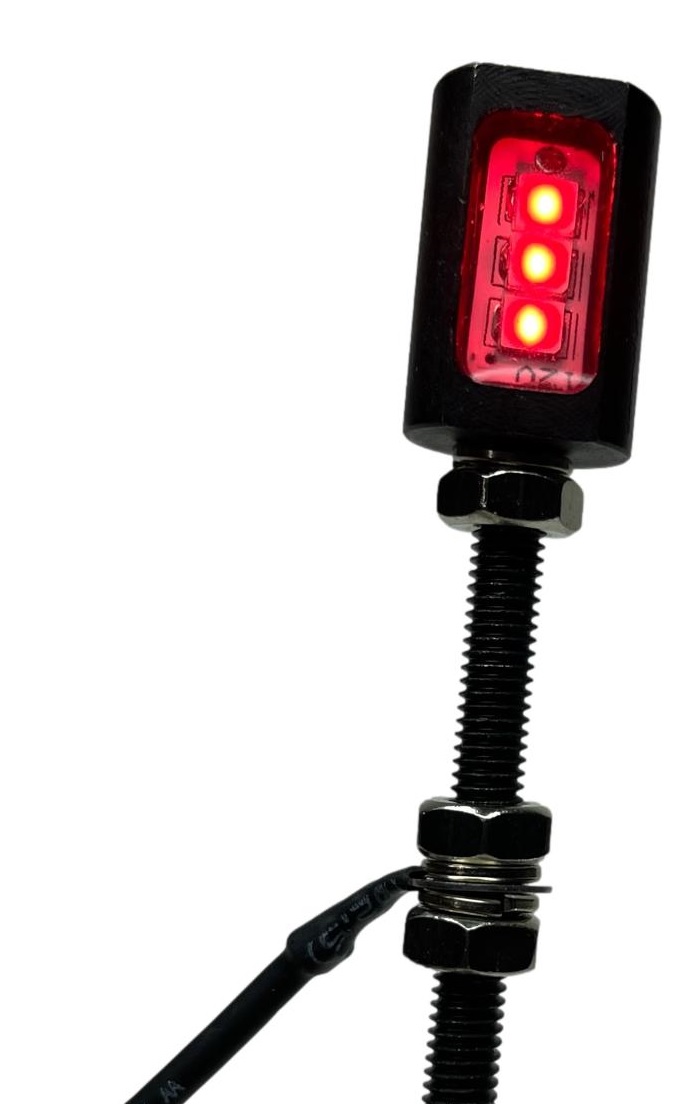

The LED23-Series instrument post lights are designed to illuminate instruments and instrument panels. Mounts directly through instrument mounting-holes and includes hardware and color-coded (red/black) connection wires. Available in either 12V or 24V, cool white or red LED. Easy to install. Dimmable. Much brighter than old-style lamps.

SPECIFICATIONS

Exposed height: 3/4”. Head diameter: ½”. Thread length: 1.5”

Power consumption: less than 0.03A (@12VDC)

Wire length: 10”

Lumen output: About 10 lumen (cool white), About 6 lumen (red) Weight: 2 grams each with wire harness

Available in RED or COOL WHITE and both 12V and 24V.

Select your options when ordering.

List price: $49.95
Catalog:
LED Bulbs for Planes Cars Boats
LED Pilot Lights / Panel Lights
Aircraft Instruments
Price: $37.95
Weight: 1 oz
Dimensions: 1.5 in × 0.1 in × 0.1 in
