LED Light Strips - High Output

High Output Strips use high power 3528 LEDs and produce over five times the output of standard light strips.

While there are brighter types manufactured, we like 3528 LEDs because they are a good combination of bright light output, low power consumption, low heat, good dimmability, flexible use and easy of installation.

Our High Power LED Strip features and specifications are:

- 1 meter (39.4") length

- 120 LEDs per meter (the most available per meter).  3528-type LEDs.

- 12 Volt or 24 Volt (please specify when ordering).  Power consumption:  0.65A at max output

- Low power consumption (less than 0.65A)

- IP65 rated

- Dimmable (see our PWM dimmers).  Note:  high-power LED strips are controlled best by PWM dimmers.  Simple rheostats provide limited dimming.

- Easy to trim (every 3").

- Just 7mm in width. 3-4mm in height

- Supplied with 2' of color coded 22 AWG wire on one end.

- High-temperature 3M tape applied to reverse side for easy install

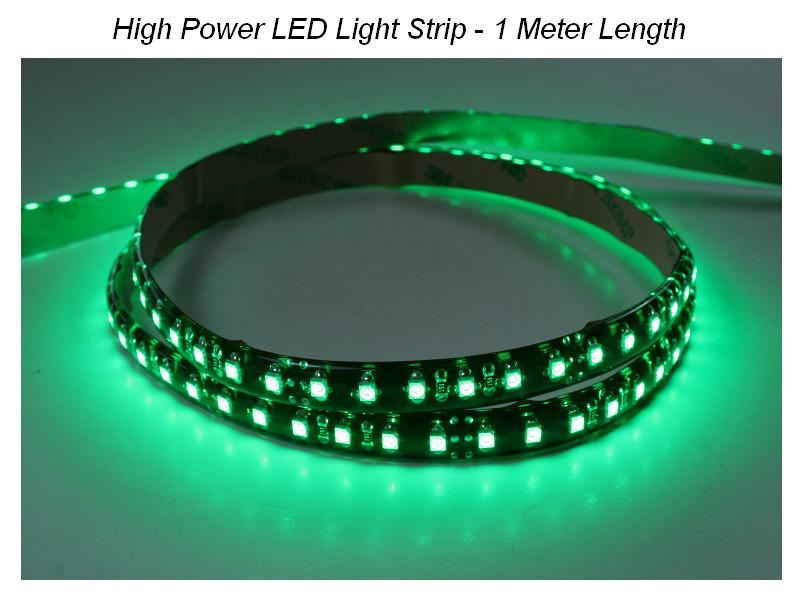

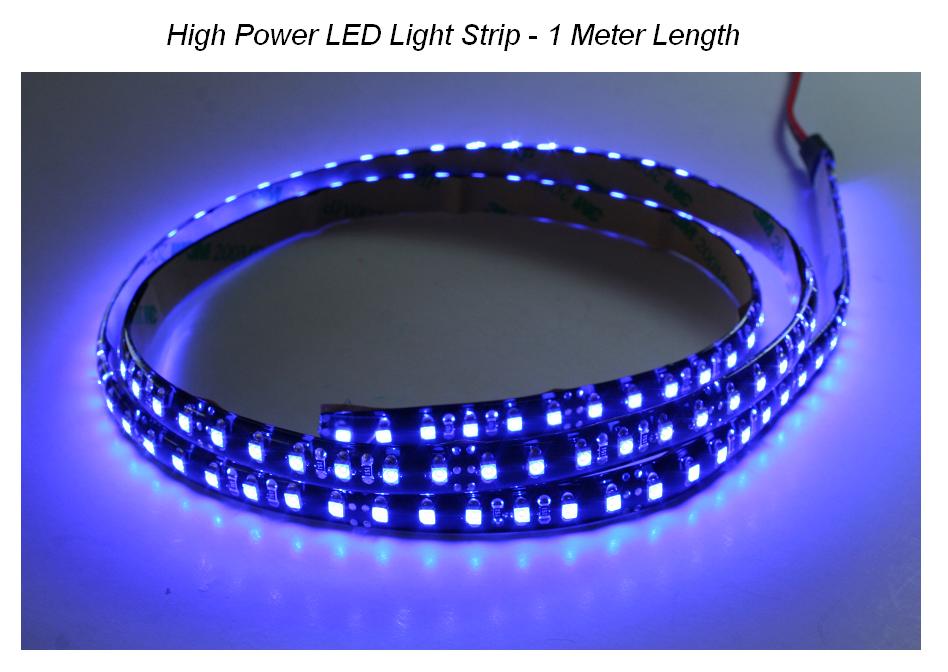

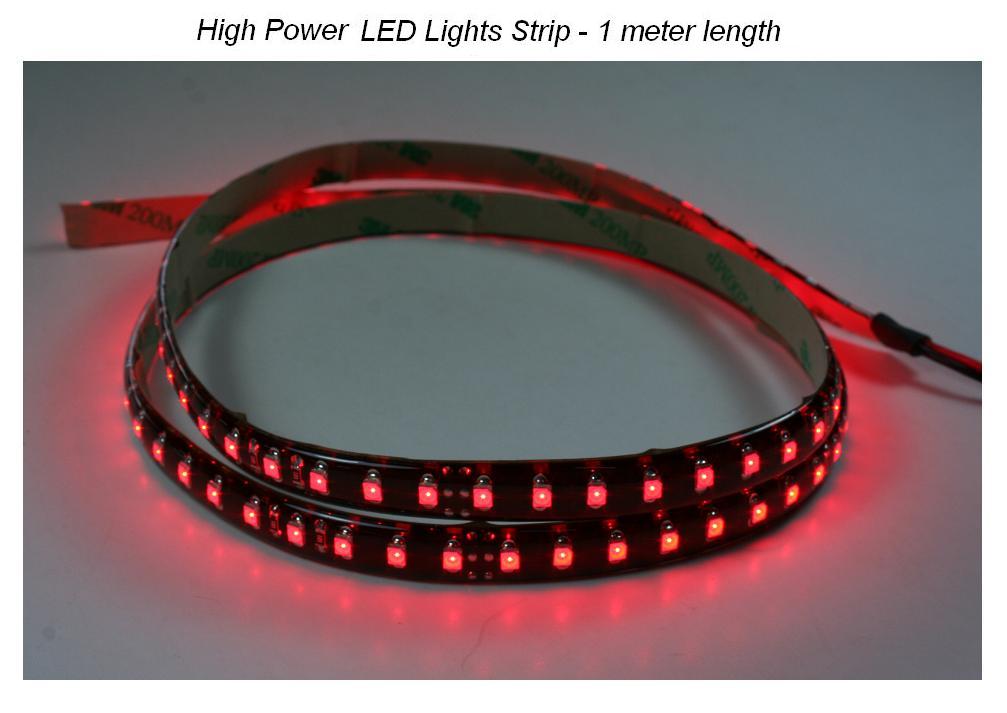

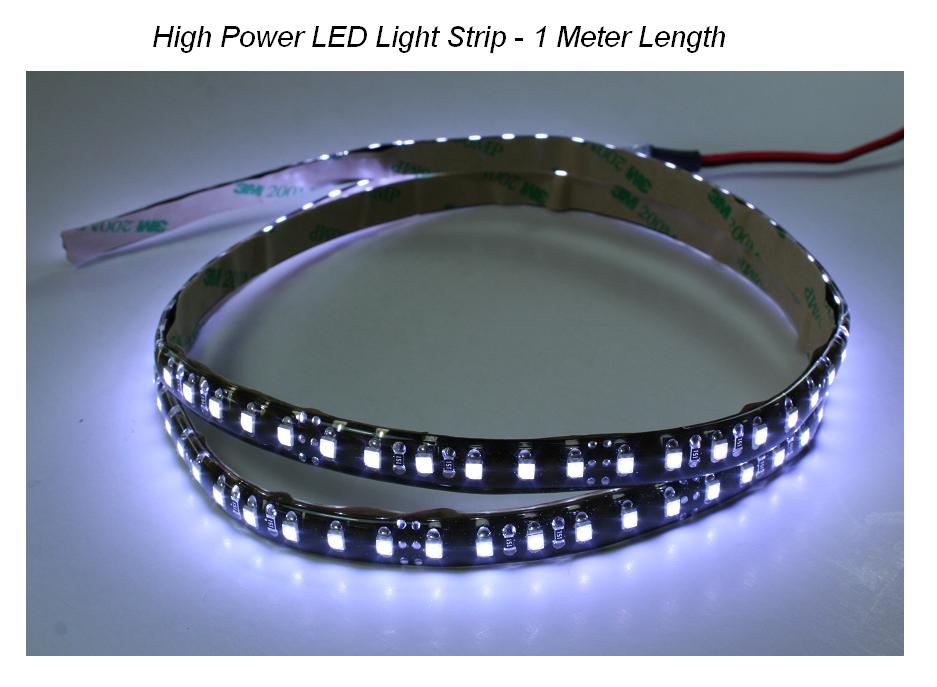

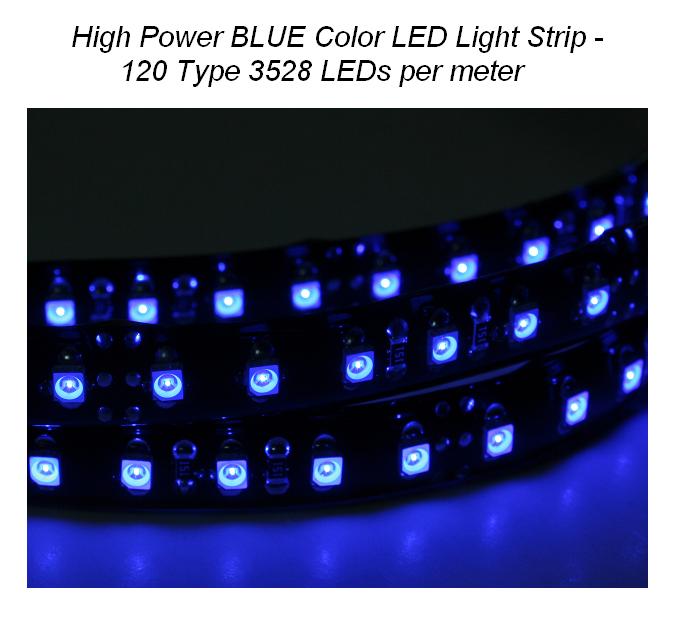

- Color options:  Cool White (5500K), Natural White (4000K), Red, and Blue  (Green is a custom order)

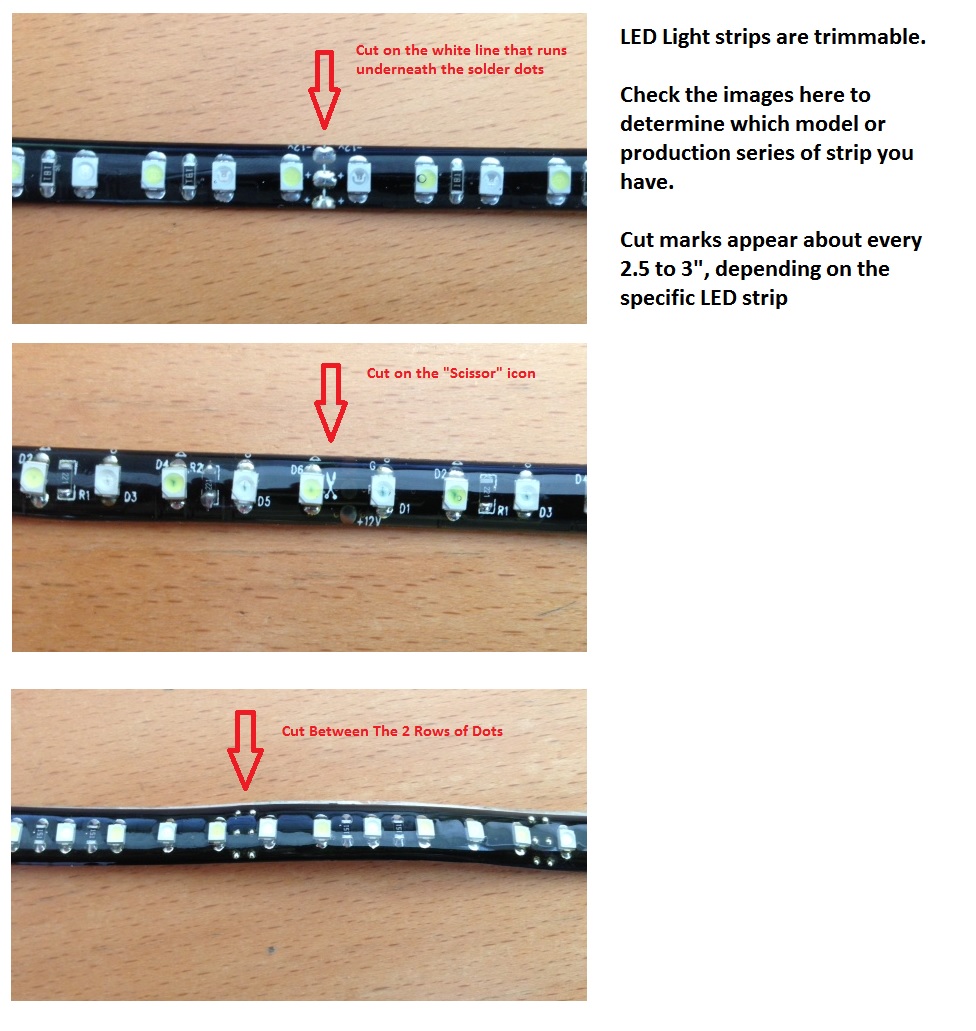

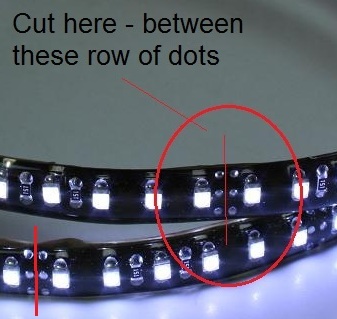

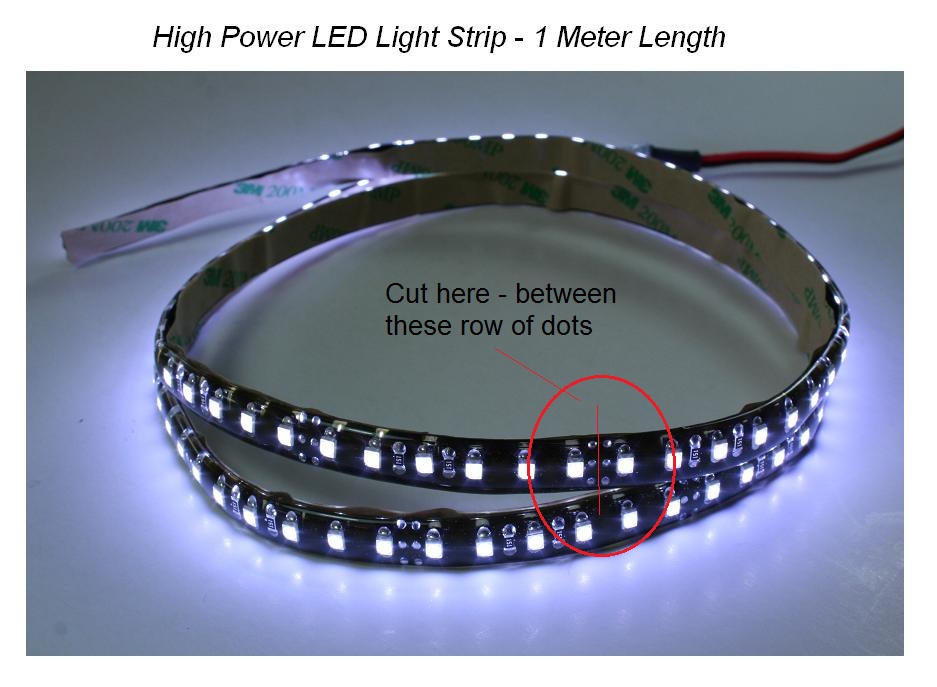

For trimming to shorter lengths, see the attached image showing the cut lines on each strip - cut between the two rows of three dots to separate the unneeded segment. The Red line on the last image shows the cut marks.
