LED Panel Post Light - 12 or 24 Volt

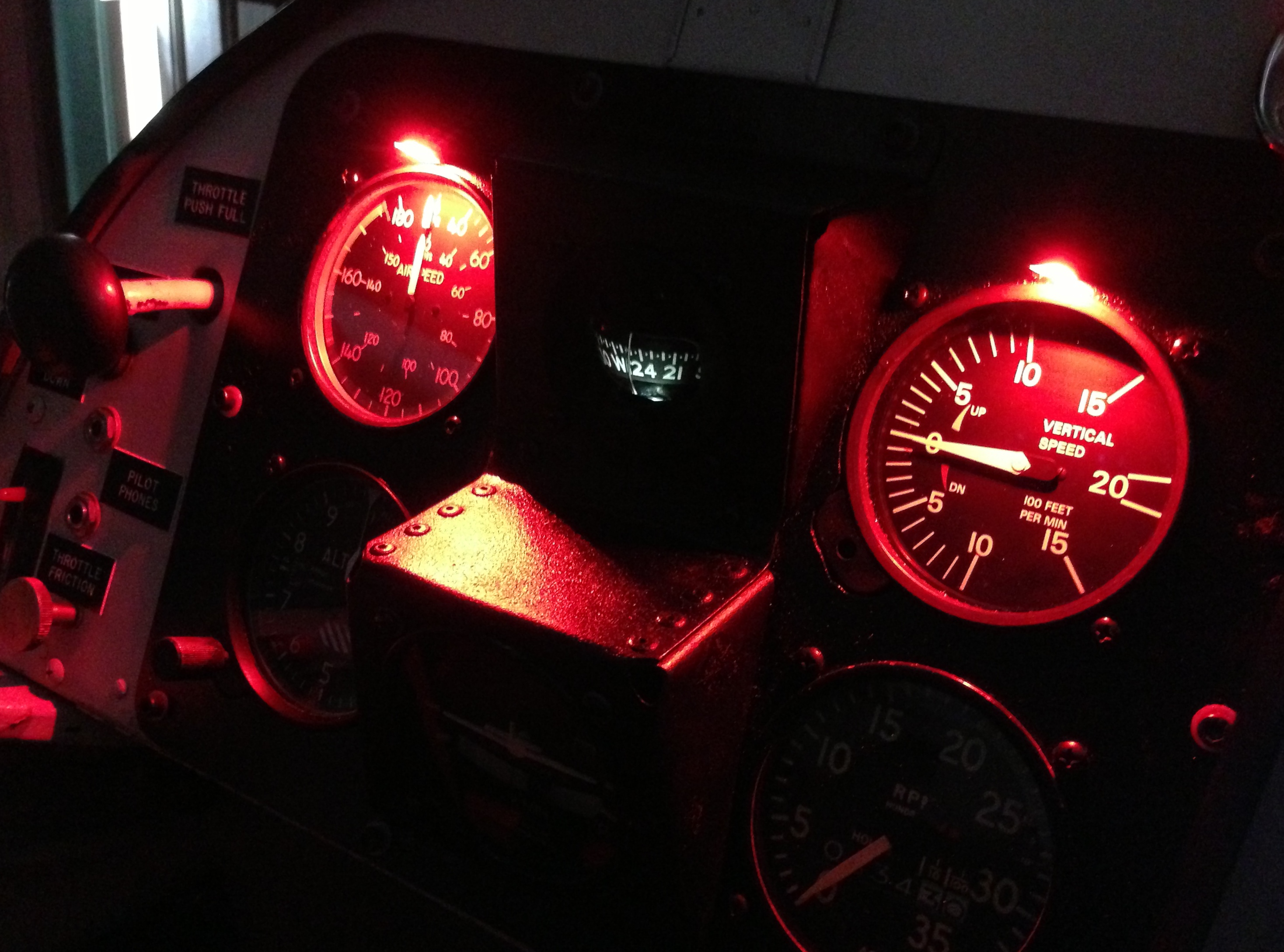

Our latest LED Panel and Post light is a tiny yet powerful fully waterproof and vibration-resistant fixture for instrument panel illumination.

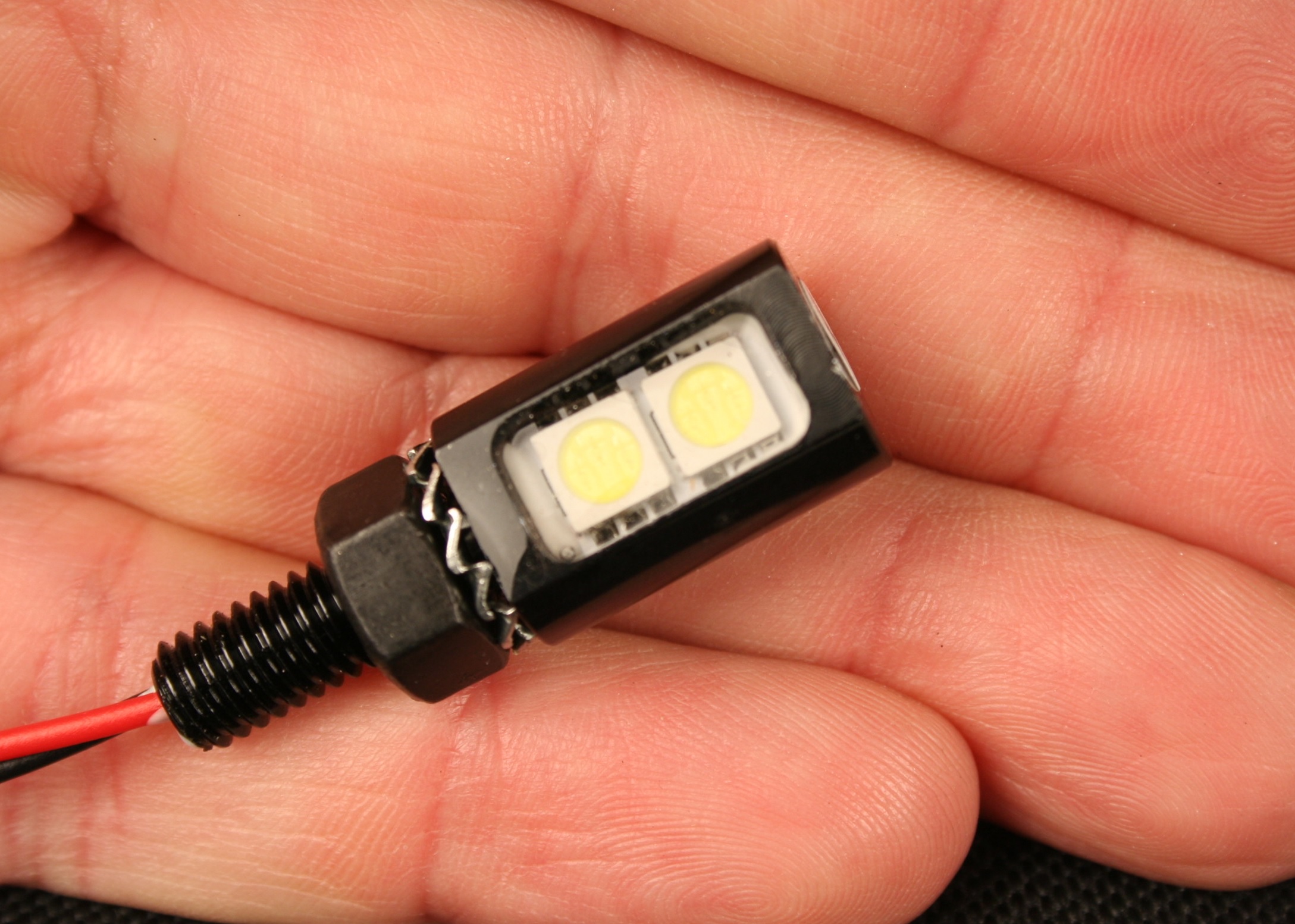

Featuring two (2) small but powerful 5050 LEDs, this post light is powerful, fully dimmable and directs light where needed.

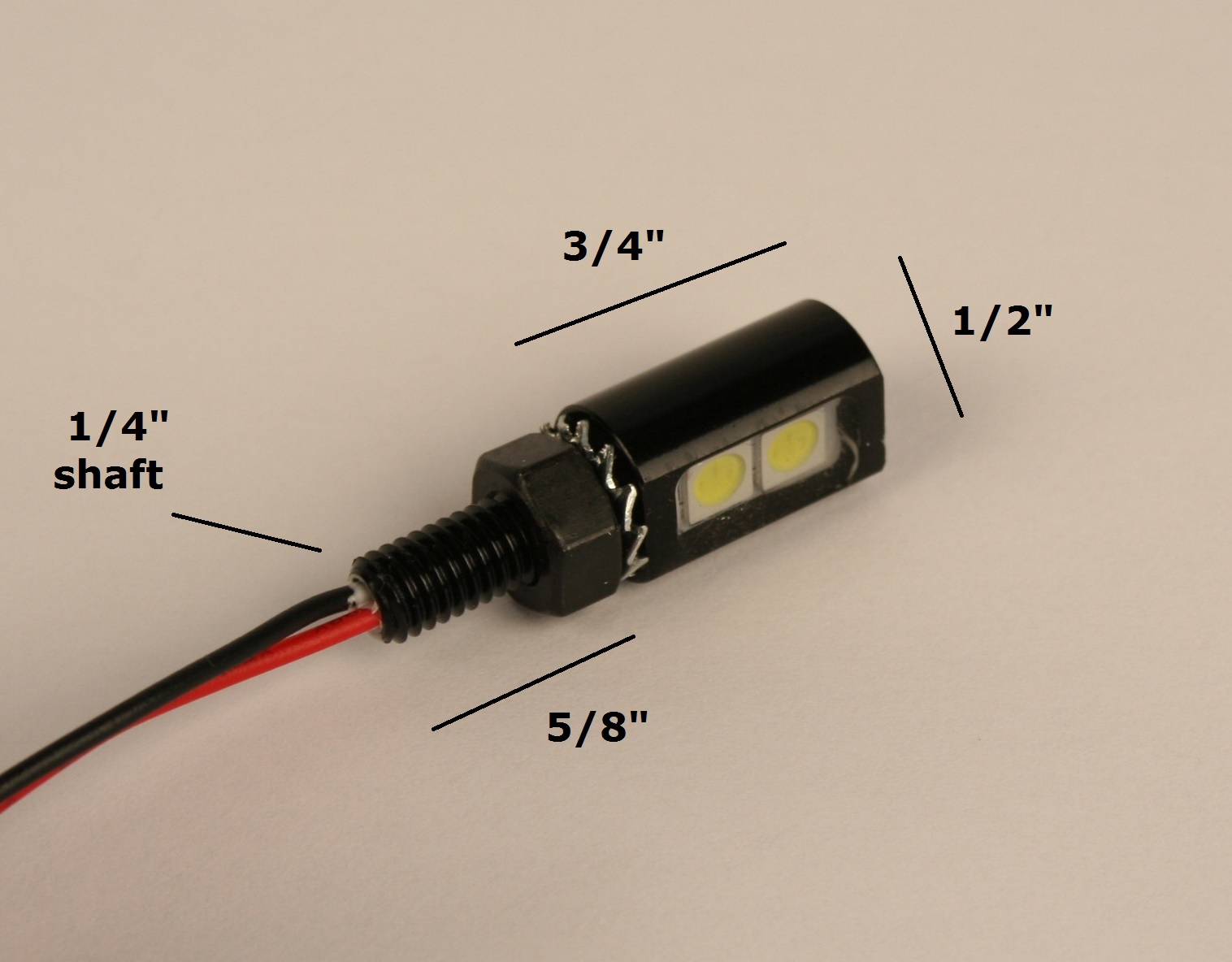

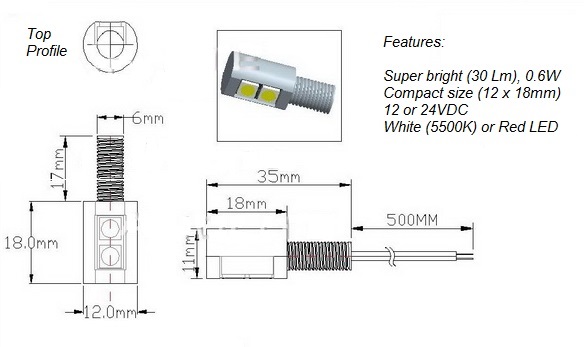

Fixture size:  3/4" length x 1/2" width

Mounts using the integrated 1/4" (6mm) threaded post - mounts in panels up to 1/2" thick.

LEDs are fully encapsulated and potted - fully waterproof and vibration resistant.  LEDs rated at 30,000 hours

Dimmable using simple rheostats or our PWM Dimmers

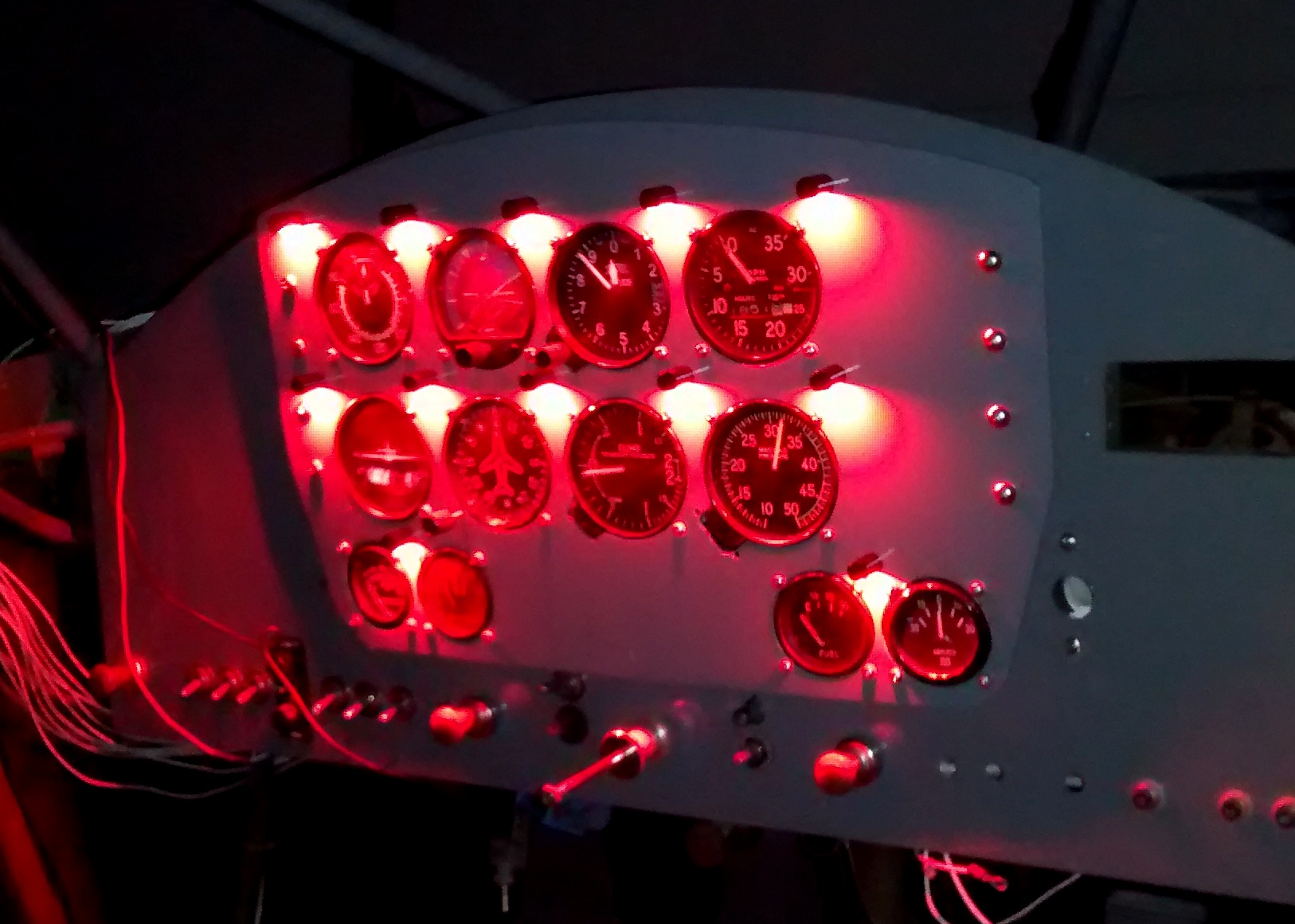

Applications:  Panel Lighting, Map Lights, Convenience Lights, Marine Lighting and Utility panels.

View Angle:  120 degrees

Output:  25lm  (lumens)

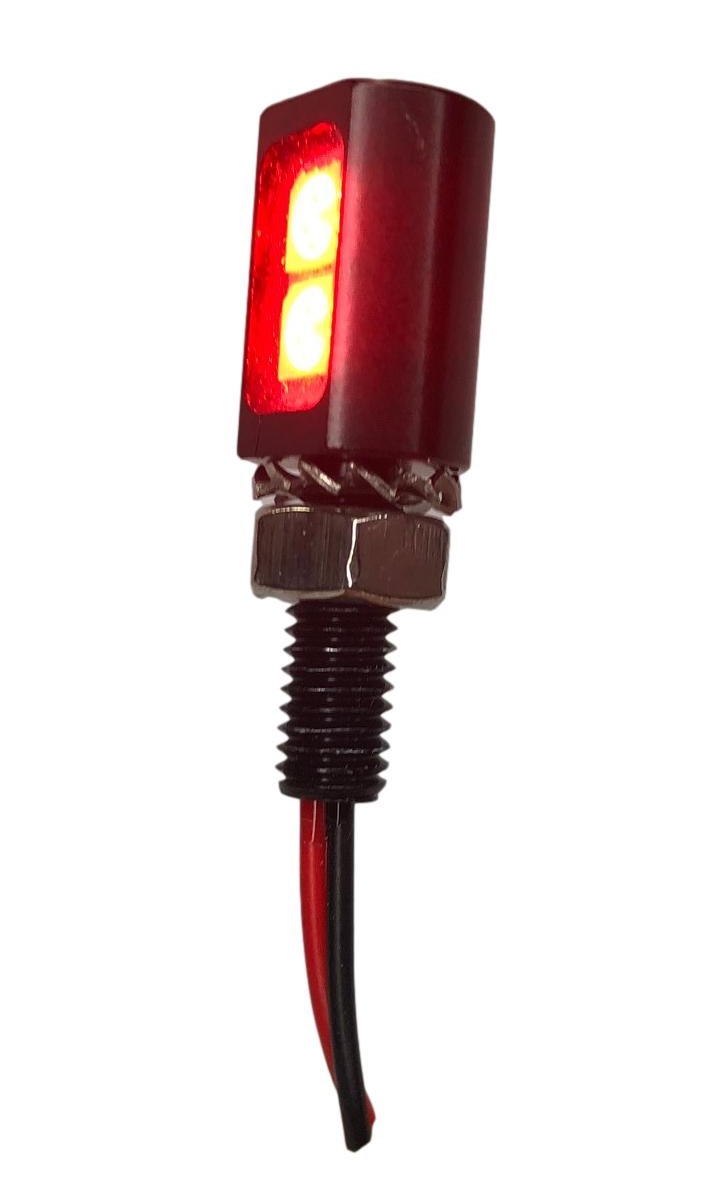

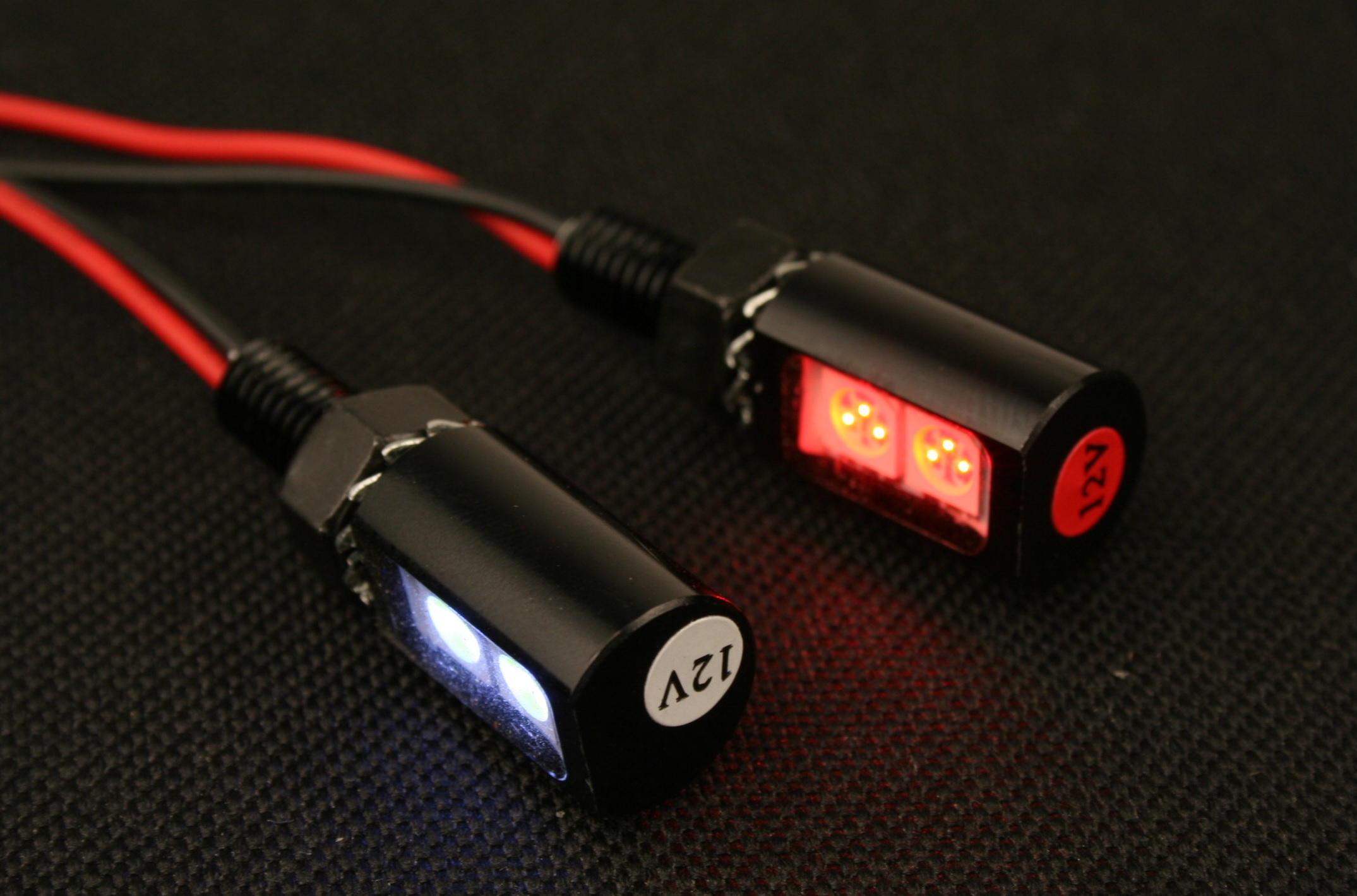

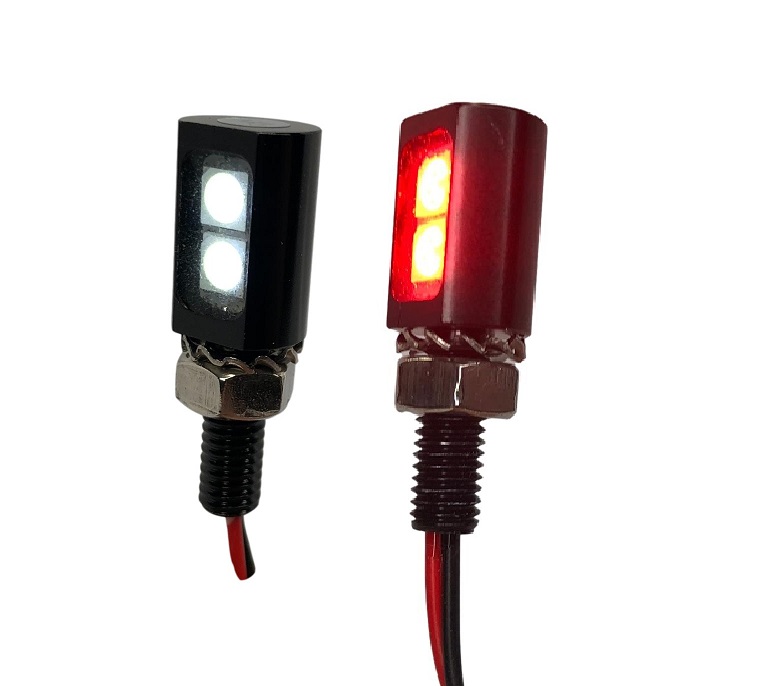

Available in RED LED and COOL WHITE LED (5500K) colors in both 12-14VDC and 24-28VDC

ALSO AVAILABLE IN BLUE LED, 12VDC AND GREEN LED, 12VDC.  **NEW** - now also available in AMBER LED, 12VDC.  See our other listing for these options.

ALSO AVAILABLE IN SILVER BASE COLOR - see our other listings.

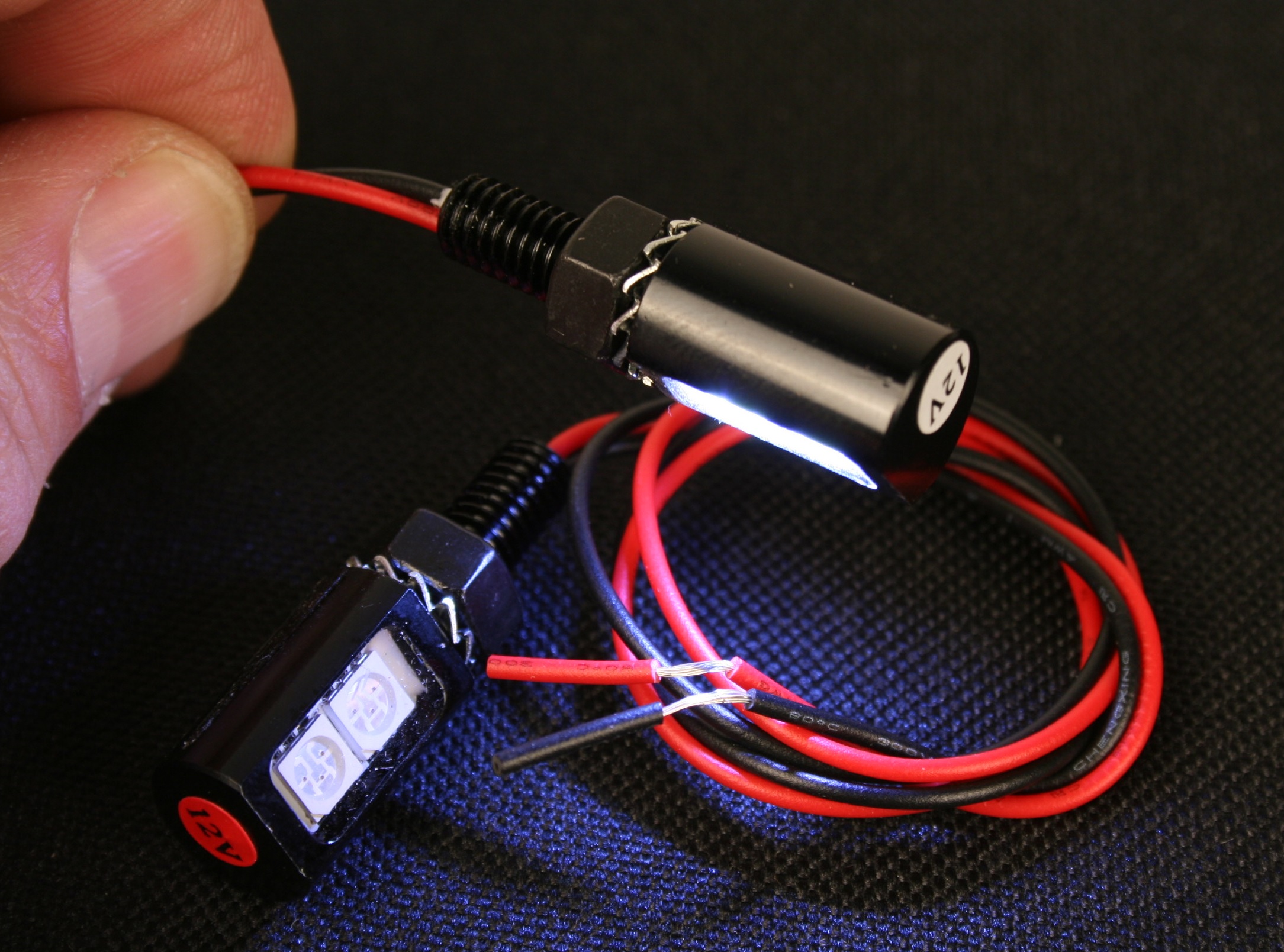

Simple wiring - color coded Red (+) and Black (-) lead wires, 10" length

Also see our new Mini Gooseneck Lamps in both 120mm and 240mm versions (12 and 24VDC) - these lamps add a small gooseneck to the Post Light housing.

Part number:  PANEL POST SERIES - 01
