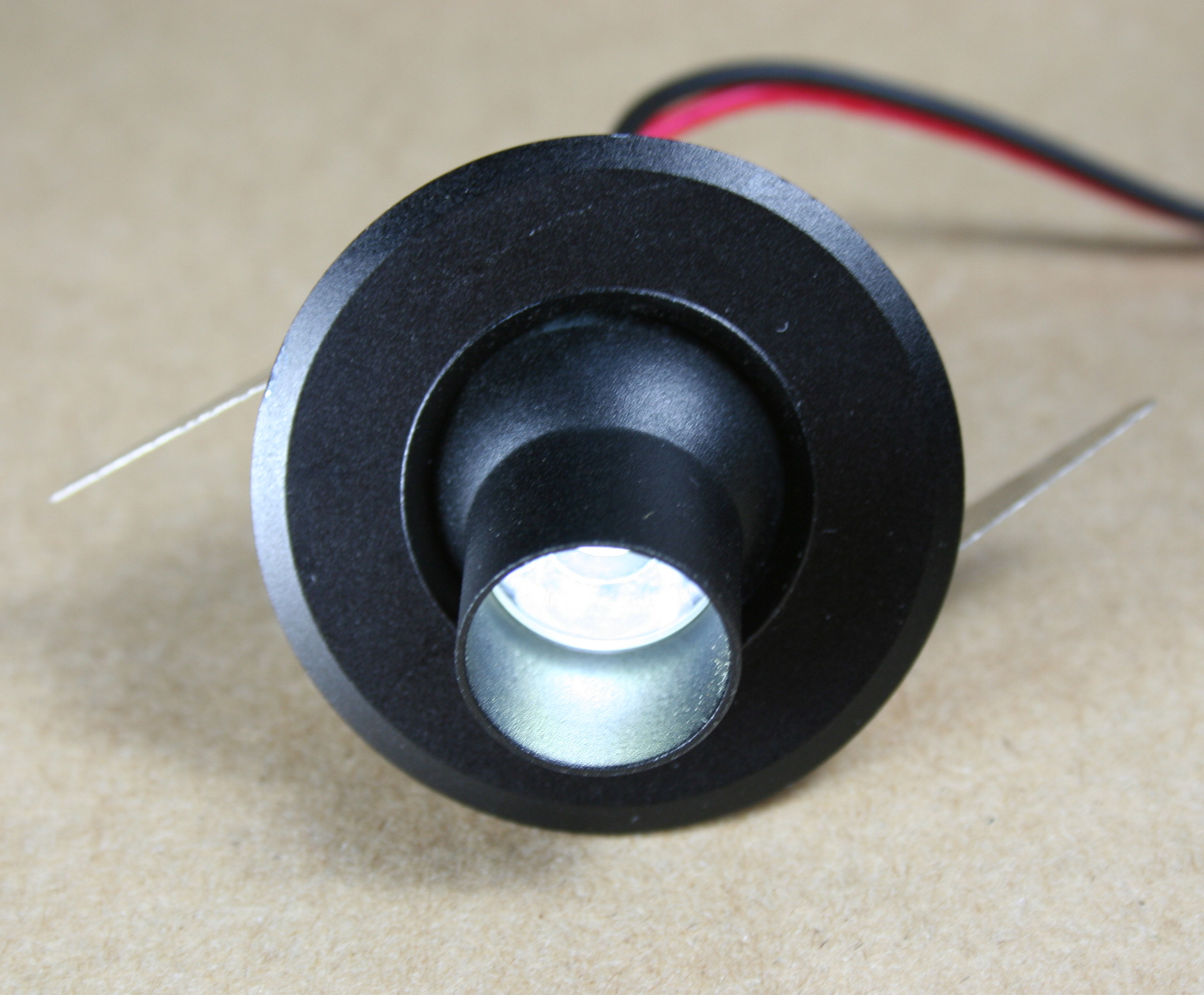

Micro EyeBall LED Light (12-24VDC or 90-220VAC) 1W

admin's picture
published by admin on Wed, 08/22/2012 - 01:41
$29.95

Product ID:  Micro-Eyeball 1W.

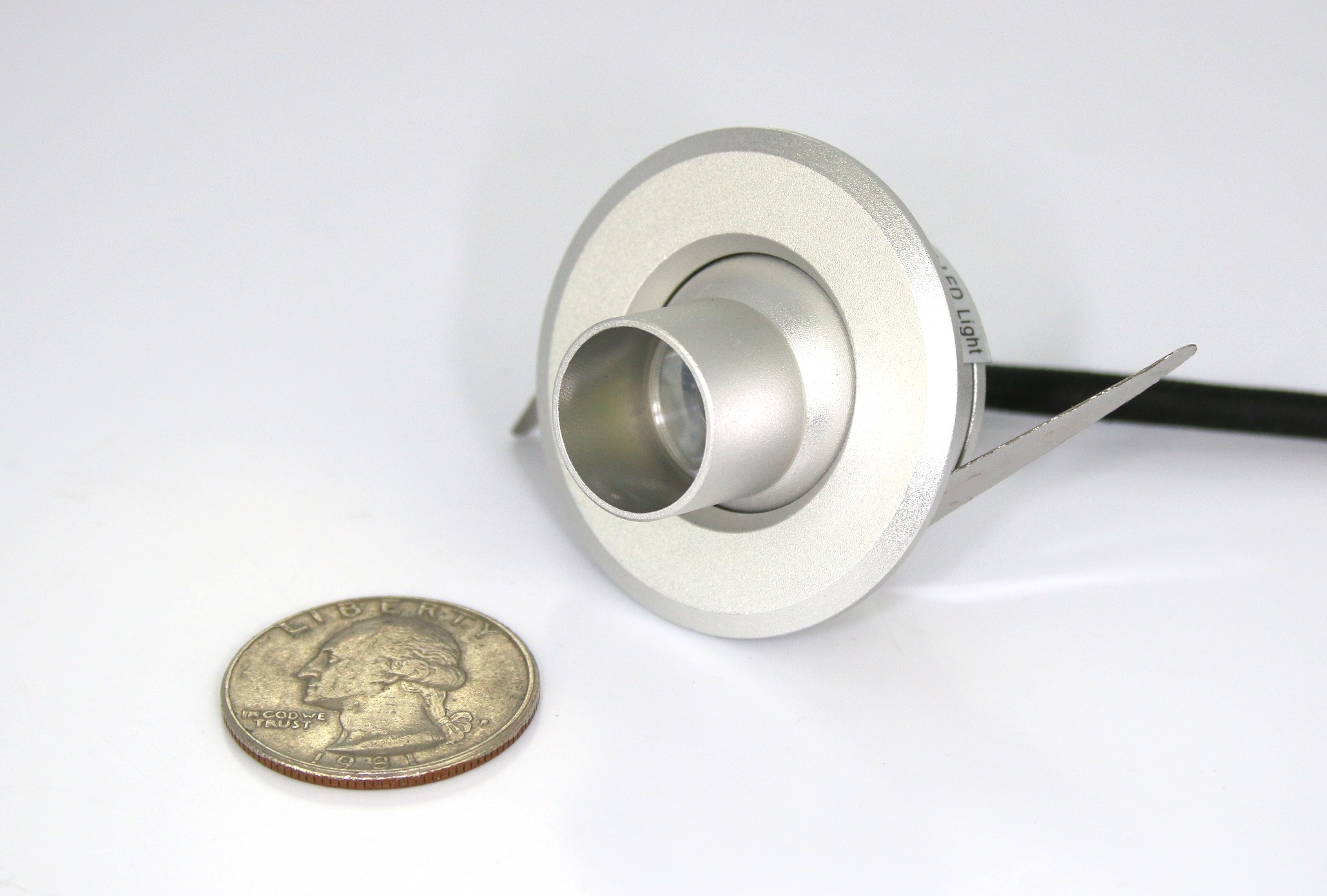

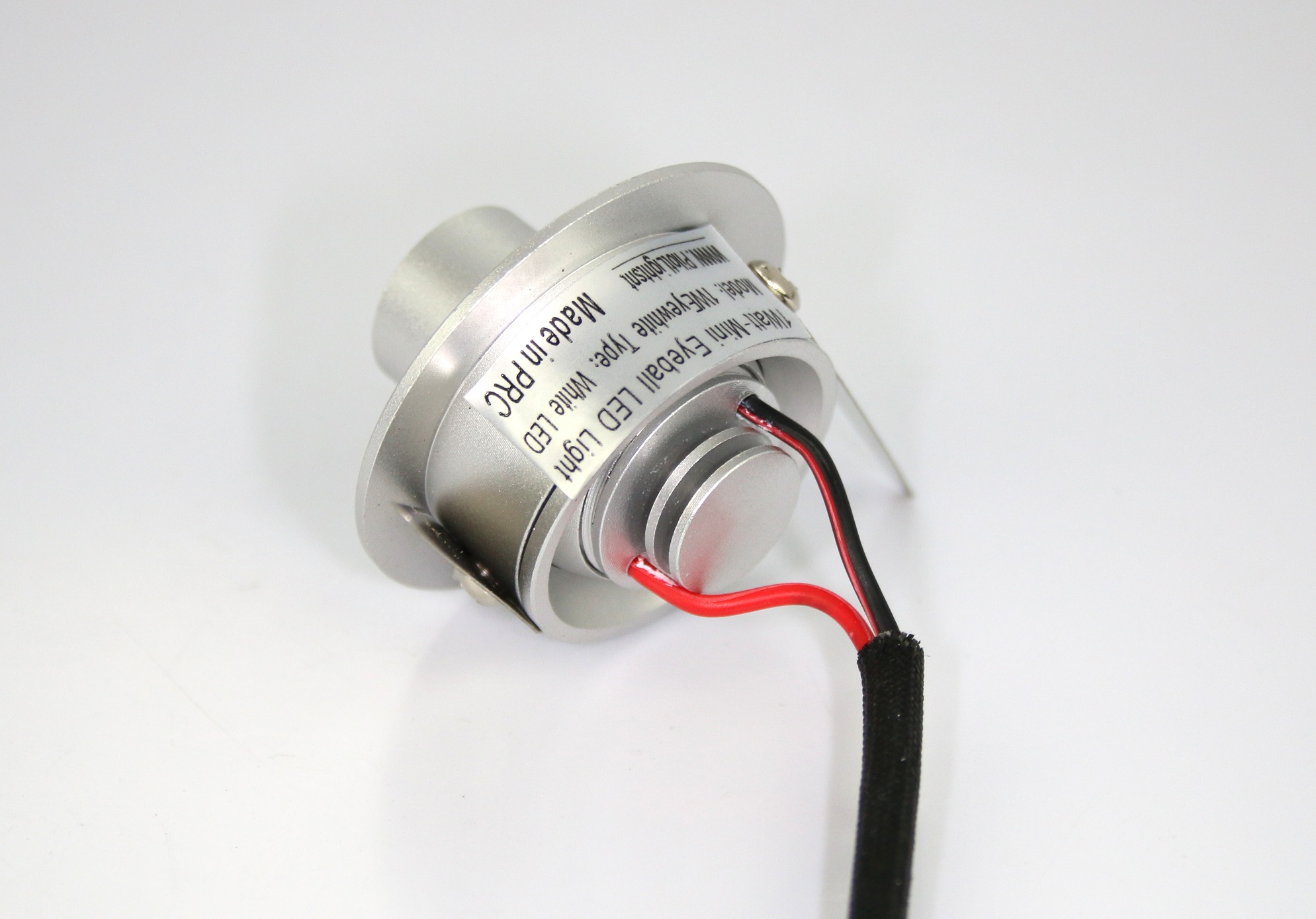

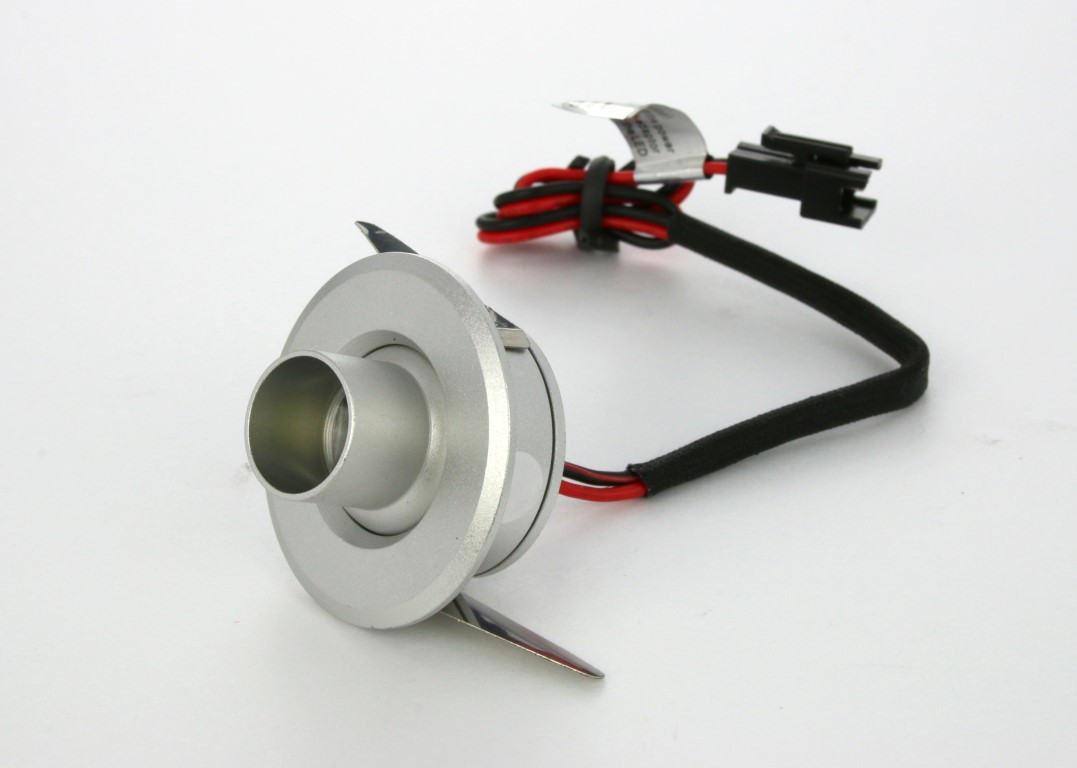

1 Watt Edison LED - a bright LED light source in White, Red, Green or Blue LED colors. Compact size - just 1 3/4" in Diameter.

Depth is just 3/4". Low heat, low energy consumption (under 200 mA) and compact. 30 Degree beam angle places lighting where you need it.

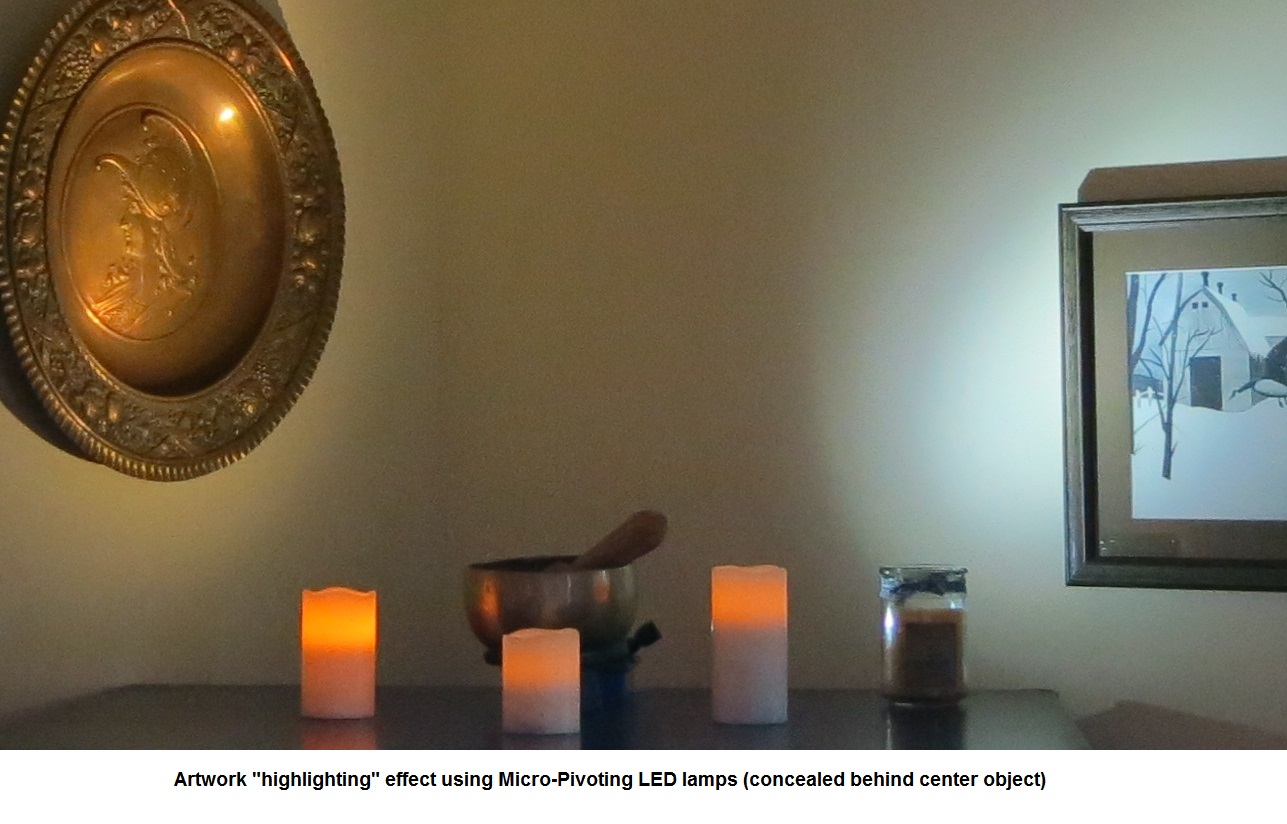

With optional 110-220VAC adapter, connect this lamp directly to house current for operation as a cabinet or accent light.

Operates at less than 3.5VDC.

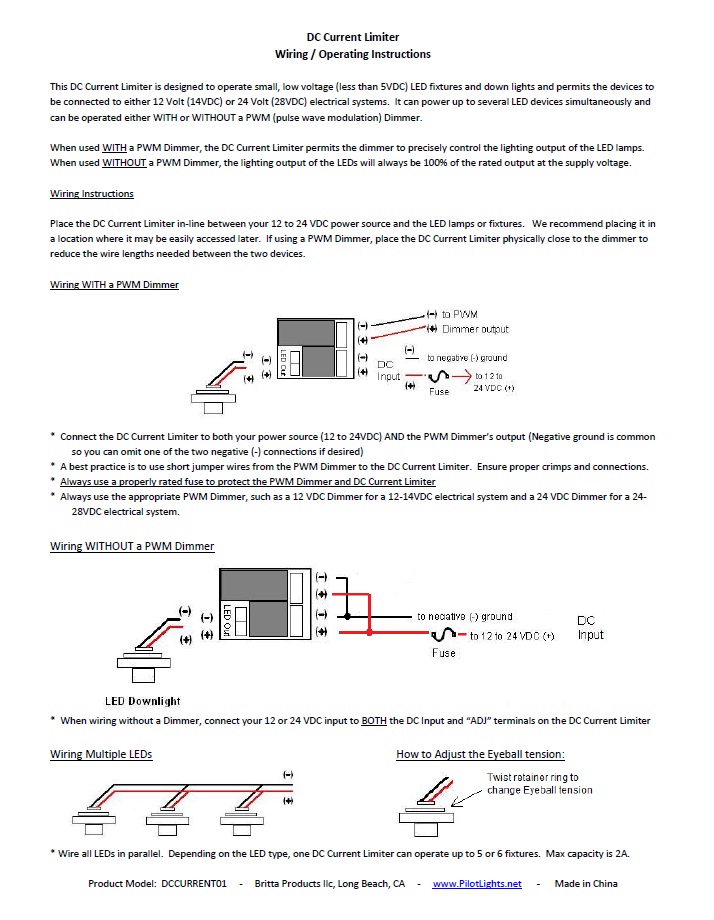

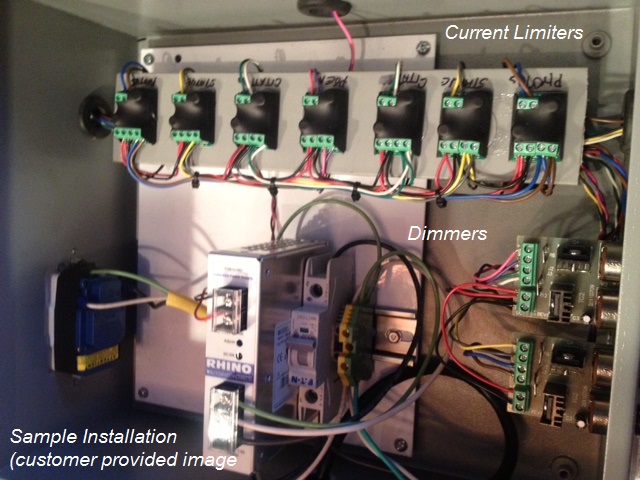

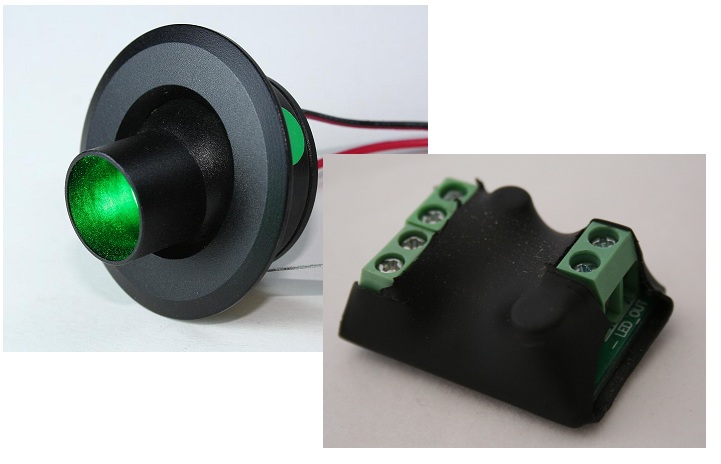

Each fixture comes with a connector kit (current limiter, size: 1x1x0.2") to directly connect to either 12 VDC or 24VDC systems.

Hole cutout is just 1 1/8" if mounting using an adhesive. (If using the removable spring-tabs, the cutout is 1 1/4")

Flange diameter is 1 9/16"

Fully dimmable (dimmer connects to current limiter, see instructions) - see our other listings for PWM Dimmers

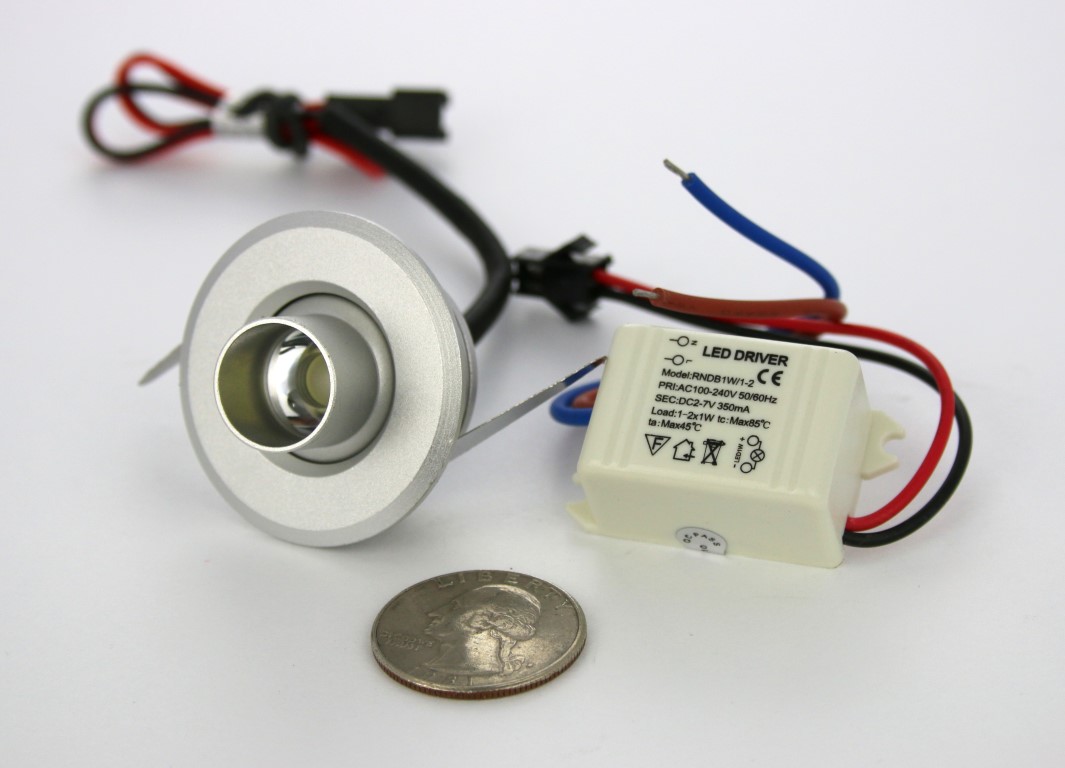

Optional AC adapter (tiny size: just 1" square) permits connection to 110-220VAC.

Select either 12VDC or 110-220VAC option at checkout.

Technical details: Light source (Lamp): Edison 1W Light output: about 90LM

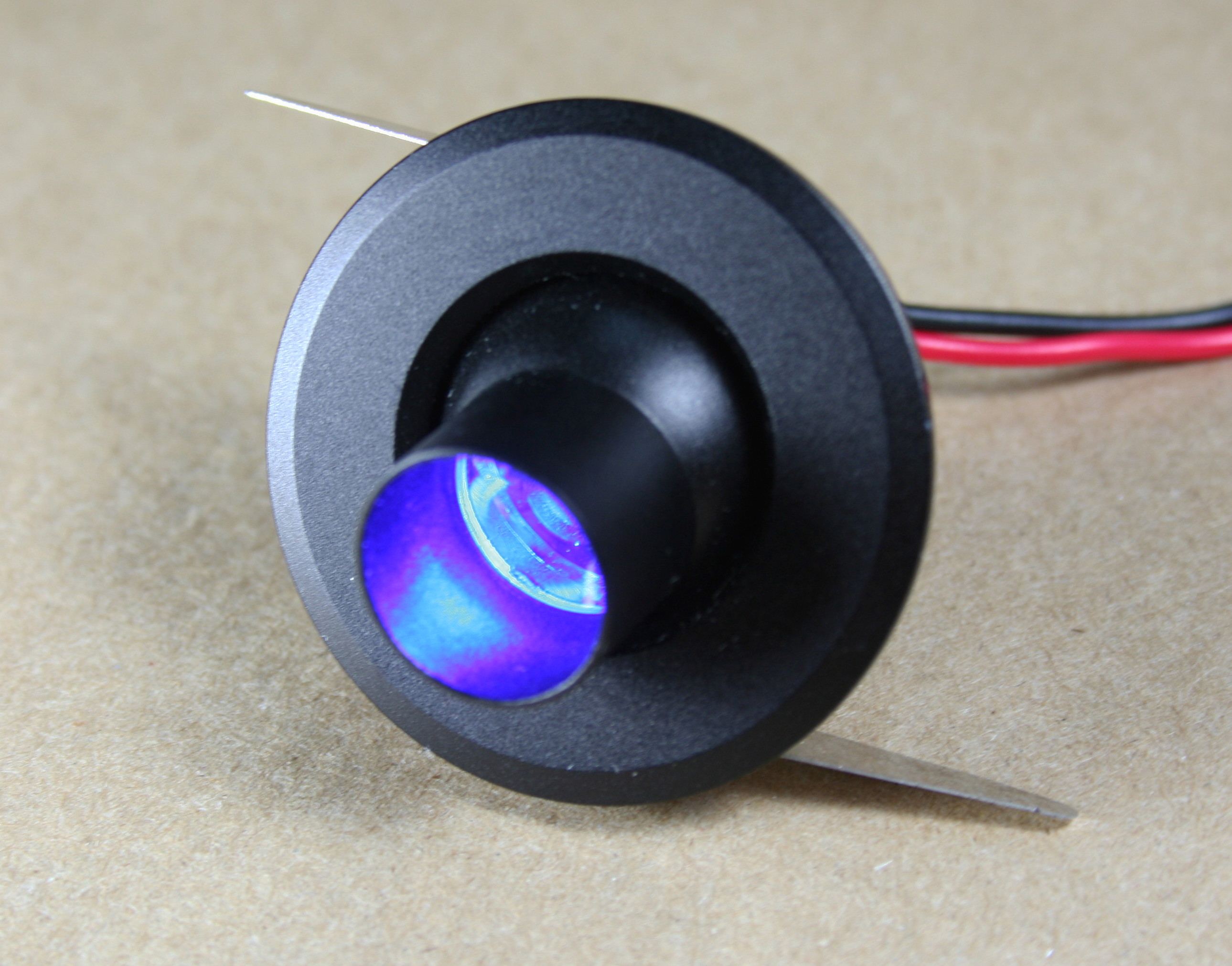

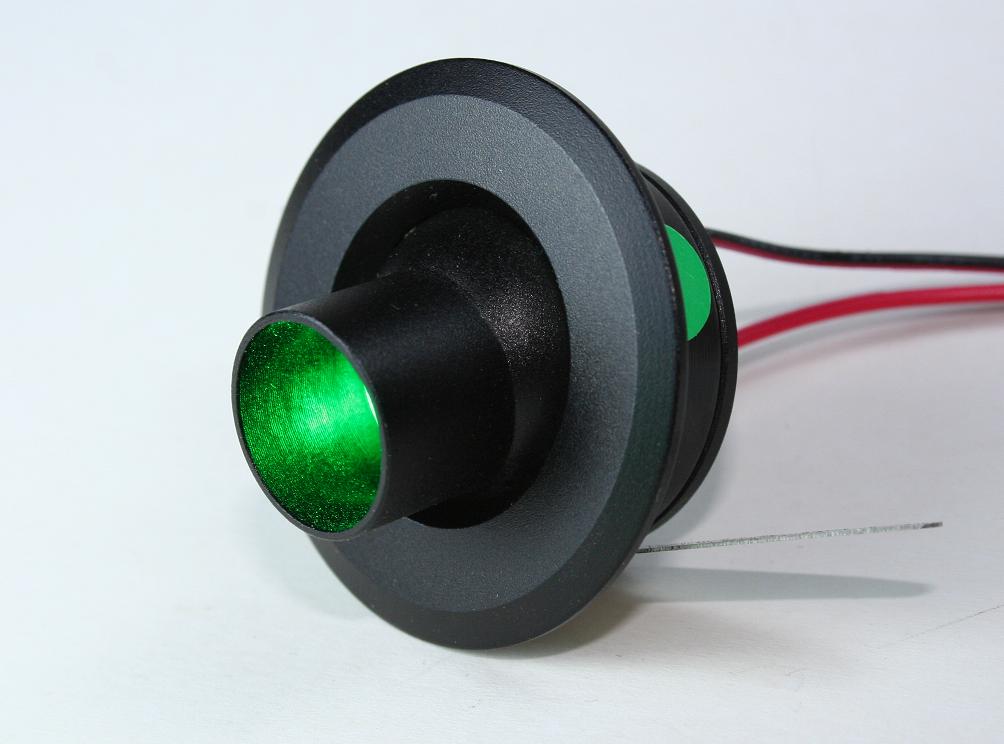

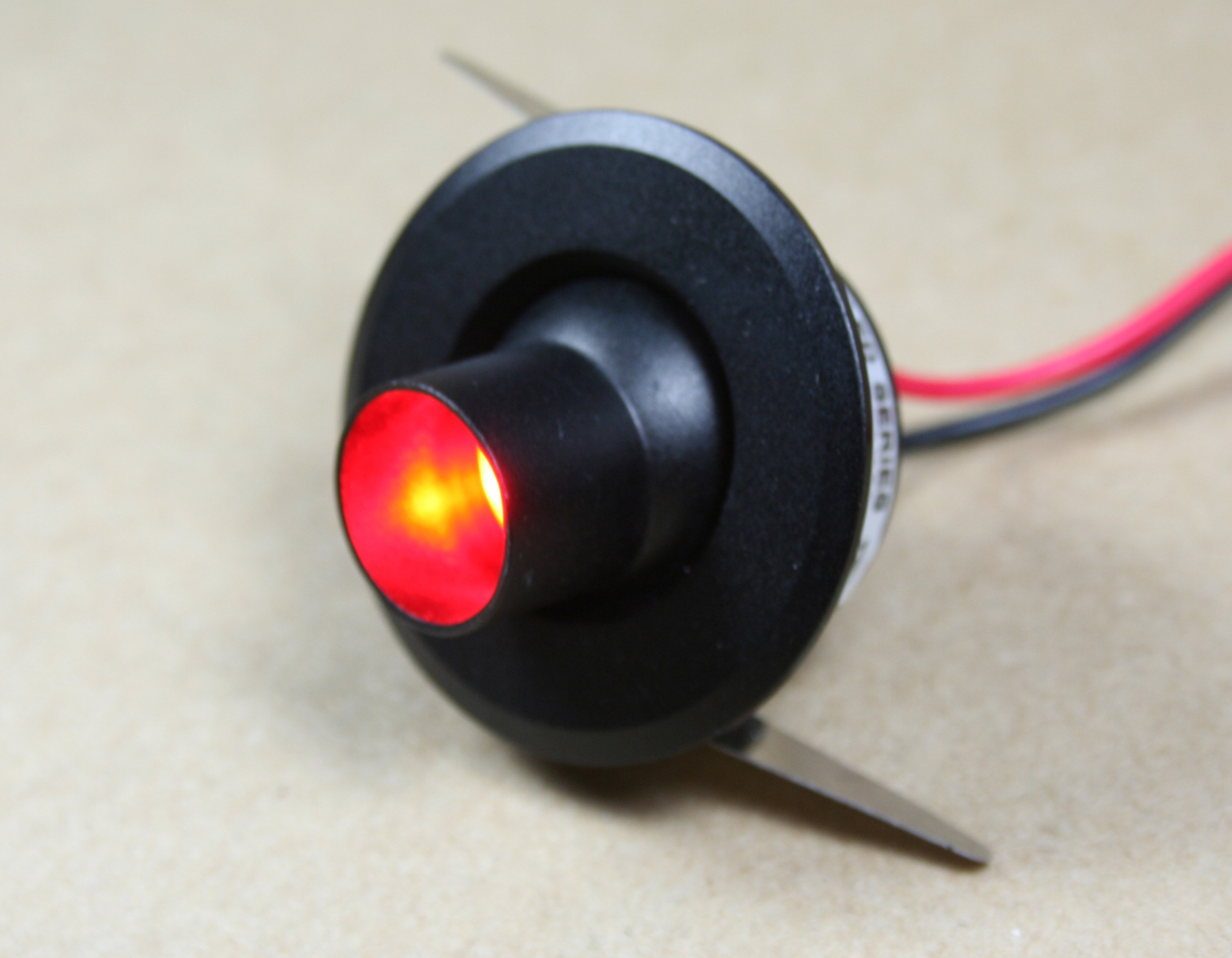

BLACK finish lamp available in Cool White (5500K), Warm White (3800K), BLUE, RED and GREEN LED.

SILVER finish lamp available in Cool White (5500K) and Warm White (3800K).

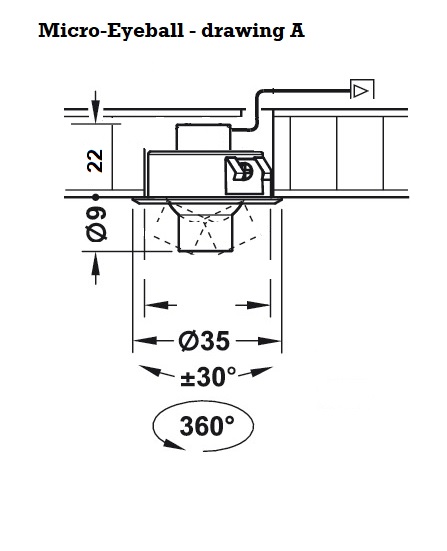

Size (Dimension): Φ40x32.5mm Hole size (Cut-Out) :: Φ35

Material: Aluminum

Color: Black or Silver

List price: $34.95
Catalog:
Eye Ball and Down Lights
Mini Spotlights and Downlights
Mini Downlights
Related Products:
Eyeball LED Dome Light with Switch
Eyeball LED Dome Light - 2.75" Diameter. BA9S-powered
Price: $29.95
Weight: 4 oz
Product Video:

Downlight with current limiter and dimmer

Downlight with current limiter and dimmer
PDF File:
PDF icon wiring_multiple_lamps_with_a_12vdc_pwm_dimmer.pdf
Dimensions: 1.75 in × 1.75 in × 0.75 in
Select LED Color
Black or Silver
