Mini Down Light 3W LED Fixture (12 to 24 VDC or 110 to 220VAC)

NOTE: OUT OF STOCK - No replenishment date yet available.

Product Features

A tiny but powerful 3 Watt Mini Spotlight LED in a compact flush fixture
Just 1 15/16" diameter. Fits inside a 1 1/4" hole (when used without spring clips) with 1 1/4" depth - compact enough to fit virtually any overhead console, cabinet or fixture
Powerful 3 Watt LED provides a bright, low-power, low-heat light source. Cool white LED - 5000K
Ideal for your Auto, Truck, RV, Boat, Aircraft or custom cabinet application
Operates at 3.5VDC. An INCLUDED connection kits allows you to directly connect to your 12 Volt or 24 Volt DC power source

Optional AC adapter (tiny size: just 1" square) permits connection to 110-220VAC. Select either 12VDC or 110-220VAC option at checkout.

Technical Details

Brushed aluminum finish
3 Watt LED - about 300 lumens
25 to 30 degree beam angle
Cool white LED (5000-6000K)
Concave flush face
Compact
Mini Spotlight

Product Description

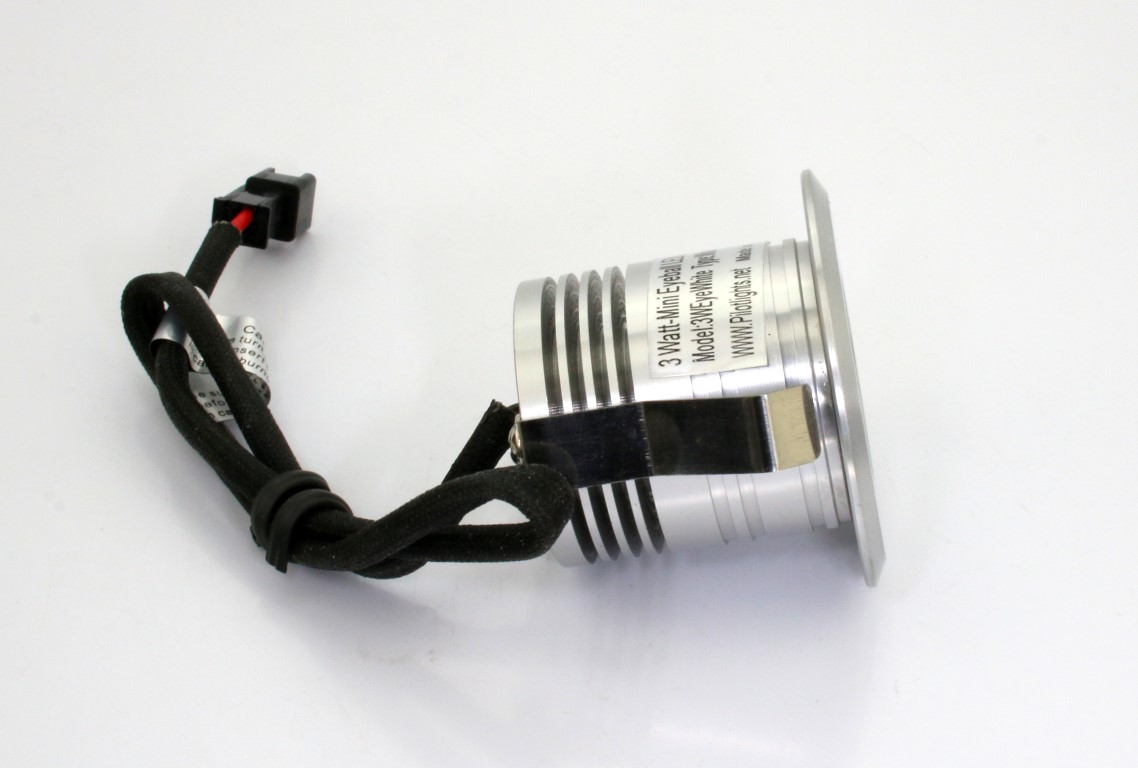

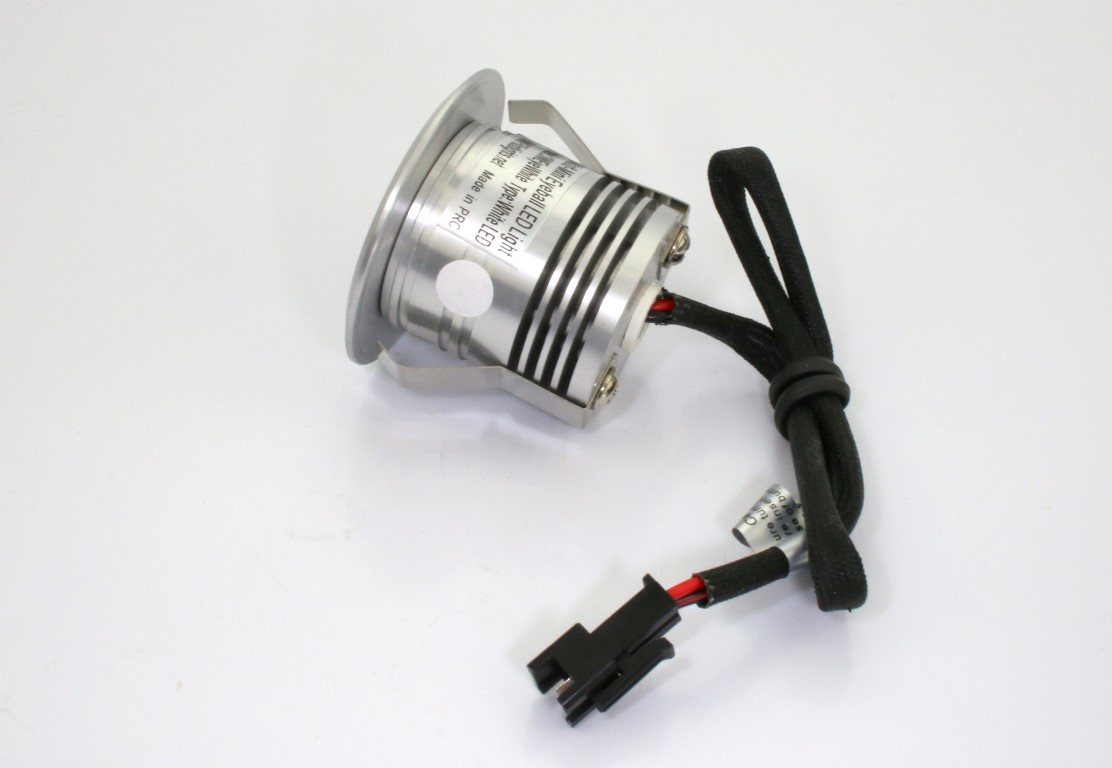

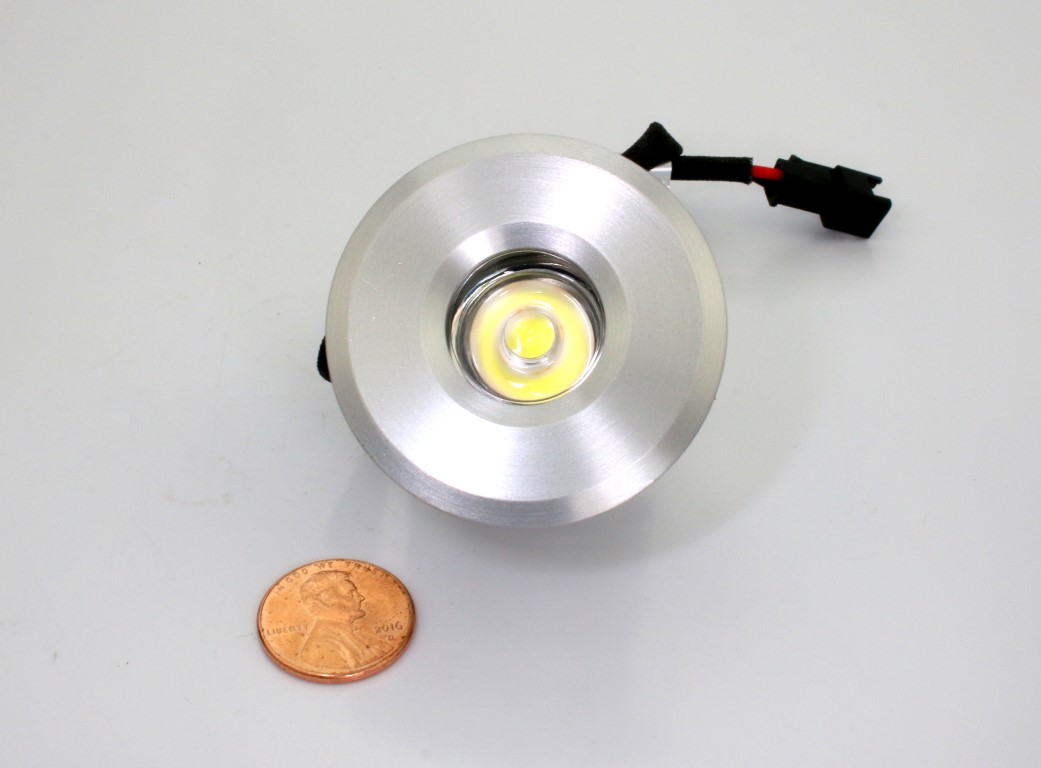

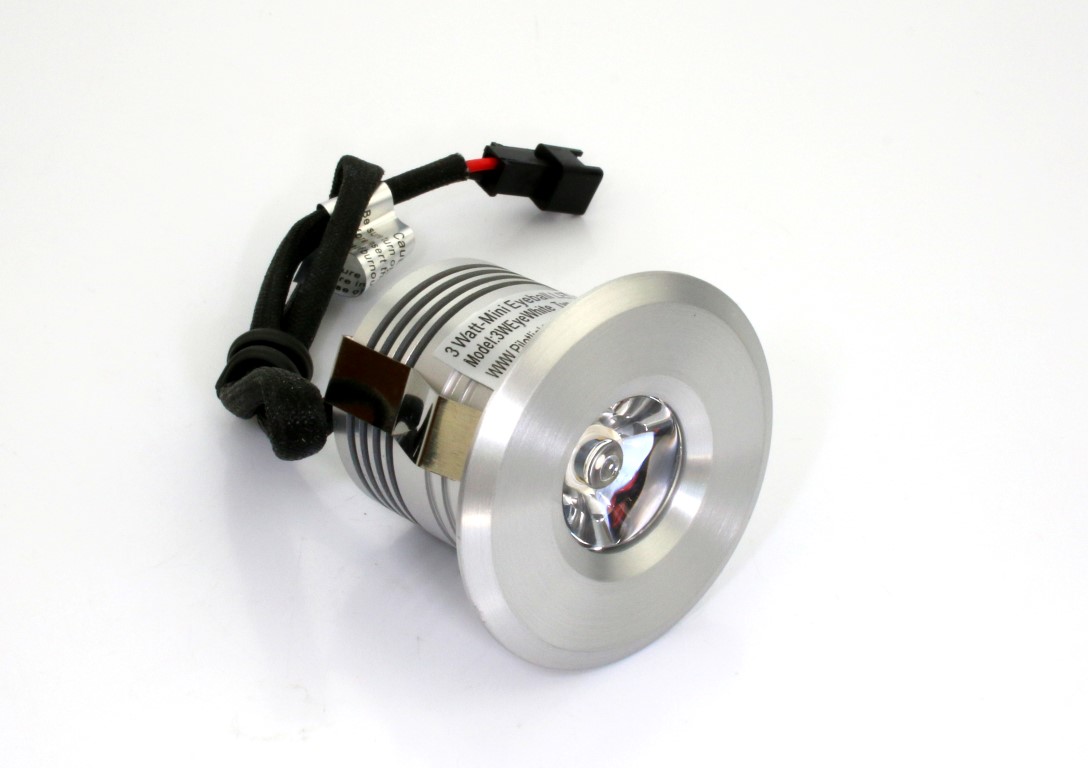

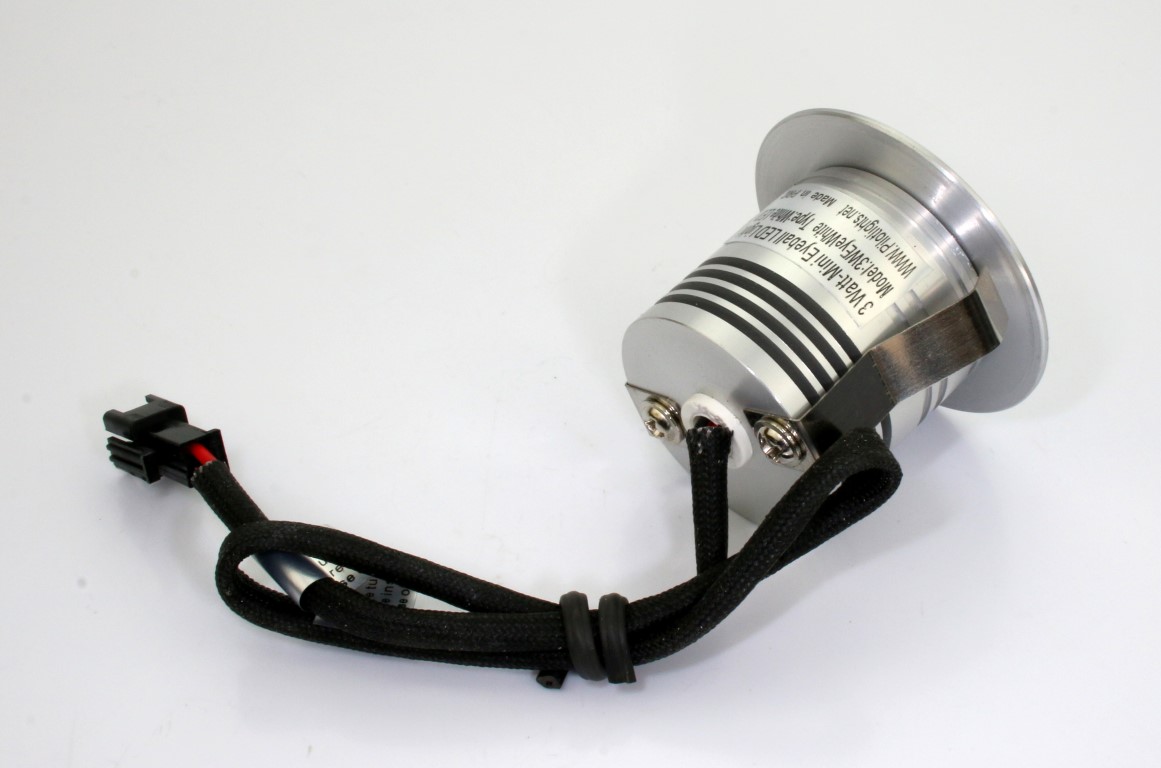

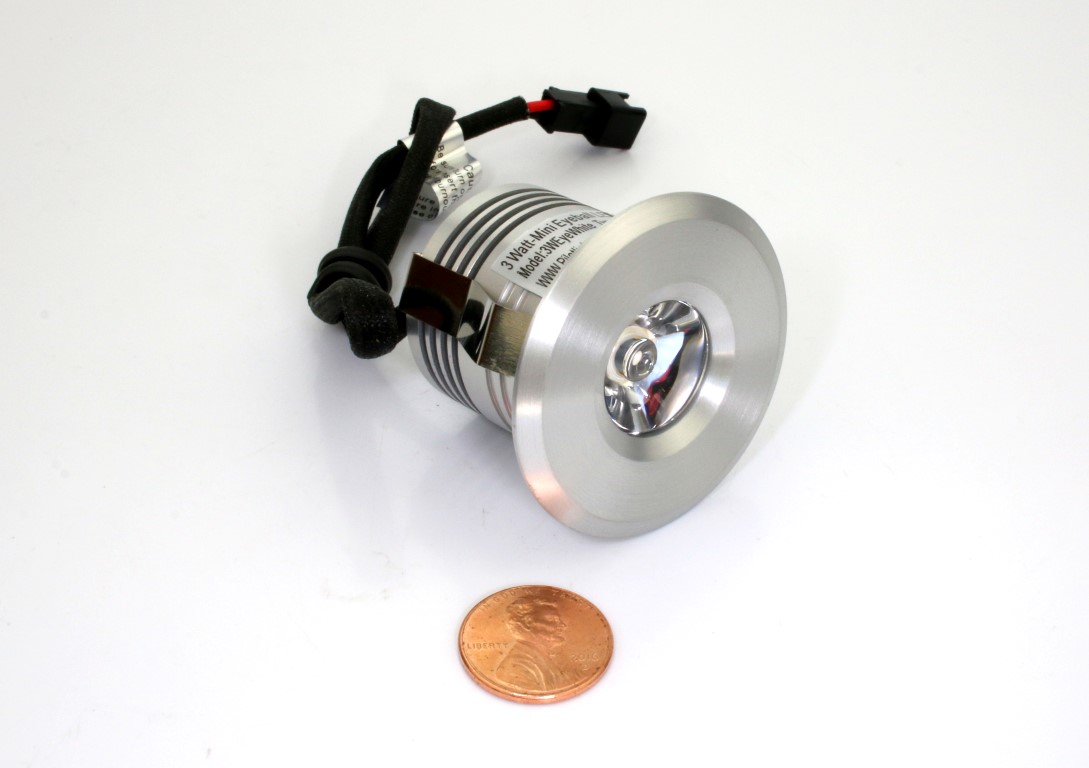

Our tiny model 7037 light fixture packs a 3 Watt super-bright light source (cool white LED, 5000-6000K). A compact and well-made anodized aluminum fixture, the downlight directs its powerful 3 Watt light where pointed. At just under 2" in diameter and projecting just 1 1/4" behind its flush cover, this fixture fits virtually any installation in your car, truck, boat, aircraft or custom cabinet. The brushed aluminum finish makes a fine addition to your custom project. Connects directly to your 12 VDC or 24 VDC power source with the supplied kit and draws less than 350mA. Easily dimmable using PWM Dimmers (see our other products and listings). LED light source is 3W, 5000-6000K Edison LED chip. Ideal for overhead map or task lighting. Spring loaded clips retain the lamp inside your mounting hole (or remove them and use an epoxy or semi-permanent adhesive for installation.

Installation note: lamp diameter is 1 1/4" without spring clips. If installing using the attached spring clips, mounting hold diameter is about 1 5/8".

With optional 110-220VAC adapter, connect this lamp directly to house current for operation as a cabinet or accent light.

Model: 7037
Lamp: LED 3W Edison
Dimensions: 46 x 35 mm
Cut-Out: 35 mm
Material: Aluminum
