Mini Downlight LED Fixture (12-24 VDC or 110-220VAC versions) - 1W, 5500K

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Sun, 09/23/2012 - 20:54
$39.95

SORRY, OUT OF STOCK. NOT AVAILABLE.

Highlights:

* A tiny but powerful 1Watt Mini Spotlight LED in a compact flush fixture

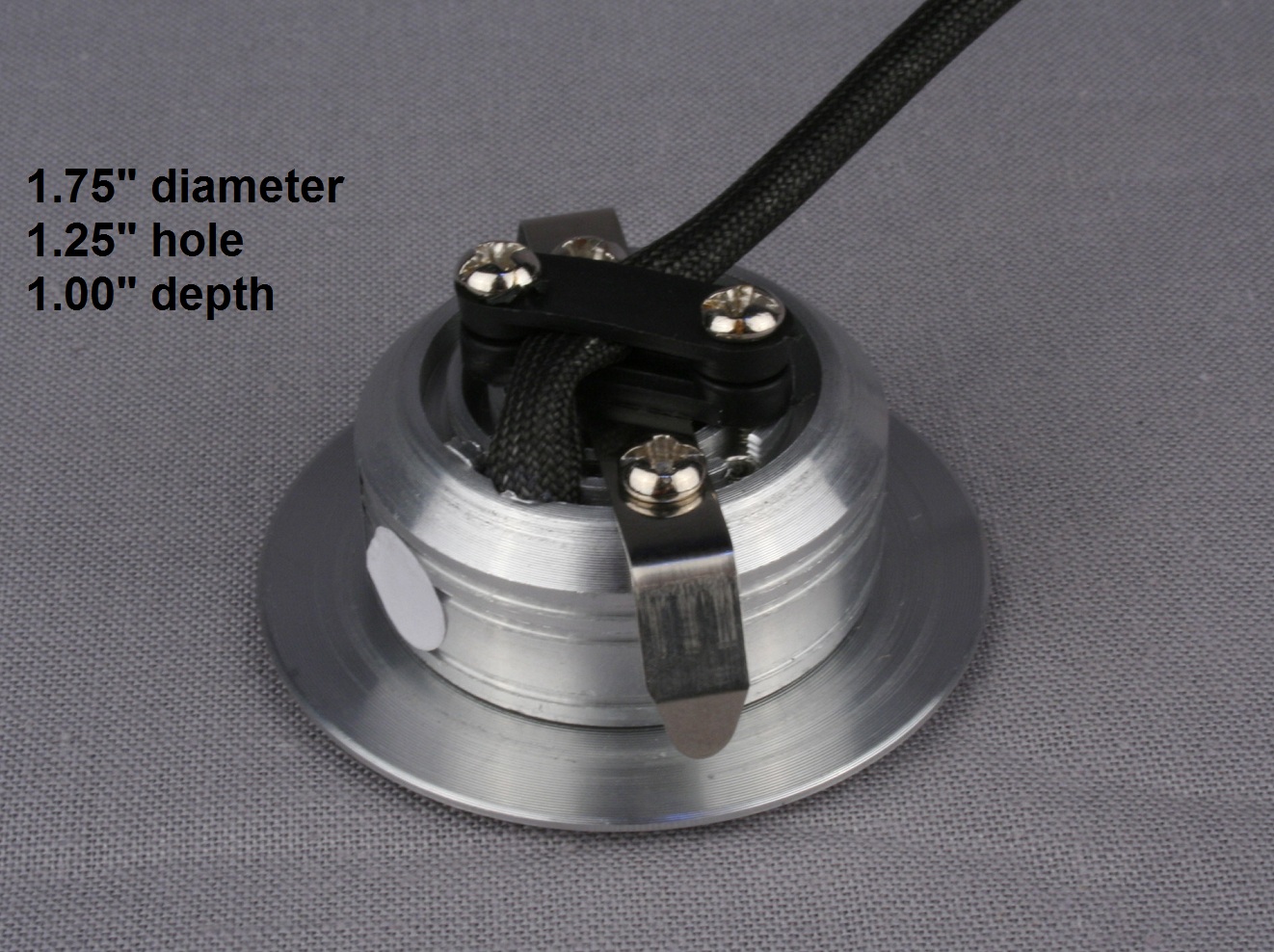

* Just 1.75" diameter. Fits inside a 1 1/4" hole with 1" depth - compact enough to fit virtually any overhead console, cabinet or fixture
* Powerful 1 Watt LED provides a bright, low-power, low-heat light source. Cool white LED - 5000K
* Ideal for your Auto, Truck, RV, Boat, Aircraft or custom cabinet application
* Operates at 3.5VDC. An INCLUDED connection kits allows you to directly connect to your 12 Volt or 24 Volt DC power source (see our other eyeball lights and LED lights in our other listings)

Product Description

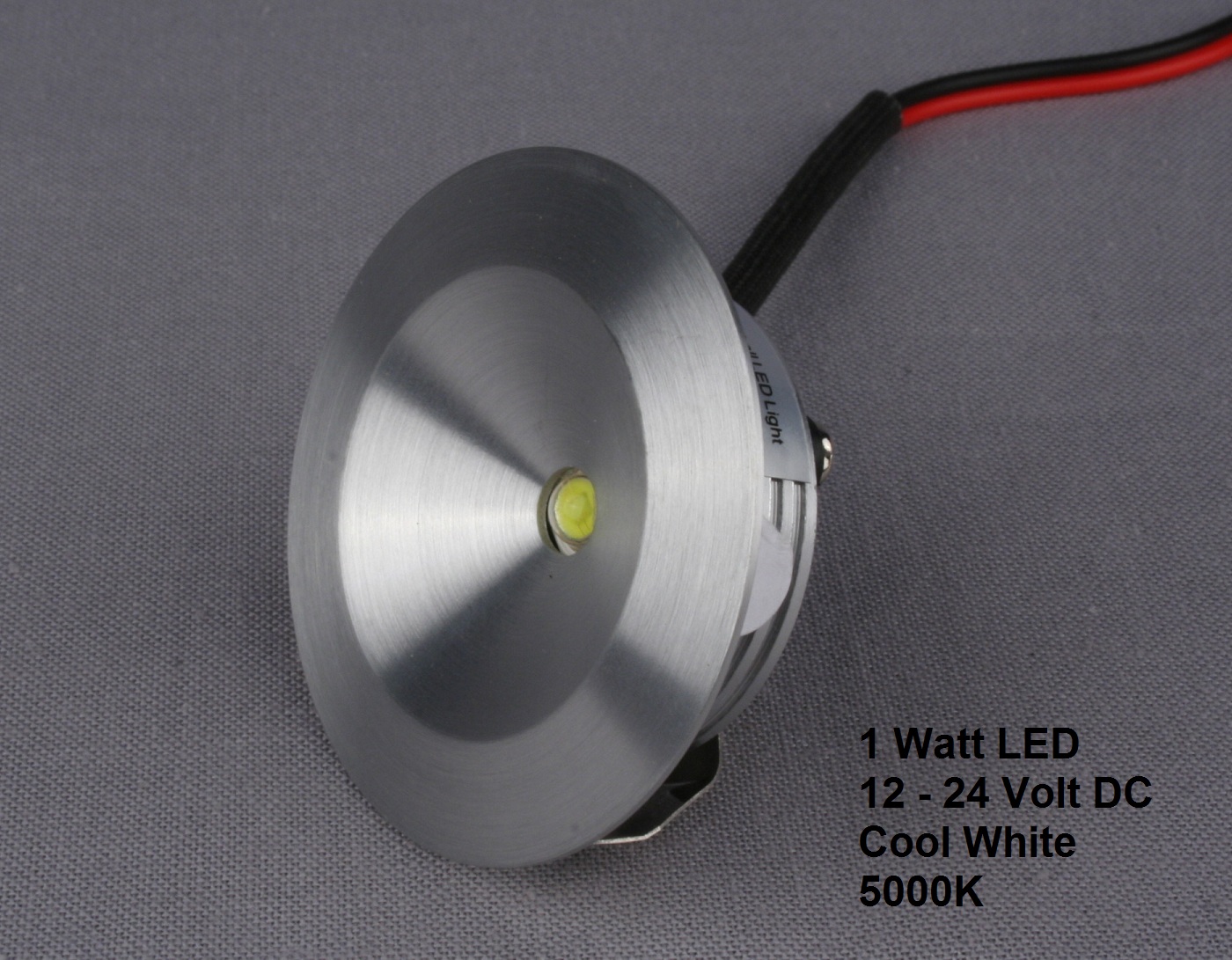

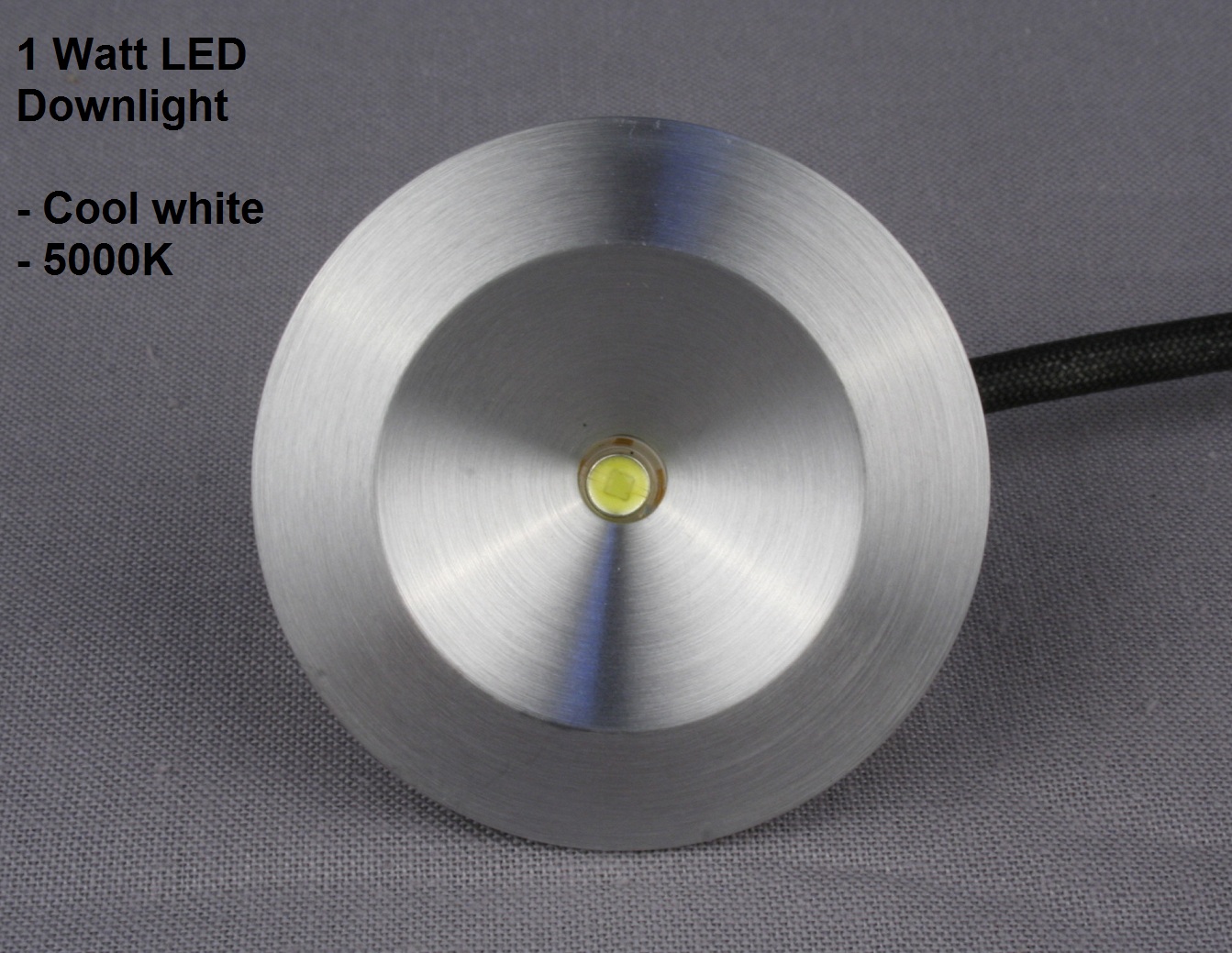

Our tiny model 7035 light fixture packs a 1 Watt super-bright light source (cool white LED, 5000-6000K). An extremely compact and well-made anodized aluminum fixture, the eyeball feature directs its powerful 1 Watt light where you need it. At just 1.75" in diameter and projecting just 1" behind its flush and concave cover, this fixture fits virtually any installation in your car, truck, boat, aircraft or custom cabinet. The brushed aluminum finish makes a fine addition to your custom project. Connects directly to your 12 VDC or 24 VDC power source with the supplied kit and draws less than 250mA. Easily dimmable using PWM Dimmers (see our other products and listings). LED light source is 1W, 5000-6000K. Ideal for overhead map or task lighting. Spring loaded clips retain the lamp inside your mounting hole (or remove them and use an epoxy or semi-permanent adhesive for installation.

Ships with connection kit and current limiter to permit direct connection to 12 to 28VDC. Fully dimmable (see our matching PWM dimmers designed to dim these and other LEDs).

List price: $49.95
Catalog:
Eye Ball and Down Lights
Mini Spotlights and Downlights
Mini Downlights
Price: $39.95
Weight: 3 oz
Product Video:

Downlight with current limiter and dimmer

Downlight with current limiter and dimmer
PDF File:
PDF icon wiring_multiple_lamps_with_a_12vdc_pwm_dimmer.pdf
Dimensions: 1.75 in × 1.75 in × 1 in
