Mini Spotlight Eye Ball Downlight LED Fixture 3W - Cool White or Natural White

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Sun, 09/23/2012 - 21:00
$39.95

Updated - MODEL 7015 -- New Model - 3W

A small but powerful 3 Watt Mini Spotlight LED in a compact pivoting eyeball fixture

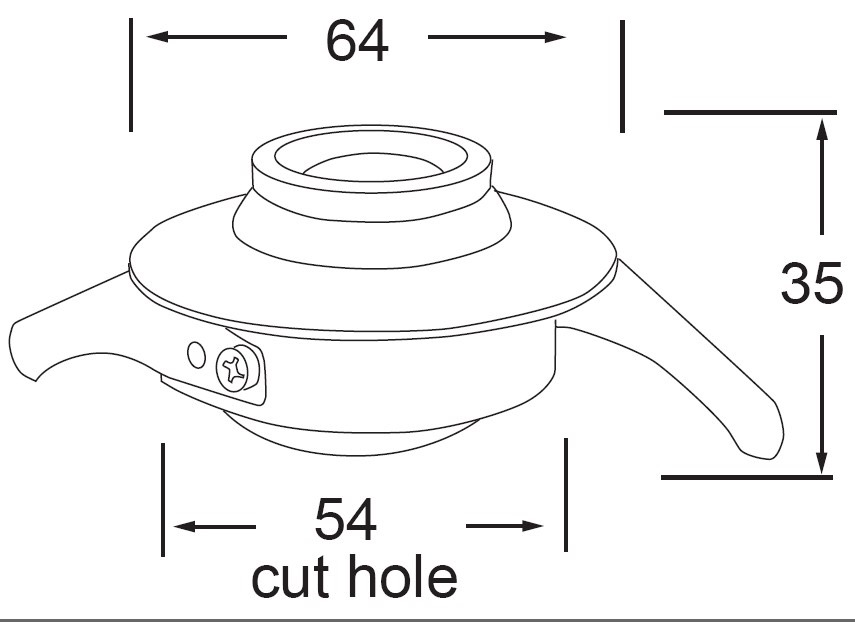

Just 2.5" diameter (64mm). Fits inside a 2.12" hole (54mm) with 1.38" depth (35mm) - compact enough to fit virtually most overhead console, cabinet or fixture

Powerful 3 Watt LED provides a bright, low-power, low-heat light source.

Color temperature: Natural White (3800K-4000K) or Cool White (5500K)

Ideal for your Auto, Truck, RV, Boat, Aircraft or custom cabinet application

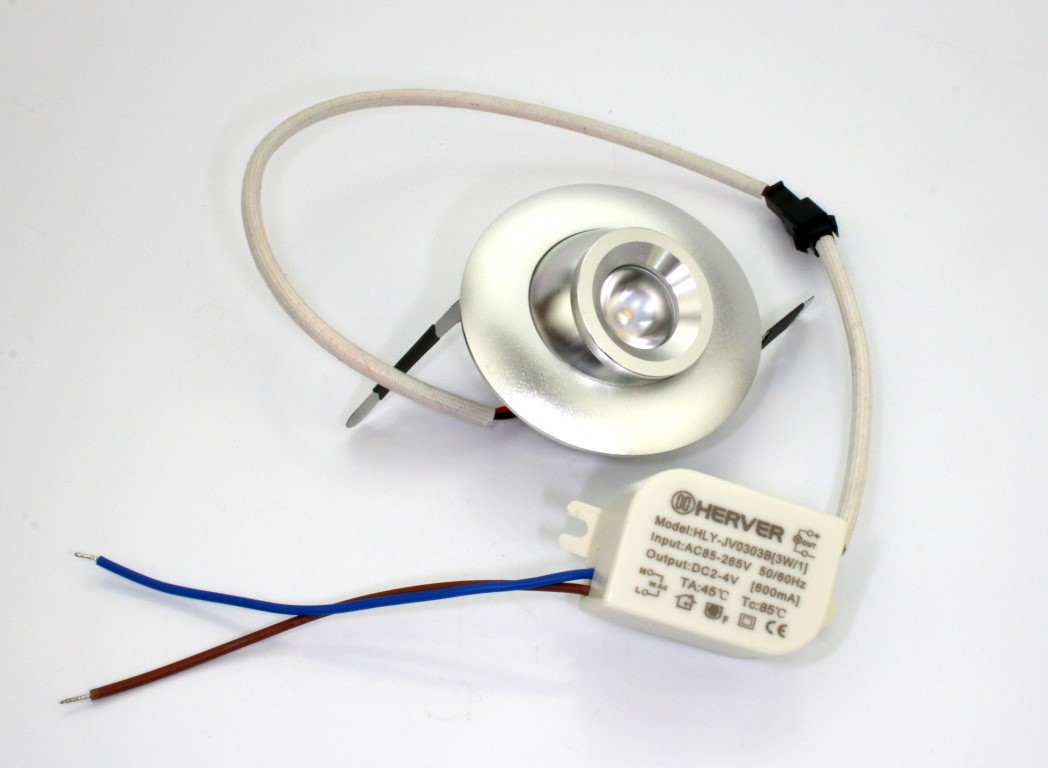

Operates at 3.5VDC. An INCLUDED connection kits allows you to directly connect to your 12 Volt or 24 Volt DC power source (see our other eyeball lights and LED lights in our other listings)

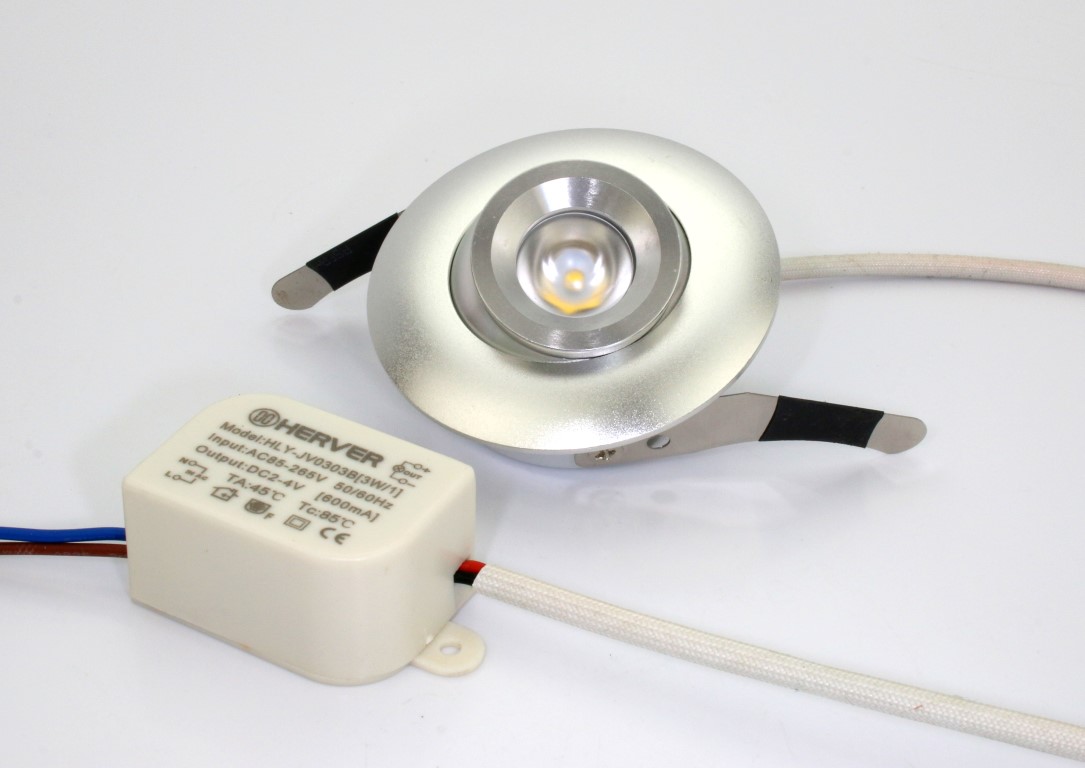

Optional AC adapter (tiny size: just 1" square) permits connection to 110-240VAC. Select either 12VDC or 110-240VAC option at checkout.

Product Description

Our model 7015 eye ball light fixture packs a 3 Watt super-bright light source.

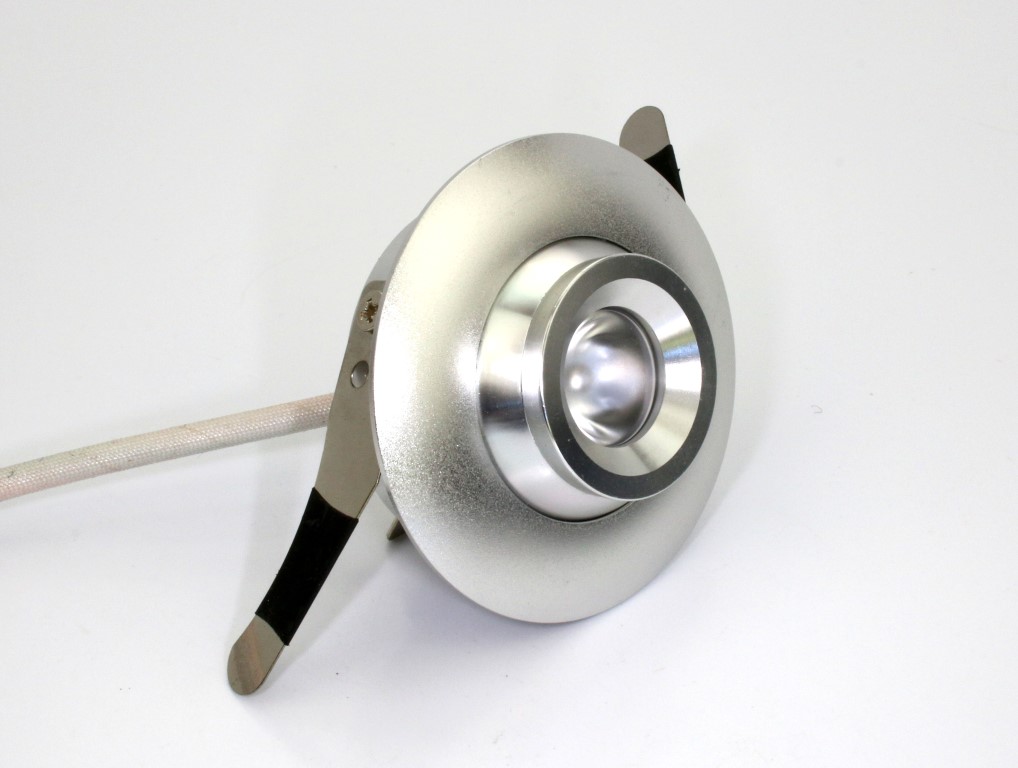

An extremely compact and well-made anodized aluminum fixture, the eyeball feature directs its powerful 3 Watt light where you need it.
At just 2.5" in diameter and projecting just 2.1" behind its flush cover, this fixture fits virtually any installation in your car, truck, boat, aircraft or custom cabinet.

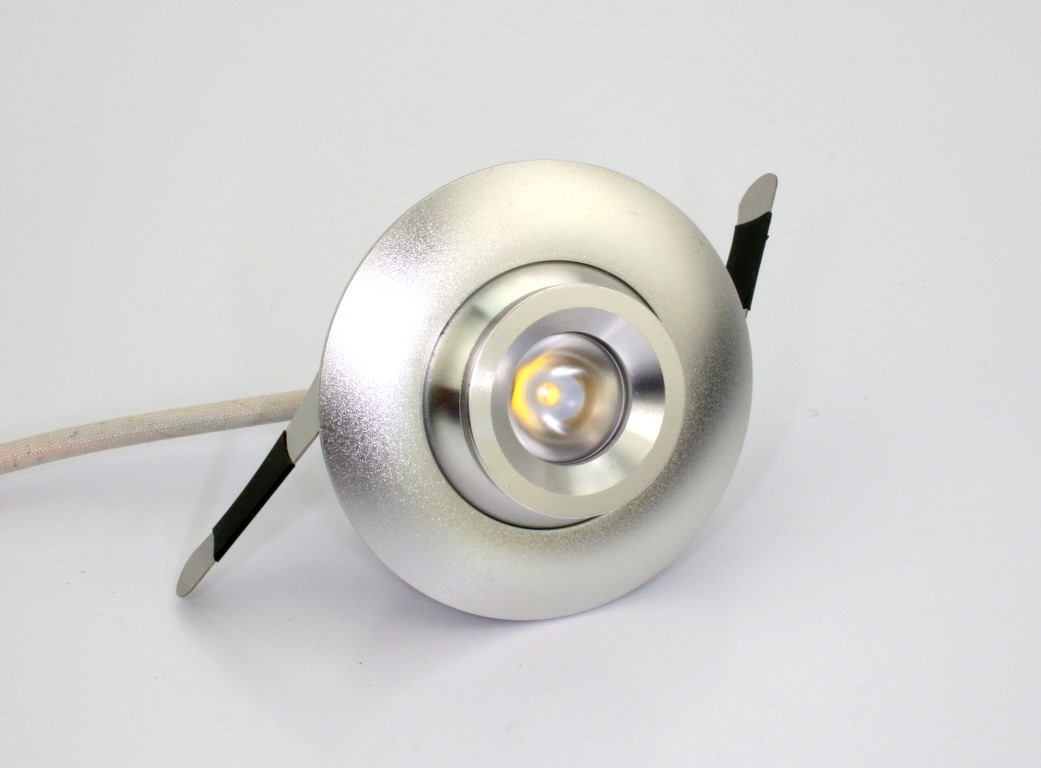

The eyeball on this model pivots from side to side within the housing.
Connects directly to your 12 VDC or 24 VDC power source with the supplied kit and draws less than 250mA.
Easily dimmable using PWM Dimmers (see our other products and listings). LED light source is 3W, 3800-4000K or 5500K (select)
Ideal for overhead map or task lighting.

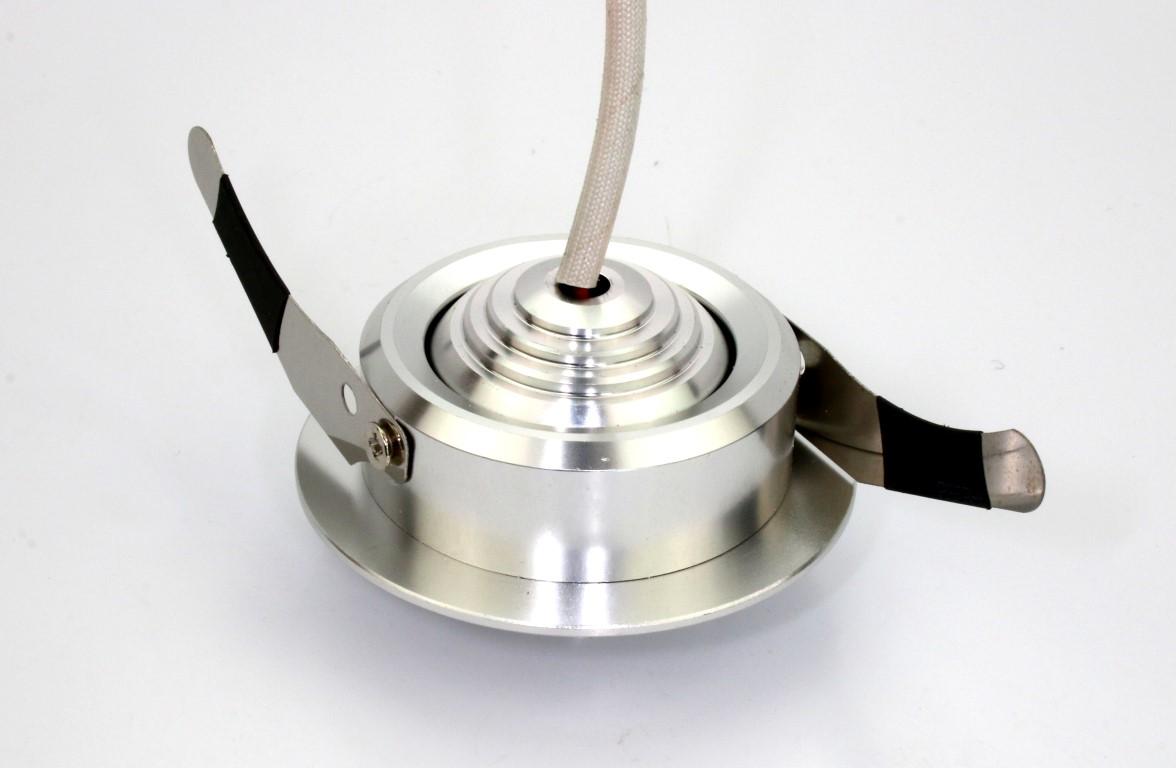

Spring loaded clips retain the lamp inside your mounting hole (or remove them and use an epoxy or semi-permanent adhesive for installation.

With optional 110-240VAC adapter, connect this lamp directly to house current for operation as a cabinet or accent light.

Part number: LED-7015-Eyeball

List price: $49.95
Catalog:
Eye Ball and Down Lights
Mini Spotlights and Downlights
Mini Downlights
Price: $39.95
Weight: 8 oz
Product Video:

Downlight with current limiter and dimmer

Downlight with current limiter and dimmer
PDF File:
PDF icon wiring_multiple_lamps_with_a_12vdc_pwm_dimmer.pdf
Dimensions: 2.9 in × 2.3 in × 1.4 in
