*NEW* Reflector LED NAVIGATION BULB KITS - SET OF TWO or THREE BULBS

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Fri, 04/03/2020 - 12:47
$59.95

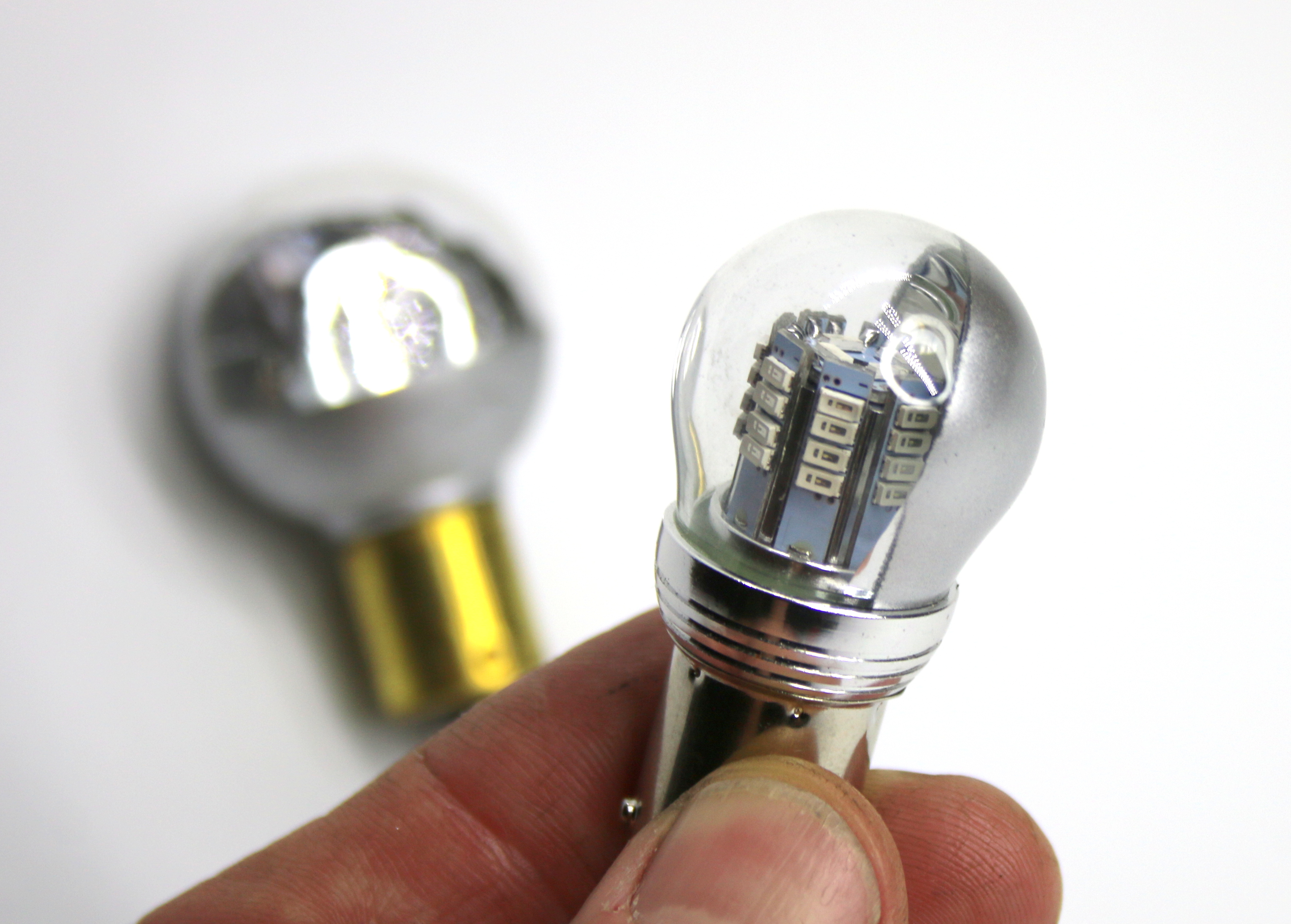

*NEW* Reflector LED NAVIGATION BULBS - SET OF TWO or THREE BULBS



Combo-package options:

2-Bulb LED Reflector LED Navigation Bulbs - includes:  One (1) Red Position Bulb and One (1) Green Position Bulb.   $49.95
3-Bulb LED Reflector LED Navigation Bulbs - Includes;  One (1) Red Position Bulb, One (1) Green Position Bulb and One (1) non-reflector Tail Bulb.  $59.95



​Product details:

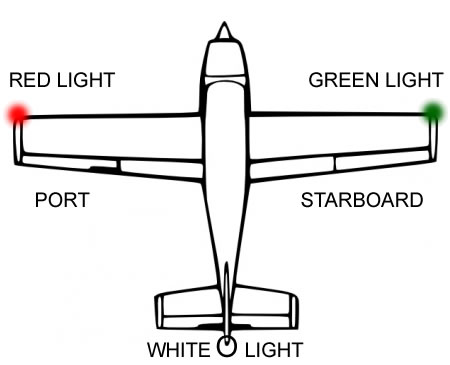

  •  Applications include:  Position / Navigation Lights
  • Replaces common RA-7512 and W-1290 14V and 28V incandescent reflector bulbs
  • 4 Watts of power. Very Low power consumption (less than 290mA @13.8V versus over 1.75 Amps PER BULB for incandescent)
  • 14VDC and 28VDC compatible; Over 30% brighter than incandescent
  • Over 300 Lumens (cool white version - Tail bulb);  Red/Green are less due to the color temperature

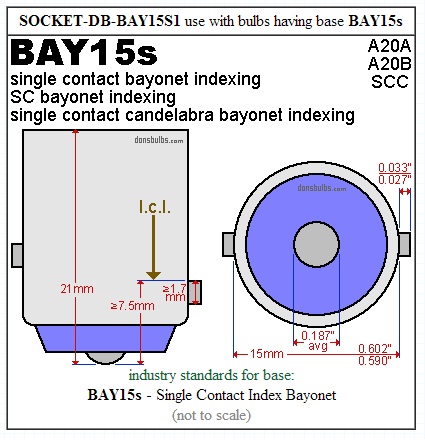

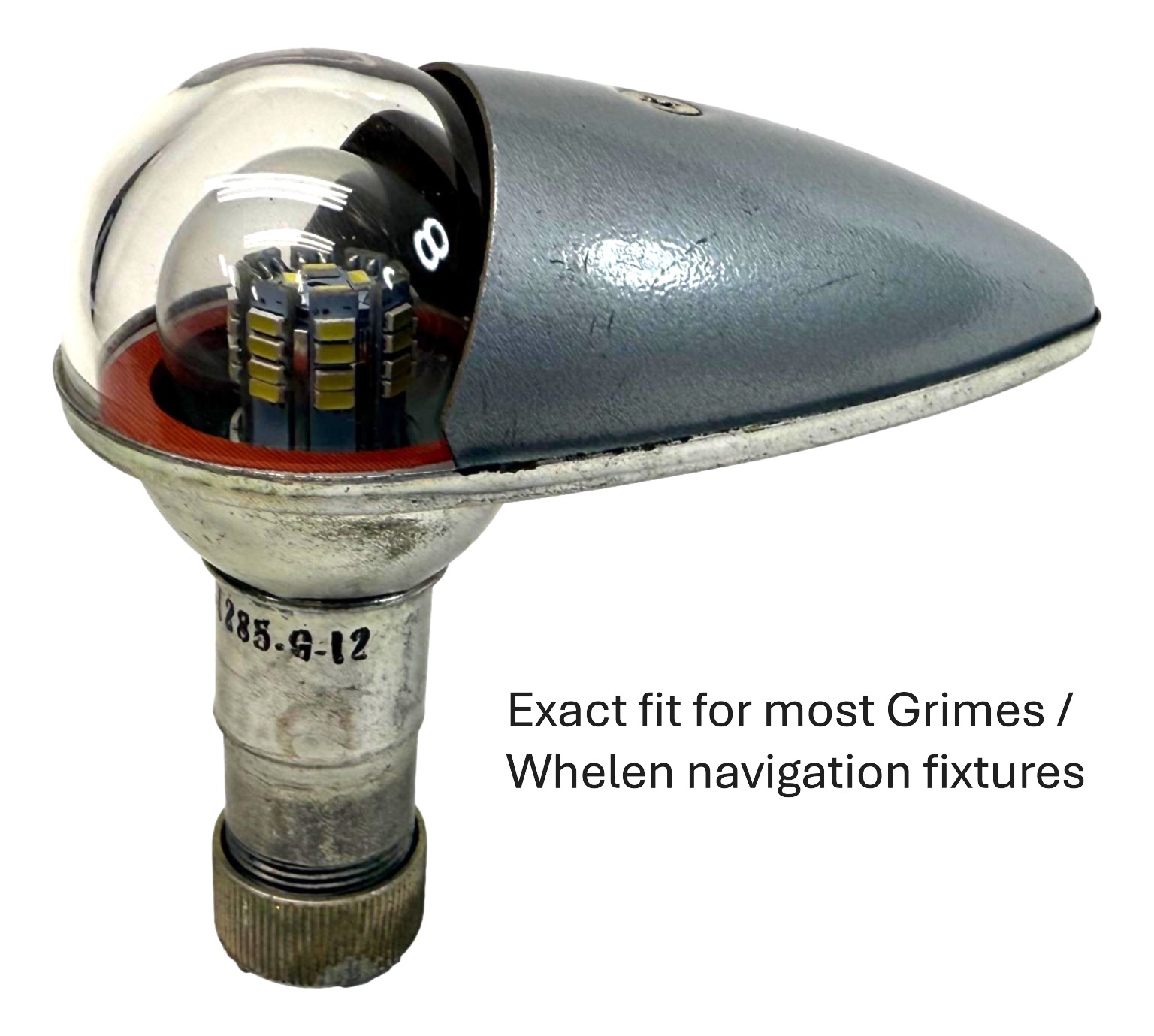

  • Wingtip bulbs are BAY15S base (center contact; 2 off-set side retainers - see diagram).   This base fits Grimes and Whelen Navigation light fixtures.

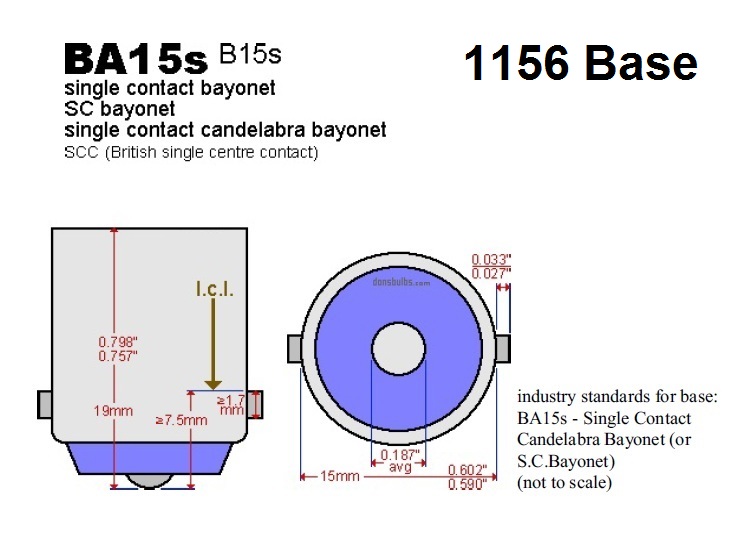

  • Tail bulbs are BA15s (center contact, 2 matching side retainers - see diagram).  This fits most aft-facing navigation fixtures.
  • Rated at 50,000 hours; Fully sealed glass dome

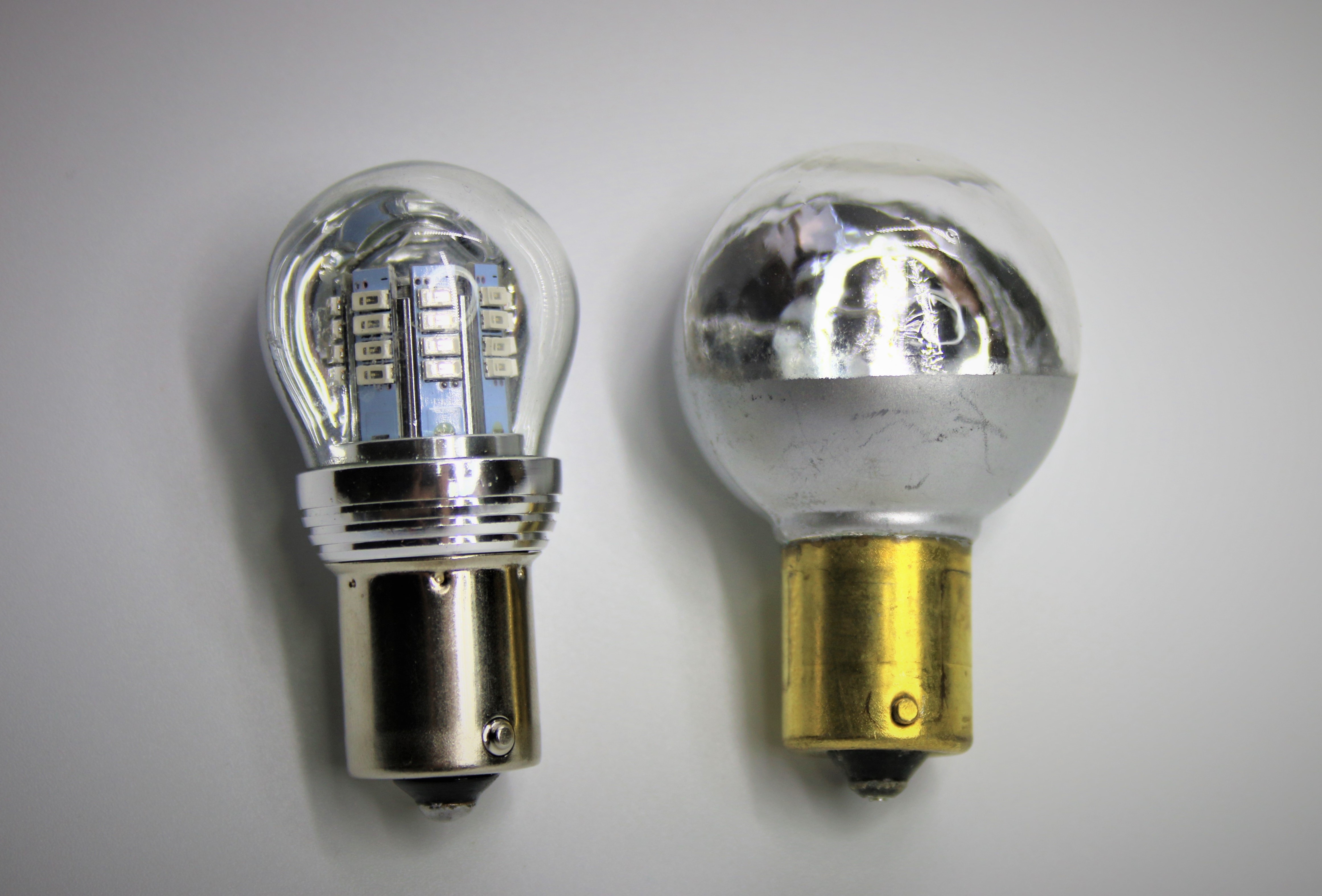

  • Highly reflective interior coating provides additional light focus and higher output than traditional bulbs.

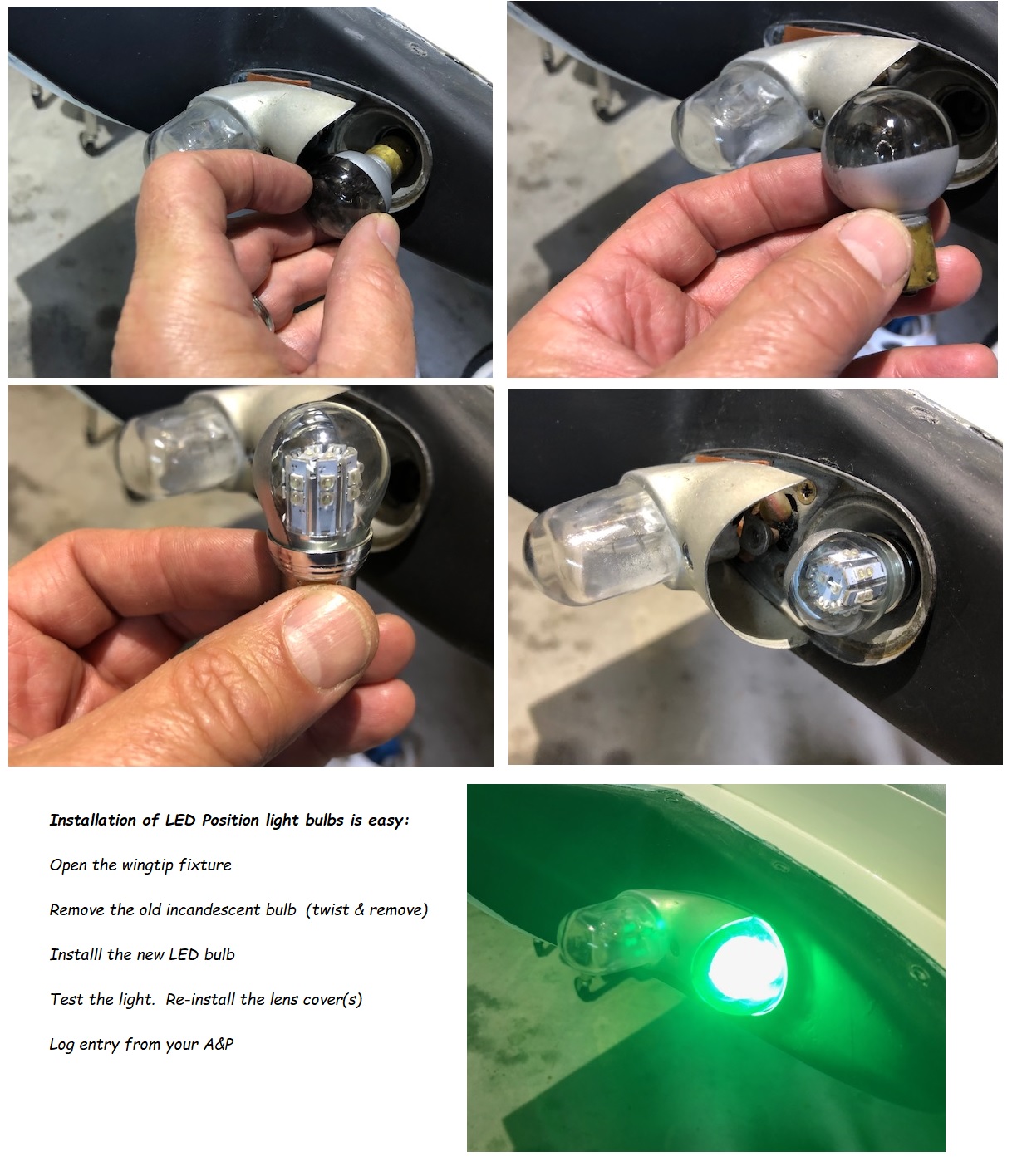

  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration" (suggested log entry might read "replaced incandescent position light bulbs with equivalent LED replacements, no power consumption impact, no W&B change, signed/dated ##/##/##"...)
  • Ideal for Uavionix Tail beacon users who must keep power on to Nav lights to ensure the Tail beacon is functioning.  LED position bulbs cut power requirements by about 3 amps !
  • Colors:  RED LED and GREEN LED (BAY15S base - replaces the RA-7512 (14V) and W-1290 (28V) Reflector-type Nav Bulbs.

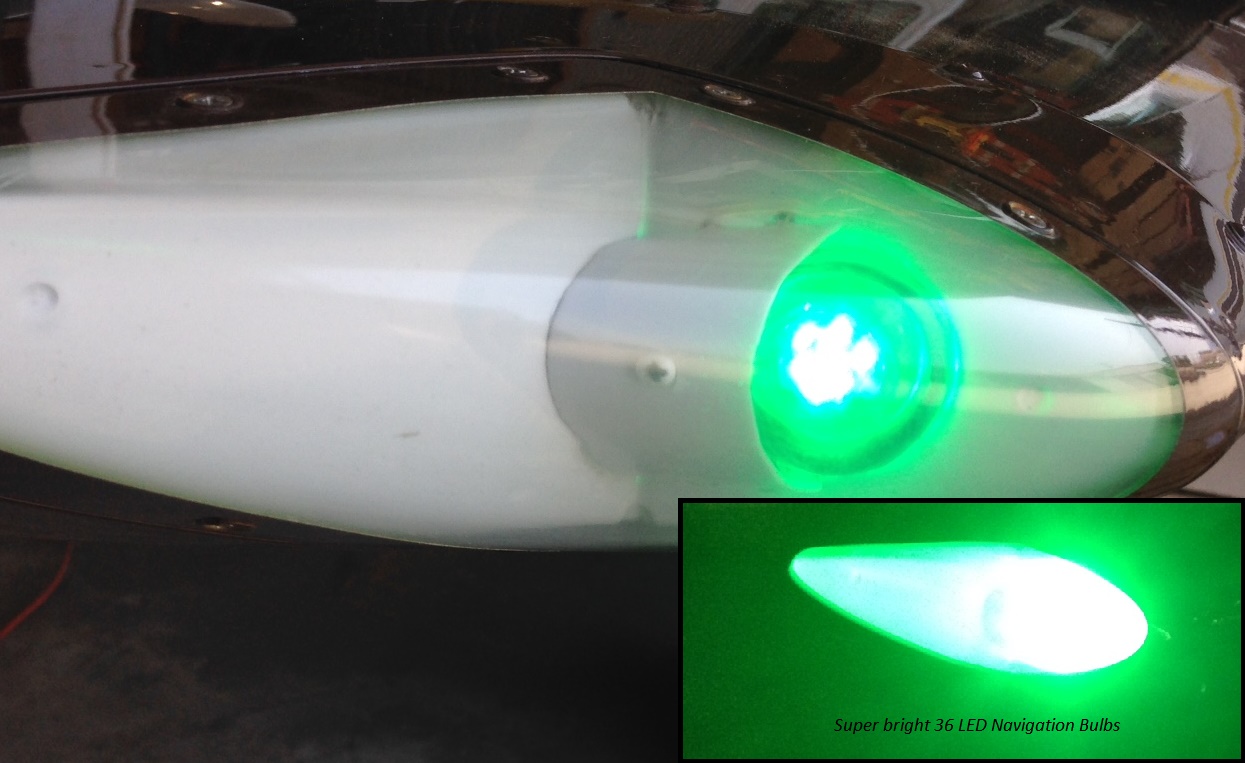

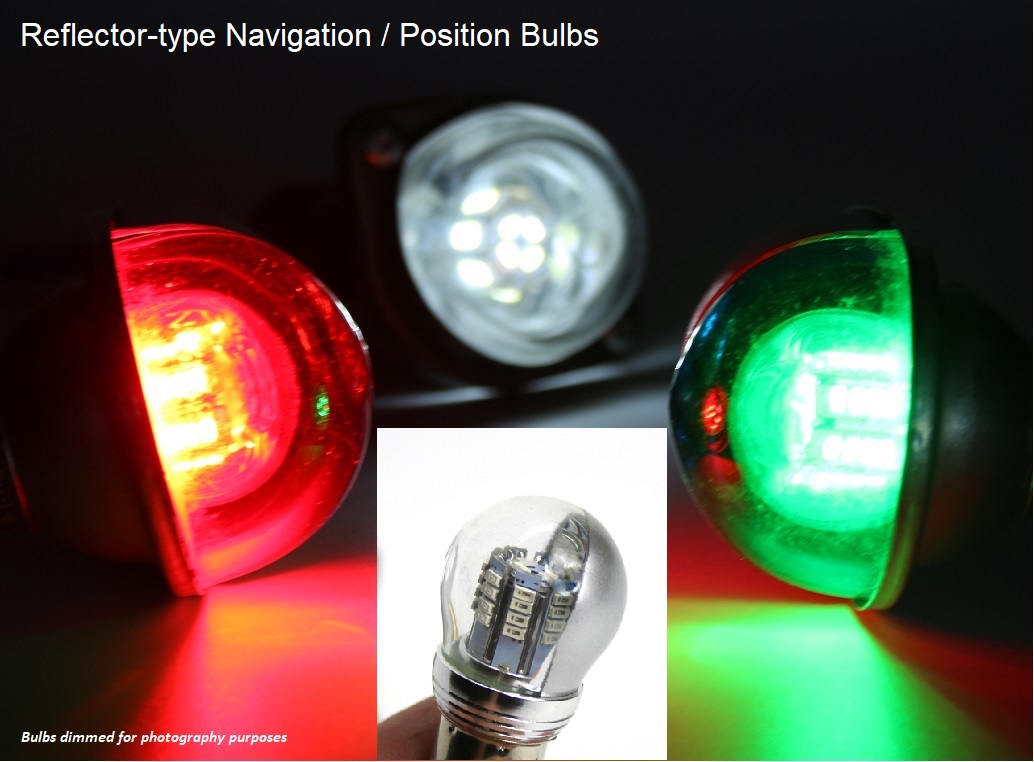

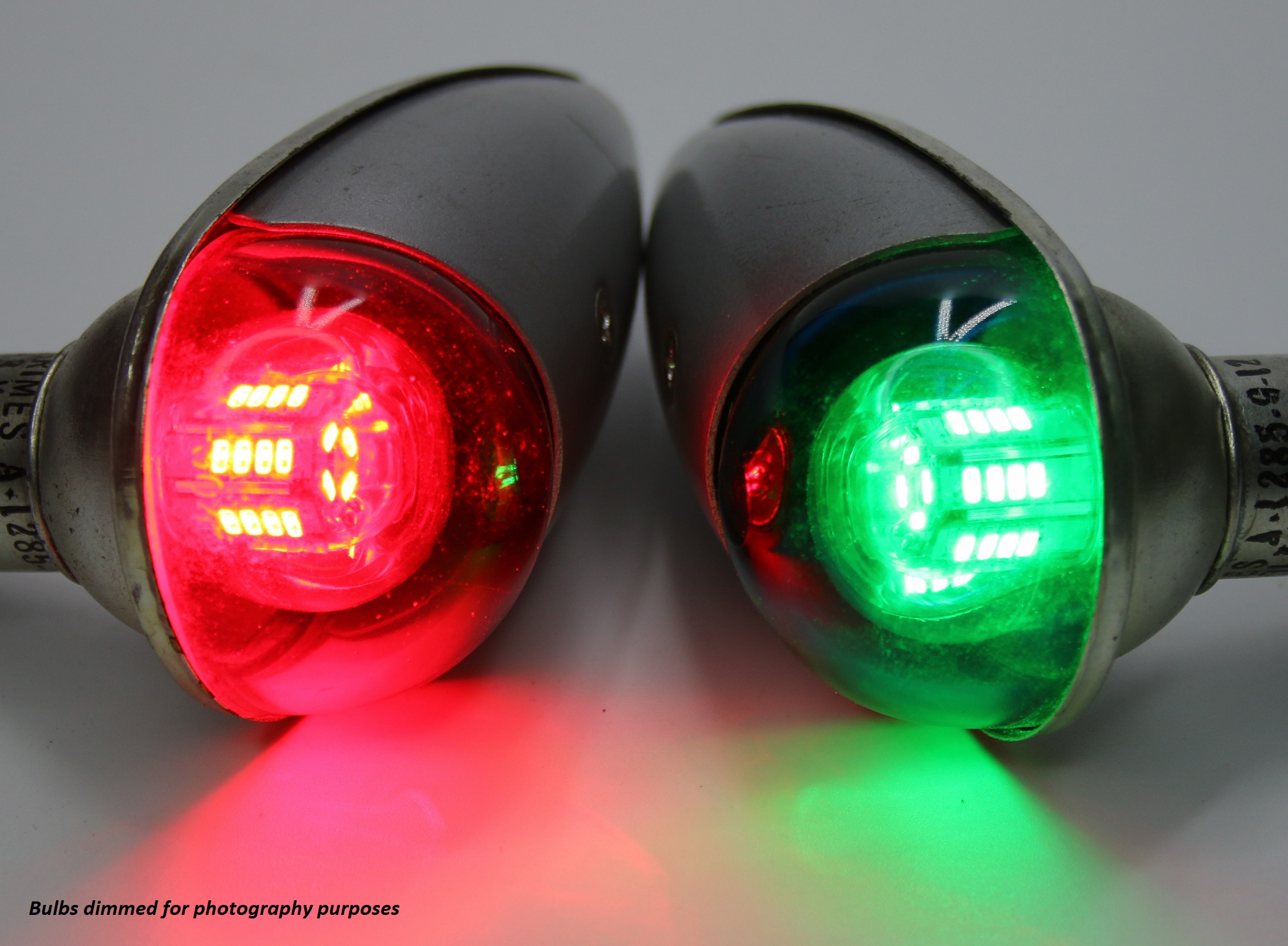

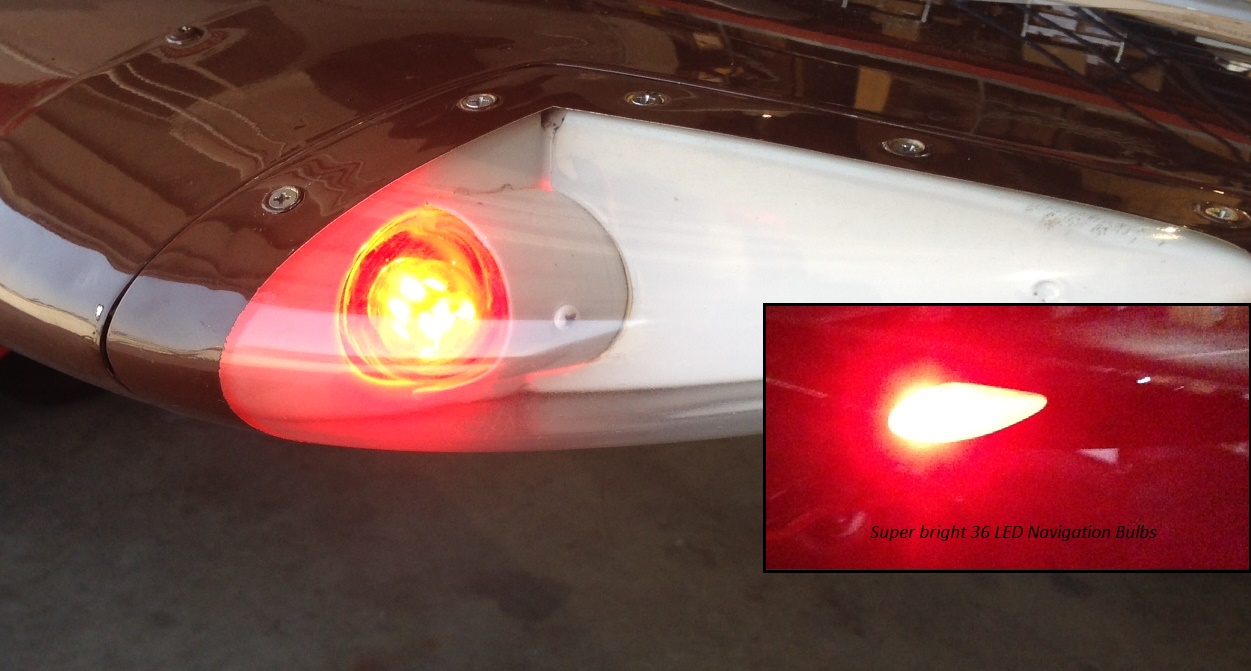

    A Colored LEDs are used behind a Colored Nav Lens produces a very bright and intense Nav Light (see images).
  • If using a Uavionix Skybeacon, purchase a GREEN position bulb and a Cool White tail bulb at this link:
     - Cool white tail bulb (order the 1156 bulb) :  https://www.pilotlights.net/super-bright-3-watt-1076-1156-1157-bulbs


SKU:  RA7512-Reflector-Series



List price: $67.95
Catalog:
Price: $59.95
Weight: 4 oz
PDF File:
Dimensions: 2 in × 0.5 in × 0.5 in
