Pilotlight Panel Light - 10mm Diameter, 24 VDC

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Mon, 02/09/2015 - 20:38
$12.95

(New - now available in 24 VDC)

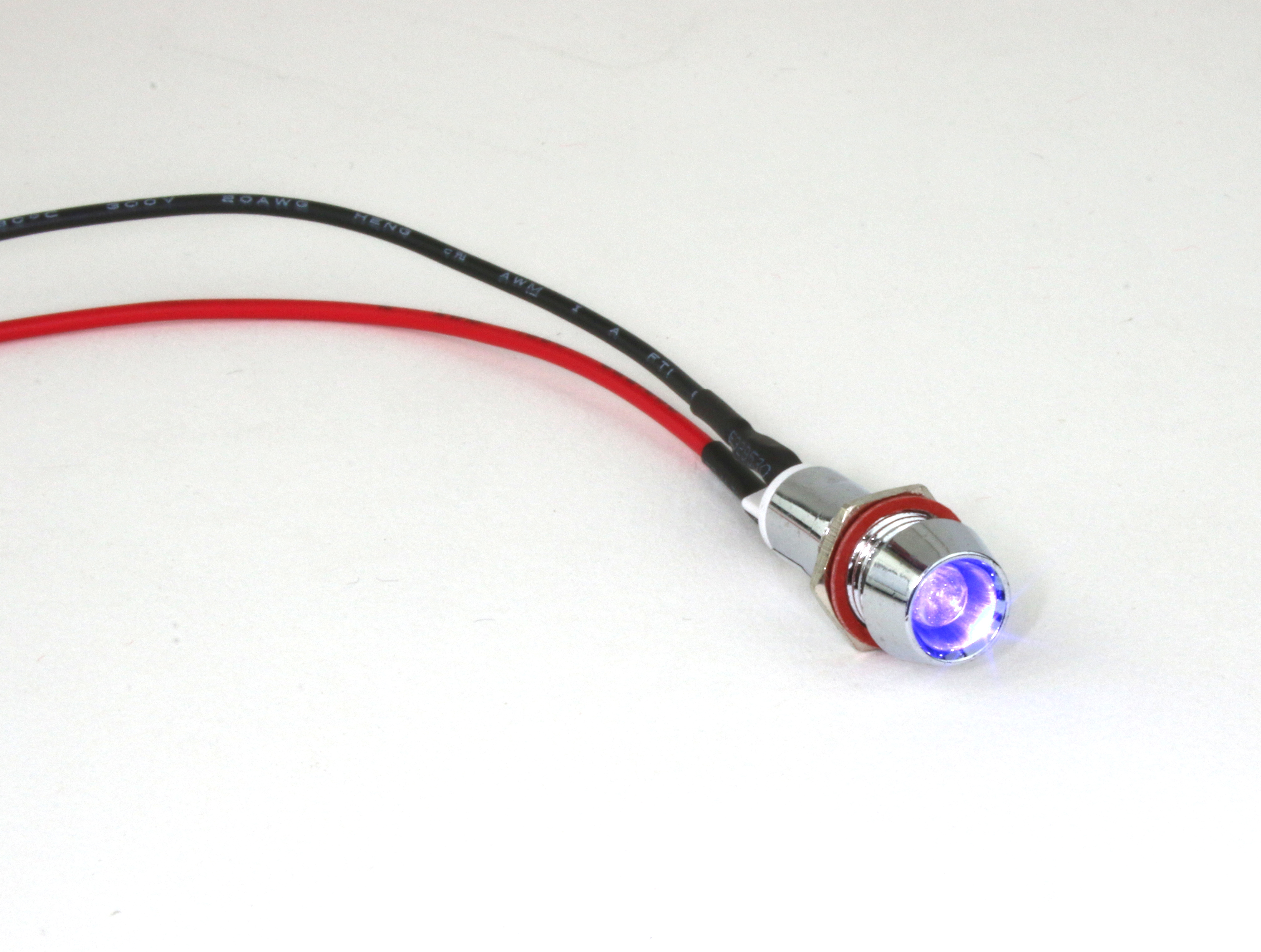

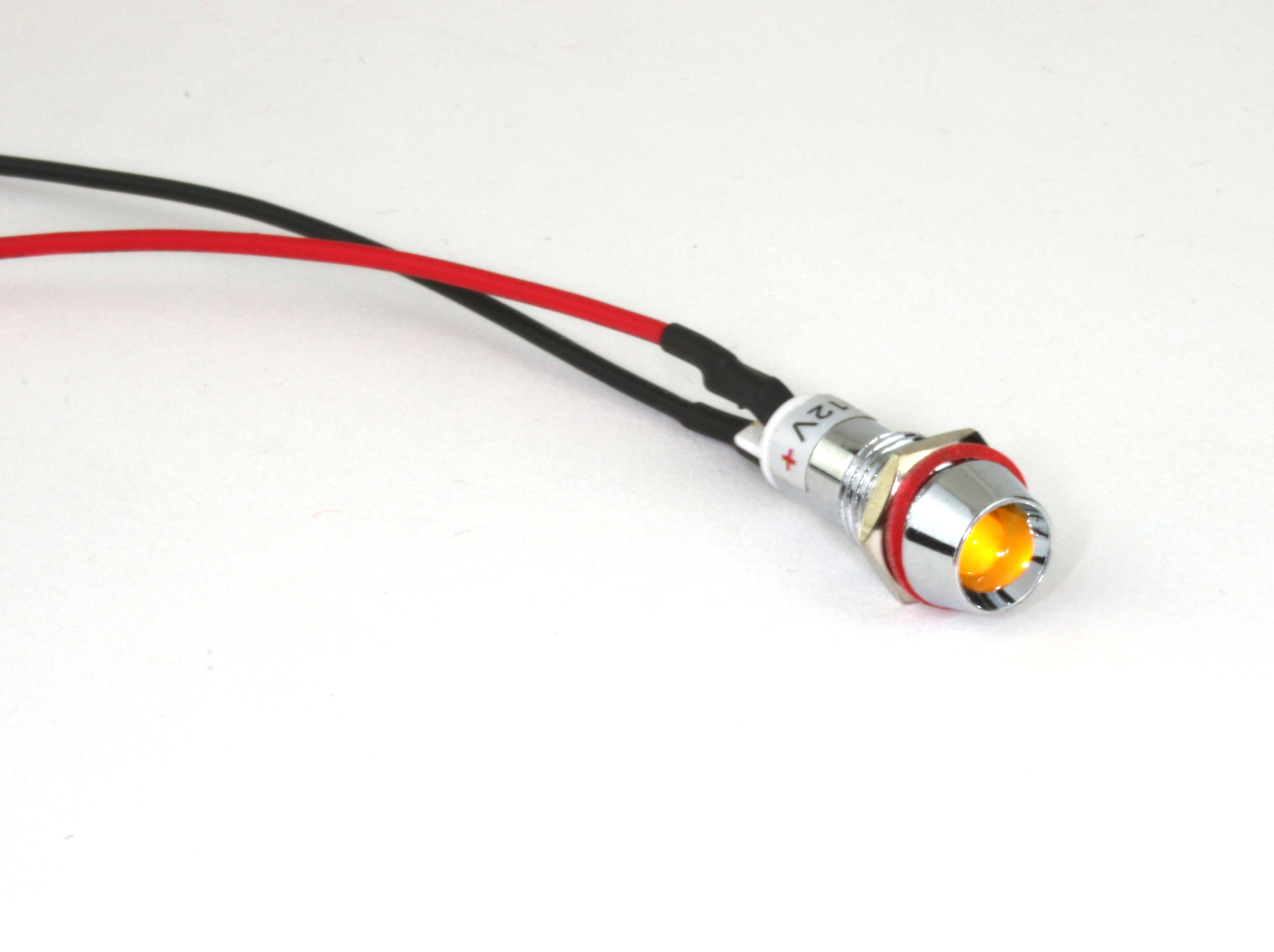

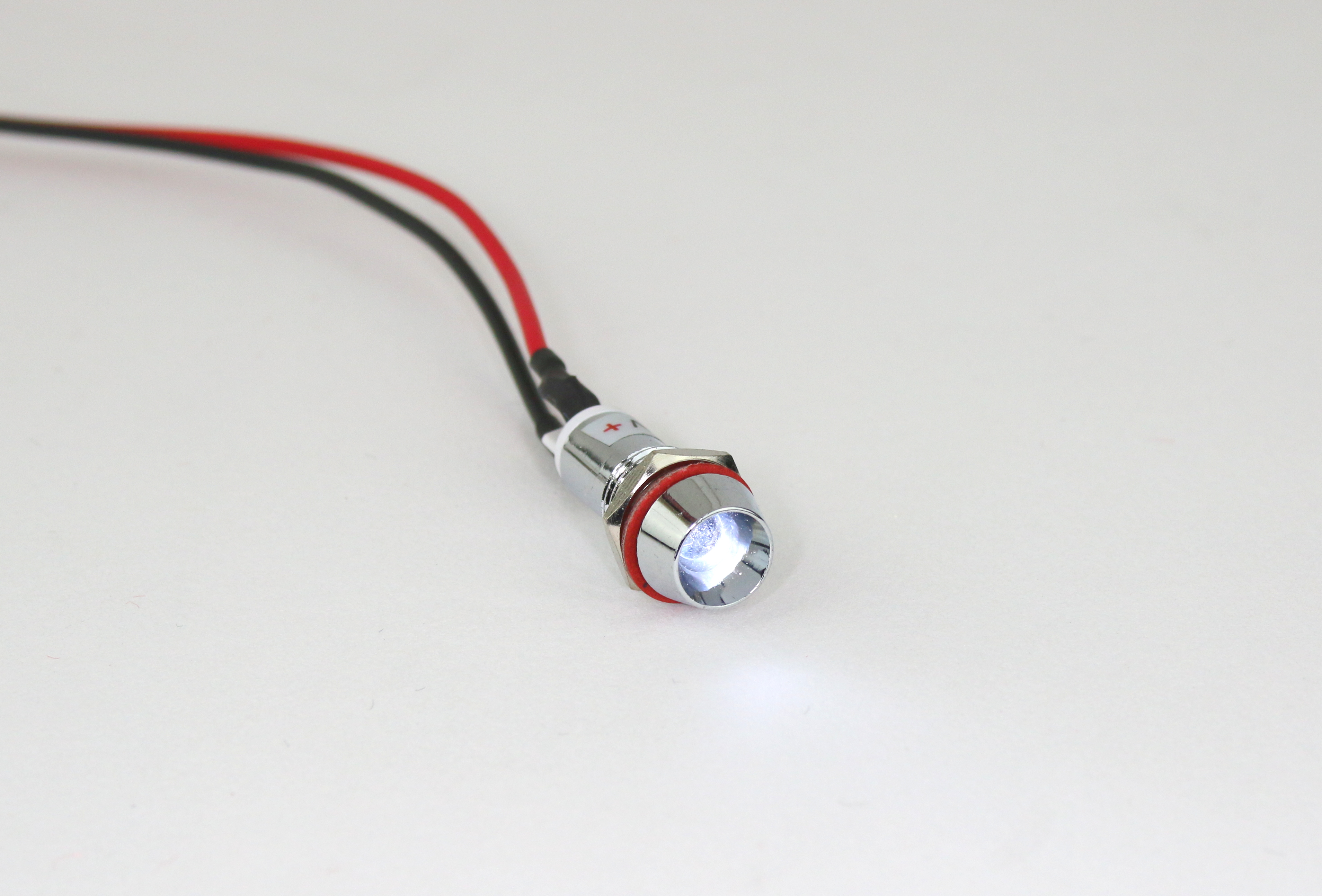

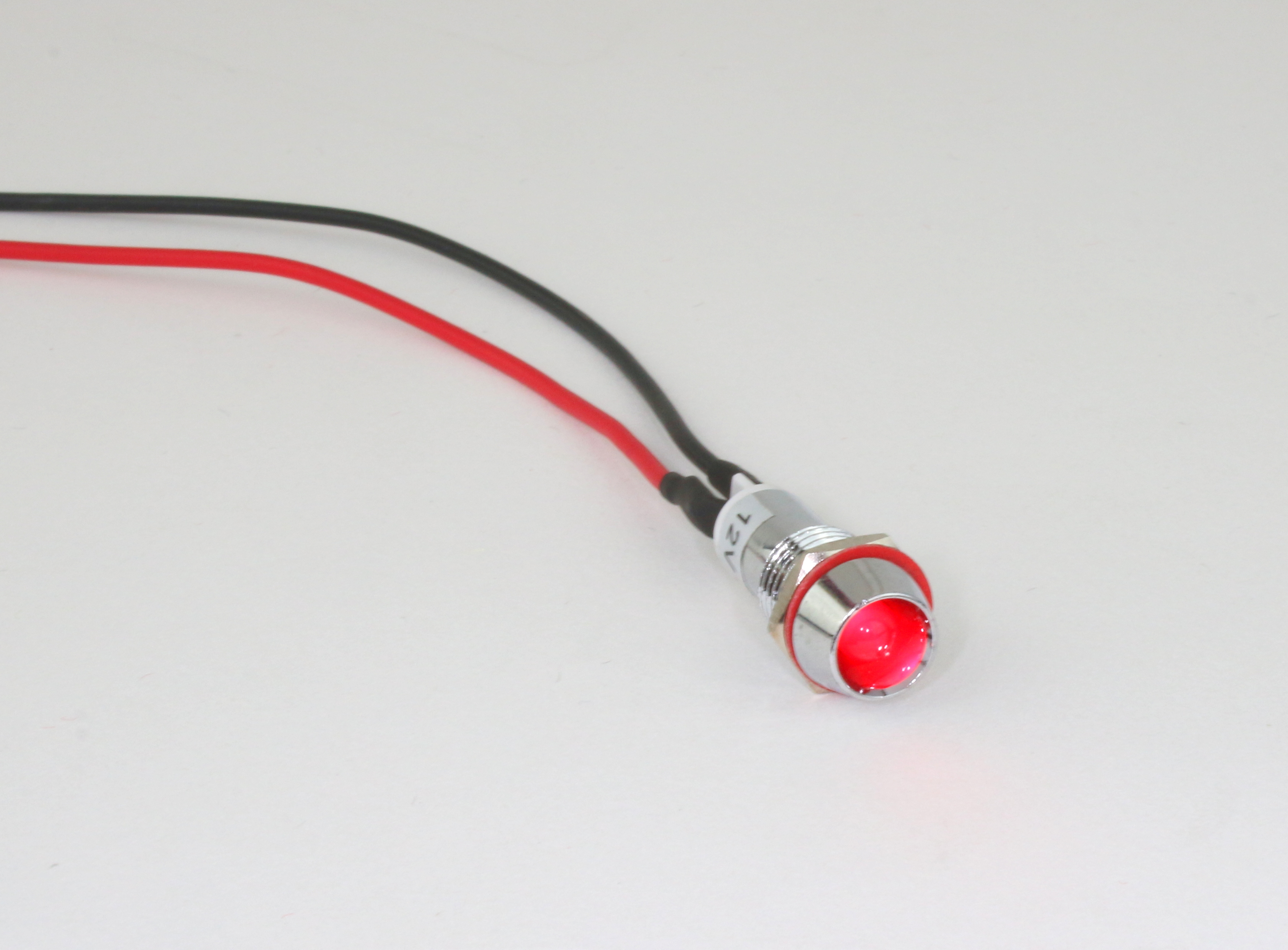

Panel indicator lamps
10mm Diameter
Metal housing with Chrome plating
2 conductor
24 to 28 VDC
Daylight readable high brightness (dimmable, if necessary)
Available colors: RED, WHITE, YELLOW, GREEN and BLUE

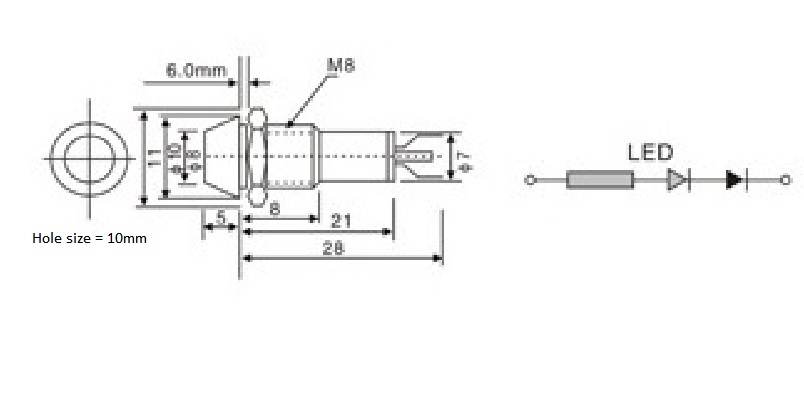

Hole size is 10mm.  Max width at flange is 11.5mm

Perfect as indicator lamps or warning lamps. Easy installation

Pre-wired with 6" pigtail. Pigtails are color-coded, soldered and heat shrink protected AWG 18 wire.



SKU:  Pilot-10mm-24V-Series

List price: $12.95
Catalog:
Price: $12.95
Weight: 1 oz
Dimensions: 1 in × 0.25 in × 0.25 in
