Premium Panel Post Light - 11mm - 12V - Red or Cool White

Premium Panel Post Lights

Our latest LED Panel and Post light is a tiny yet powerful fully waterproof and vibration-resistant fixture for instrument panel illumination.

Featuring three (3) small but powerful 5050 LEDs, this post light is powerful, fully dimmable and directs light where needed.

Fixture size:  15mm length x 14.5mm width

Mounts in a 11mm hole

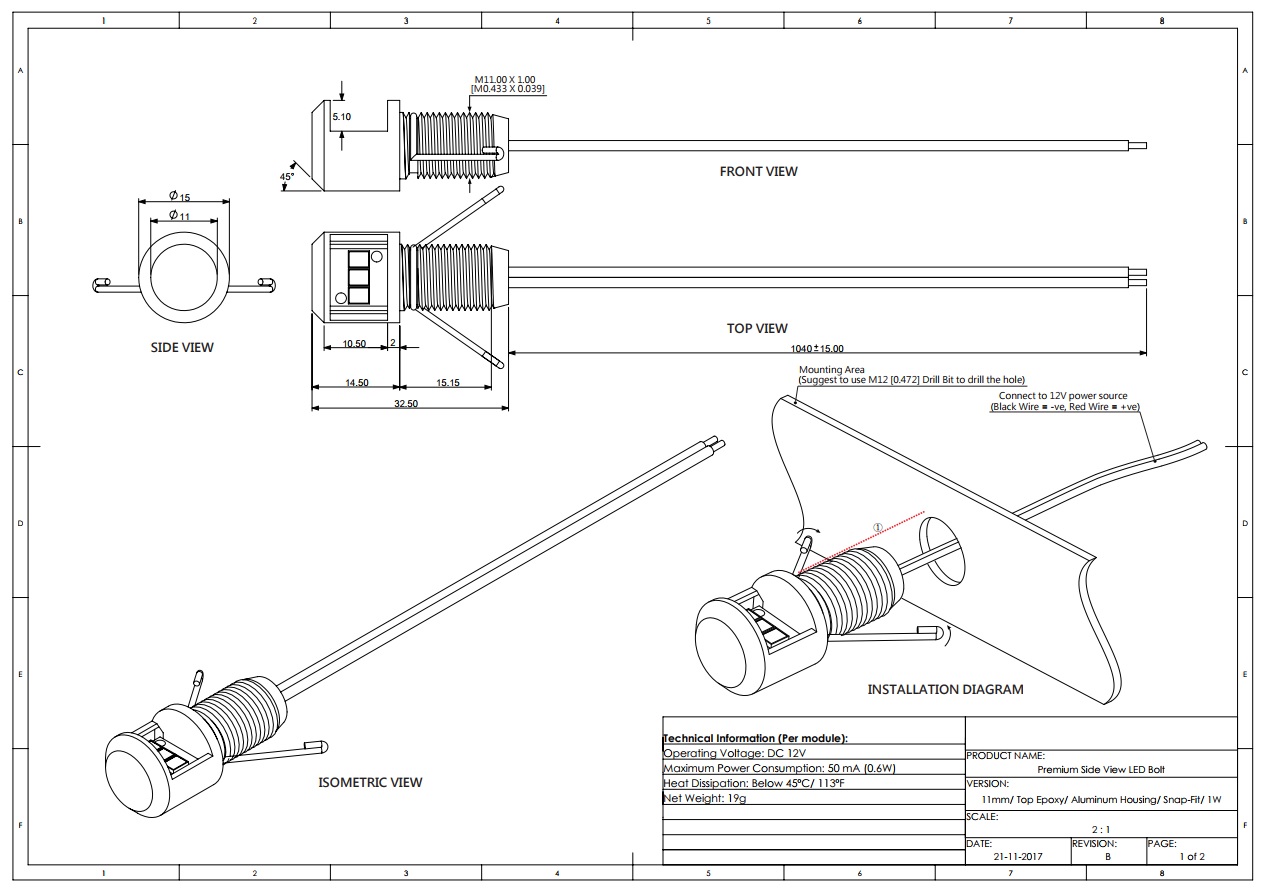

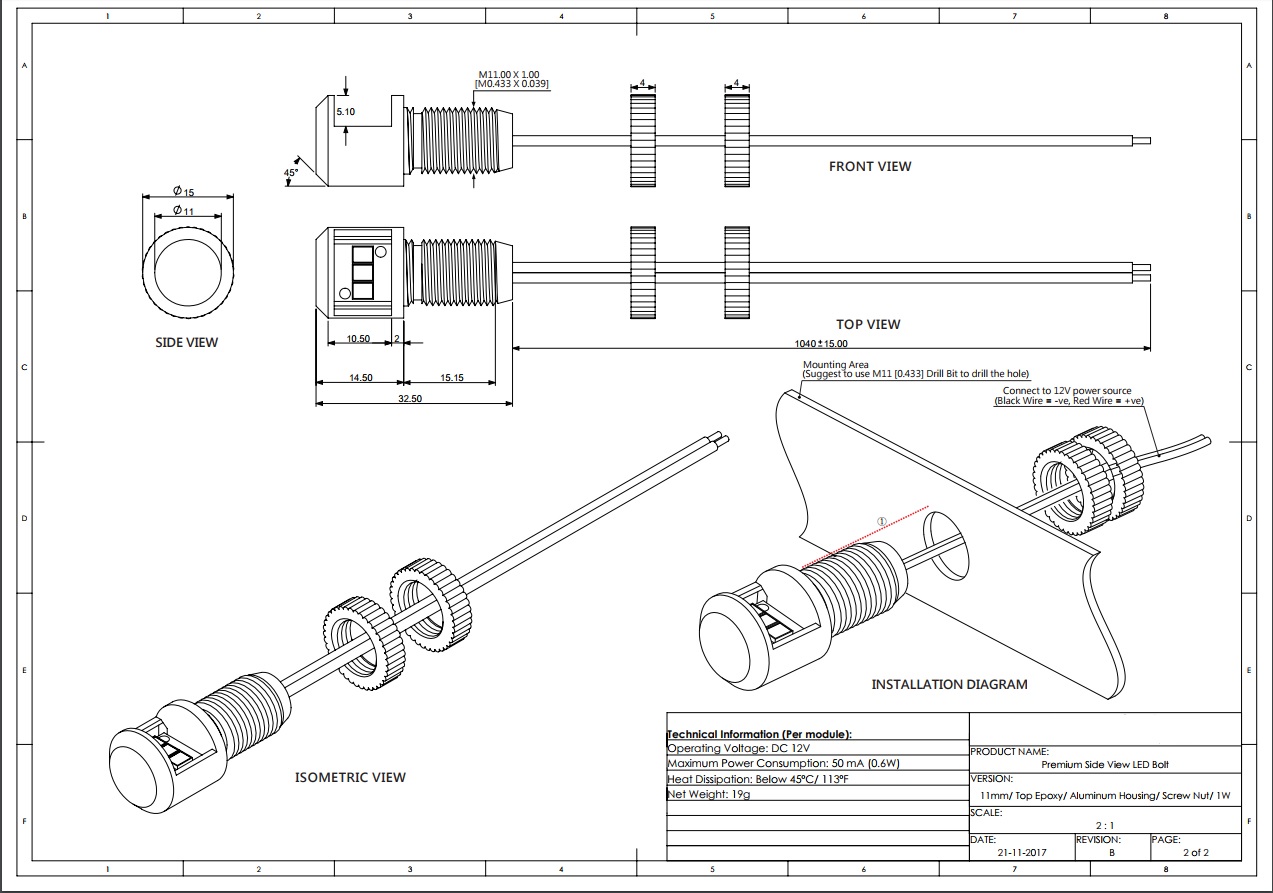

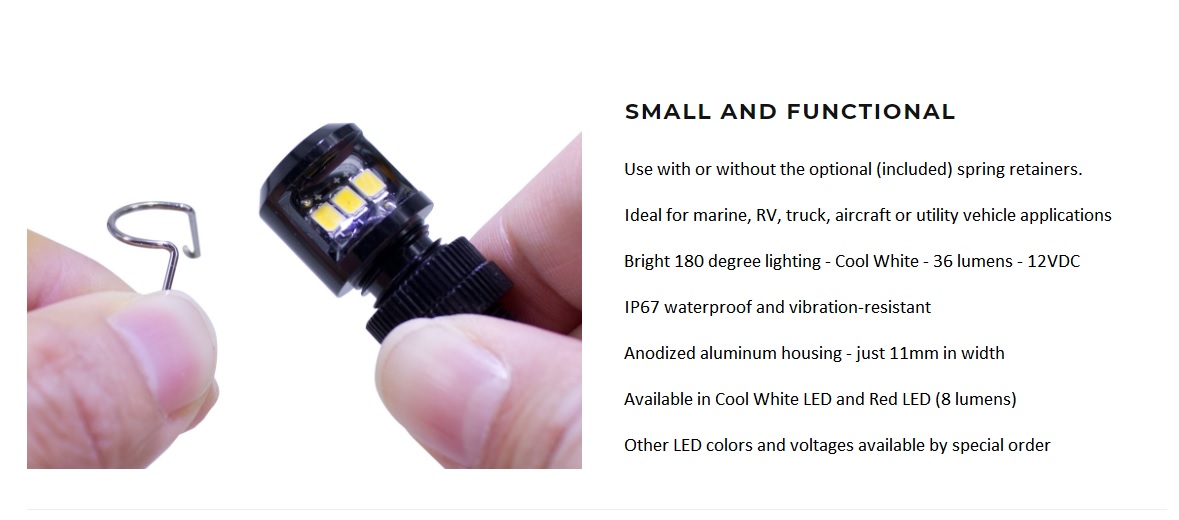

Mounts using the integrated threaded post and nut or use the optional (included) spring mount.  See technical drawing for exact specifications.

LEDs are fully encapsulated and potted - fully waterproof and vibration resistant.  LEDs rated at 30,000 hours

Dimmable using simple rheostats or our PWM Dimmers

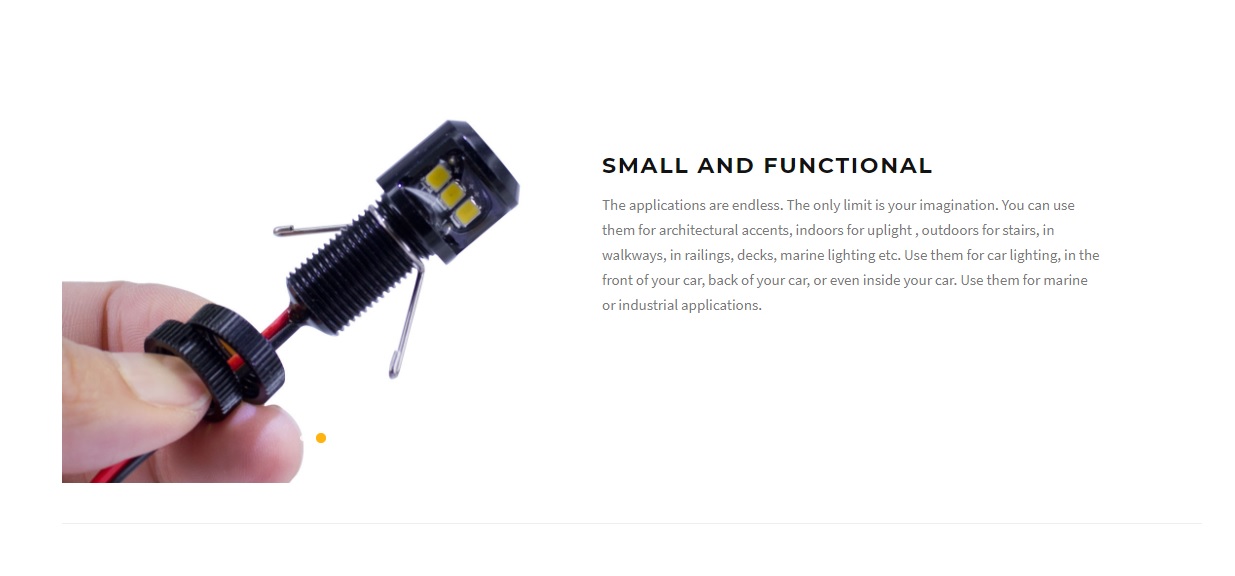

Applications:  Panel Lighting, Map Lights, Convenience Lights, Marine Lighting and Utility panels.

View Angle:  180 degrees

Output:  36lm  (lumens)

Available in RED LED and COOL WHITE LED colors in both 12-14VDC

(Other colors and voltages available as a special order - Contact us for details

Simple wiring - color coded Red (+) and Black (-) lead wires, 6" length

Part number:  Panel-Post-Premium-Series
