PWM Dimmer - 12 VDC - High Power 7A per channel

Extremely powerful PWM Dimmer - 7 Amps capacity

Perfect for controlling interior lighting inside your RV, Truck, Auto, Boat or Aircraft.

Easy-to-install, on/off switch on rheostat.  High quality push-on knob included.

Designed to control both LED and Incandescent lighting - 7 Amps per channel

12 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications

Advanced design includes over-current protection, reverse polarity protection and over-voltage protection

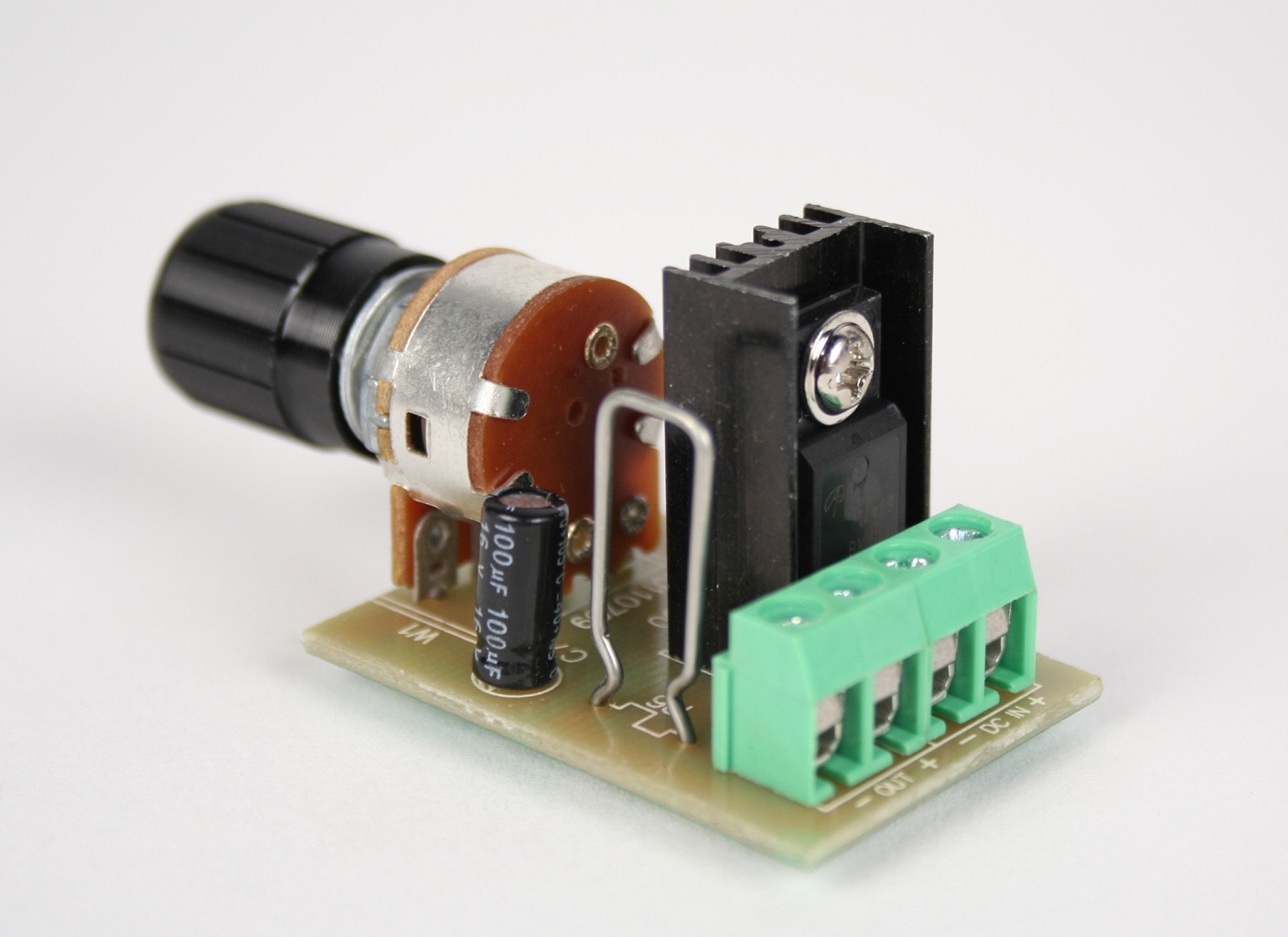

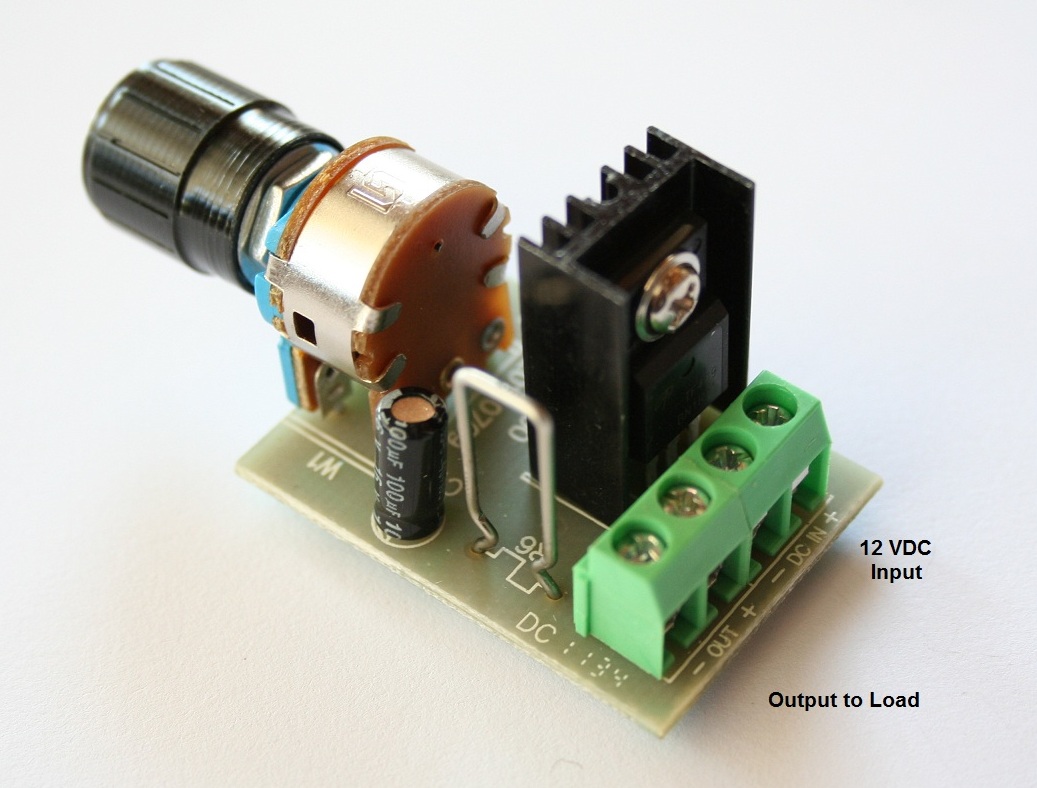

Self-contained 1.5" x 1.5" format. 0.267" (17/64")(6.75mm) rheostat shaft and screw-down input and output terminals

High-quality push-on type knob .

New improved rheostat with 12mm of thread for mounting in thicker panels

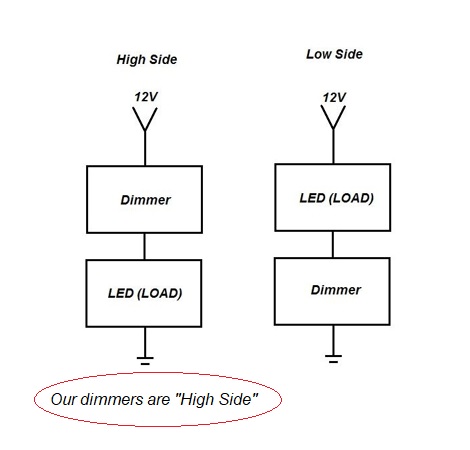

"High side" dimmer - connects between your power source and the LED / Incandescent load.

PART NUMBER:  12VDimmer01-7A
