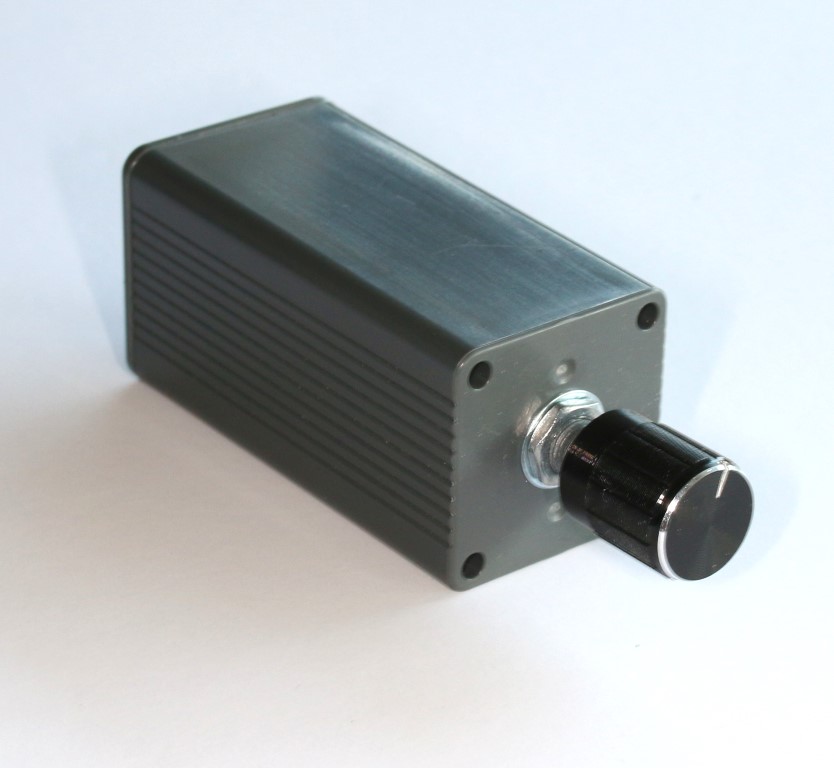

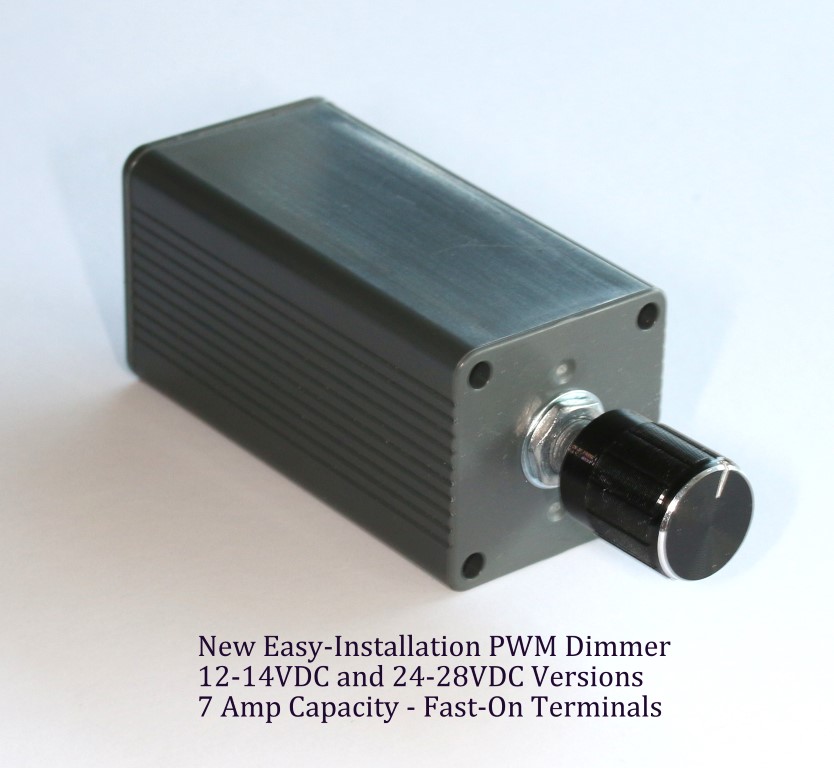

PWM DIMMER - 12 VDC - High Power 7A - Easy Fast-On Terminals (12-14VDC)

Product Details:

• Extremely powerful PWM Dimmer - 7 Amps capacity

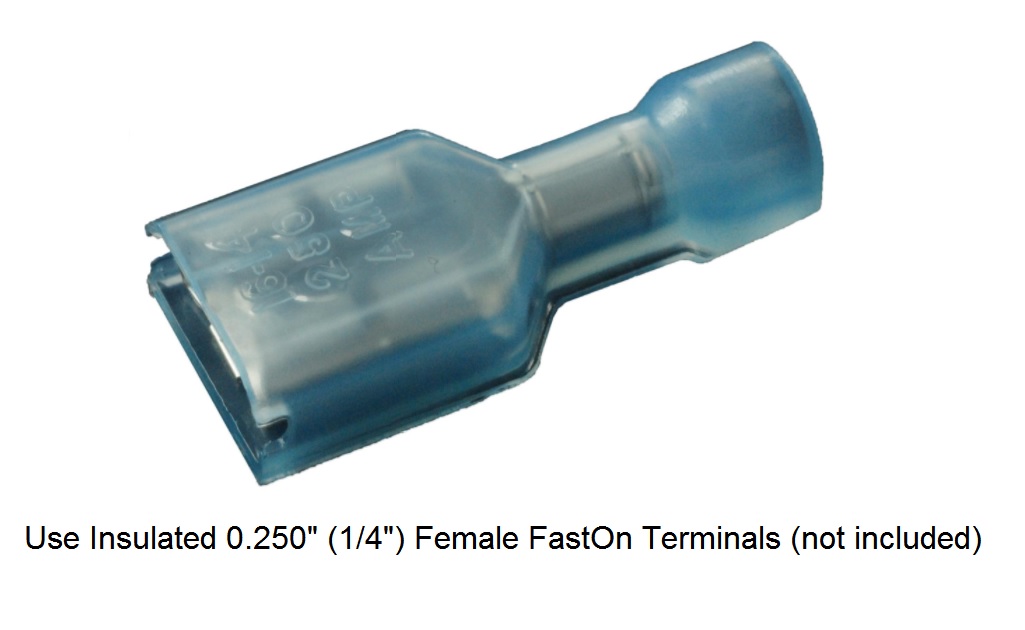

• New self-contained housing with easy-to-use "Fast-On" Connectors (0.250" push-on terminals)
• Perfect for controlling interior lighting inside your RV, Truck, Auto, Boat or Aircraft.
• Easy-to-install, on/off switch on rheostat.
• Designed to control both LED and Incandescent lighting - 7 Amps per channel
• 12 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications
• Advanced design includes over-current protection, reverse polarity protection and over-voltage protection
• Self-contained  3" x 1.25" x 1.25" size
• To mount, drill a single 0.267" (17/64")(6.75mm) hole - insert rheostat shaft and secure with included nuts/washers

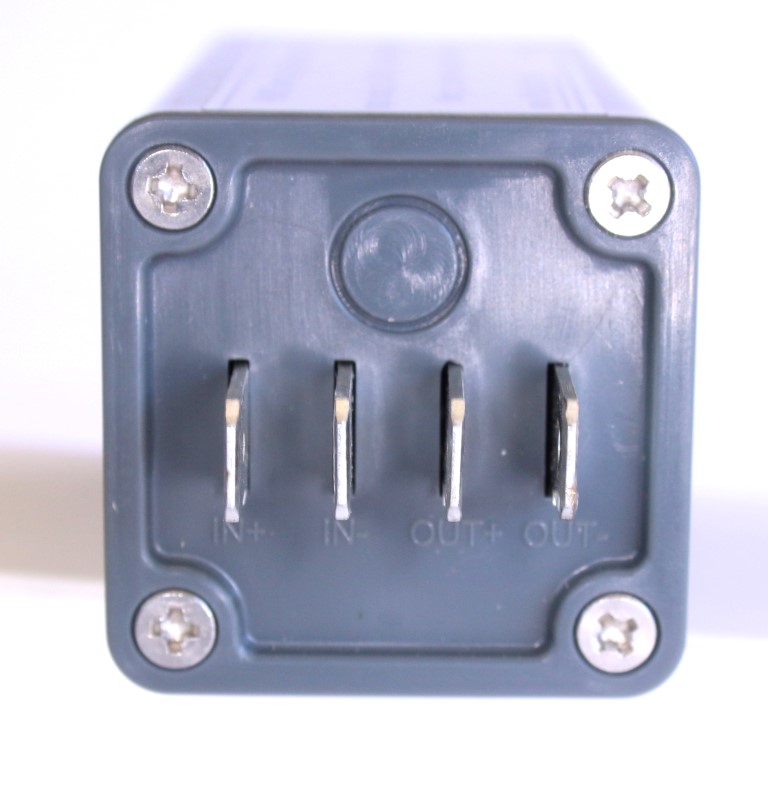

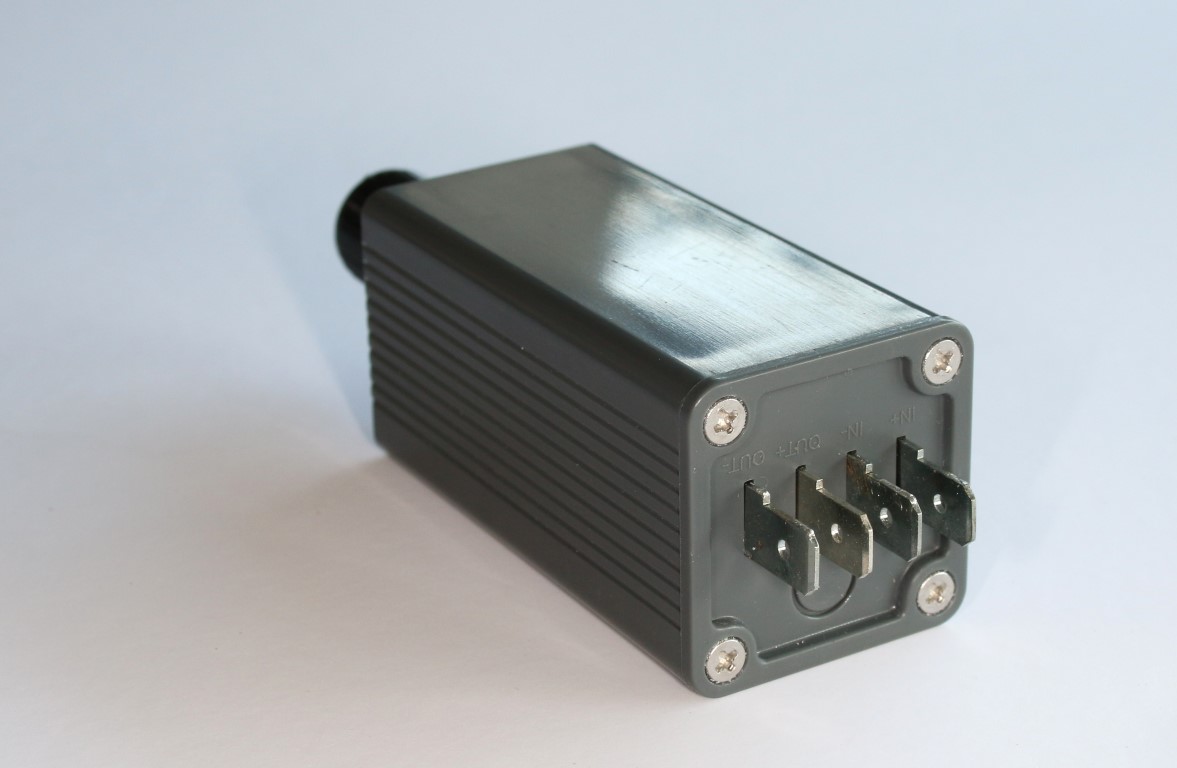

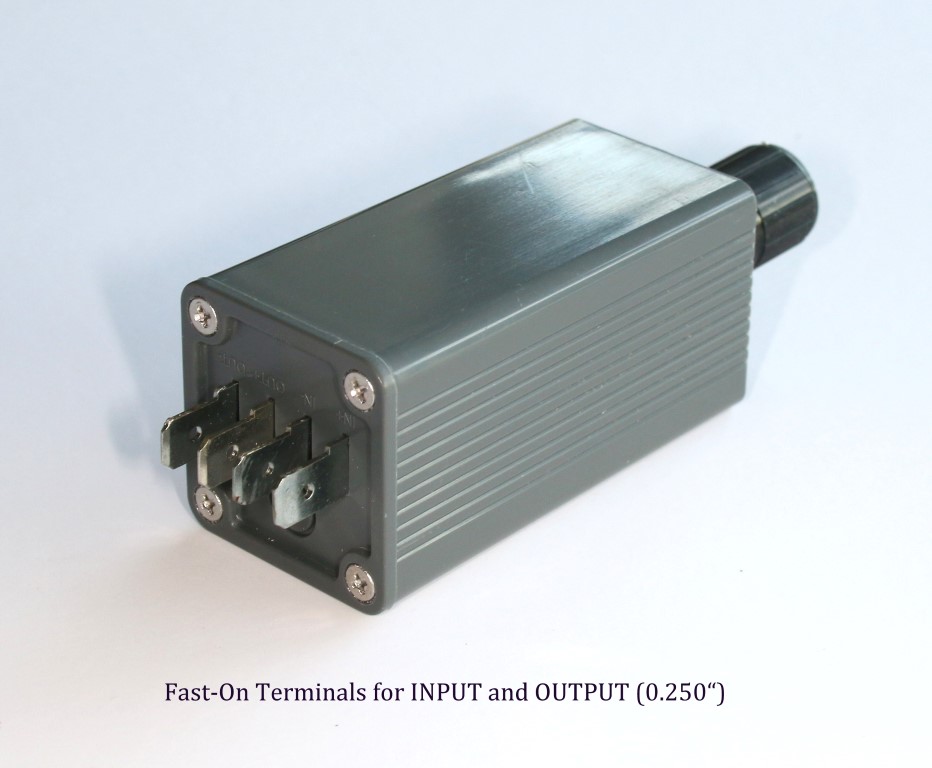

• Rear case 0.250" push-on connections for:  12-14V Positive (+) Input;  Input Ground (-).  Output: Positive (+) and Ground (-)

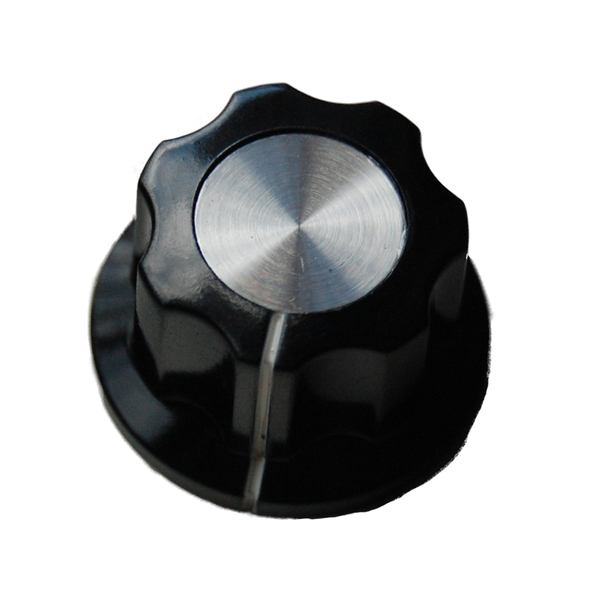

• High-quality push-on type knob.
• New improved rheostat with 12mm of thread for mounting in thicker panels

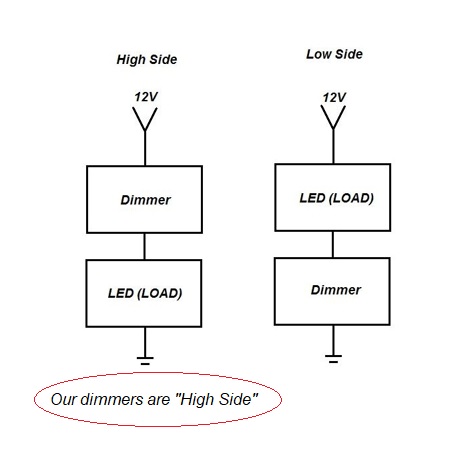

• "High side" dimmer - it connects between your 12V power source and the LED / Incandescent load

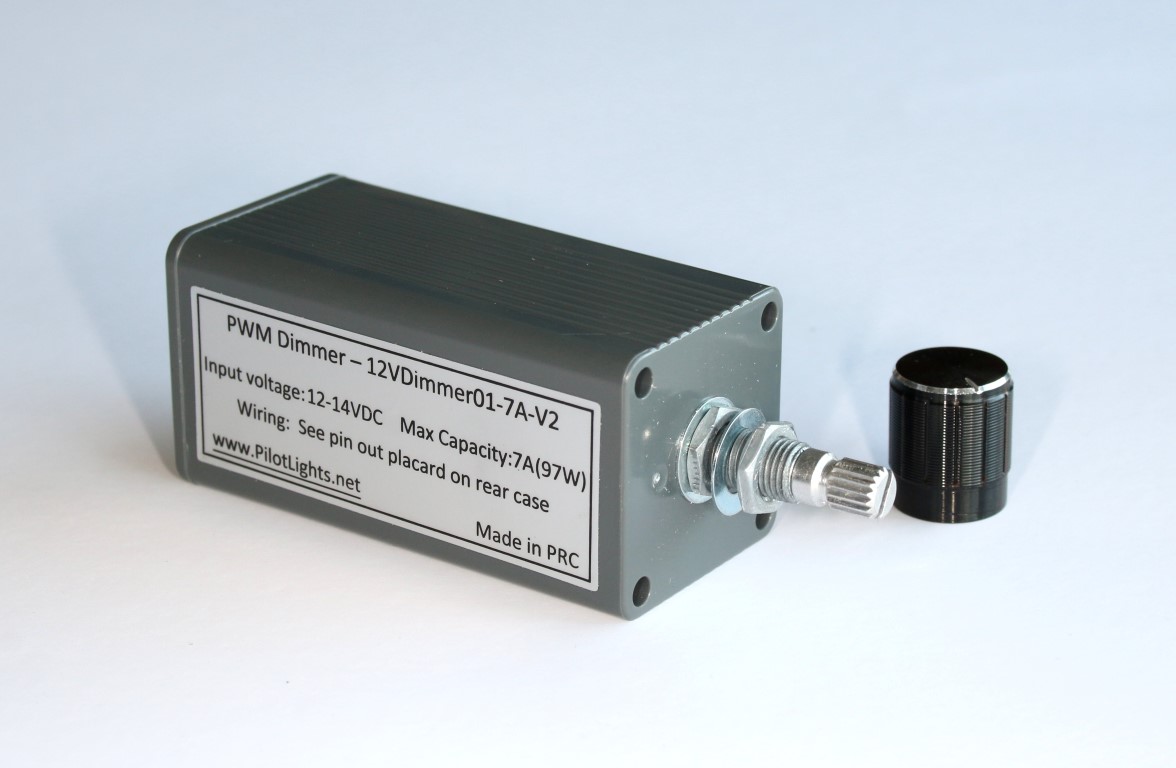

PART NUMBER:  12VDimmer01-7A-V2
