PWM Dimmer - 24VDC - High Power 7A - Remote Rheostat

Extremely powerful PWM Dimmer - 7 Amps capacity

Perfect for controlling interior lighting inside your RV, Truck, Auto, Boat or Aircraft.

Easy-to-install, on/off switch on rheostat.  High quality fluted knob included.

Designed to control both LED and Incandescent lighting - 7 Amps per channel

24 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications

Advanced design includes over-current protection, reverse polarity protection and over-voltage protection

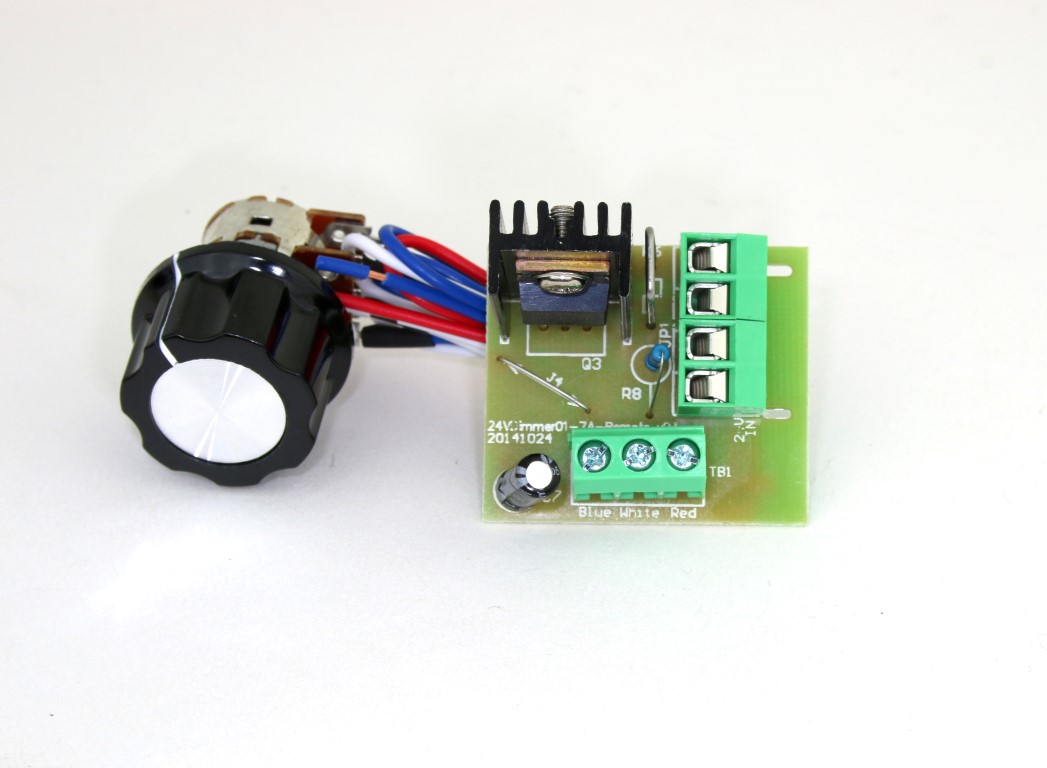

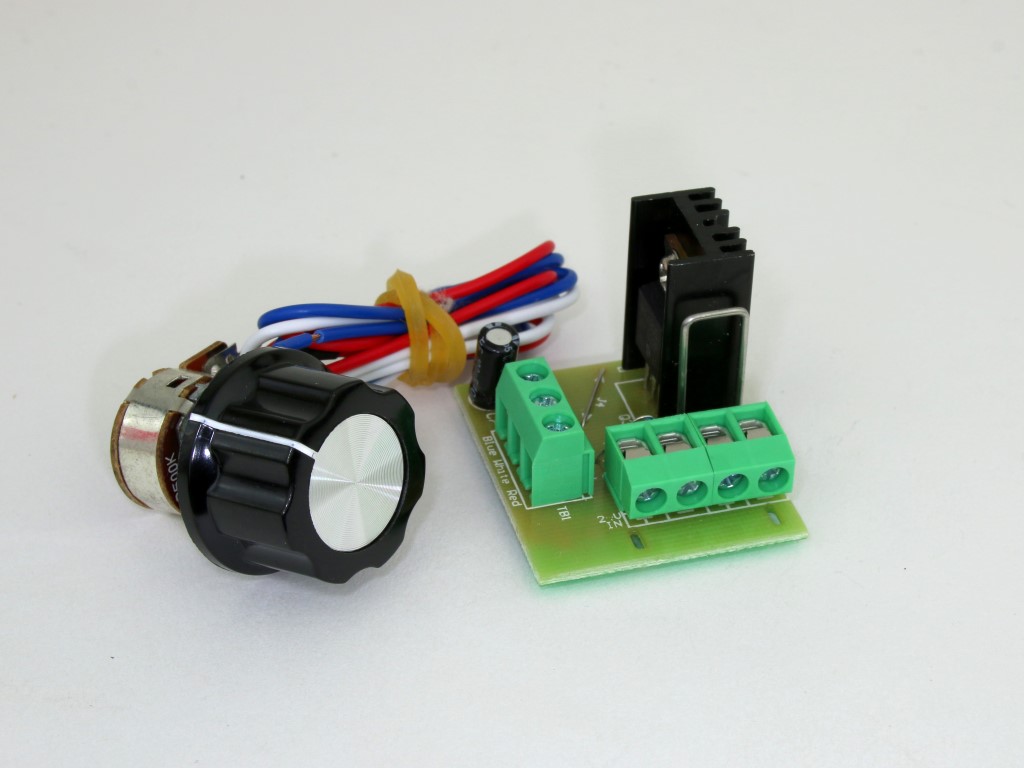

Modular construction - Separate Rheostat and Dimmer PCB.  Rheostat shaft is 0.267" (17/64")(6.75mm).  Dimmer PCB (1 1/16" x 1.5") has screw-down input and output terminals

Color-coded wiring for easy installation.  30cm of wire

High-quality, large-format fluted type knob.

Rheostat has a max of 7mm of thread for mounting in thicker panels

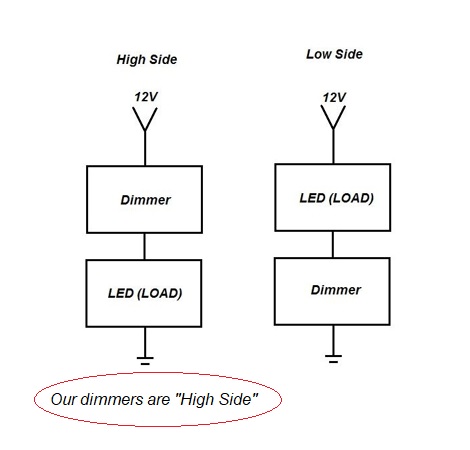

"High side" dimmer - connects between your power source and the LED / Incandescent load.

PART NUMBER:  24VDimmer01-7A-REMOTE
