OUR PRODUCTS
LED Light Strips and Accessories

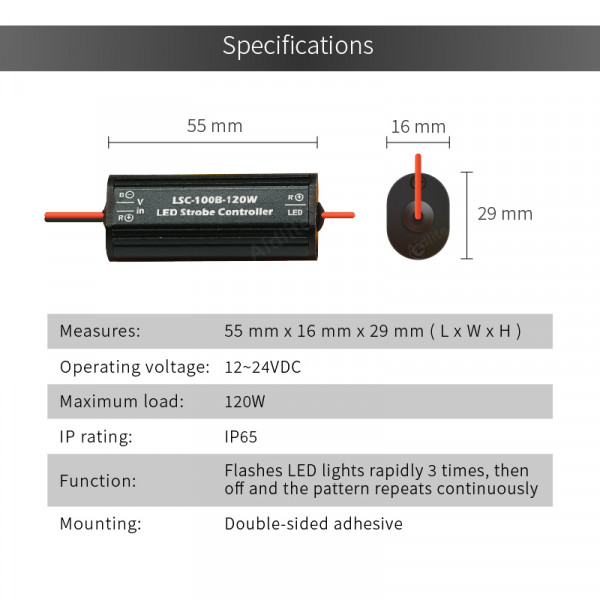

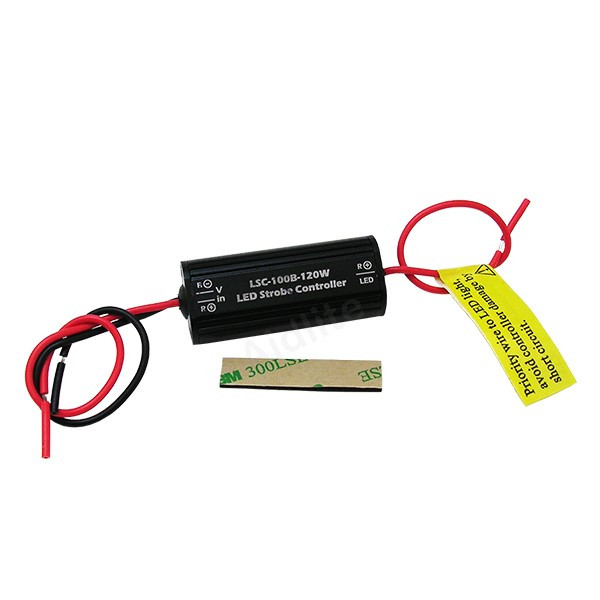

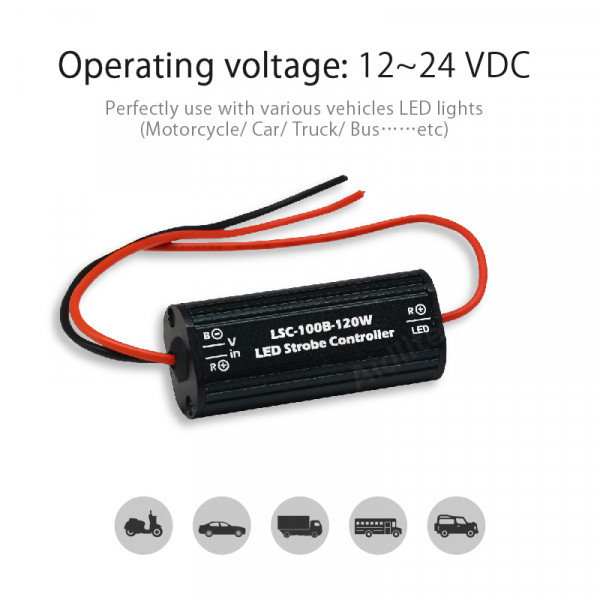

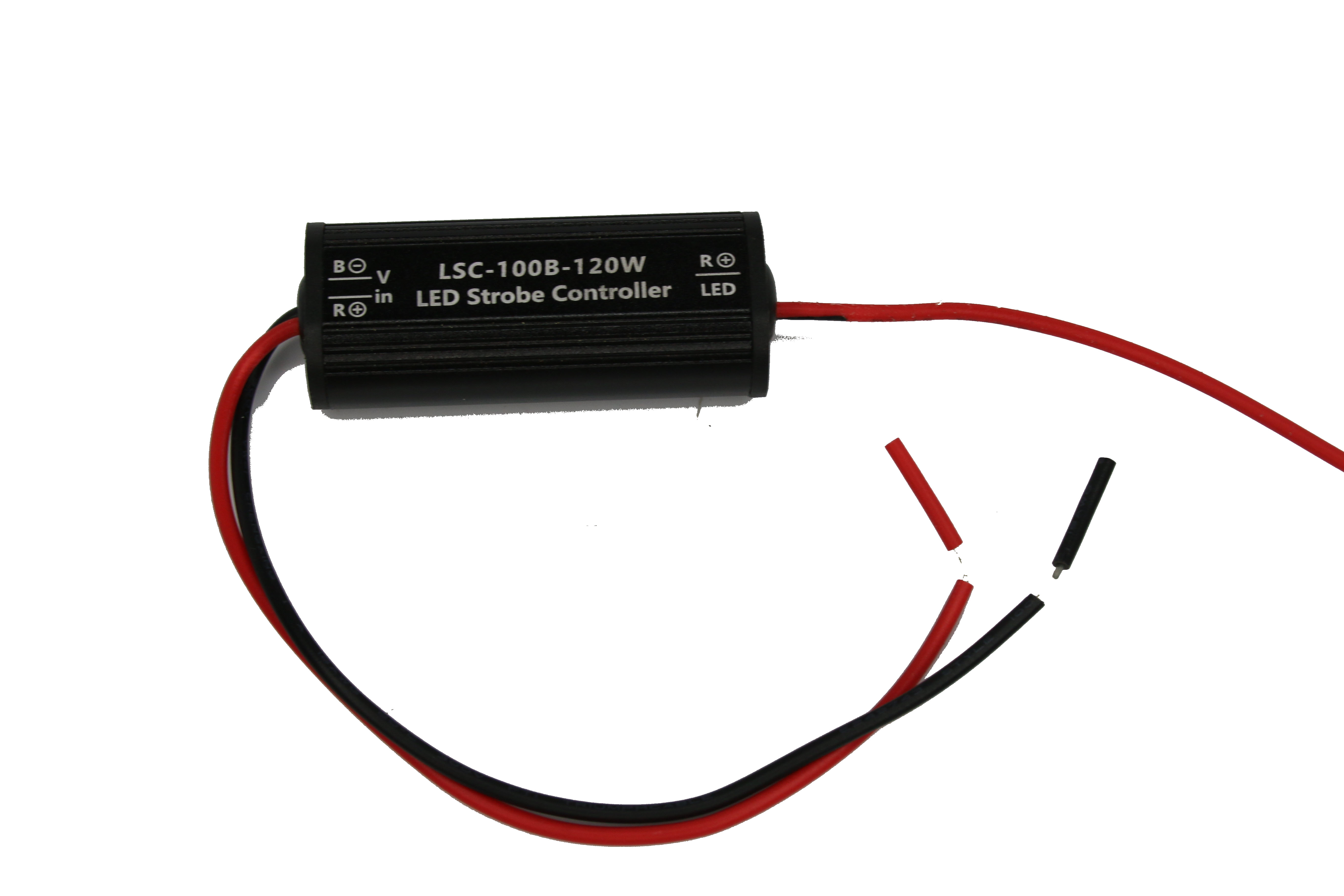

Flash Controller - Add flashing feature to any 12V light fixture or bulb
$14.95
This flash controller permits you to add a flashing feature to any existing 12V lamp or fixture.
Ideal for adding flash functions to existing LED fixtures, such as beacons or navigation lights
Flash pattern: triple-flash. About 45 / minute. Non-adjustable.
Easy to wire - just wire it between your power source and the lamp 12V + lead

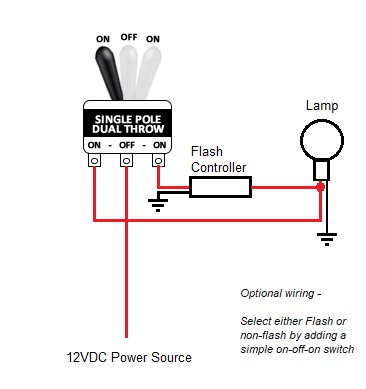

Option: Add a 2-way switch to your circuit to activate or de-activate the flashing function (see diagram)
Capacity: up to 120W of lighting
Voltage: 10 to 14 VDC
Waterproof housing.
Includes double sided tape for mounting
Compact size: About 2.25" x 0.4" x 0.4"
Color coded wiring harness
List price: $14.95
Catalog:
Price: $14.95
Weight: 1 oz
Dimensions: 2 in × 0.5 in × 0.5 in

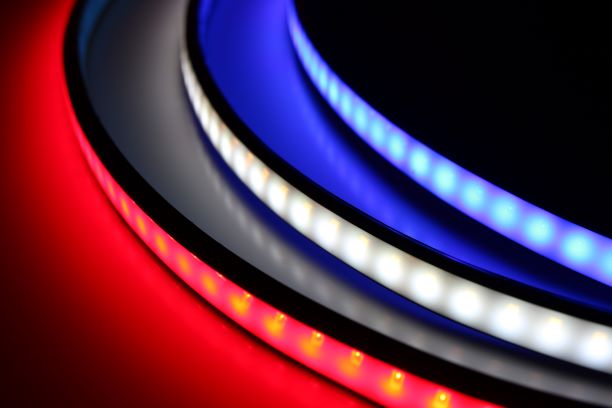

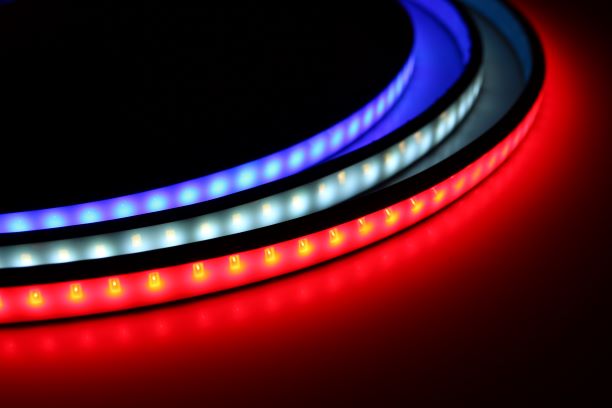

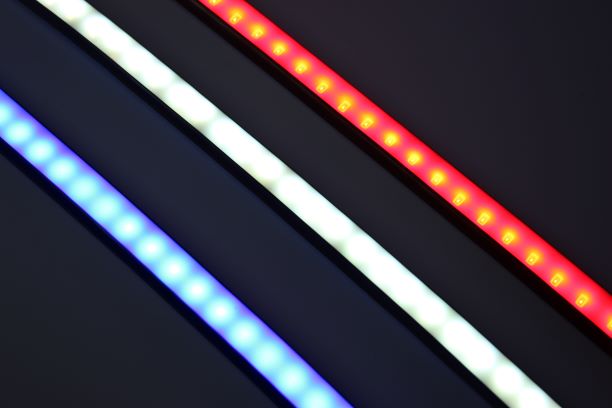

LED Light Strips with Light Channel - High Output - Directional LED - 12VDC or 24VDC
$34.95
NEW ITEM FOR 2020
This high output LED strip is encased in a flexible silicone case that helps direct lighting to where it's needed.

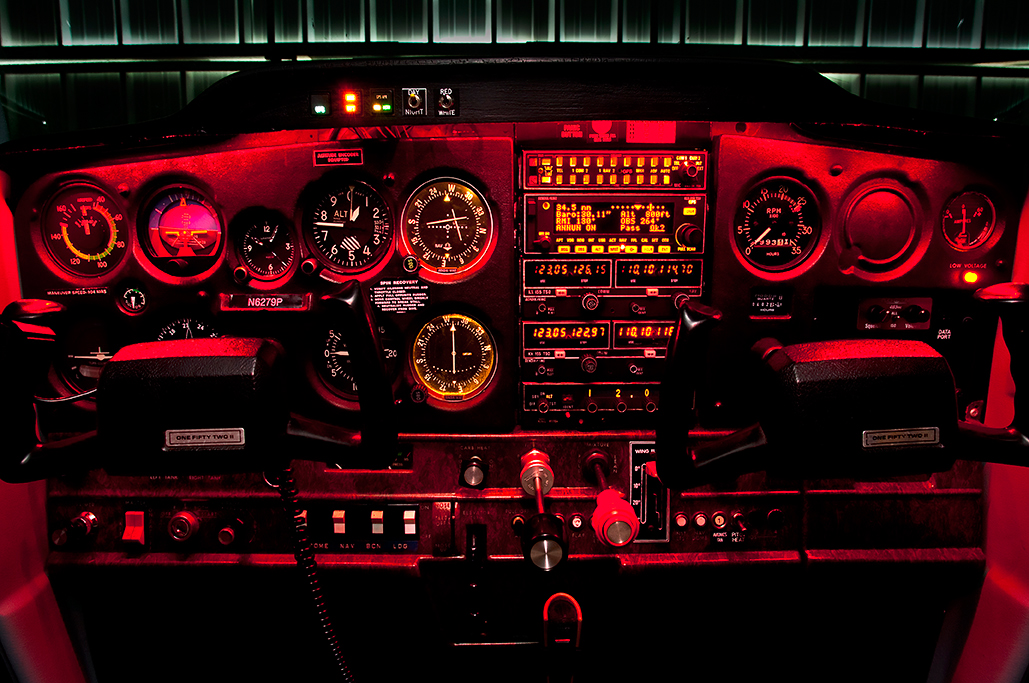

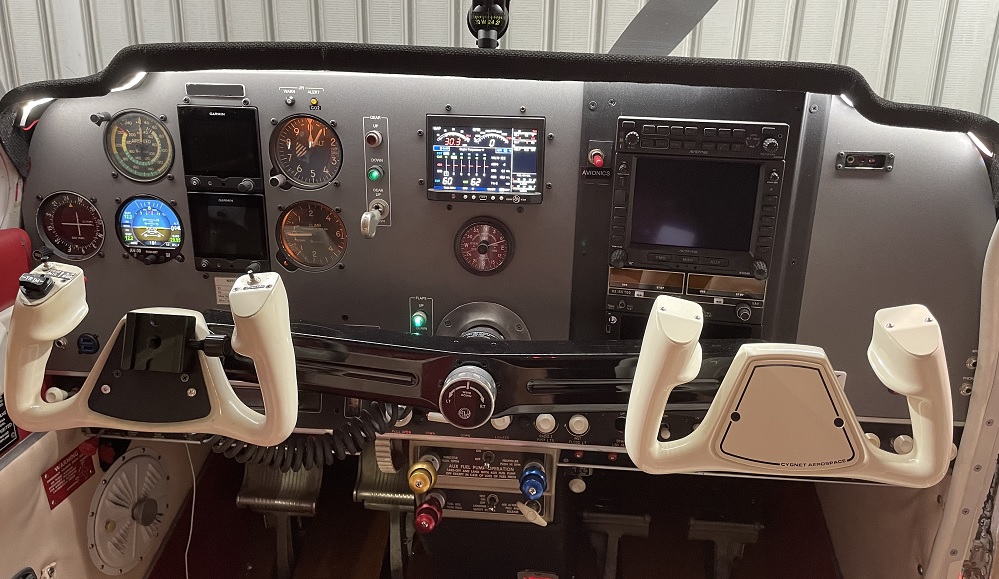

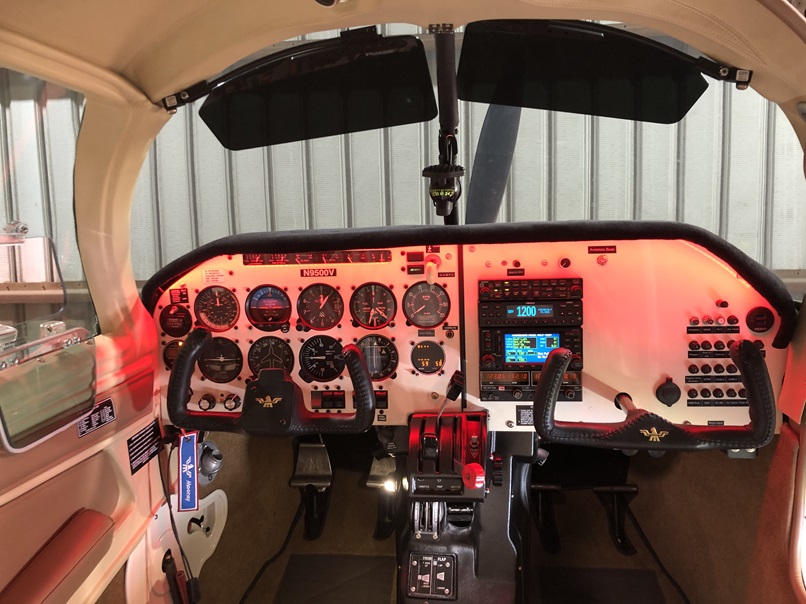

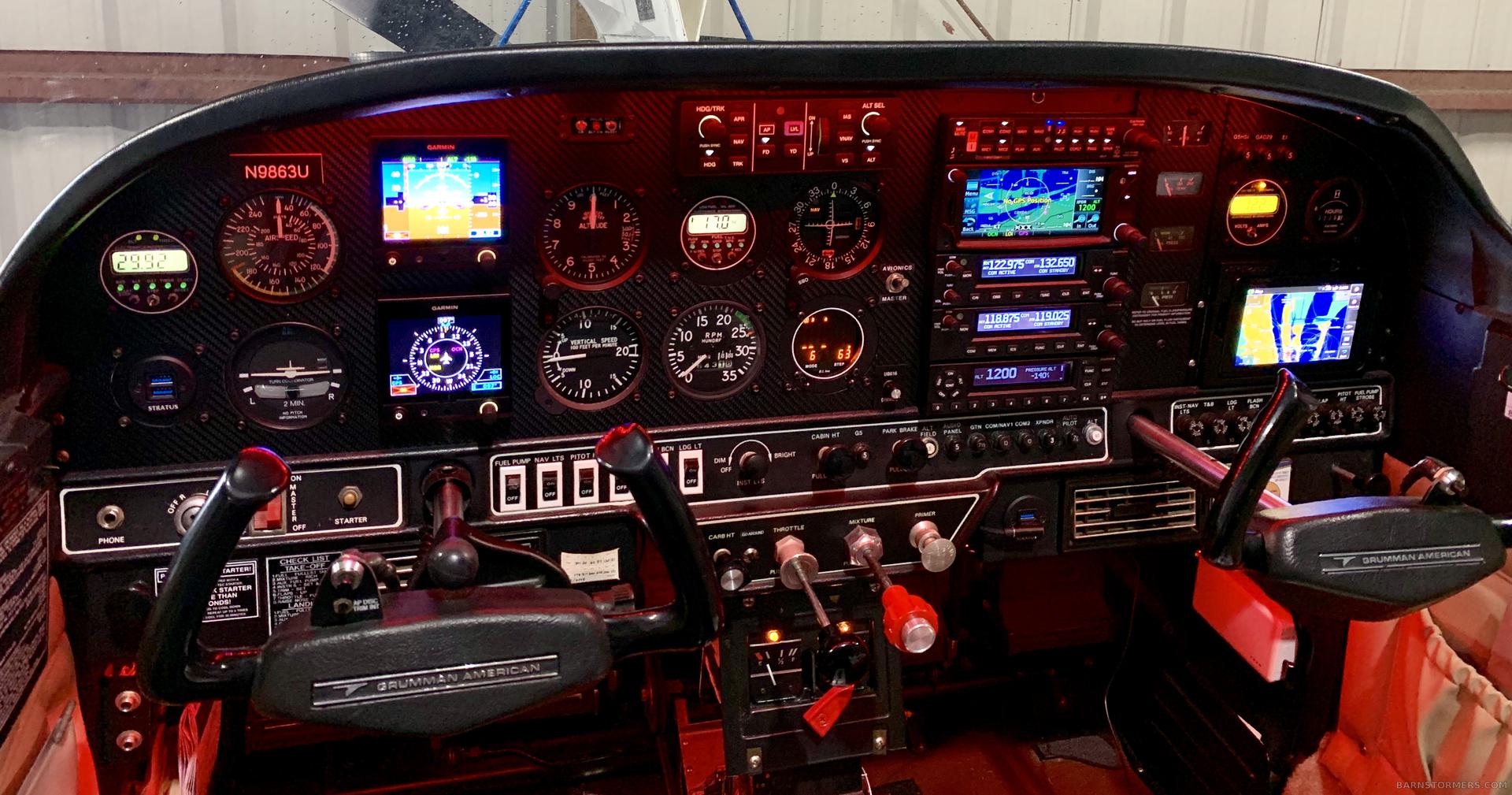

Perfect for installations under a glareshield where lighting needs to be directed DOWNWARD onto the instrument panel
High power 3528 LEDs (120 per meter) provide bright LED lighting
Power leads at both ends for flexible wiring or for linking multiple segments together
Fully dimmable using PWM (or rheostat dimmers with some performance limitations)
Available in 12V and 24V versions. Red, Blue or White LEDs. Black silicone channel with opaque face for good lighting distribution
End caps provided for a clean installation
Specifications:
- 1 meter (39.4") length
- 120 LEDs per meter (the most available per meter). 3528-type LEDs.
- 12 Volt or 24 Volt (please specify when ordering). Low power consumption: 0.20A at max output
- Dimmable (see our PWM dimmers). Note: high-power LED strips are controlled best by PWM dimmers. Simple rheostats provide limited dimming.
- Easy to trim (every 1.5").
- Just 12mm in width. 5mm in height
- Supplied with 1' of color coded 22 AWG wire on one end.
- High-temperature 3M tape applied to reverse side for easy install
- Color options: Cool White (5500K), Red, Blue
- Easily trimmable (see images) or linkable to additional segments or other lighting
SKU: LED Strip-Light Channel Series
Packaging note: ships on a 8" reel. Lay flat to remove curve before installation.
For installation:
3M tape on reverse side is extremely strong.
Clean the installation area and allow to dry. Test and mark your installation area before removing the tapes protective cover. Once in place it is difficult to remove the 3M tape. Avoid sharp bends - the LED strip may be damaged.
To trim, remove both end caps (wires run through these caps) and gently pull the strip out. Trim at the "scissor" icons that appear about every 1.5". Trim an equal amount from the light channel and then replace the strip into the light channel. Replace the end caps.

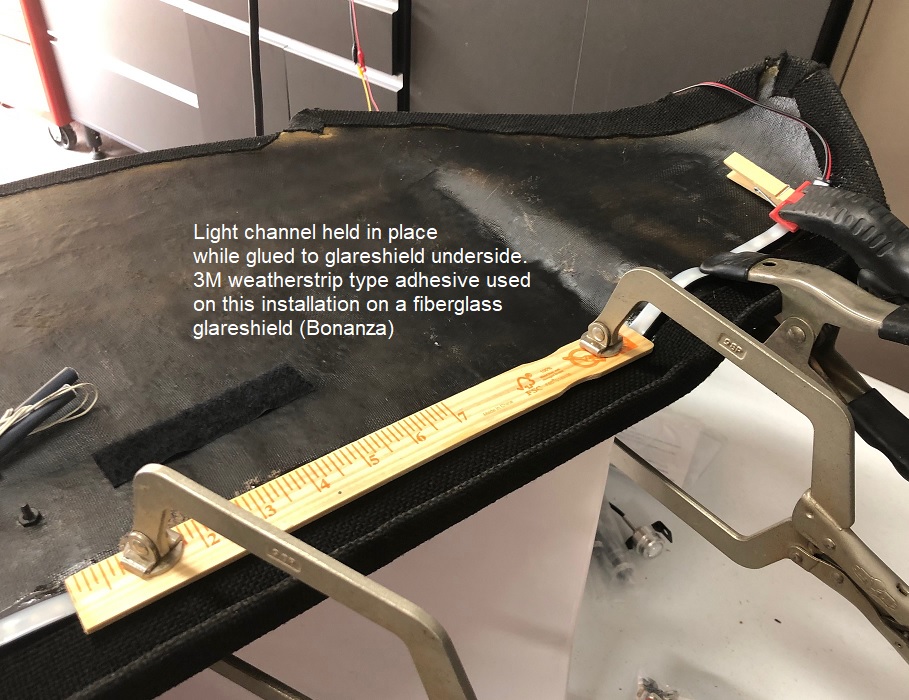

Some installation locations may need additional adhesive. Use 3M weatherstripping adhesive or similar strong glues. (See attached image)
List price: $39.95
Catalog:
Price: $34.95
Weight: 6 oz
Dimensions: 5 in × 0.25 in × 6 in
LED High Output Strips - Waterproof - 5 Meter (16.4 feet) Length
$129.95
Our same high-quality LED Light Strips (3528 LEDs), 300 per meter, but in the longest length available - 5 meters
Features:
-
Waterproof design (silicone covered)
-
120 LEDs per meter (the most available per meter)
-
12 Volt or 24 Volt (please specify when ordering).
-
Low power consumption (less than 0.2A per meter)
-
Dimmable (see our PWM dimmers). Note: high-power LED strips are controlled best by PWM dimmers. Simple rheostats provide limited dimming.
-
3M tape applied to the reverse side for easier installation
-
Trimmable approximately every 3" (re-use of cut segments requires professional soldering techniques)
-
Super bright LED output (3528 LEDs)
Available in single color: Red, Blue, Cool White and Green LED
Available in dual-color in: Red/White (sorry, out of stock), Blue/White (see our separate listing for these options)
Available in voltages: 12-14VDC and 24-28VDC
Select your options below
List price: $149.95
Price: $129.95
Weight: 1 lb
Dimensions: 6 in × 1 in × 6 in

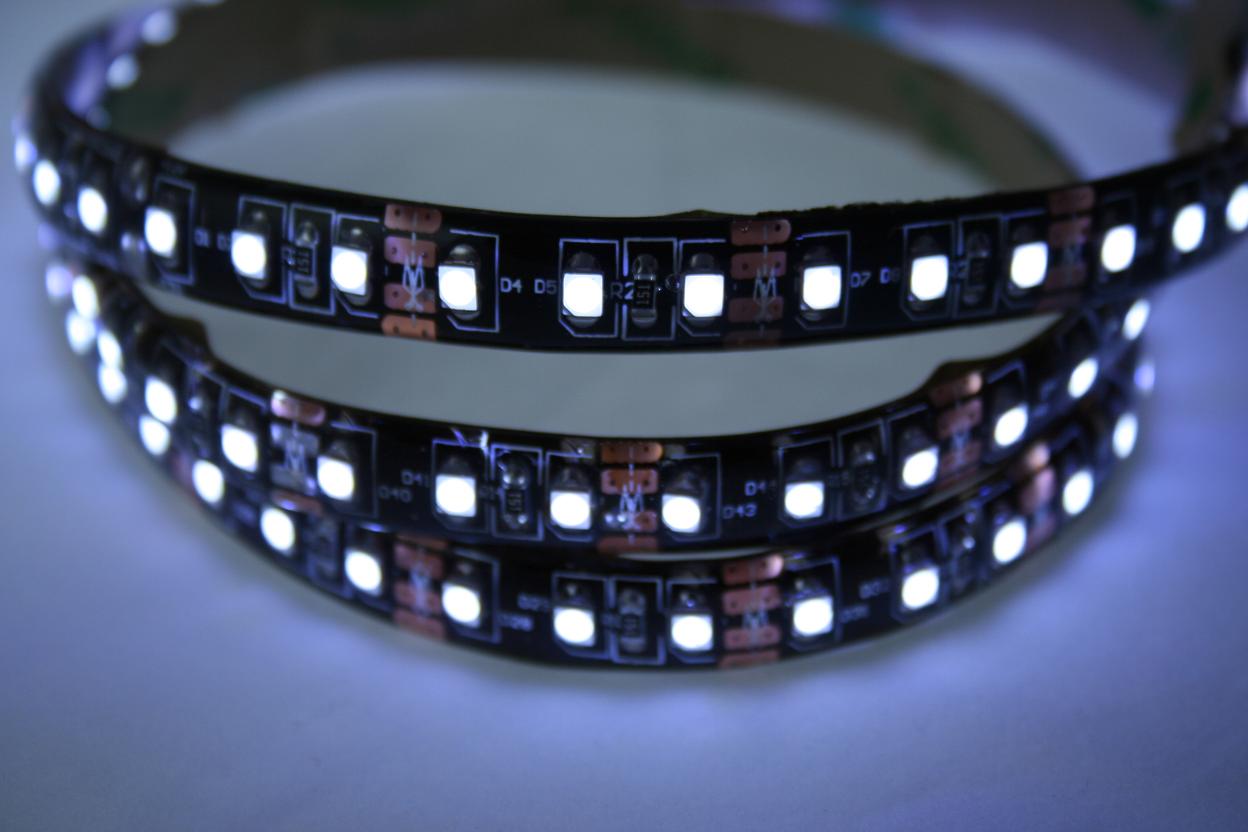

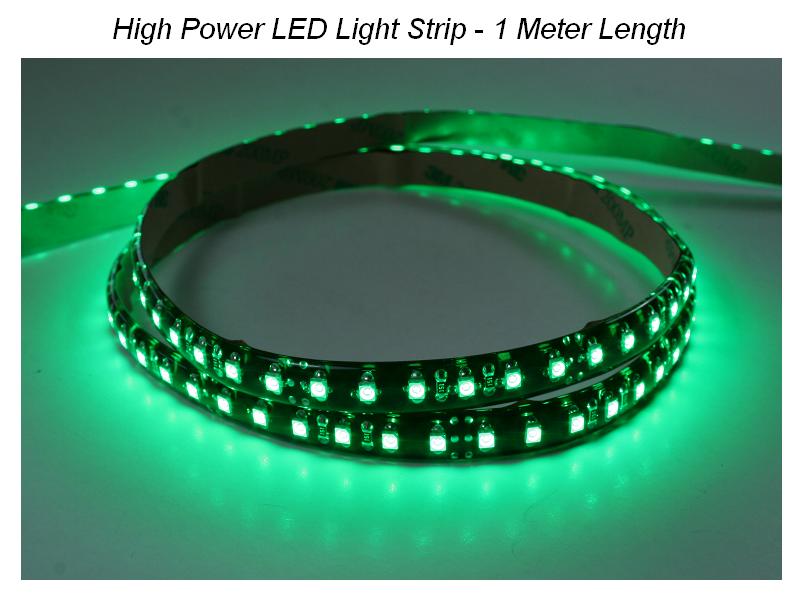

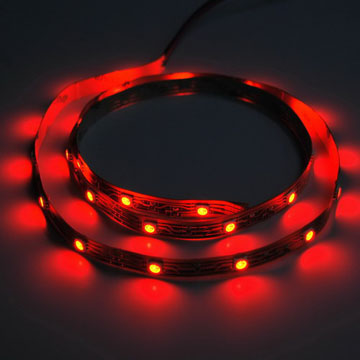

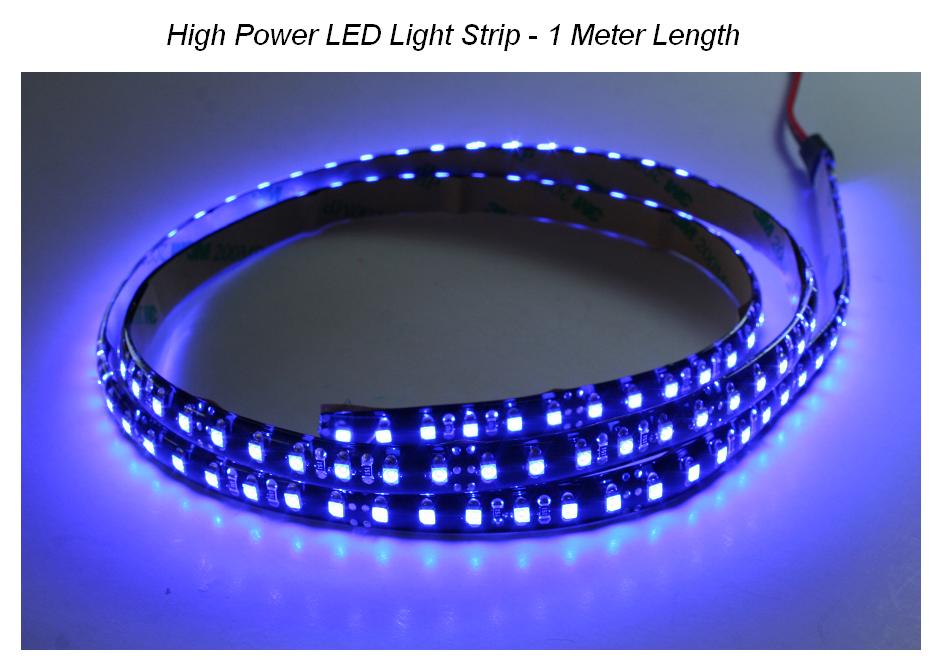

LED Light Strips - High Output
$34.95
High Output Strips use high power 3528 LEDs and produce over five times the output of standard light strips.
While there are brighter types manufactured, we like 3528 LEDs because they are a good combination of bright light output, low power consumption, low heat, good dimmability, flexible use and easy of installation.
Our High Power LED Strip features and specifications are:
- 1 meter (39.4") length
- 120 LEDs per meter (the most available per meter). 3528-type LEDs.
- 12 Volt or 24 Volt (please specify when ordering). Power consumption: 0.65A at max output
- Low power consumption (less than 0.65A)
- IP65 rated
- Dimmable (see our PWM dimmers). Note: high-power LED strips are controlled best by PWM dimmers. Simple rheostats provide limited dimming.
- Easy to trim (every 3").
- Just 7mm in width. 3-4mm in height
- Supplied with 2' of color coded 22 AWG wire on one end.
- High-temperature 3M tape applied to reverse side for easy install
- Color options: Cool White (5500K), Natural White (4000K), Red, and Blue (Green is a custom order)

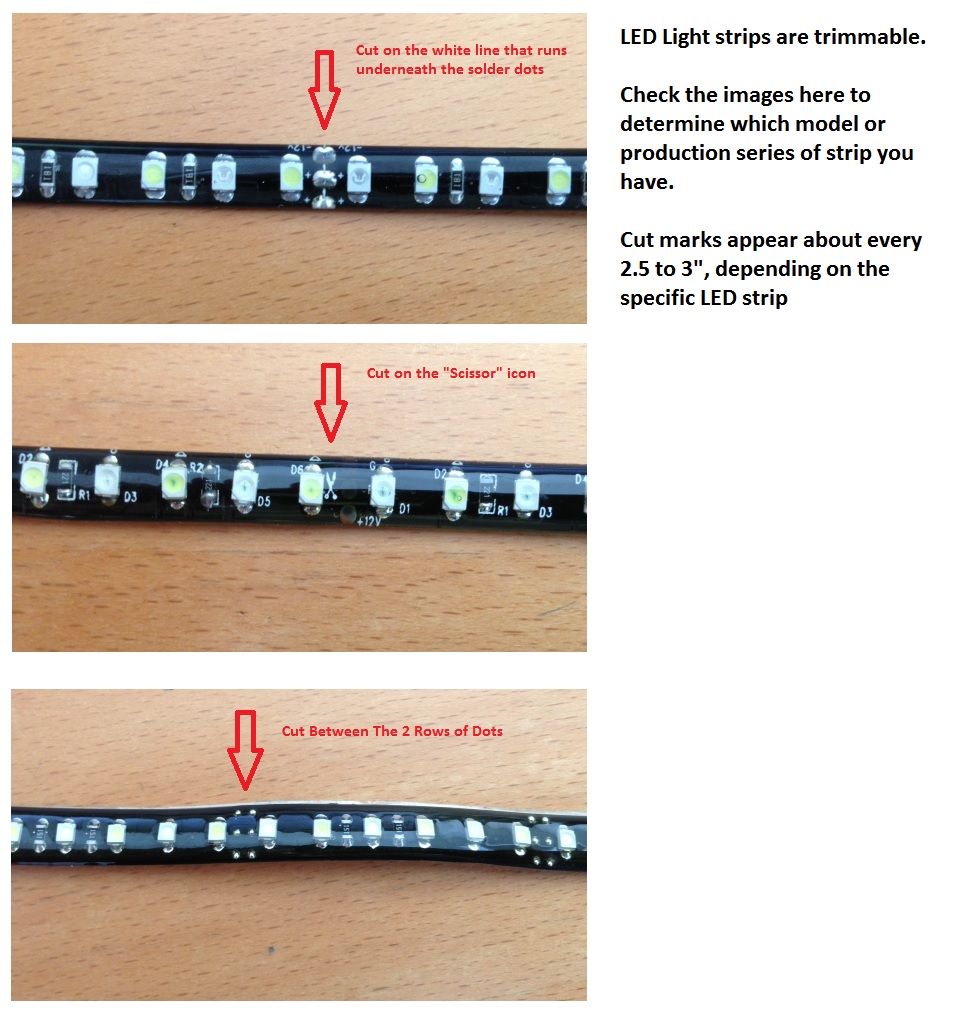

For trimming to shorter lengths, see the attached image showing the cut lines on each strip - cut between the two rows of three dots to separate the unneeded segment. The Red line on the last image shows the cut marks.
List price: $49.95
Catalog:
Price: $34.95
Weight: 10 oz
Product Video:
Dimensions: 100 mm × 7 mm × 4 mm
High Power LED Light Strips - 10" Lengths
$13.95
High Output Strips use high power 3528 LEDs and produce over five times the output of standard light strips.
While there are brighter types manufactured, we like 3528 LEDs because they are a good combination of bright light output, low power consumption, low heat, good dimmability, flexible use and easy of installation.
Our High Power LED Strip features and specifications are:
- 10" length
- 37 LEDs per foot (the most available)
- 12 Volt (please specify when ordering)
- Low power consumption (less than 0.01A)
- Dimmable (see our PWM dimmers)
- Easy to trim (about every 4")
- Supplied with 2' of color coded 22 AWG wire on one end. May be powered from either end (with adapters)
- 3M tape applied to reverse side for easy install
For trimming to shorter lengths, see the attached image showing the cut lines on each strip - cut between the two rows of three dots to separate the unneeded segment. The Red line on the last image shows the cut marks.
List price: $14.95
Catalog:
Price: $13.95
Weight: 2 oz
Dimensions: 12 in × 0.1 in × 0.1 in

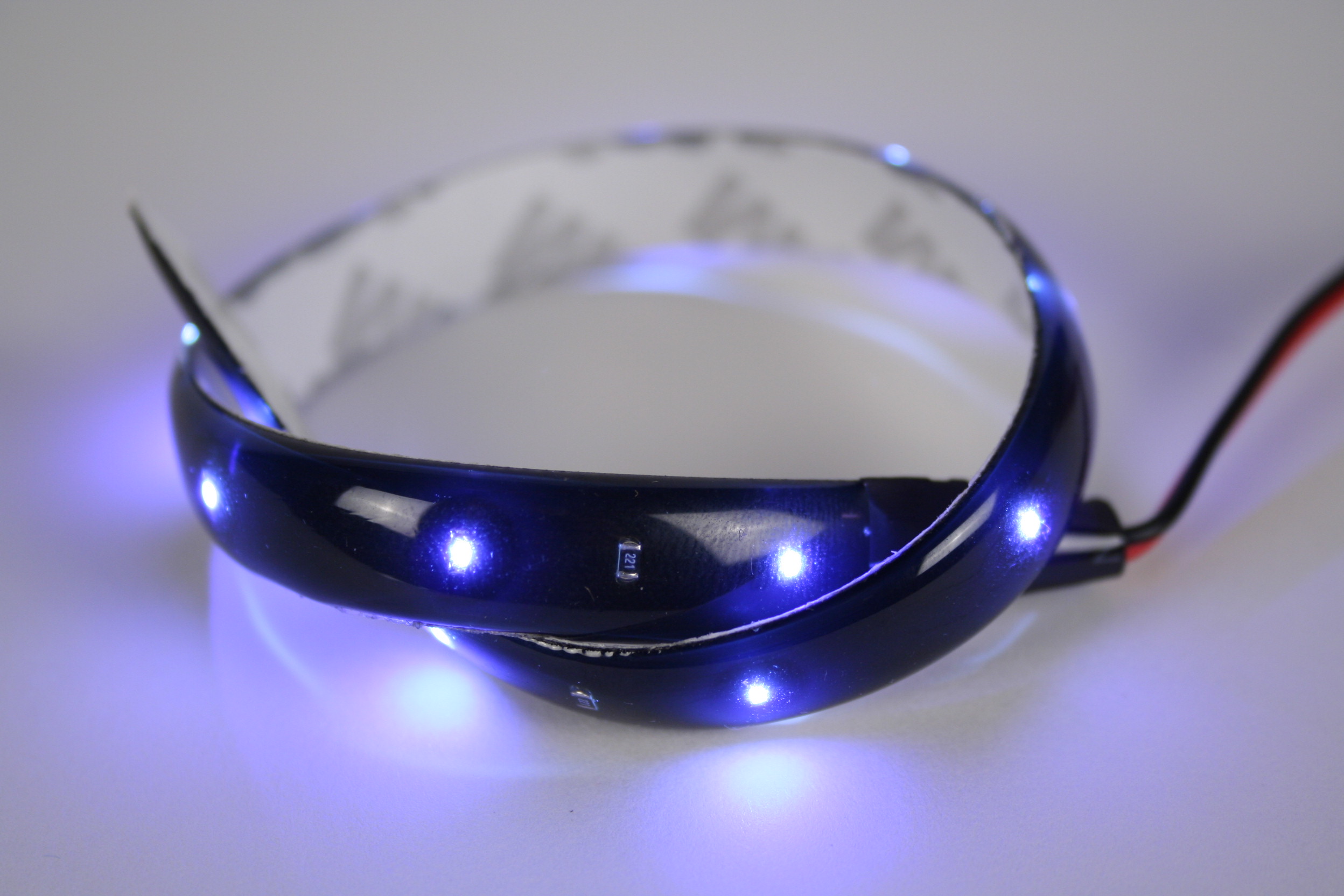

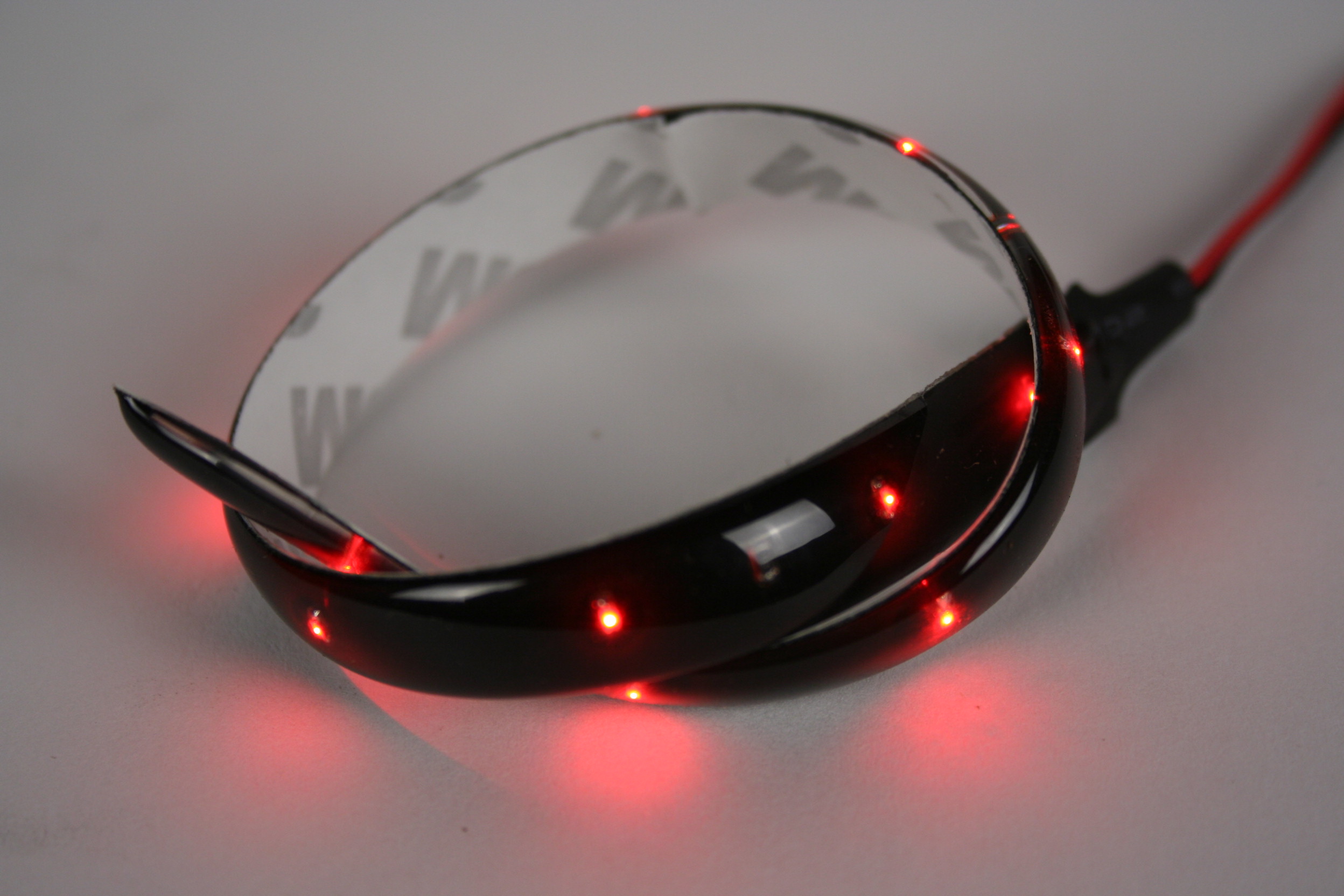

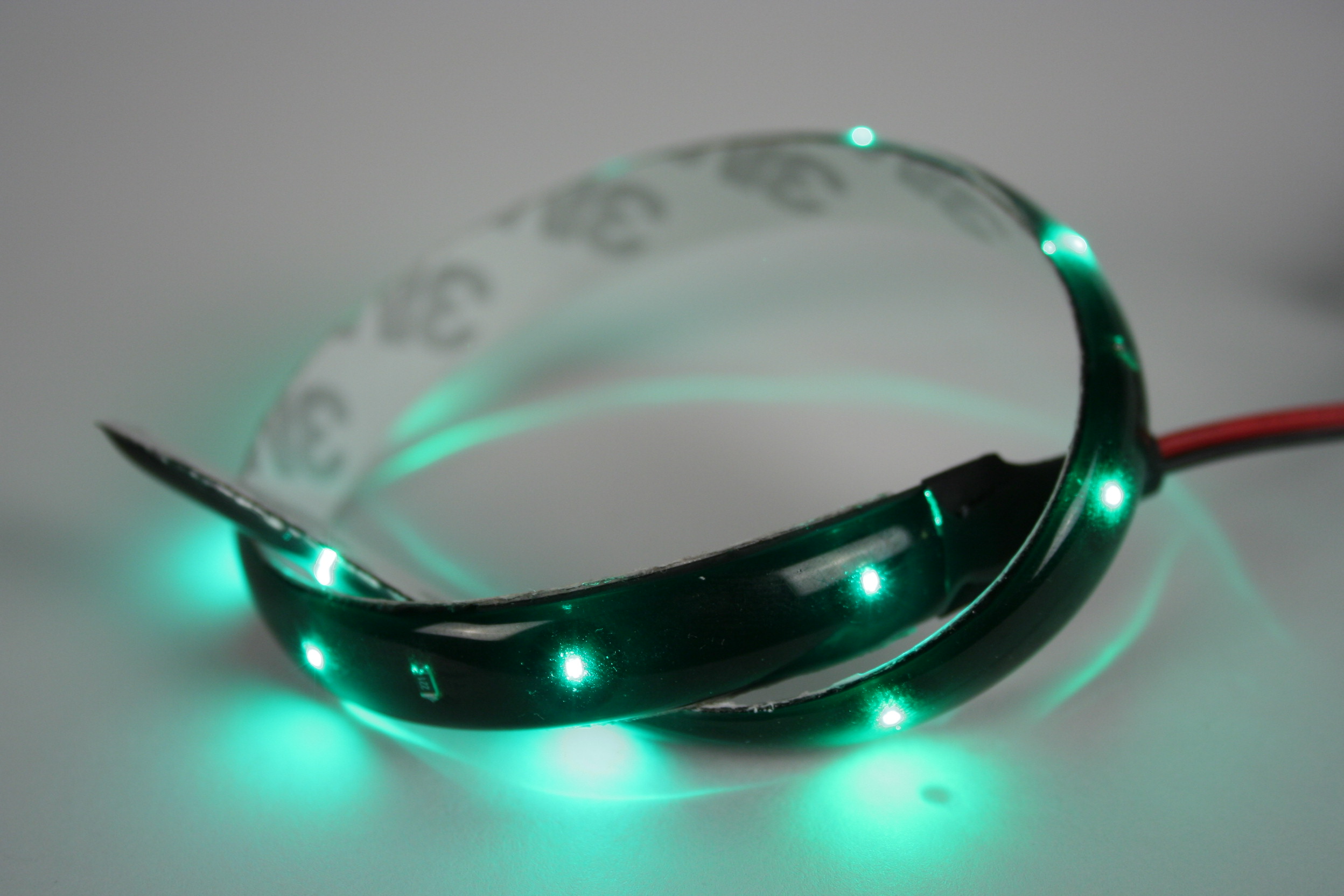

LED Light Strip - 10" Standard Output
$12.95
Designed for adding LED illumination in tight locations such as instruments, panels, footwells and other locations where only a short LED segment is needed.
10" Length
12 VDC
Standard 0603 LEDs, encapsulated in a flexible strip
Supplied with 30" of color coded twin lead wire
Available in Cool White, Red, Blue and Green LEDs
List price: $14.95
Price: $12.95
Weight: 4 oz
Dimensions: 10 in × 0.2 in × 0.1 in
LED Lighting Kit - Select Any Light Strip and One Dimmer
$54.95

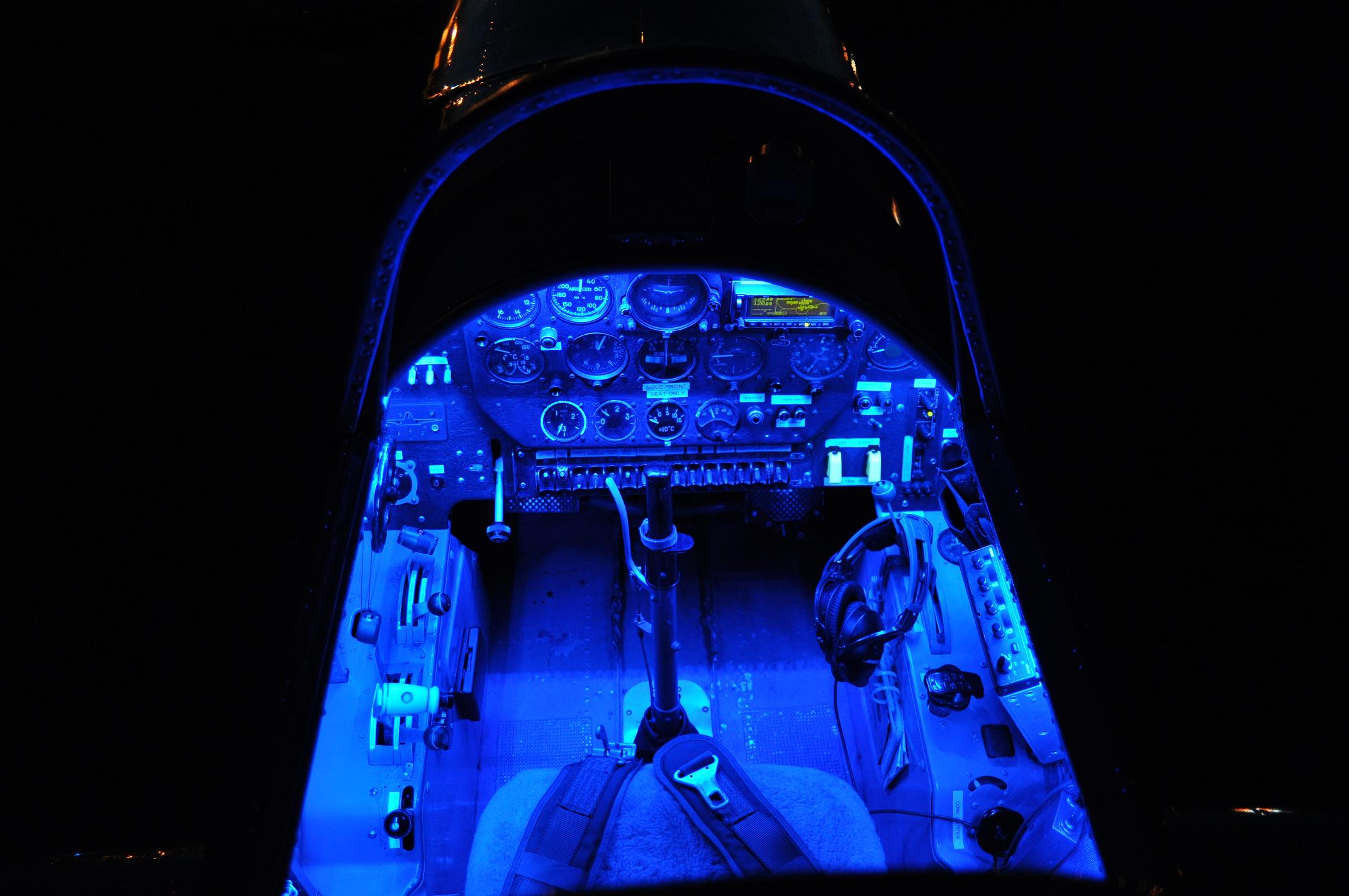

Need lighting for your car, boat, RV, utility vehicle or aircraft?
With this KIT, select any of our Single Color LED Light Strips (12 or 24 Volt) and a matching single-channel PWM Dimmer.
Saves over 10% versus buying each individually.
High Power LED Strips colors include: White, Red, Blue and Green in either 12 or 24 Volt - 3528 High Power LEDs (70 LEDs per meter).
Very high output - Dimmable - 1 meter length - 30cm of color coded power lead - Strip length can be reduced about every 4".
Just 7mm in width

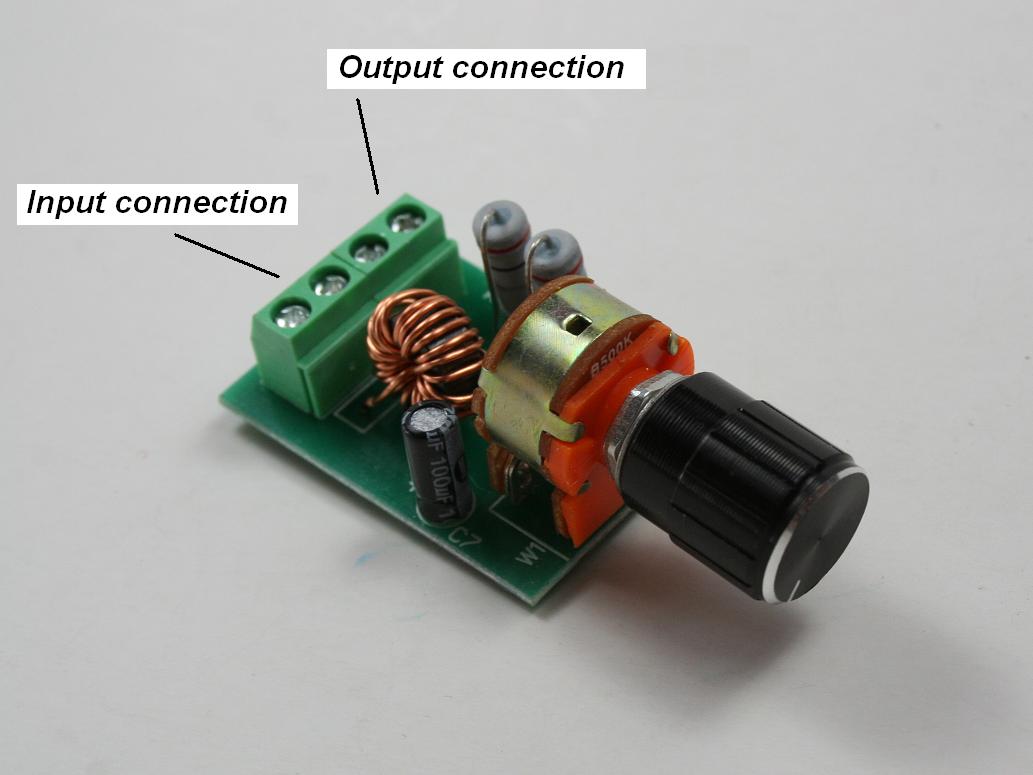

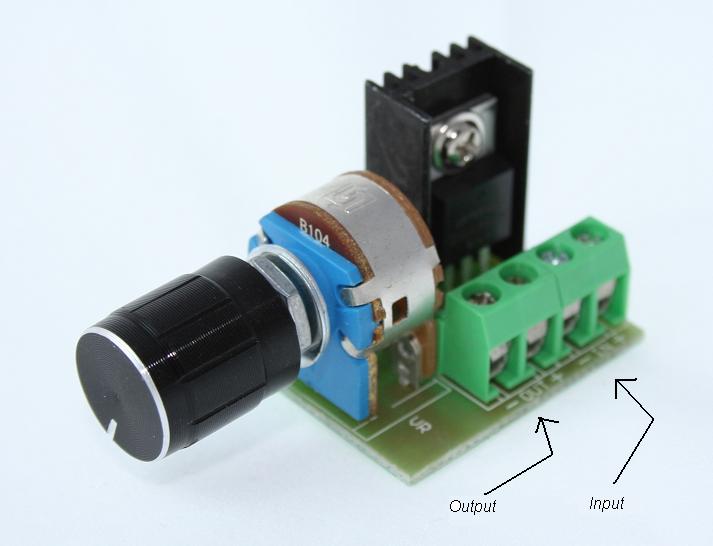

PWM Dimmers include our: 12VDC 7A Single Channel model (12VDimmer01-7A) or our 24VDC 4A Single Channel model (24VDimmer01-4A) with your choice of a 12V or 24V dimmer.
Select your LED color and dimmer below.
List price: $89.95
Price: $54.95
Weight: 12 oz
Dimensions: 100 mm × 7 mm × 4 mm

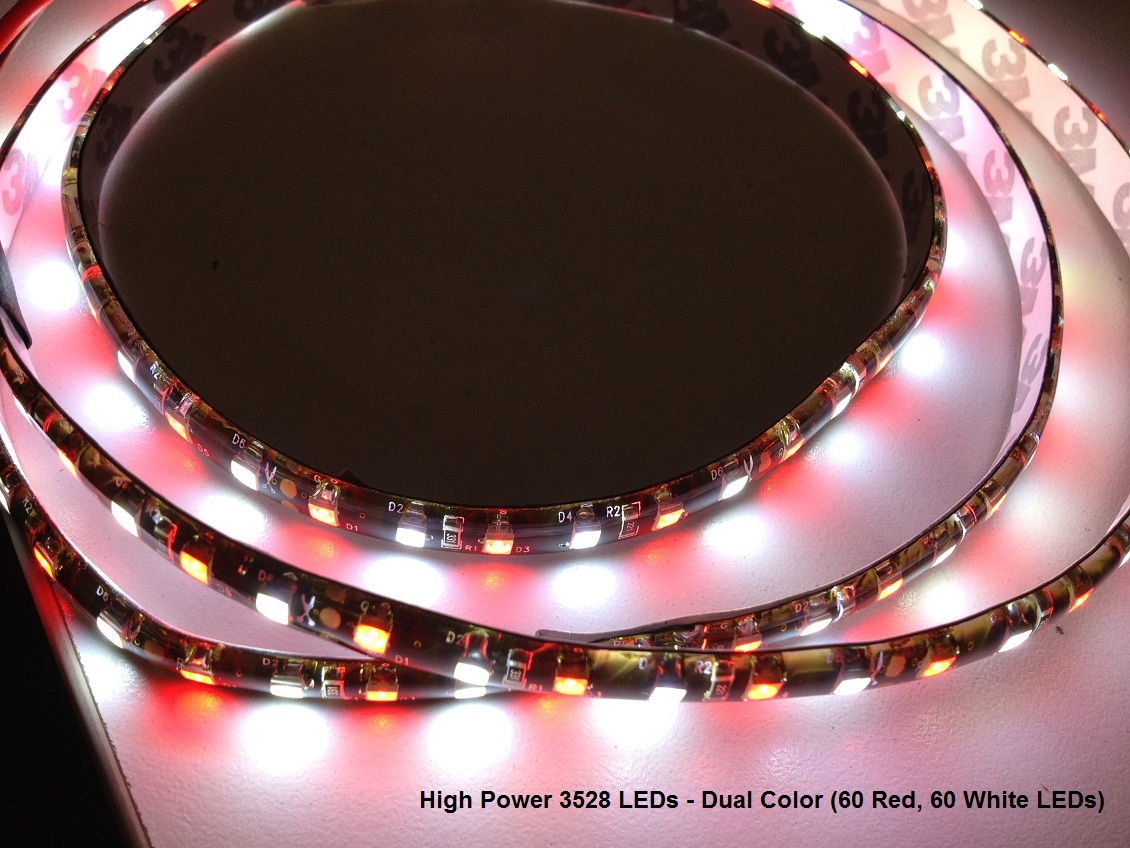

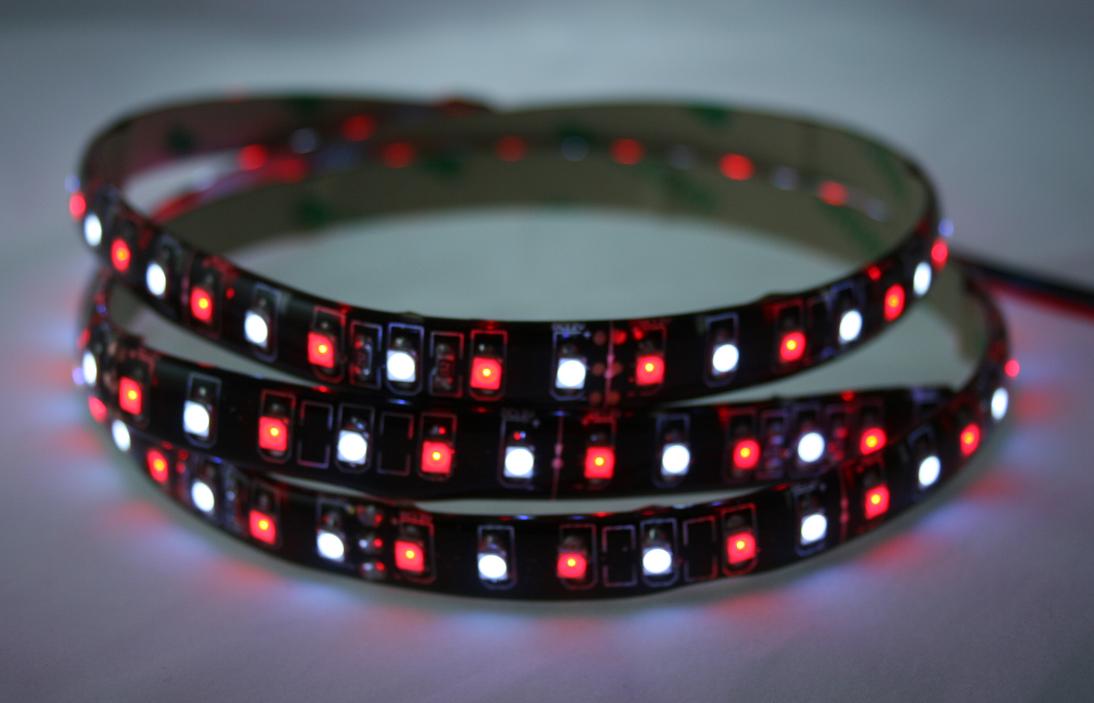

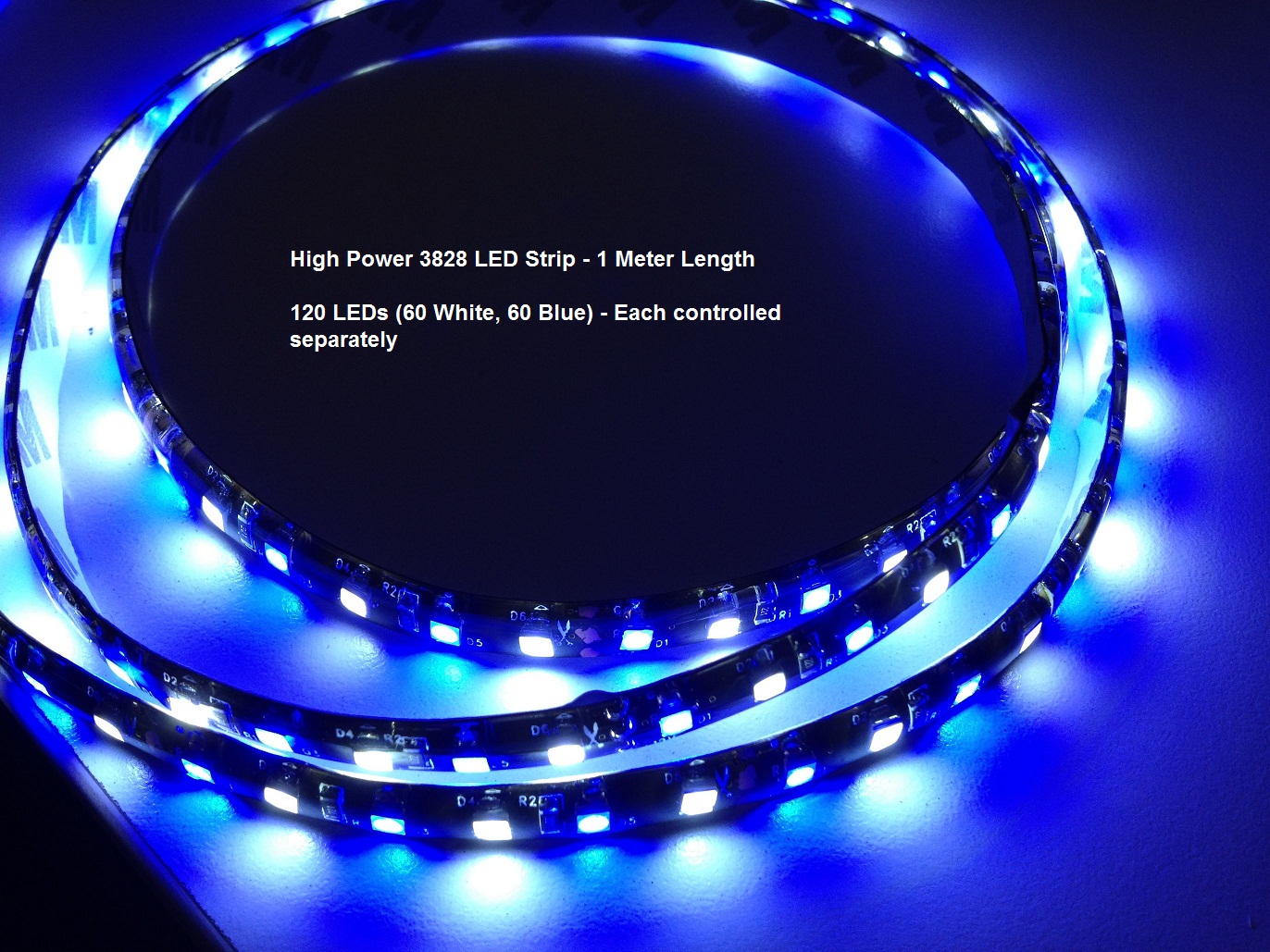

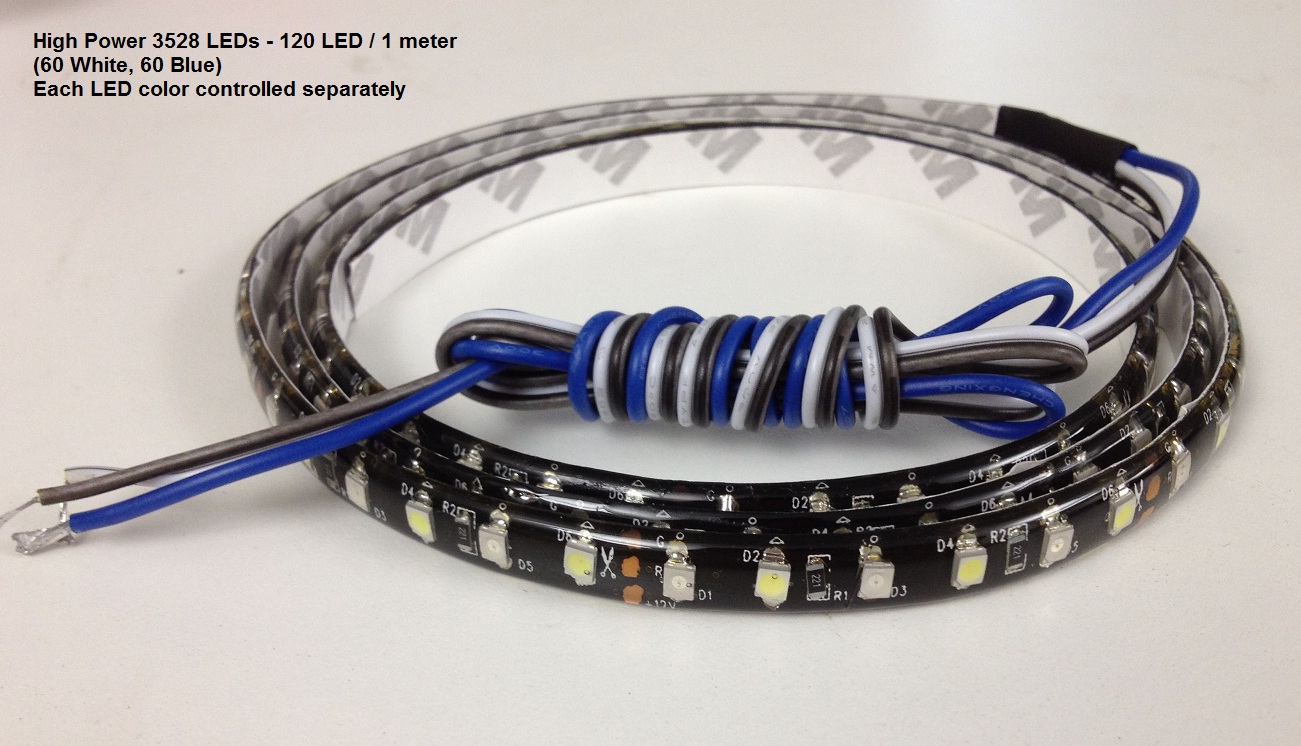

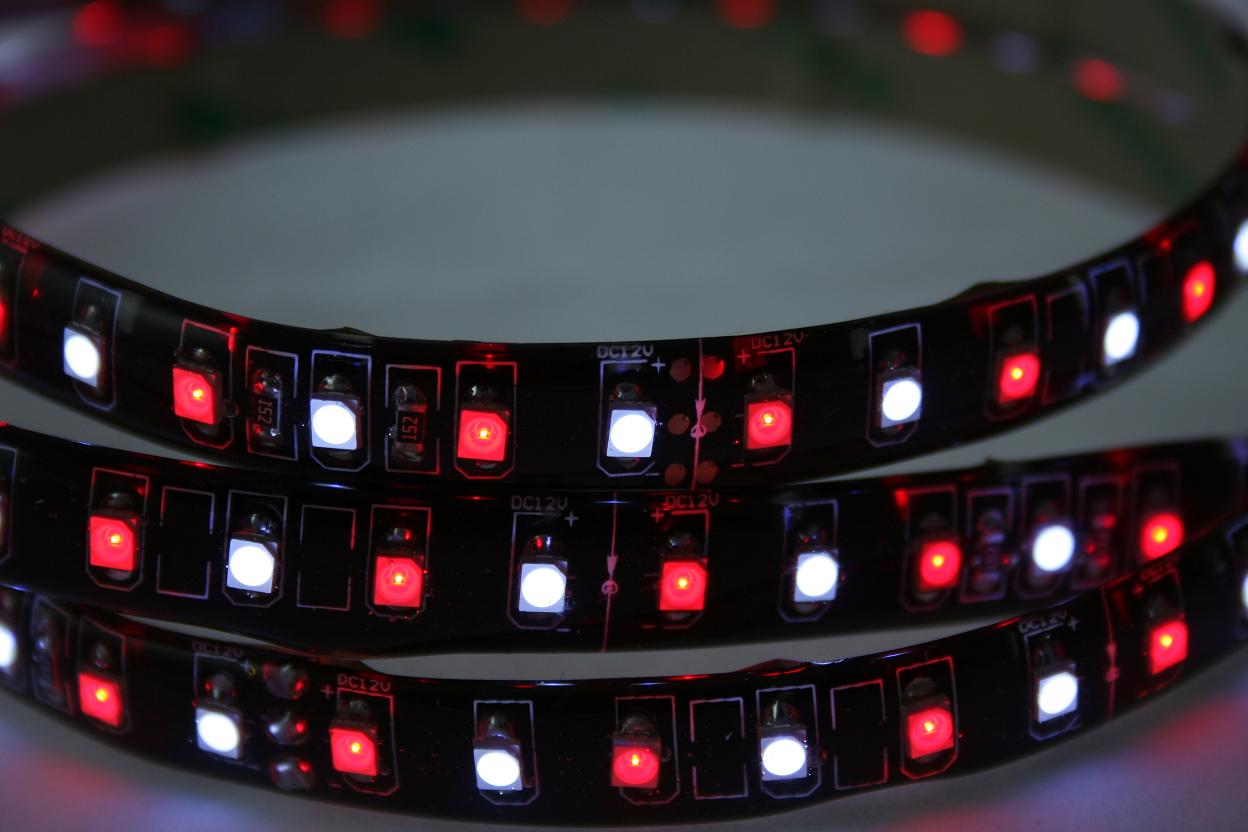

2-Color High Output LED Light Strip
$49.95
2-Color high brightness light strips One meter length, just 3/8" wide and 3mm high 120 high-power type 3528 LEDs per meter. 12 or 24 Volt version available. Less than 0.9A current comsumption Dual-colors - 120 LEDs per meter (60 color, 60 Bright White)
High power 3528 LEDs provide plenty of lighting in both color and white light
3M tape applied for easy installation
Fully encased in silicone for use in any climate.
Colors: Red/White, Blue/White, Green/White.
12 or 24 Volt versions - both are very bright
Wiring is easy: Each Strip has 3 wires - a common ground (black) and a positive (+) for each color.
LED output: Estimated light output, 60 color / 60 white LEDs per meter: Red color - 140-160 lum. flux - Blue color - 80-90 lum. flux Green color - 250 lum. flux - White color - 240-270 lum. flux

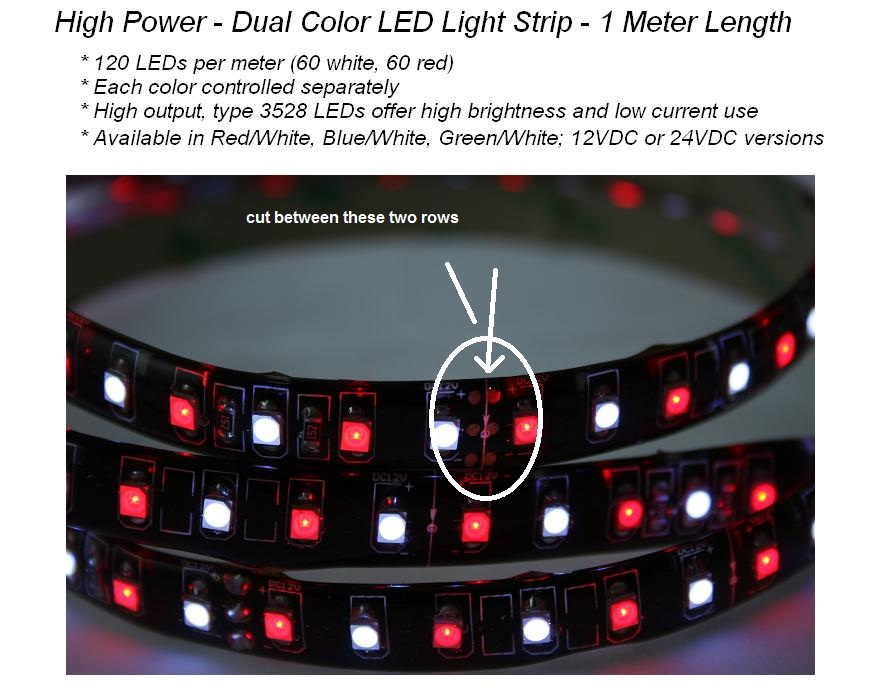

Trimmable every 10cm (about 4"). This allows you to shorten the overall length as needed.
List price: $59.95
Catalog:
Price: $49.95
Weight: 10 oz
Product Video:
Dimensions: 100 cm × 10 cm × 5 cm
