GE1940 Replacement Beacon Bulb - LED - 3W 300 Lumen 10-36VDC

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Thu, 10/10/2019 - 06:58
$29.95

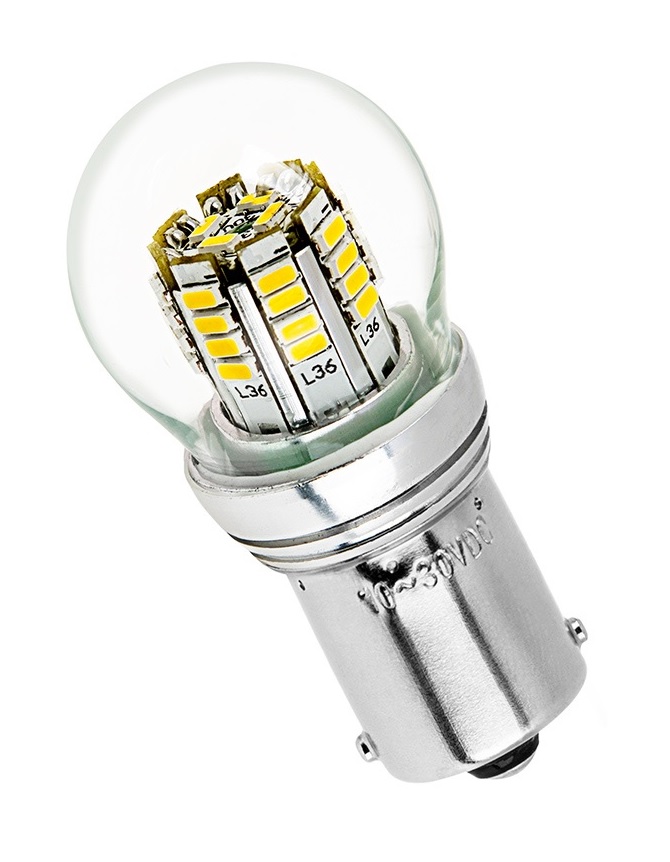

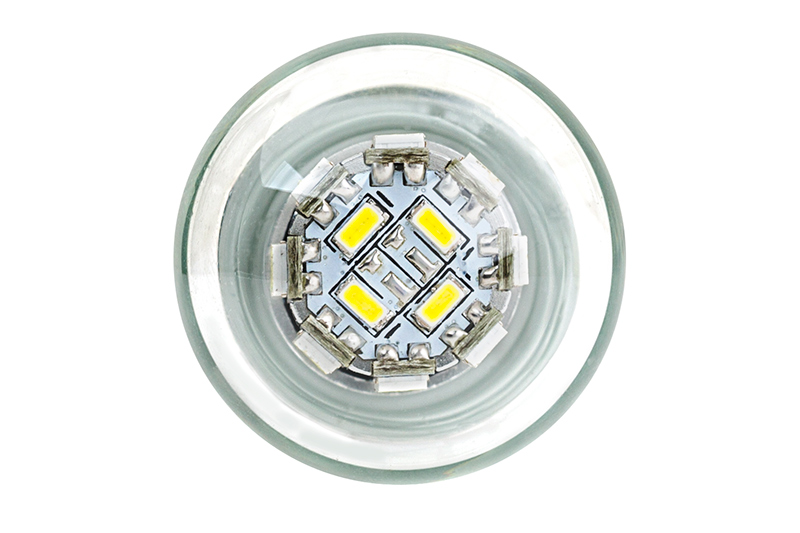

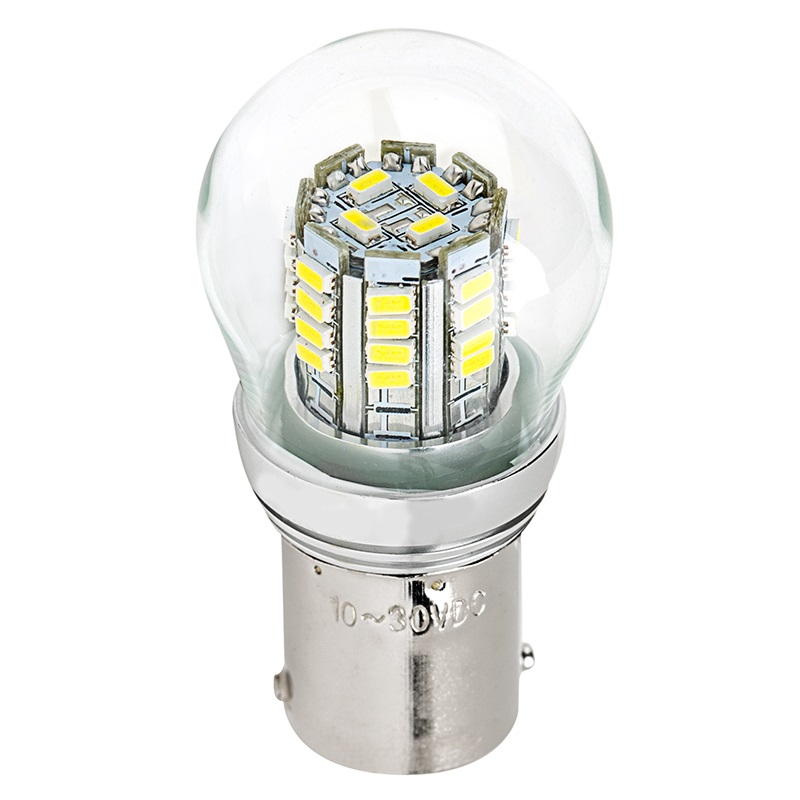

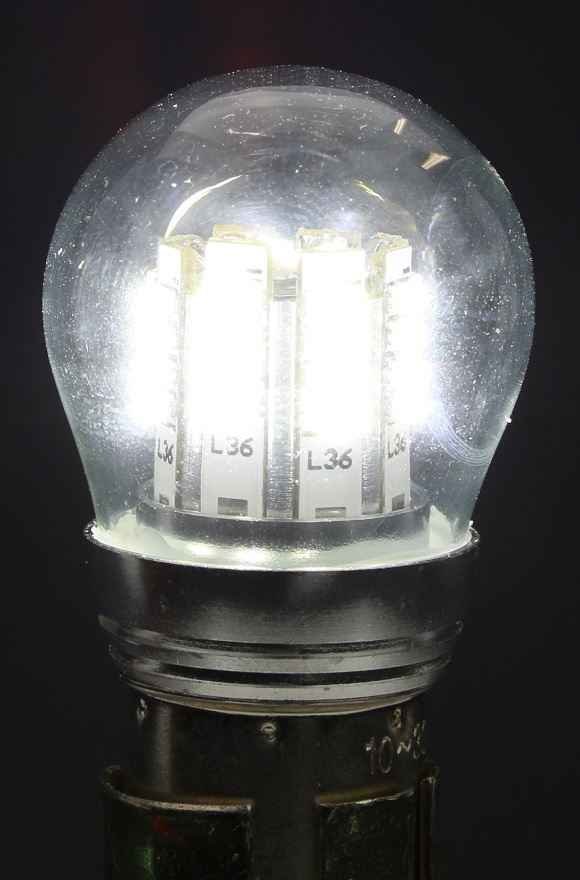

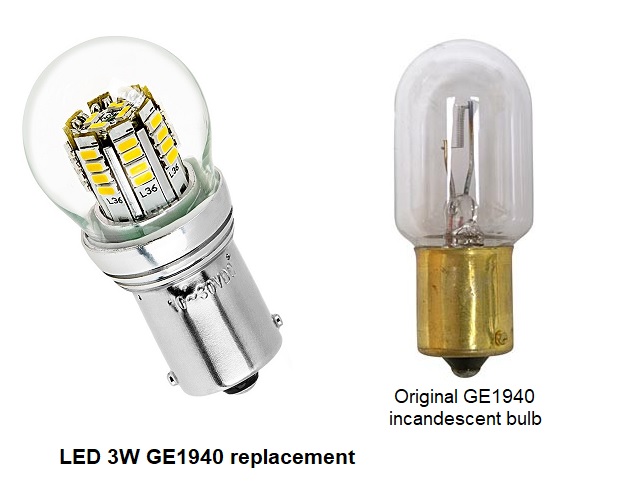

Finally, a LED replacement for expensive and high-current GE 1940-type bulbs used in common Aircraft Rotating Beacons.


Our 3W, 300 lumen LED Bulb is an ideal low-current, super-bright replacement.

(Note - this application is for a non-reflector bulb.  Your beacon has a fixed or rotating reflector behind the bulb)




Product details:

  • Applications include:  Rotating Beacons and Navigation Lights
  • 3.0 Watts of power; Low power consumption (less than 220mA @13.8V)
  • 14VDC and 28VDC compatible
  • High-output LEDs
  • About 30% brighter than incandescent
  • BA15S base (center contact; 2 matching side retainers - see diagram).   This bulb fits ONLY the GE1940 replacements.  See our other listings for RA7512 (BAY15s) type bulbs, either with or without built-in reflectors)
  • Rated at 50,000 hours
  • Fully sealed glass dome
  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA -  have your IA/A&P consider these as a "minor alteration"
  • Tested in Grimes and Whelen Navigation lights and Grimes rotating beacons.  Super bright output and considerably less current demand than incandescent bulbs.



Colors:  Cool White.



See our other listings for Nav/Position light bulbs and other interior aircraft LED bulbs



Voltage:  10-30VDC compatible







List price: $34.95
Catalog:
Related Products:
Price: $29.95
Weight: 0.2 oz
Dimensions: 2 in × 0.75 in × 1 in
