HIGH POWER 30 AMP (30A) PWM DIMMER - 12 VDC

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Tue, 02/07/2017 - 20:52
$99.95

**NEW**



ULTRA HIGH POWER 30 AMP

12V (12-14V) PWM (PULSE WAVE MODULATION) DIMMER



  • Extremely powerful PWM Dimmer - 30 Amps capacity
  • Perfect for controlling large banks of LED lighting.
  • Easy-to-install, on/off switch on rheostat.  High quality fluted knob included.
  • Designed to control both LED and Incandescent lighting - 30 Amps maximum
  • 12-14 Volt
  • Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications;  100 Hz PWM
  • Advanced design includes over-current protection, reverse polarity protection and over-voltage protection
  • On board ATM fuse for additional protection

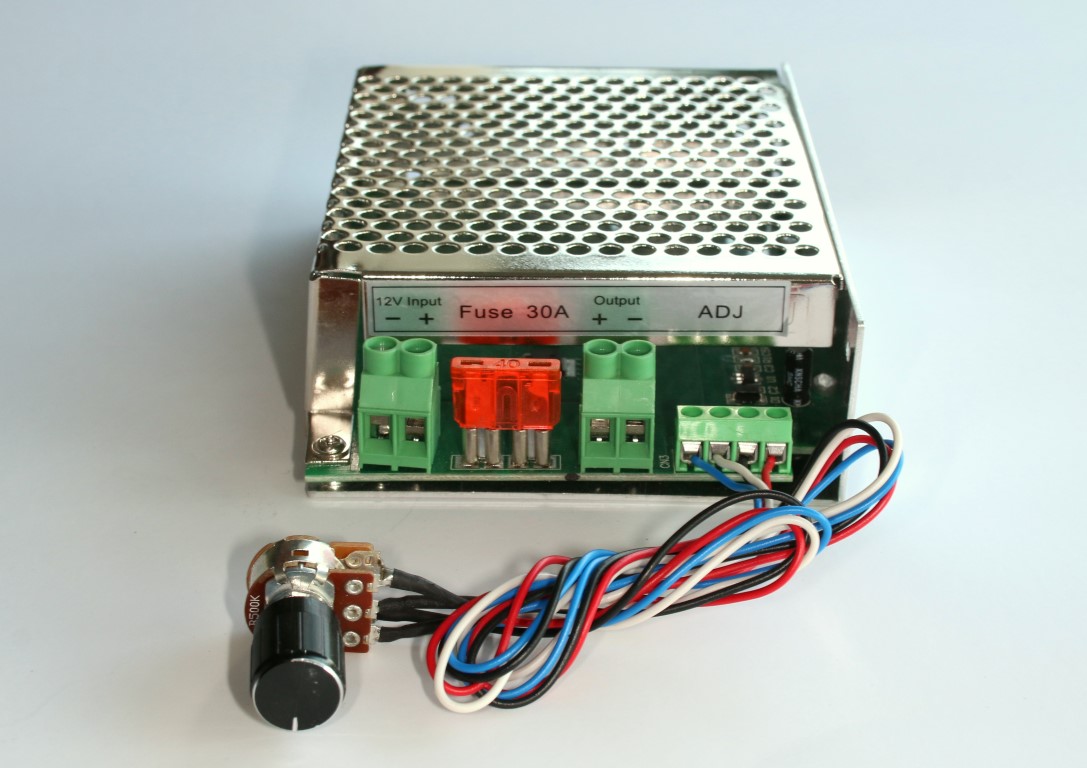

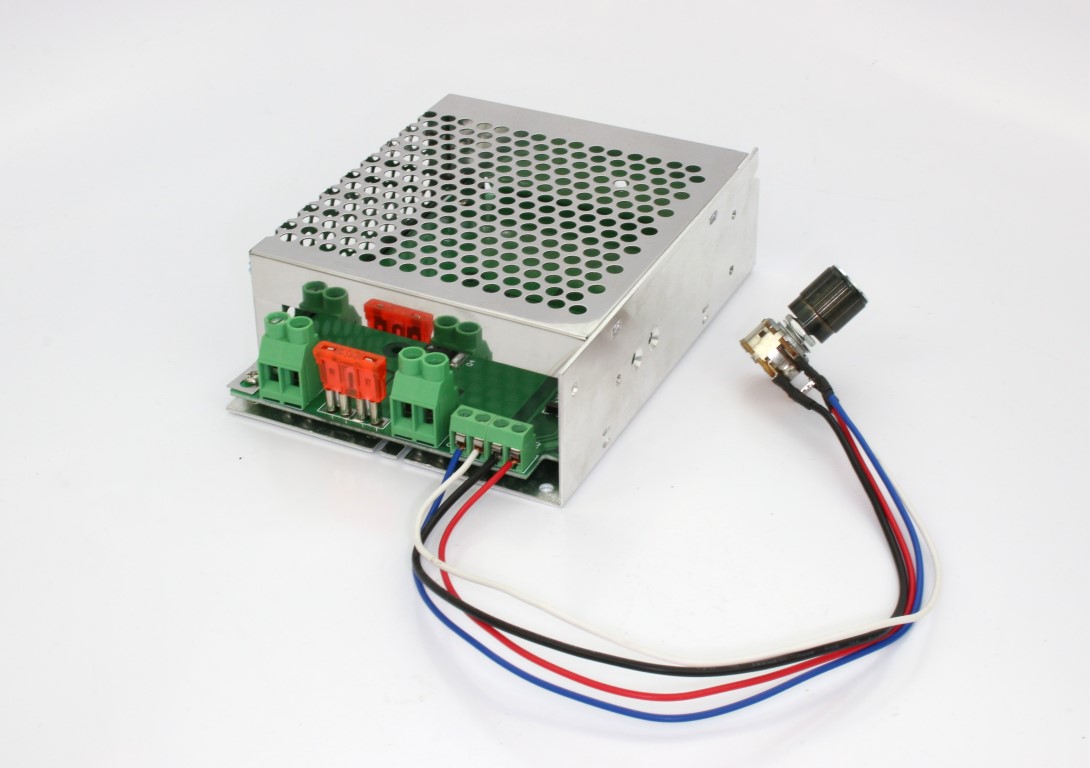

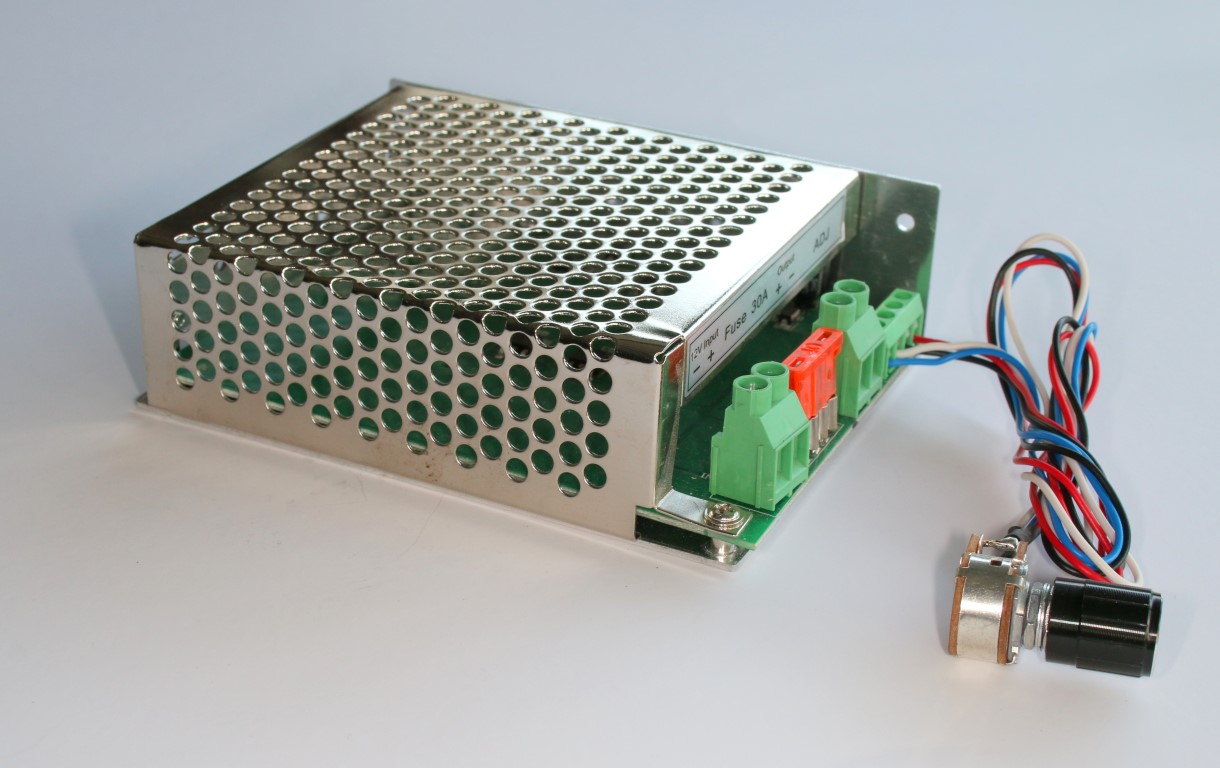

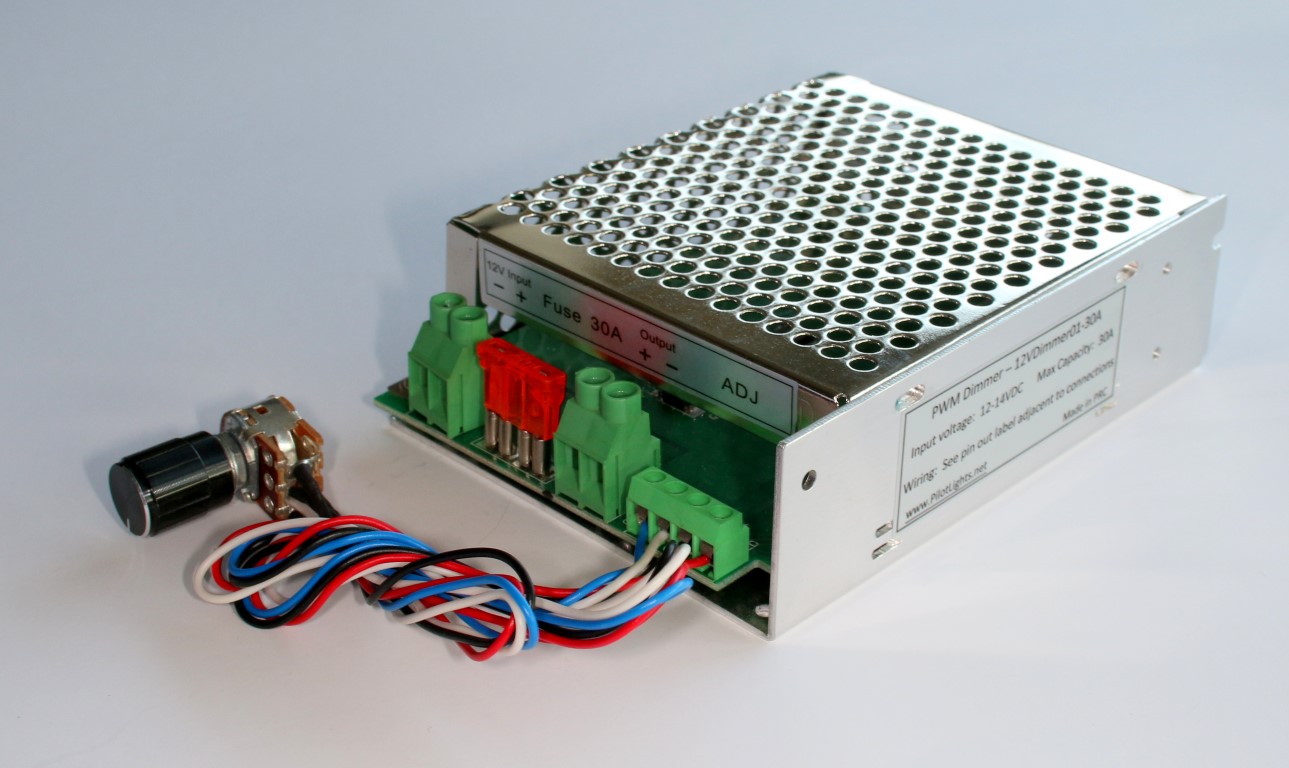

  • Modular construction - Separate Rheostat and Dimmer PCB.  Rheostat shaft diameter is 0.267" (17/64")(6.75mm).  Dimmer PCB (6" x 4" x 2.5") has 12 AWG screw-down input and output terminals
  • Color-coded wiring for easy installation of rheostat.  30cm of wire
  • On/Off Switch on Rheostat
  • New improved rheostat with 12mm of thread for mounting in thicker panels

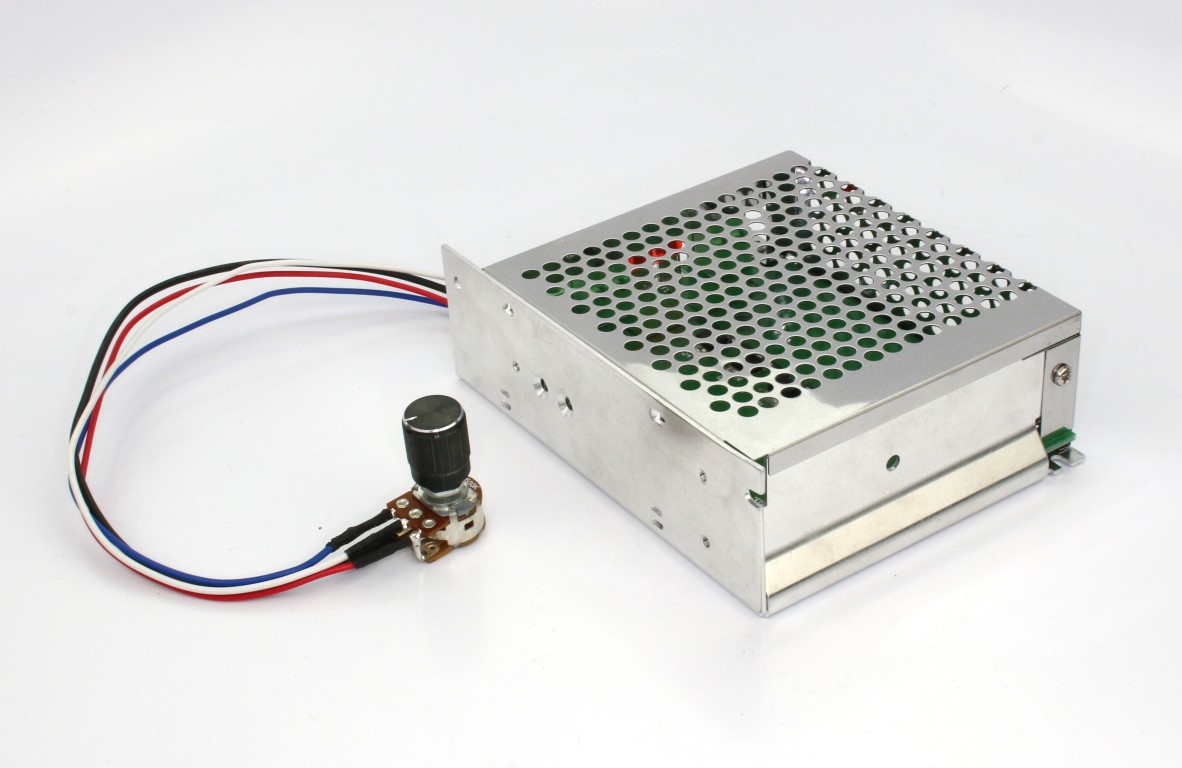

  • Dimmer case designed for vertical mounting (or zip-tie as needed)

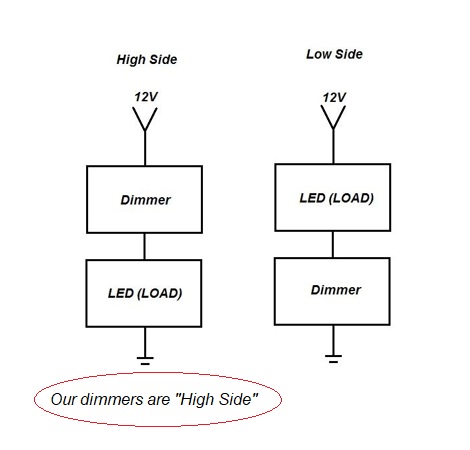

  • "High side" dimmer - connects between your power source and the LED / Incandescent load.



PART NUMBER:  12VDimmer01-30A-REMOTE



List price: $129.95
Catalog:
Related Products:
Price: $99.95
Weight: 1.5 lb
PDF File:
Dimensions: 8 in × 6 in × 3 in
