High Power 30 Amp (30A) PWM Dimmer - 24VDC

**NEW**

ULTRA HIGH POWER 30 AMP

24V (24-28V) PWM (PULSE WAVE MODULATION) DIMMER

• Extremely powerful PWM Dimmer - 30 Amps capacity
• Perfect for controlling large banks of LED lighting.
• Easy-to-install, on/off switch on rheostat.  Push-on knob included.
• Designed to control both LED and Incandescent lighting - 30 Amps maximum
• 24 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications
• Advanced design includes over-current protection, reverse polarity protection and over-voltage protection
• On board ATM fuse for additional protection

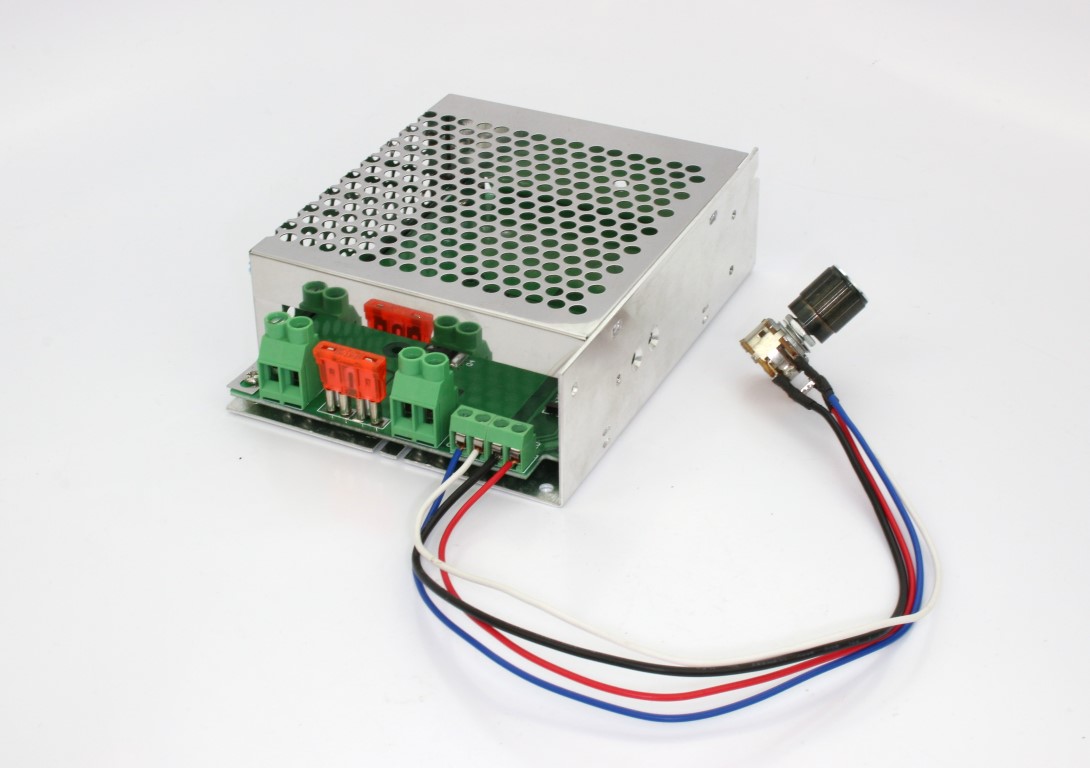

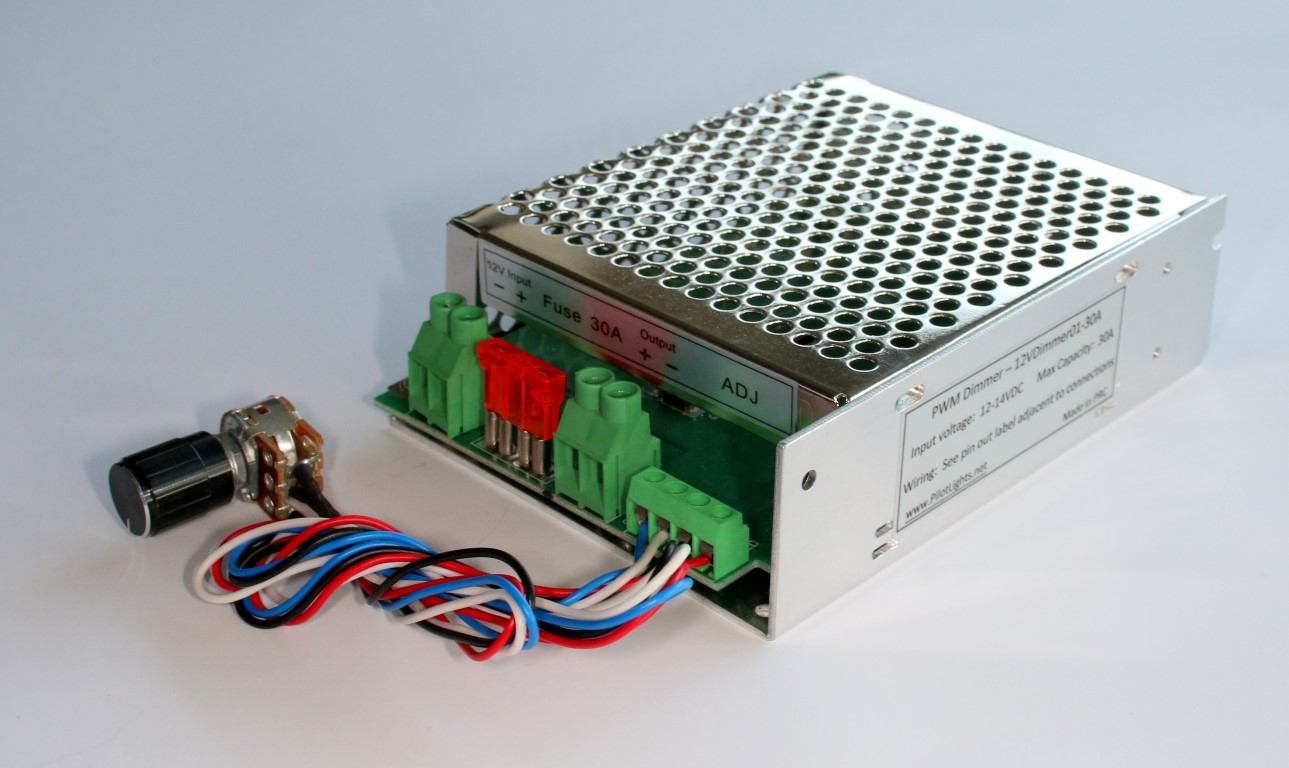

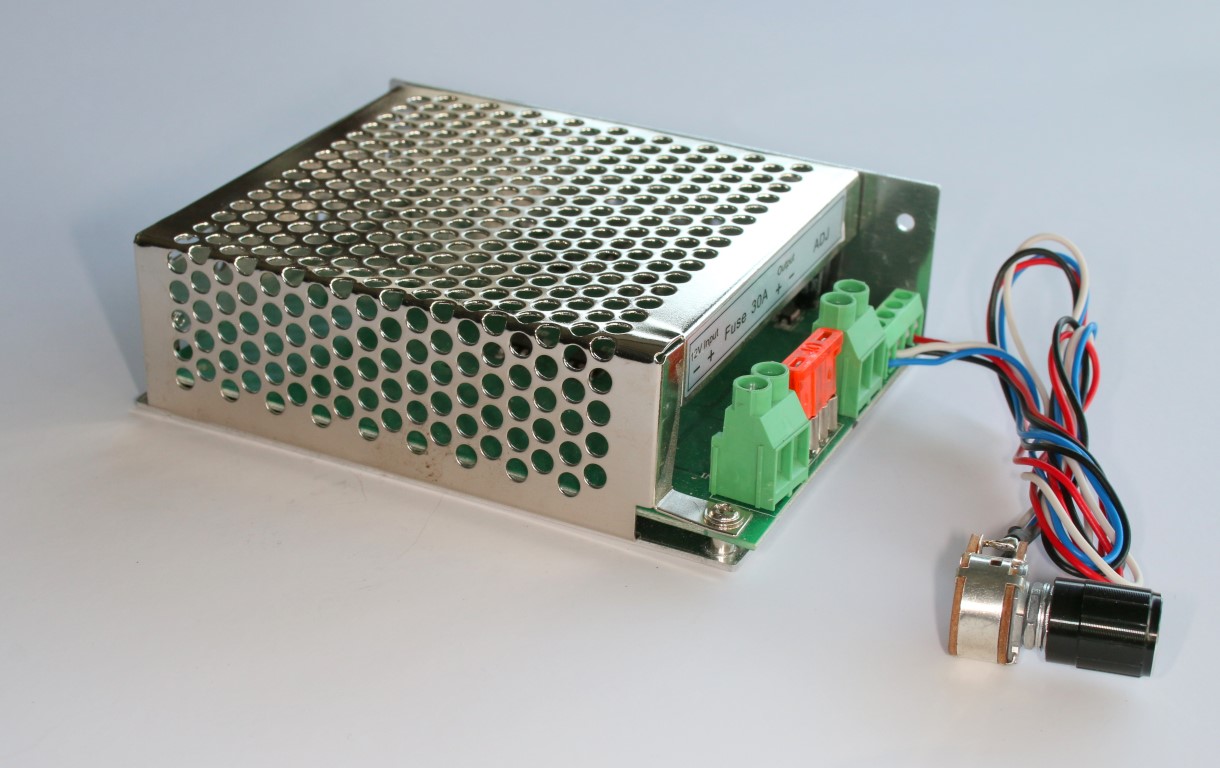

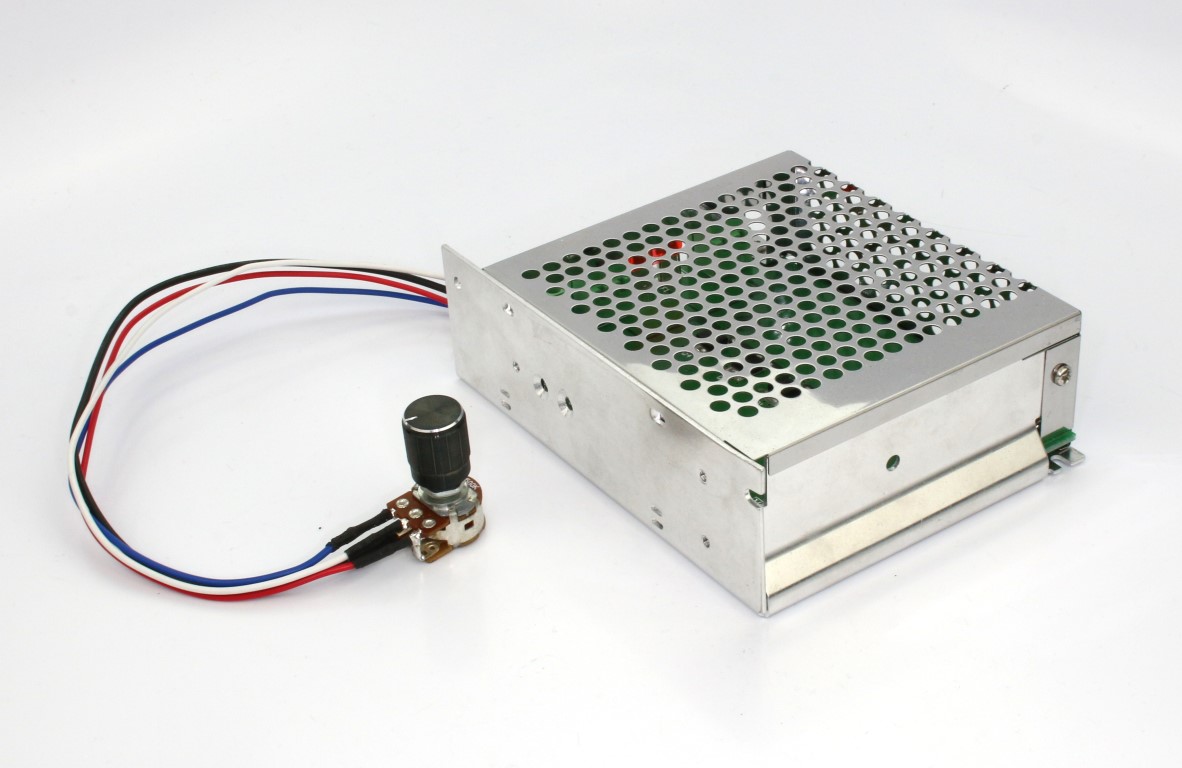

• Modular construction - Separate Rheostat and Dimmer PCB.  Rheostat shaft diameter is 0.267" (17/64")(6.75mm).  Dimmer PCB (6" x 4" x 2.5") has 12 AWG screw-down input and output terminals
• Color-coded wiring for easy installation of rheostat.  30cm of wire
• High-quality, large-format fluted type knob.
• New improved rheostat with 12mm of thread for mounting in thicker panels

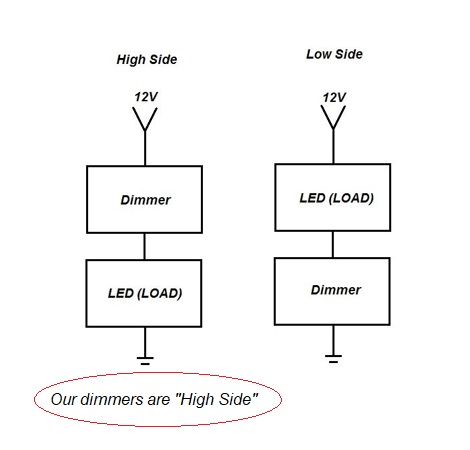

• "High side" dimmer - connects between your power source and the LED / Incandescent load.

PART NUMBER:  24VDimmer01-30A-REMOTE
