Panel Post Light - BLUE, AMBER or GREEN LED, 12V 24V

Our latest LED Panel and Post light is a tiny yet powerful fully waterproof and vibration-resistant fixture for instrument panel illumination.

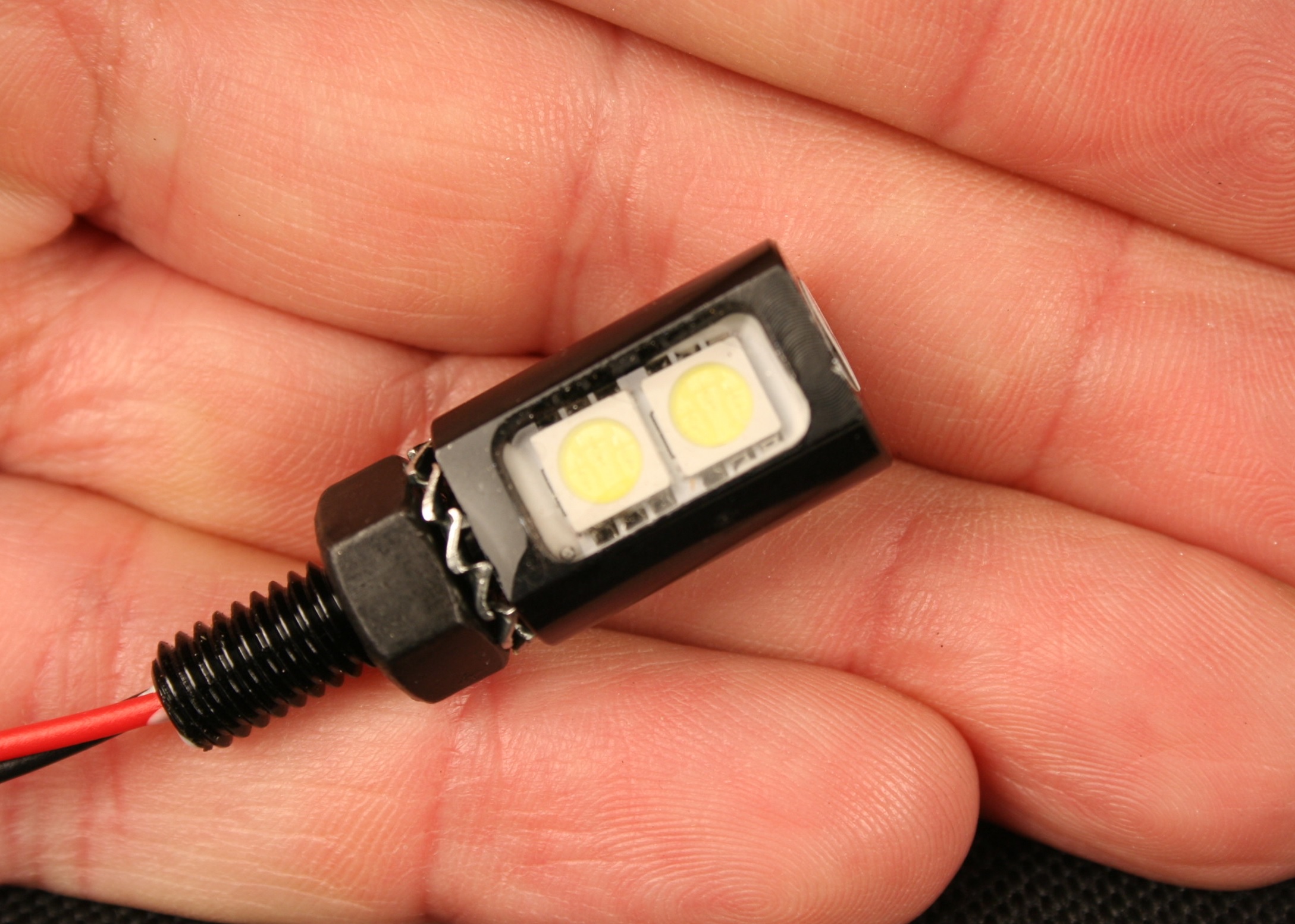

Featuring two (2) small but powerful 5050 LEDs, this post light is powerful, fully dimmable and directs light where needed.

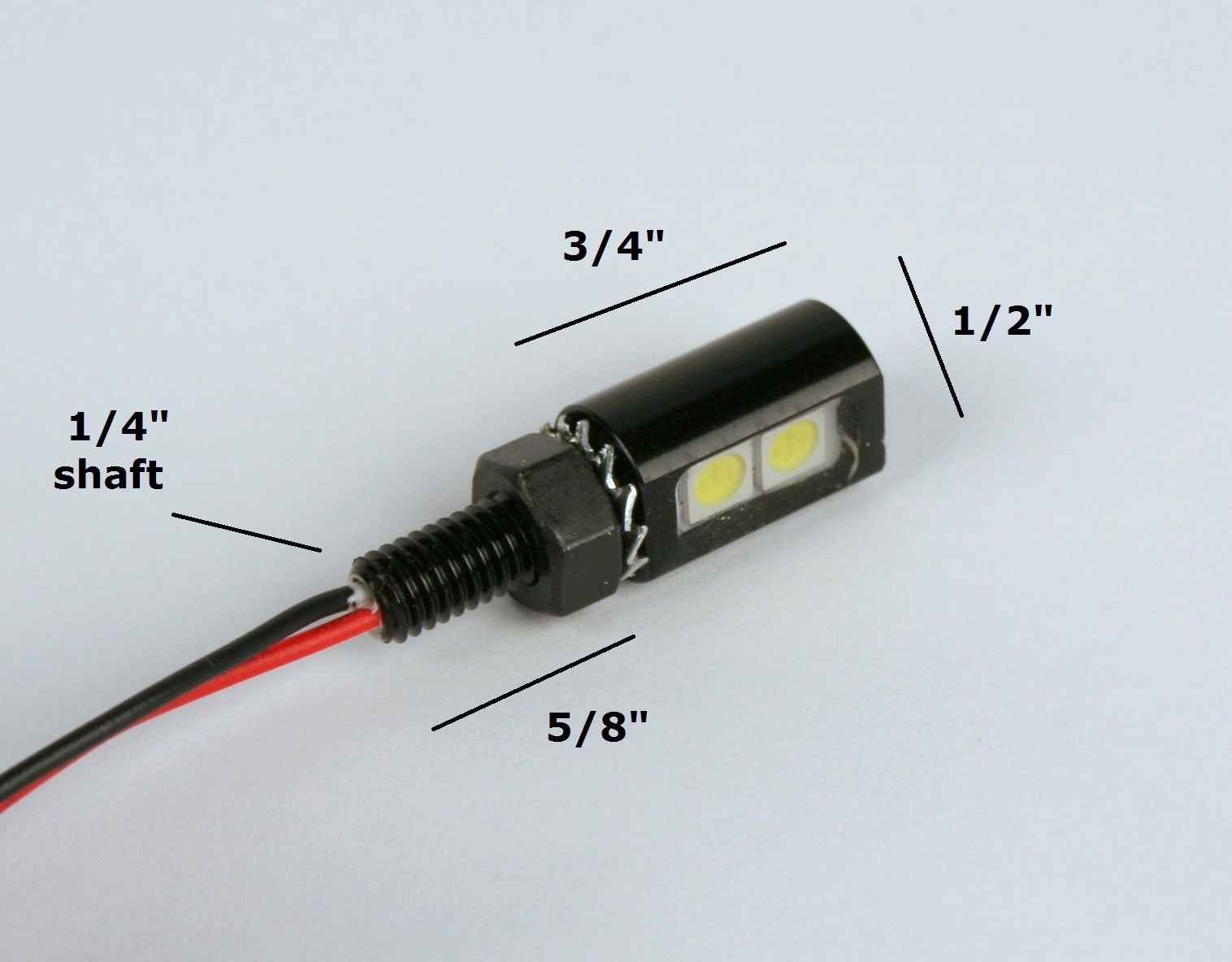

Fixture size:  3/4" length x 1/2" width

Mounts using the integrated 1/4" (6mm) threaded post - mounts in panels up to 1/2" thick.

LEDs are fully encapsulated and potted - fully waterproof and vibration resistant.  LEDs rated at 30,000 hours

Dimmable using simple rheostats or our PWM Dimmers

Applications:  Panel Lighting, Map Lights, Convenience Lights, Marine Lighting and Utility panels.

View Angle:  120 degrees

Output:  25lm  (lumens)

Color options:

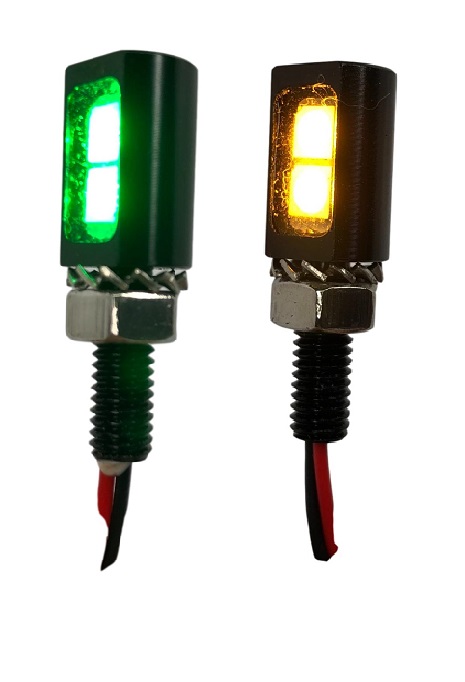

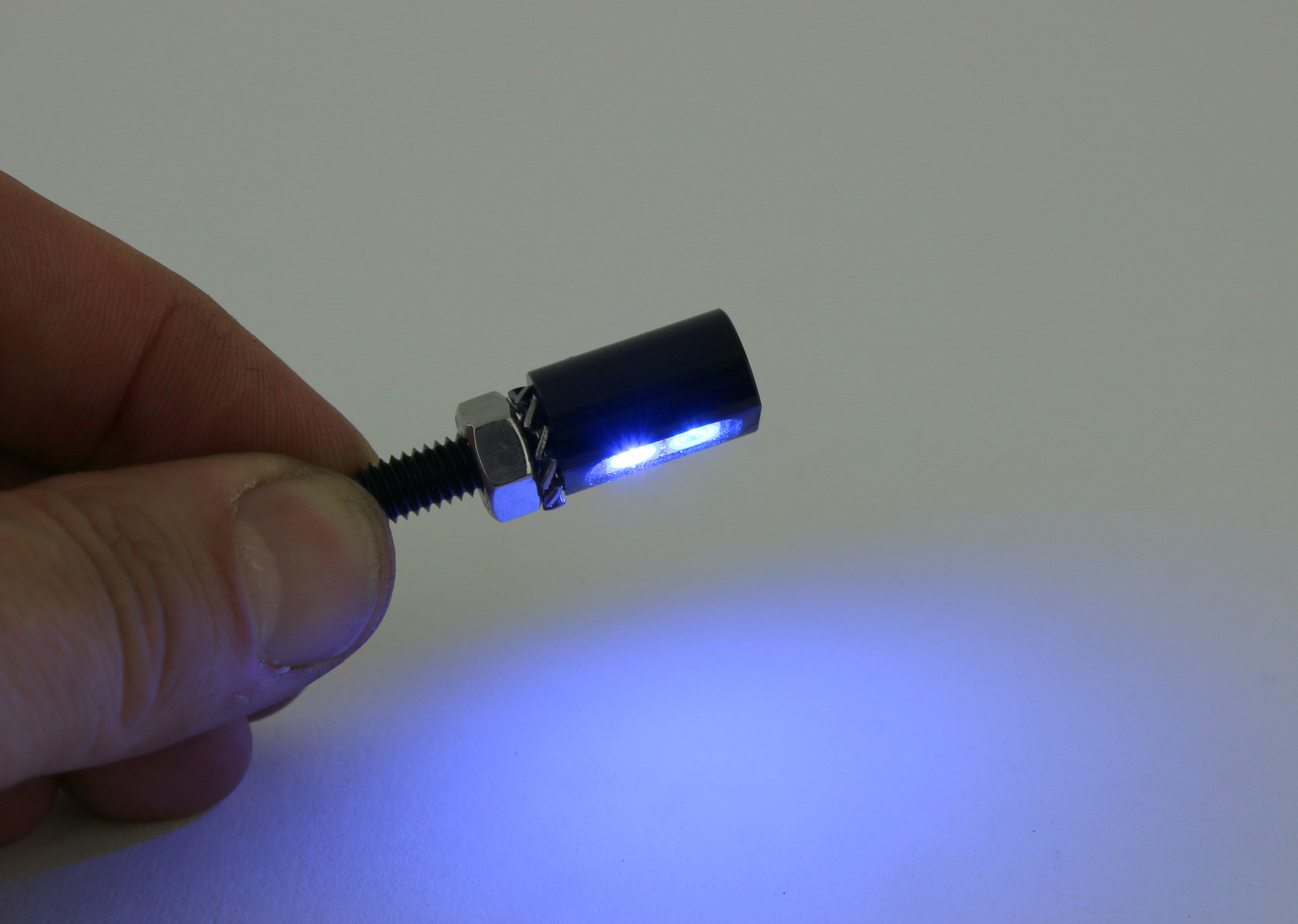

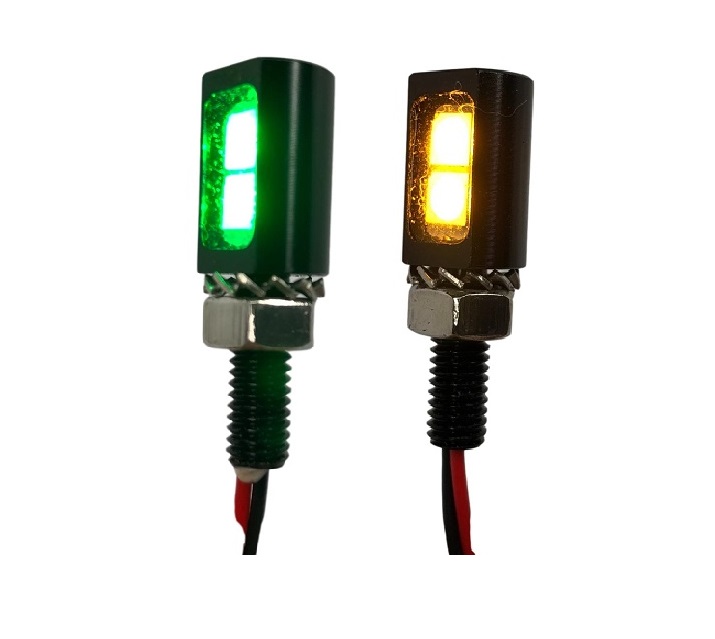

BLUE LED, 12VDC  and  BLUE LED, 24VDC

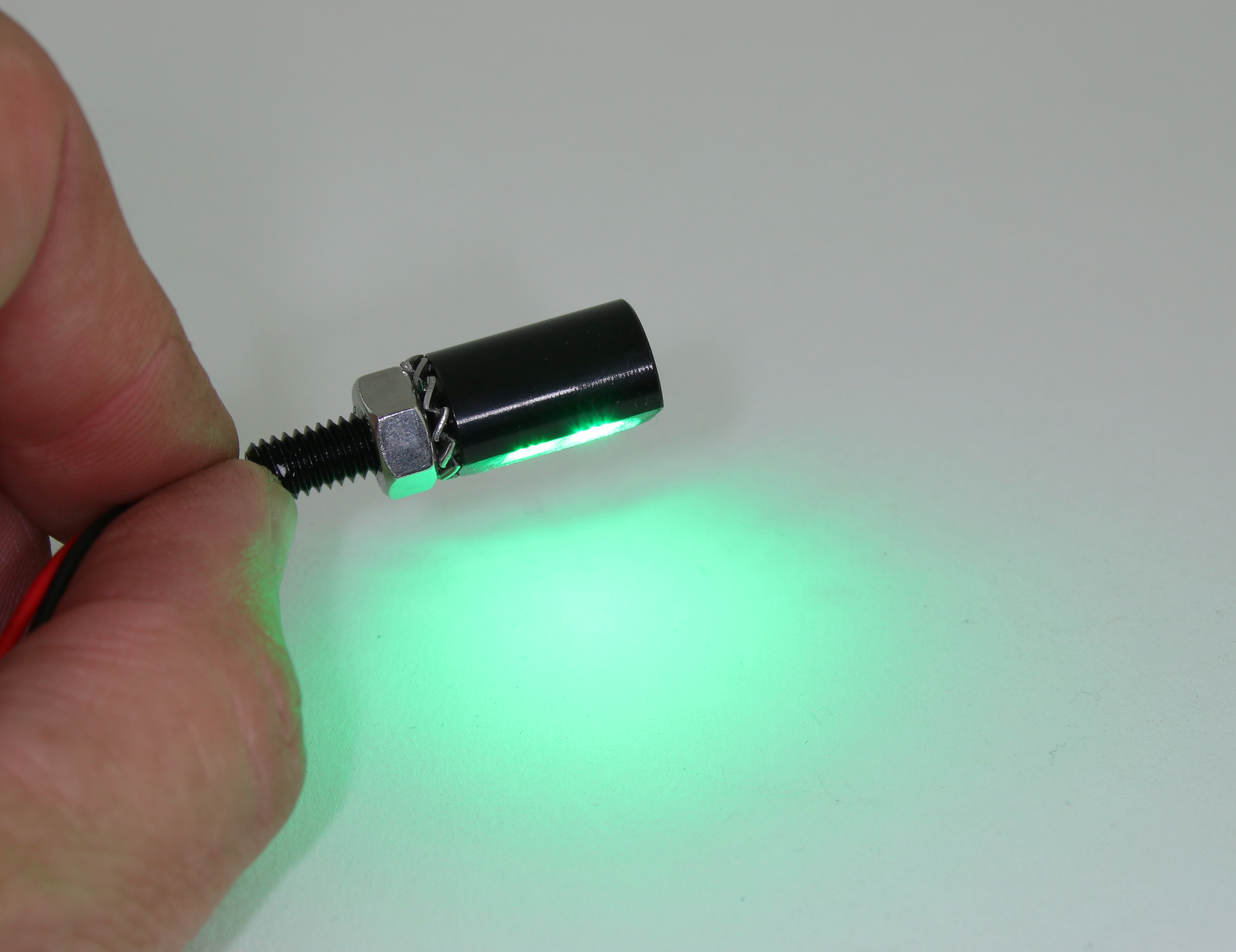

GREEN LED, 12VDC  and  GREEN LED, 24VDC

AMBER LED, 12VDC

See our other listing for White LED or Red LED, 12 or 24VDC

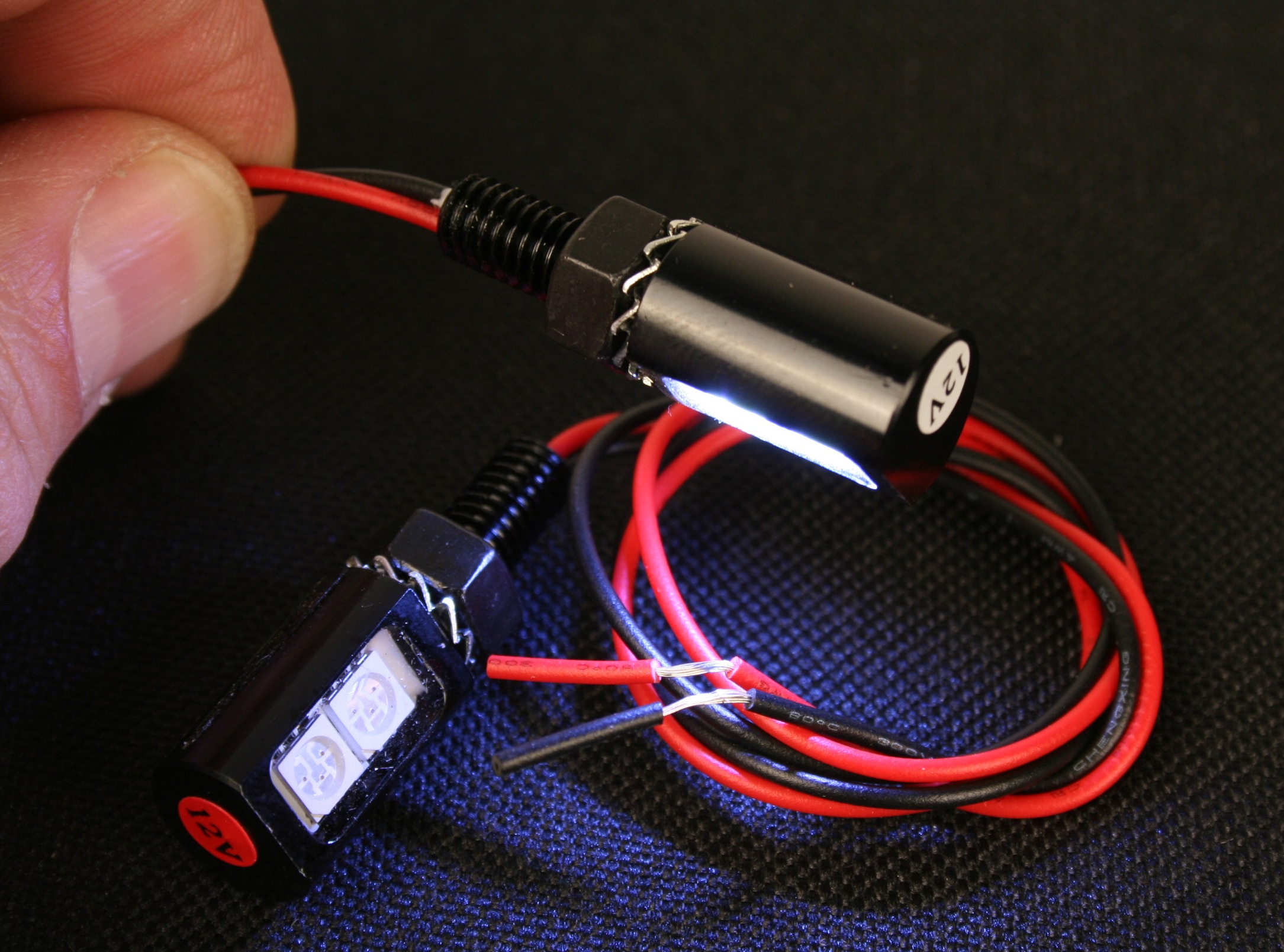

Simple wiring - color coded Red (+) and Black (-) lead wires, 10" length

Also see our new Mini Gooseneck Lamps in both 120mm and 240mm versions (12 and 24VDC) - these lamps add a small gooseneck to the Post Light housing.

Part number:  PANEL POST SERIES - 02

SKUs:

Panel-Post-Blue-12V;  Panel-Post-Blue-24V

Panel-Post-Amber-12V

Panel-Post-Green-12V;  Panel-Post-Green-24V
