LED Navigation Bulb Kits - Set of Three (3) Bulbs - Standard, non-reflector bulbs

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Mon, 01/16/2017 - 11:32
$59.95

Finally a powerful LED replacement for the expensive RA-7512 (14V) and W1290 (28V) navigation bulbs found on many General Aviation aircraft



** NEW ** - Combo Package Options:

3-Bulb LED Navigation Bulbs (standard, non-reflector style) - $59.95

2-Bulb LED Navigation Bulbs (standard, non-reflector style) - $49.95



Choose either COLORED LED Wingtip Bulbs or COOL WHITE LED Wingtip Bulbs (see details below)

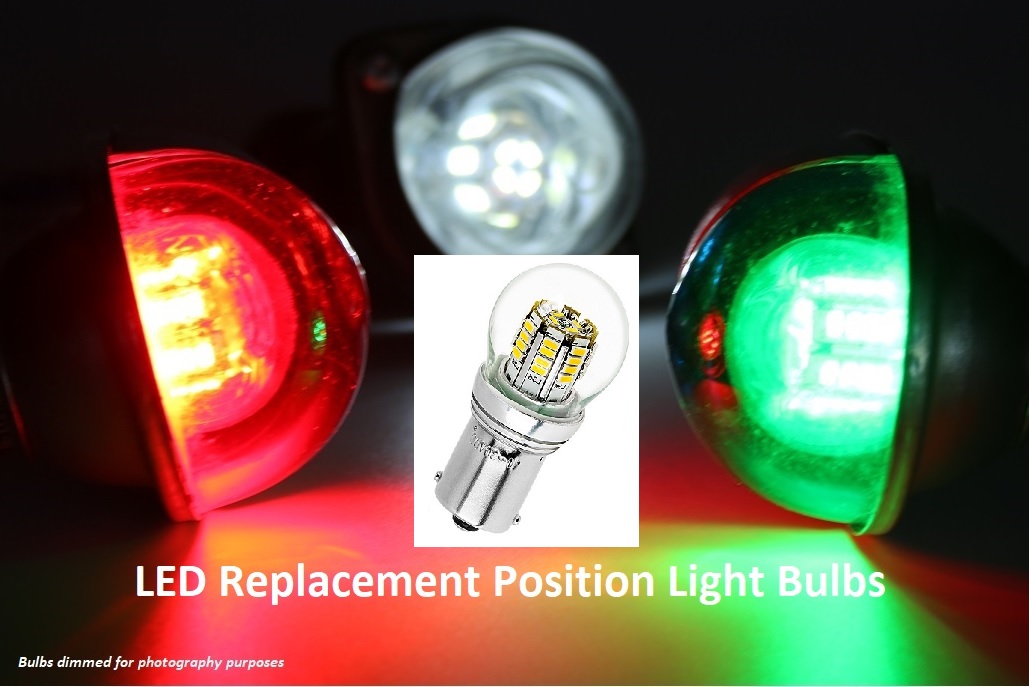

3 Bulb Kit Includes these bulbs:

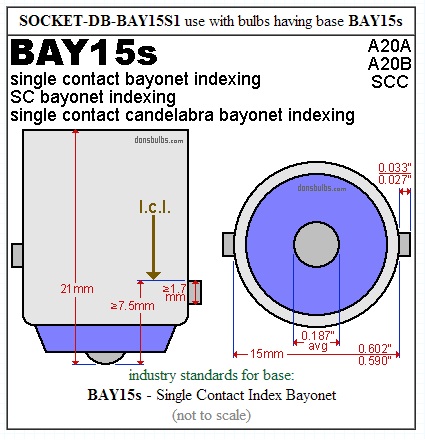

  • Two (2) RA-7512 LED replacements (one Red LED, one Green LED).  BAY15S base.  This is a direct replacement for old style GE reflector-type Nav bulbs.

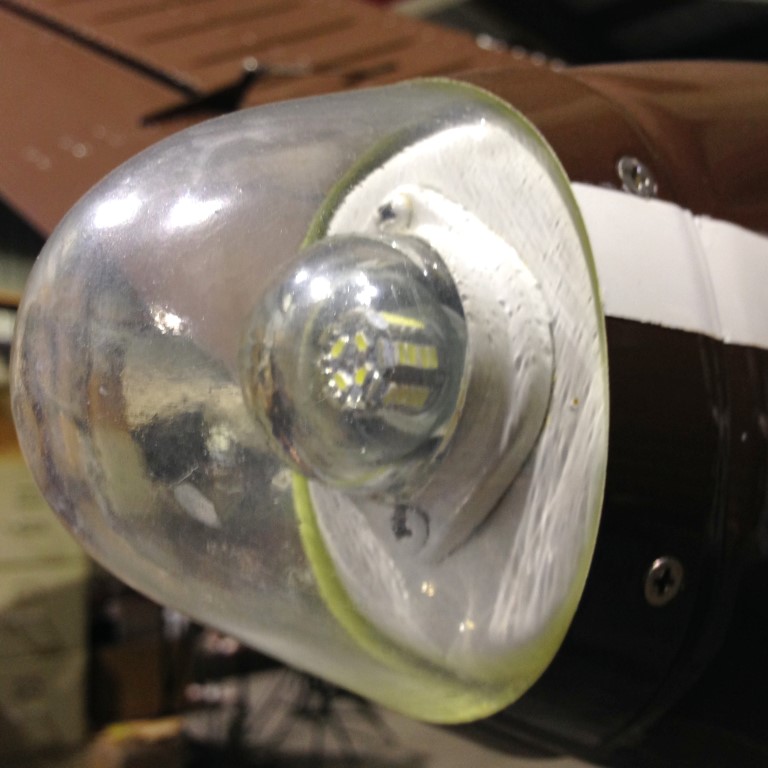

  • One (1) BA15S LED replacement bulb (Cool White LED, 10-30VDC compatible).  This fits most tail light Navigation bulb sockets.

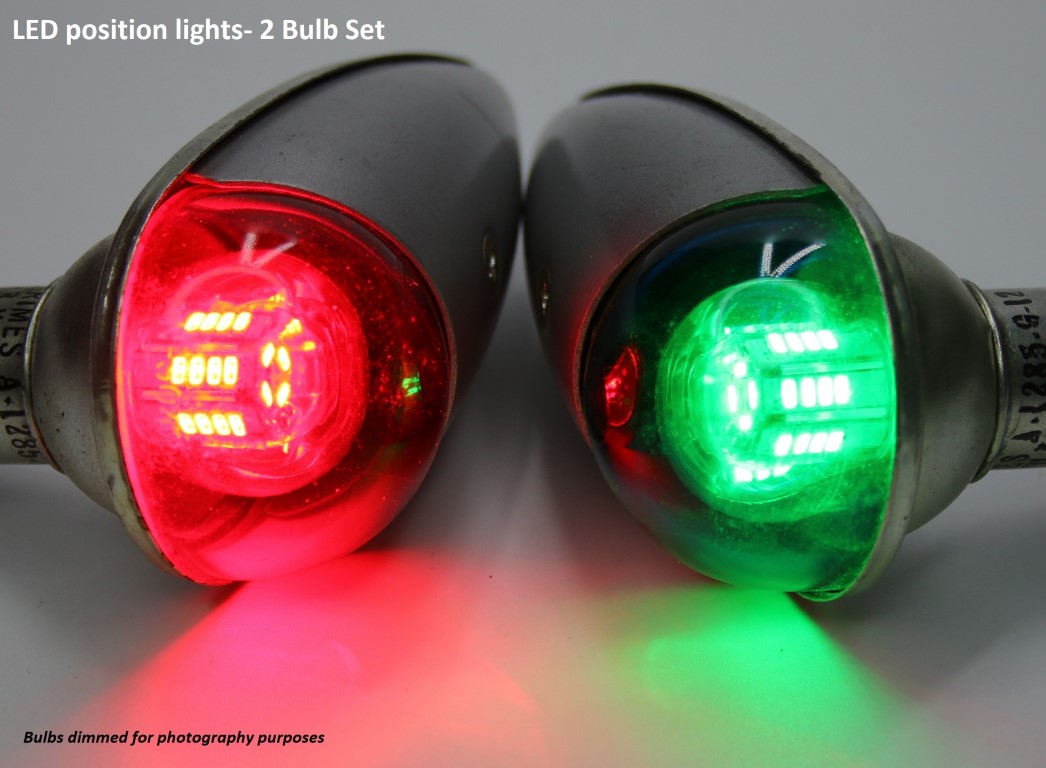

2 Bulb Kit Includes these bulbs:

  • Two (2) RA-7512 LED replacements (one Red LED, one Green LED).  BAY15S base.  This is a direct replacement for old style GE reflector-type Nav bulbs.
  • Ideal for Uavionix Tail beacon users who must keep power on to Nav lights to ensure the Tail beacon is functioning.  LED position bulbs reduce power requirements by about 3 amps !

Product details:

  • Applications include:  Rotating Beacons and Navigation Lights
  • 3 Watts of power. Very Low power consumption (less than 220mA @13.8V versus over 1.75 Amps PER BULB for incandescent)
  • 14VDC and 28VDC compatible; Over 30% brighter than incandescent
  • 300 Lumens (cool white);  Red/Green are less due to the color temperature
  •
  • Rated at 30,000 hours; Fully sealed glass dome
  • Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration" (suggested log entry might read "replaced incandescent position light bulbs with equivalent LED replacements, dated ##/##/##"...)

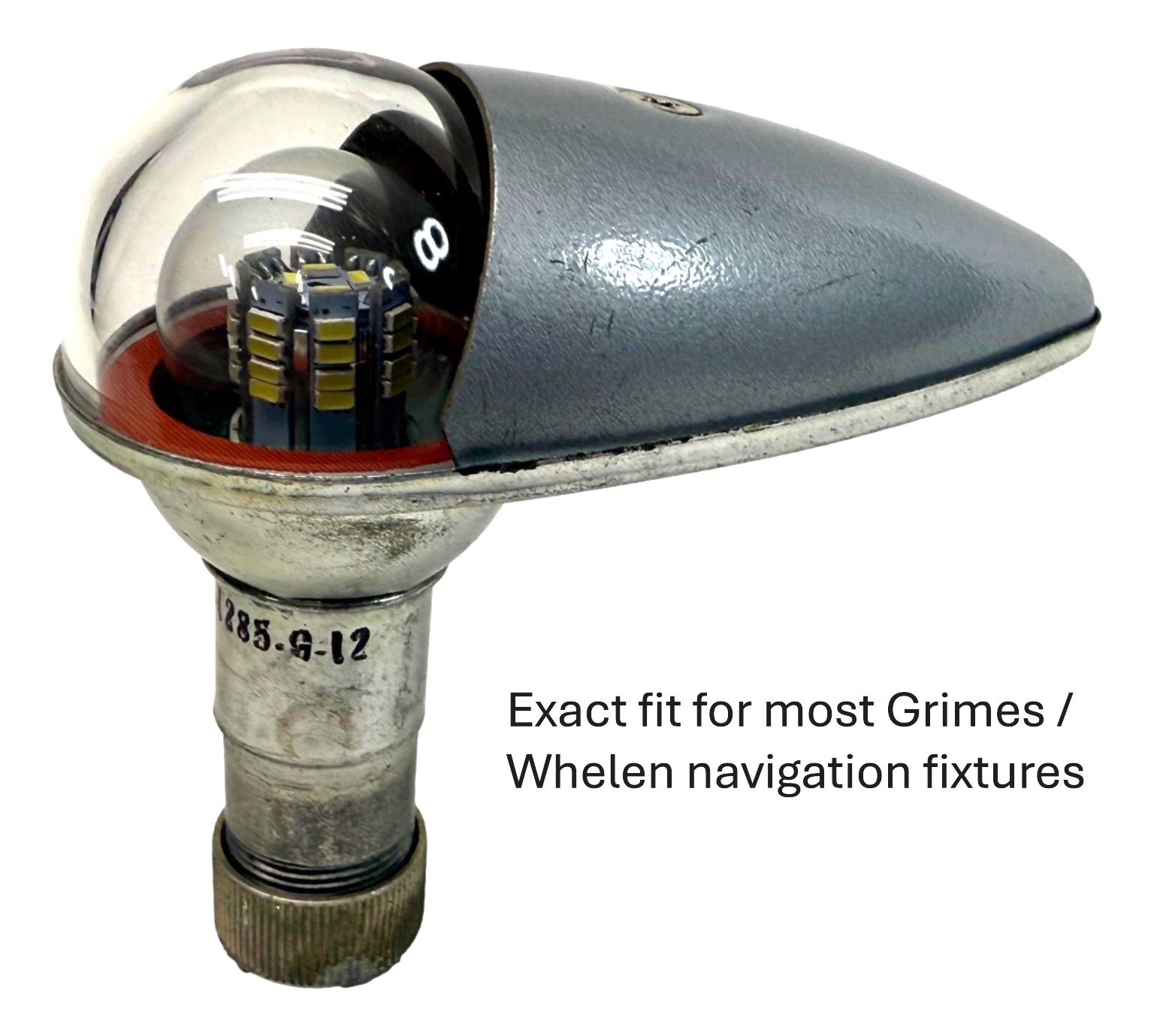

  • Tested in Grimes and Whelen Navigation lights and Grimes rotating beacons.  Super bright output and considerably less current demand than incandescent bulbs.

Colors:  RED LED and GREEN LED (BAY15S base - replaces the RA-7512 (14V) and W-1290 (28V) Nav Bulbs.

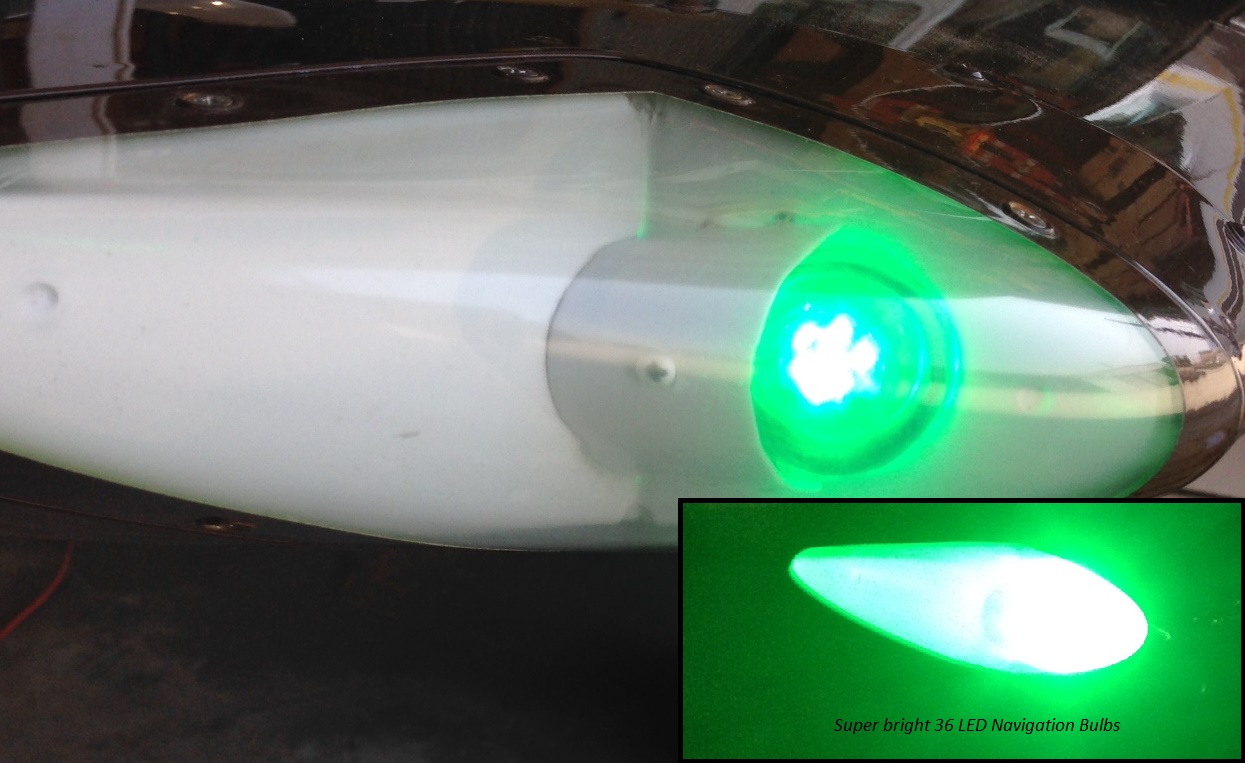

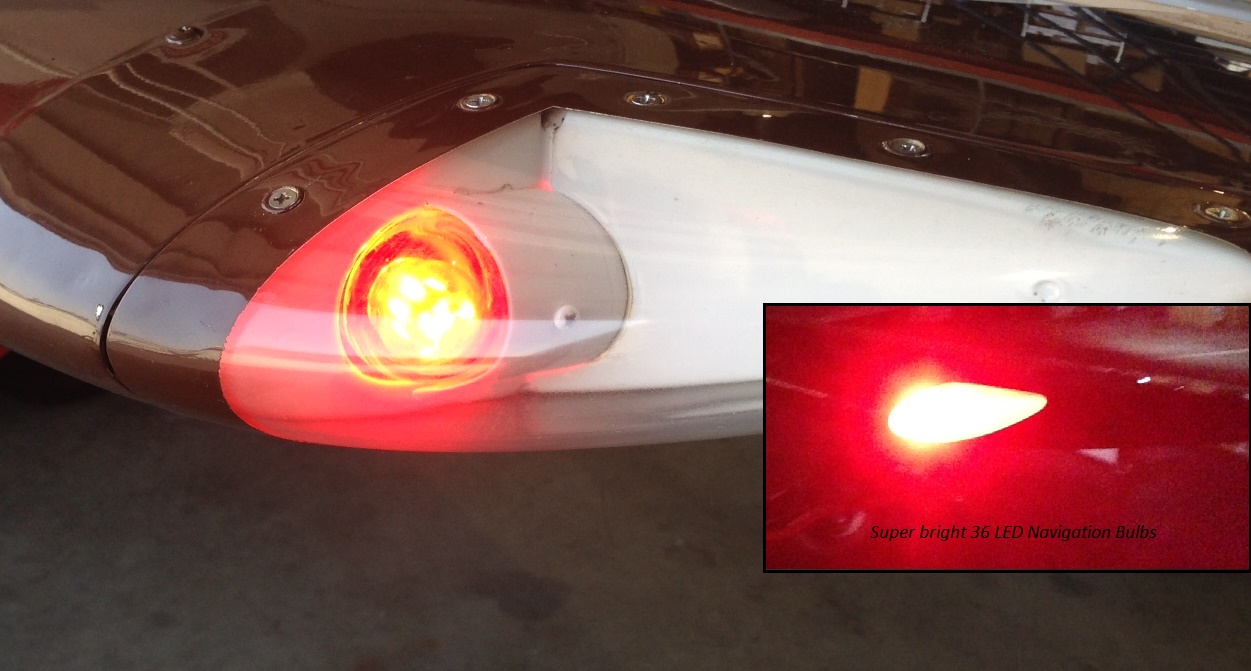

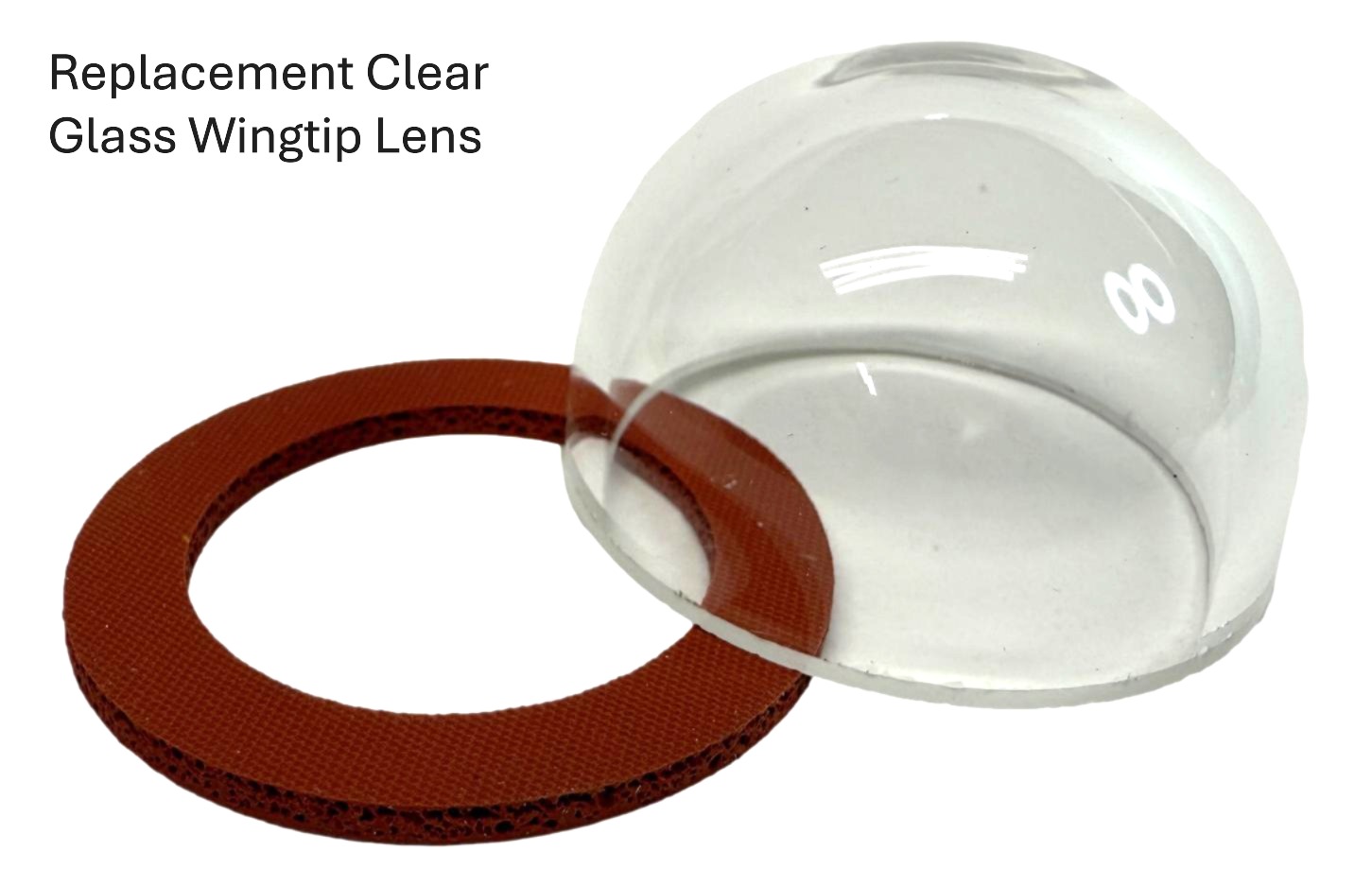

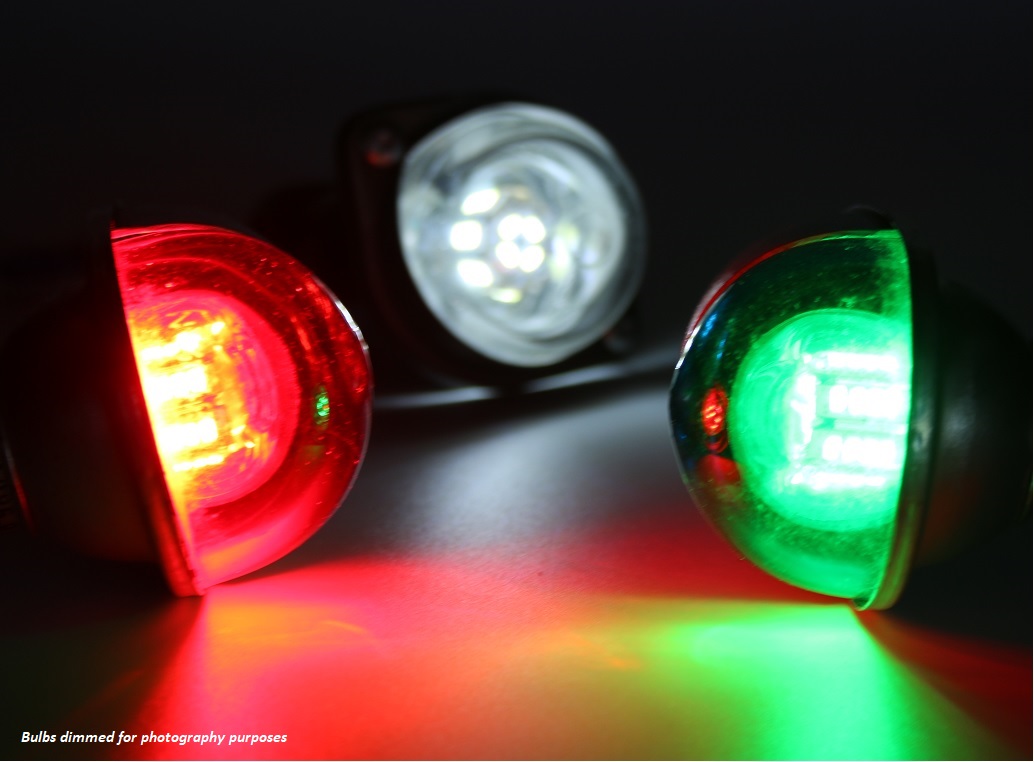

A Colored LEDs are used behind a Colored Nav Lens produces a very bright and intense Nav Light (see images) - OR, use our Replacement Clear Glass Lenses - see this link:

https://www.pilotlights.net/whelen-grimes-navigation-light-aircraft-wingtip-clear-glass-dome-gasket



If using a Uavionix Skybeacon, purchase a GREEN position bulb and a Cool White tail bulb at this link:

 - Green wingtip position bulb:  https://www.pilotlights.net/led-bulb-beacon-position-light-ra7512-ra-7512-w1290-nav-bulb-replacement-3w-12v-24v-bay15s

 - Cool white tail bulb (order the 1156 bulb) :  https://www.pilotlights.net/super-bright-3-watt-1076-1156-1157-bulbs



Voltage:  10-36 VDC compatible







List price: $59.95
Catalog:
AIRCRAFT NAV / POSITION BULBS
Related Products:
LED Bulb - Beacon & Position Light - Single Bulbs -- Nav Bulb Replacement - 3W 12V 24V BAY15S
Super Bright 3 Watt 1076 1156 1157 Bulbs
Dual USB Dual Voltage (12-24VDC) ULTRA FAST Charger (4.8A)
Price: $59.95
Weight: 6 oz
Dimensions: 3 in × 2 in × 3 in
