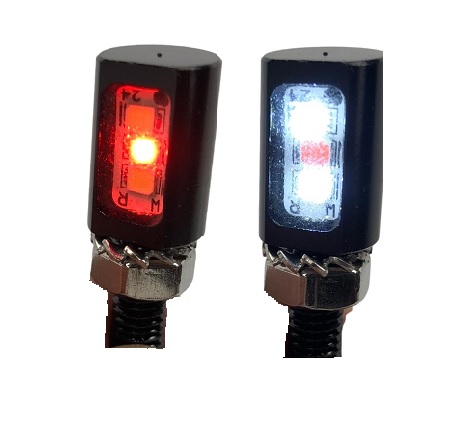

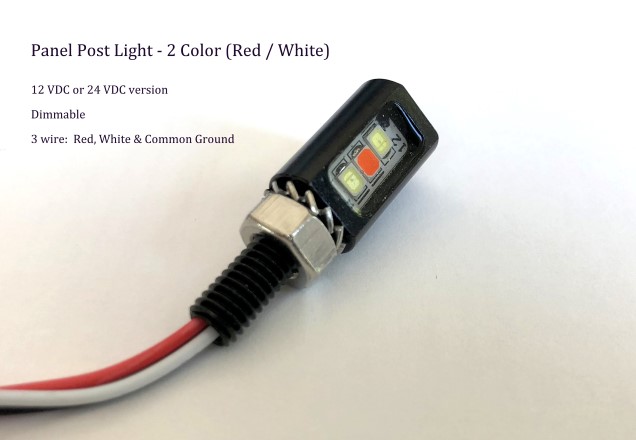

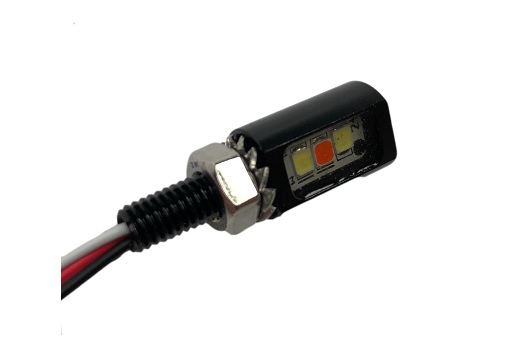

LED Panel Post Light - 2 Color (Red / White) 12V or 24V

RC-RPV-Pilotlights's picture
published by RC-RPV-Pilotlights on Tue, 04/10/2018 - 13:40
$17.95

** NEW **

Our newest LED Panel and Post light is a tiny yet powerful fully waterproof and vibration-resistant fixture for instrument panel illumination.

Featuring three (3) small but powerful 5050 LEDs, this post light is powerful, fully dimmable and directs light where needed.
Fixture size:  3/4" length x 1/2" width
Mounts using the integrated 1/4" (6mm) threaded post - mounts in panels up to 1/2" thick.
LEDs are fully encapsulated and potted - fully waterproof and vibration resistant.  LEDs rated at 30,000 hours
Dimmable using simple rheostats or our PWM Dimmers
Applications:  Panel Lighting, Map Lights, Convenience Lights, Marine Lighting and Utility panels.
View Angle:  120 degrees
Output:  25lm  (lumens, Cool White);  10-12 lm (Red)
Available in both 12-14VDC and 24-28VDC
Single color Post Lights are available in White, Red, Blue and Green LED, 12V and 24V (see our other listings)



Simple wiring - color coded Red (+) and White (+) lead wires.  A single Black (-) lead is common ground.  Wire length:  10"

Also see our new Mini Gooseneck Lamps in both 120mm and 240mm versions (12 and 24VDC) - these lamps add a small gooseneck to the Post Light housing.

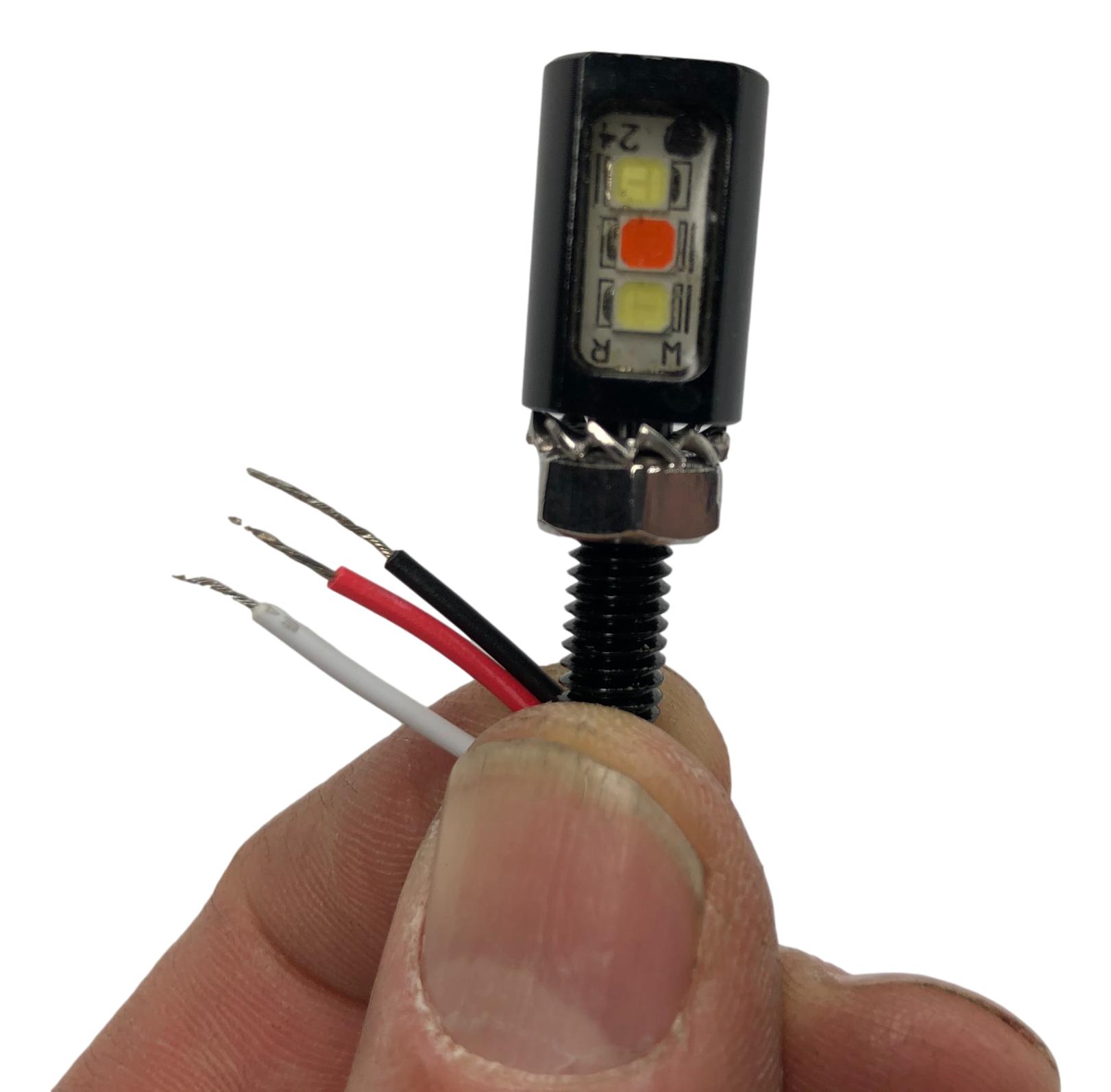

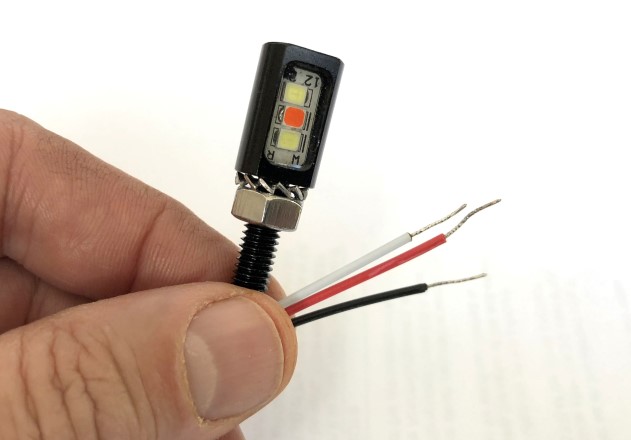

Installation note:  each post light has 3 leads (Red= red LED +;  White= white LED +;  Black= common ground).

Wire these to any type of switch you'd like to control the LED color that is turned on.


Part number:  PANEL POST 2-COLOR SERIES



List price: $21.95
Catalog:
LED Pilot Lights / Panel Lights
Related Products:
LED Panel Post Light - 12 or 24 Volt
Panel Post Light - BLUE, AMBER or GREEN LED, 12V 24V
Panel Post Light - Silver Base - 12VDC Cool White
Price: $17.95
Weight: 0.2 oz
Dimensions: 1 in × 0.25 in × 0.25 in
