PWM Dimmer - 12 VDC - High Power 7A - Remote Rheostat

• Extremely powerful PWM Dimmer - 7 Amps capacity
• Perfect for controlling interior lighting inside your RV, Truck, Auto, Boat or Aircraft.
• Easy-to-install, smooth control rheostat.  High quality fluted knob included.  (Note:  Rheostat does not have an integrated on/off switch - in full counterclockwise it is OFF)
• Designed to control both LED and Incandescent lighting - 7 Amps per channel
• 12 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications
• Advanced design includes over-current protection, reverse polarity protection and over-voltage protection

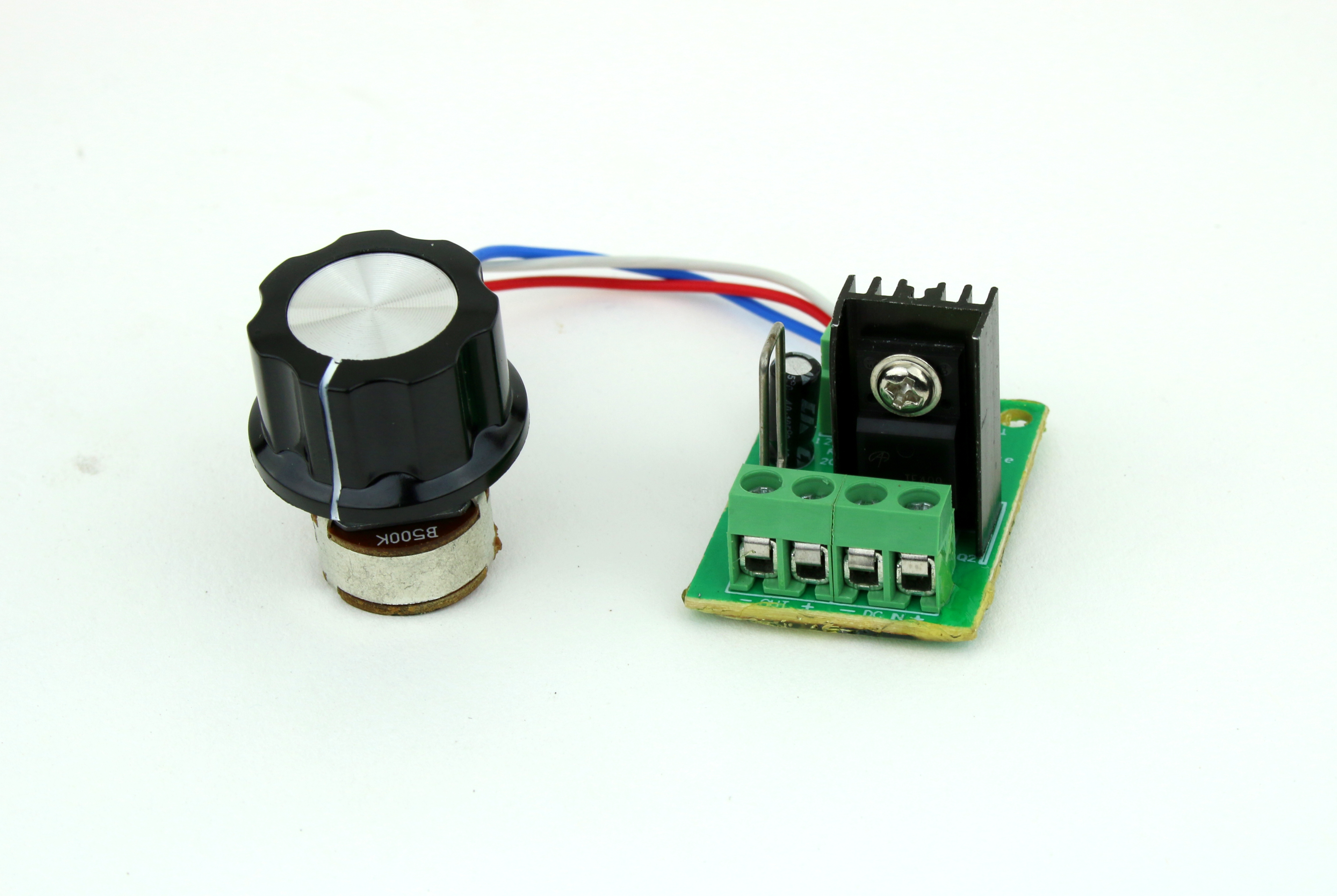

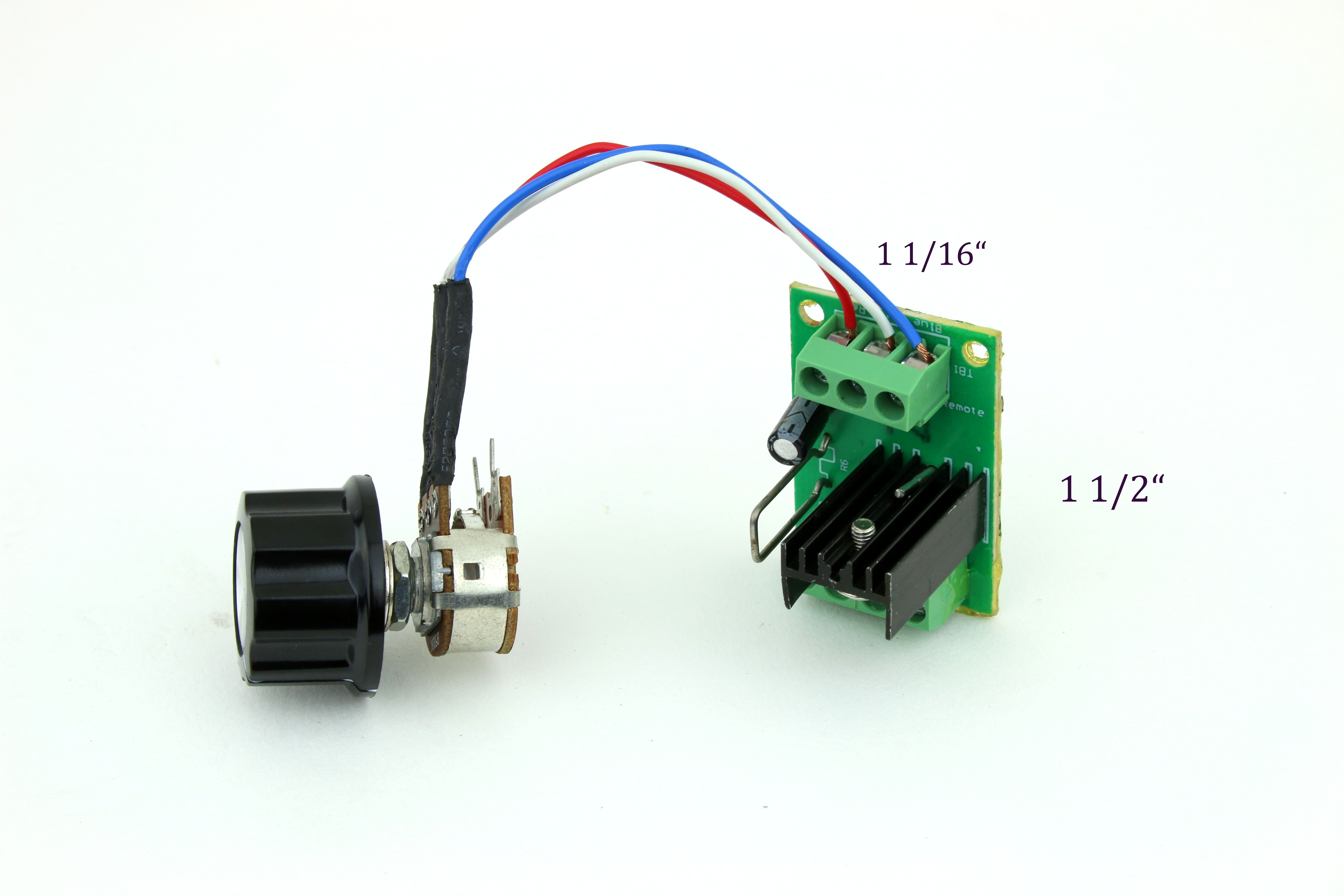

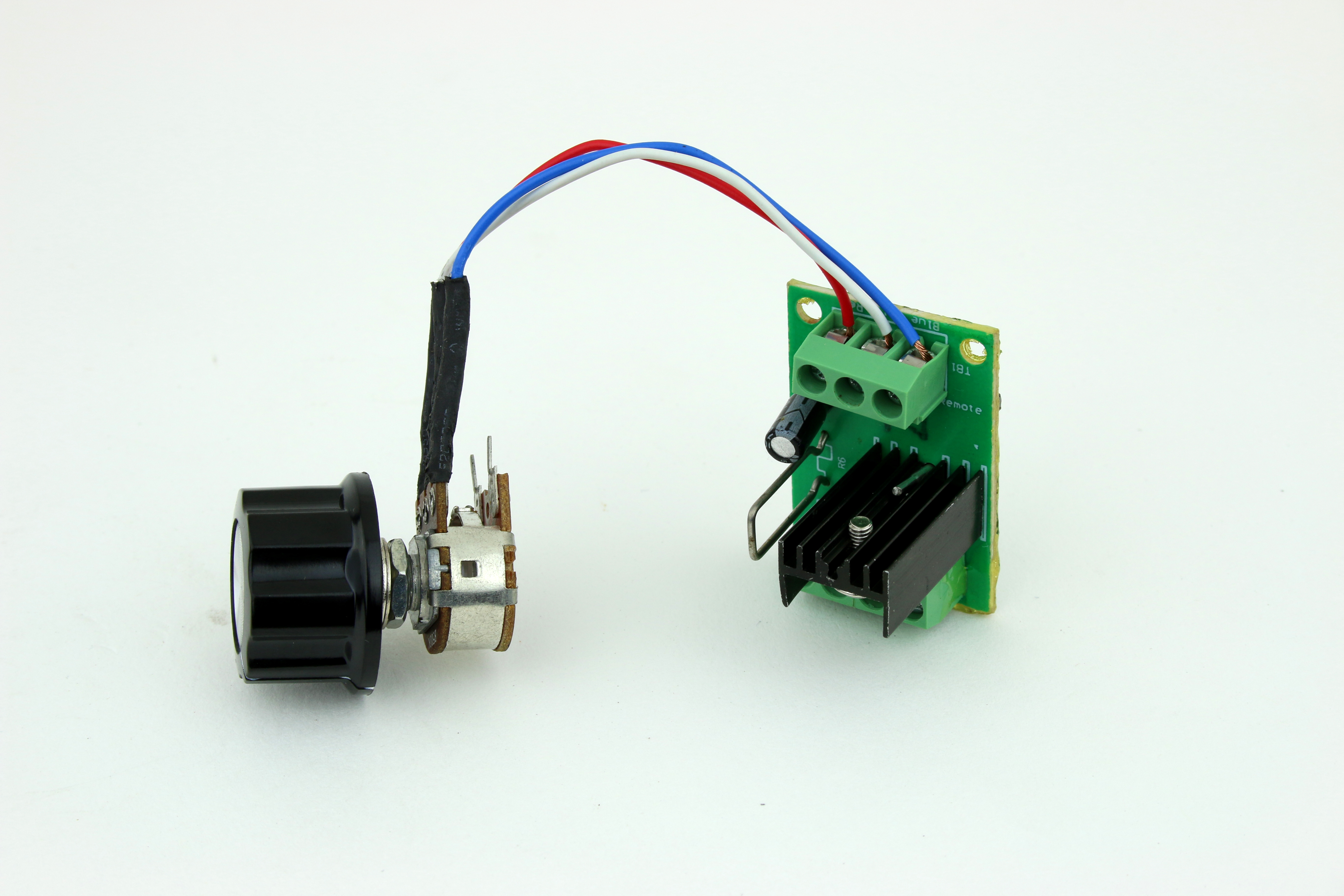

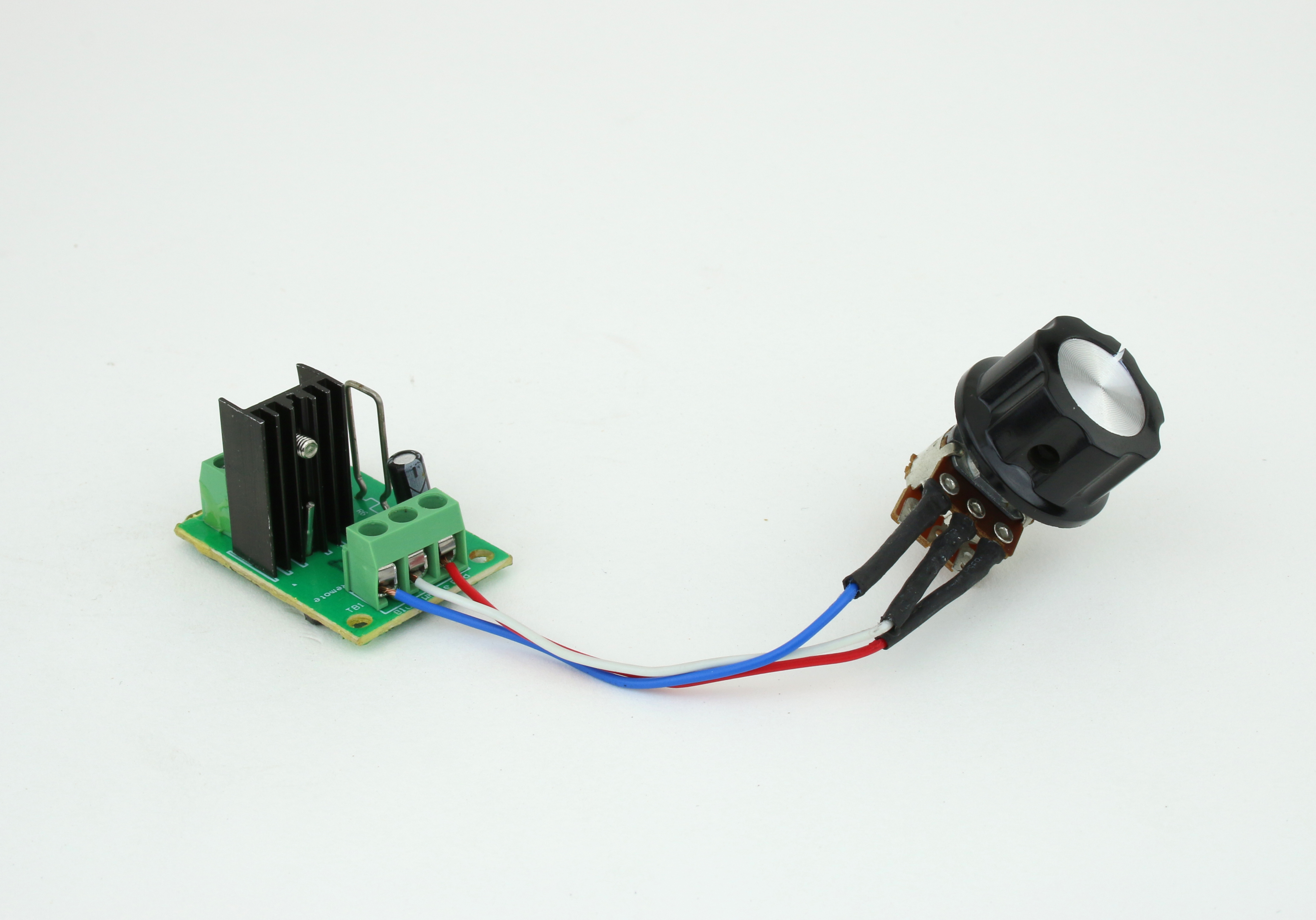

• Modular construction - Separate Rheostat and Dimmer PCB.  Rheostat shaft is 0.267" (17/64")(6.75mm).  Dimmer PCB (1 1/16" x 1.5") has screw-down input and output terminals
• Color-coded wiring for easy installation.  30cm of wire (our images show shorter length - actual supplied wire is longer)
• High-quality, large-format fluted type knob.
• New improved rheostat with 12mm of thread for mounting in thicker panels

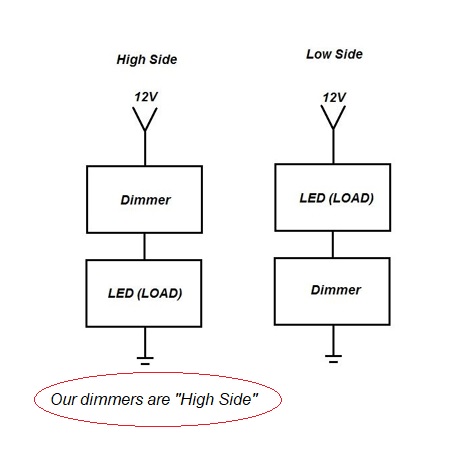

• "High side" dimmer - connects between your power source and the LED / Incandescent load.

PART NUMBER:  12VDimmer01-7A-REMOTE
